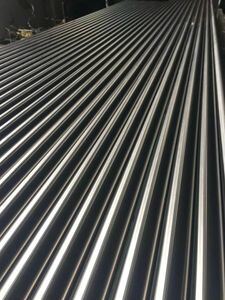

Hot Rolled Inconel 600 Nickel Alloy Round Bar with Polished Surface and Anti Oxidation Properties
Product Details
| Model NO. | Inconel 600 | Shape | Round |
|---|---|---|---|
| Technique | Hot Rolled | Surface Treatment | Polished |
| Specification | 3-300mm | Material Designation | Inconel 600 Nickel Based Alloy |
| US Grade | N06600 / NS3102 | Carbon Content | ≤0.15% |
| Silicon Content | ≤0.50% | Manganese Content | ≤1.00% |
| Phosphorus Content | ≤0.040% | Sulfur Content | ≤0.015% |
| Chromium Content | 14.0-17.0% | Nickel Content | ≥72.0% |
| Copper Content | ≤0.50% | ||
| Highlight | Hot Rolled Nickel Alloy Round Bar,Polished Surface Inconel 600 Round Bar,Anti Oxidation Nickel Based Alloy Bar |
||
Product Description
Inconel 600 Nickel Alloy Round Bar
OD20×2000mm Inconel 600, Inconel 750, 617 Nickel Alloy Round Bar
Product Overview
UNS N06600 Anti-Oxidation Inconel 600 Nickel Based Alloy Seamless Plate
Material designation: Inconel 600 nickel based alloy
US grade: N06600 / NS3102
Inconel 600 (N06600) Nickel-Based Alloy Characteristics
Inconel 600 is an early-developed nickel-chromium-iron-based solid solution strengthened alloy. It offers excellent high-temperature corrosion and oxidation resistance, superior hot and cold processing capabilities, and outstanding welding performance. The alloy maintains satisfactory heat resistance and high-temperature plasticity below 700°C.
This alloy can be strengthened through cold working and can be joined using resistance welding, solvent welding, or brazing techniques. It is ideally suited for manufacturing anti-oxidation components that bear low loads below 1100°C.
Chemical Composition
| C≤ | Si≤ | Mn≤ | P≤ | S≤ | Cr≥ | Ni≥ | Mo≥ | Cu≤ |
|---|---|---|---|---|---|---|---|---|
| 0.15 | 0.50 | 1.00 | 0.040 | 0.015 | 14.0-17.0 | 72.0 | - | 0.50 |
Other Elements
| N≤ | Al≤ | Ti≤ | Fe≤ | Co≤ | V≤ | W≤ | Nb+Ta |
|---|---|---|---|---|---|---|---|
| 0.35 | 0.50 | 6.0-10.0 | - | - | - | ≤1.00 | - |
Note: Aerospace material standard BZ-44-9003B-0 specifies ω(C) ≤ 0.10%, ω(P) ≤ 0.020%, and ω(Nb) ≤ 1.00%.
Standard Specifications
Cold Rolled Sheet Dimensions (mm):
- 0.5 × 1219 × C
- 1.0 × 1219 × C
- 1.5 × 1219 × C
- 2.0 × 1219 × C
- 2.5 × 1219 × C
- 3.0 × 1219 × C
Hot Rolled Sheet Dimensions (mm):
- 3.0 × 1500 × C
- 4.0 × 1500 × C
- 5.0 × 1500 × C
- 6.0 × 1500 × C
- 8.0 × 1500 × C
- 10 × 1500 × C
- 12 × 1500 × C
- 14 × 1500 × C
- 16 × 1500 × 6000
- 18 × 1500 × 6000
- 20 × 1500 × 6000
- 25 × 1500 × 6000
- 30 × 1500 × 6000
Custom Length: Available according to your requirements
