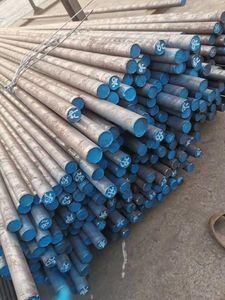

ASTM A564 Type 630 H1150 Hot Rolled Bright Surface Stainless Steel Bar Rod OD 6-300mm

Certification	ISO, AISI, ASTM, EN, DIN, JIS
Minimum Order Quantity	50 kg
Price	US $2.65-9.88 / kg

Product Details

Model NO.	630	Shape	Round
Technique	Hot Rolled	Surface Treatment	Bright
Specification	OD 6-300mm	Production Capacity	50000kgs
Tensile Strength	1105-1310 MPa	Yield Strength	724-1170 MPa
Elongation	10-16%	Hardness	28-44 HRC
Density	7750 Kg/m³	Thermal Conductivity	18.4-22.7 W/m.K
Specific Heat	460 J/kg.K	Electrical Resistivity	800 NΩ.m
Max Temperature	572°F (300°C)
Highlight	Hot Rolled Stainless Steel Bar , Bright Surface 17-4PH Stainless Steel , OD 6-300mm 630 Stainless Steel

Leave a Message

Product Description

ASTM A564 Type 630 H1150 Stainless Steel Bar Rod

17-4PH Stainless Steel Overview

17-4 Precipitation Hardening (Type 630) is a chromium-copper precipitation hardening stainless steel designed for applications requiring high strength and moderate corrosion resistance. This alloy maintains high strength up to approximately 600°F (316°C).

Key Characteristics

Alloy 17-4 PH is a precipitation hardening martensitic stainless steel with copper and niobium additions. It combines high strength, hardness (up to 572°F / 300°C), and excellent corrosion resistance. Mechanical properties can be optimized through heat treatment, achieving very high yield strength up to 1100-1300 MPa (160-190 ksi).

Applications & Standards

Applications	Standards
Offshore (foils, helicopter deck platforms) Food industry equipment Pulp and paper industry Aerospace (turbine blades) Mechanical components Nuclear waste casks	ASTM A693 grade 630 (AMS 5604B) UNS S17400 EURONORM 1.4542 X5CrNiCuNb 16-4 AFNOR Z5 CNU 17-4PH DIN 1.4542

Chemical Composition

Table 1: Composition ranges for grade 630 stainless steels

Element	Content (%)
C	0.07 max
Mn	1.0 max
Si	1.0 max
P	0.04 max
S	0.030 max
Cr	15.0 - 17.5
Ni	3.0 - 5.0
Cu	3.0 - 5.0
Nb+Ta	0.15 - 0.45

Mechanical Properties

Table 2: Mechanical properties of grade 630 stainless steels

Condition	Tensile Strength (MPa)	Yield Strength 0.2% Proof (MPa)	Elongation (% in 50mm)	Hardness Rockwell C (HRC)
Solution Treated	1105 typ	1000 typ	15 typ	38 max
Condition 900	1310 min	1170 min	10 min	40 min
Condition 1150	930 min	724 min	16 min	28 min

Physical Properties

Table 3: Typical physical properties of grade 630 stainless steels

Property	Value
Density (kg/m³)	7750
Mean Coefficient of Thermal Expansion 0-100°C (µm/m/°C)	10.8
Thermal Conductivity at 100°C (W/m·K)	18.4
Specific Heat 0-100°C (J/kg·K)	460
Electrical Resistivity (nΩ·m)	800

Heat Treatment

Grade 630 stainless steels are solution treated at 1040°C for 0.5 hours followed by air cooling. Age hardening at low temperatures achieves required mechanical properties with minimal distortion.

Machining & Welding

This alloy can be machined in solution-treated condition with rates similar to grade 304 stainless steel. It can be welded using all conventional methods without pre-heating requirements.

Typical Applications

Engine components
High strength boat propeller shafts
Plastic molding dies
Valves and gears
