ASTM A564 SUS 631 17-7PH Stainless Steel Round Bar with Bright Surface and OD 6-300mm

  • ASTM A564 SUS 631 17-7PH Stainless Steel Round Bar with Bright Surface and OD 6-300mm
  • ASTM A564 SUS 631 17-7PH Stainless Steel Round Bar with Bright Surface and OD 6-300mm
  • ASTM A564 SUS 631 17-7PH Stainless Steel Round Bar with Bright Surface and OD 6-300mm
  • ASTM A564 SUS 631 17-7PH Stainless Steel Round Bar with Bright Surface and OD 6-300mm
  • ASTM A564 SUS 631 17-7PH Stainless Steel Round Bar with Bright Surface and OD 6-300mm
  • ASTM A564 SUS 631 17-7PH Stainless Steel Round Bar with Bright Surface and OD 6-300mm
  • ASTM A564 SUS 631 17-7PH Stainless Steel Round Bar with Bright Surface and OD 6-300mm
Certification ISO, AISI, ASTM, EN, DIN, JIS
Minimum Order Quantity 50 kg
Price US $3.15-4.66 / kg
Product Details
Model NO. 631 Shape Round
Technique Hot Rolled Surface Treatment Bright
Specification OD 6-300mm Diameter 1/4''~16''
Length 1~8 Meters Diameter Tolerance H9, H11, H13, K9, K11, K13
Length Tolerance 0/+50mm Finishing Solution Treated + Age Hardening Heat Treated (H900, H1100, H1150)
Tensile Strength 1015Mpa Yield Strength 906Mpa
Elongation 17.1% Hardness HRC 34.5
Production Capacity 50000kgs
Highlight

ASTM A564 Stainless Steel Round Bar

,

Bright Surface Stainless Steel Rod

,

OD 6-300mm 17-7PH Stainless Steel Bar
Leave a Message
Product Description
SUS 631 Stainless Steel Round Bar Grind Finish Four Hexagonal Bar
ASTM A564 SUS 631 17-7pH Stainless Steel Round Bar for industrial machinery applications.
Product Specifications
Product ASTM A564 SUS 631 17-7pH Stainless Steel Round Bar for Machines
Steel Type American name: AISI 631 (17-7PH)
Chinese name: 00Cr17Ni4Cu4Nb
Standard ASTM A564
Diameter Ø1/4" to Ø16" (6mm~400mm)
Common sizes: Ø1", Ø2", Ø2.5", Ø3", Ø3.5", Ø4", Ø4.5", Ø5", Ø6", Ø7", Ø8"
Length 1~8 meters
Surface Bright finish
Diameter Tolerance H9, H11, H13, K9, K11, K13 (as per client request)
Length Tolerance 0/+50mm
Finishing Solution treated + age hardening heat treated (H900, H1100, H1150)
Delivery Time Generally within 25 days (quantity dependent)
Certification ISO, BV, TUV, SGS, mill test certificate
Package Fumigated wooden boxes for optimal protection
Material Properties
Feature: High tensile strength, high hardness after heat treatment
Mechanical Properties: T.S. (Rm): 1015Mpa, Y.S. (Rp0.2): 906Mpa, EL (A5): 17.1%, Z: 60.3%, Hardness (HRC): 34.5
Applications
  • Shipbuilding industry: marine shaft, propeller shaft, rudder shaft
  • Boat shaft, vessel shaft, pump shaft
  • Machine-made industry and valve parts
  • Paper mill equipment
Additional Products Available
Stainless steel sheet/plate
Stainless steel coil
Stainless steel pipe/tube
Stainless steel bar/rod
Stainless steel square/angle bar
Galvanized steel sheet/plate
Galvanized steel coil
Galvanized steel pipe/tube
Materials/Grades: 304, 321, 316, 316L, 310S, 309S, 202, 201, 430, 409L, 444, 410s, 904L, 2205, 2507, Incoloy 800, 800H, 800HT, 825, Inconel 600, 625, 718, Monel 400, Hastelloy C-276, etc.
Company Information
Why Choose Us
  • Large storage company with our own factory specializing in stainless steel products for 23 years
  • Comprehensive processing services: cutting, welding, surface treatment, and precision processing
  • Product line includes over 200 types of stainless steel and galvanized steel products
  • Special materials available: Monel, Incoloy, Inconel, Hastelloy, etc.
  • Strict quality control according to ISO 9001:2008 standards
  • AAA enterprise recognized by Jiangsu government
  • Audited by world-leading inspection companies: ISO, SGS, TUV, BV
  • Export to over 60 countries worldwide
  • Annual production capacity: 50,000 tons of stainless steel products
Our Services
Free Samples Available for most products
Customer Support 24-hour online support with 12-hour response guarantee
Delivery Time Most products delivered within 7 days after order
Order Flexibility Small trial orders accepted
Customization Custom sizes and surface treatments available
Quality Assurance MTC, PMI inspection, SGS and third-party inspections available
Technical Support Professional assistance for product selection and specifications

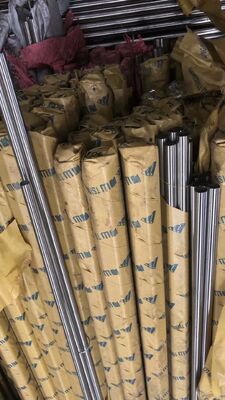

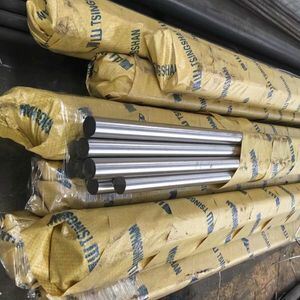

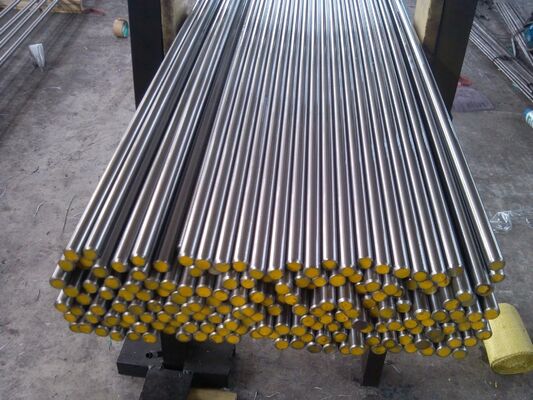

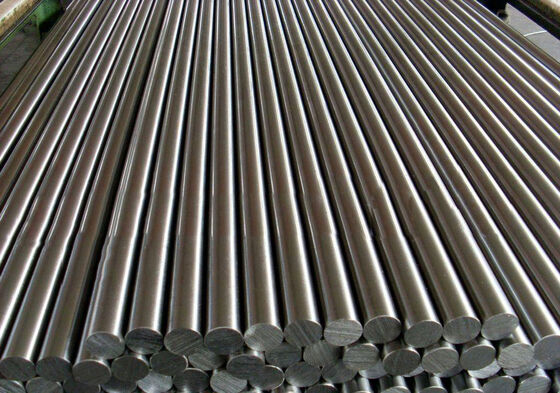

Product Images
ASTM A564 SUS 631 17-7PH Stainless Steel Round Bar with Bright Surface and OD 6-300mm 0 ASTM A564 SUS 631 17-7PH Stainless Steel Round Bar with Bright Surface and OD 6-300mm 1
