ASTM A564 SUS 631 17-7pH Stainless Steel Round Bar with Bright Surface and OD 6-300mm for Machines

  • ASTM A564 SUS 631 17-7pH Stainless Steel Round Bar with Bright Surface and OD 6-300mm for Machines
  • ASTM A564 SUS 631 17-7pH Stainless Steel Round Bar with Bright Surface and OD 6-300mm for Machines
  • ASTM A564 SUS 631 17-7pH Stainless Steel Round Bar with Bright Surface and OD 6-300mm for Machines
  • ASTM A564 SUS 631 17-7pH Stainless Steel Round Bar with Bright Surface and OD 6-300mm for Machines
  • ASTM A564 SUS 631 17-7pH Stainless Steel Round Bar with Bright Surface and OD 6-300mm for Machines
  • ASTM A564 SUS 631 17-7pH Stainless Steel Round Bar with Bright Surface and OD 6-300mm for Machines
  • ASTM A564 SUS 631 17-7pH Stainless Steel Round Bar with Bright Surface and OD 6-300mm for Machines
Certification ISO, AISI, ASTM, EN, DIN, JIS
Minimum Order Quantity 50 kg
Price US $3.15-4.66 / kg
Product Details
Model NO. 631 Shape Round
Technique Hot Rolled Surface Treatment Bright
Diameter Ø1/4'' To Ø16'' (6mm~400mm) Length 1~8 Meters
Diameter Tolerance H9, H11, H13, K9, K11, K13 Length Tolerance 0/+50mm
Finishing Solution Treated + Age Hardening Heat Treated (H900, H1100, H1150) Tensile Strength 1015Mpa
Yield Strength 906Mpa Elongation 17.1%
Hardness HRC 34.5 Standard ASTM A564
Production Capacity 50000kgs
Highlight

ASTM A564 Stainless Steel Round Bar

,

Bright Surface 17-7pH Stainless Steel Bar

,

OD 6-300mm SUS 631 Round Bar
Leave a Message
Product Description
ASTM A564 SUS 631 17-7pH Stainless Steel Round Bar
High-performance precipitation-hardening stainless steel round bars designed for industrial machinery applications, offering exceptional strength and corrosion resistance.
Product Specifications
Product ASTM A564 SUS 631 17-7pH Stainless Steel Round Bar for Machines
Steel Type AISI 631 (17-7PH) / 00Cr17Ni4Cu4Nb
Standard ASTM A564
Diameter Range Ø1/4" to Ø16" (6mm~400mm)
Common sizes: Ø1", Ø2", Ø2.5", Ø3", Ø3.5", Ø4", Ø4.5", Ø5", Ø6", Ø7", Ø8"
Length 1-8 meters
Surface Finish Bright
Diameter Tolerance H9, H11, H13, K9, K11, K13 (customizable per client requirements)
Length Tolerance 0/+50mm
Heat Treatment Solution treated + age hardening (H900, H1100, H1150, etc.)
Material Properties
High Tensile Strength: Excellent mechanical properties after heat treatment
Enhanced Hardness: Superior hardness characteristics post-treatment
Mechanical Properties: T.S. (Rm): 1015Mpa, Y.S. (Rp0.2): 906Mpa, EL (A5): 17.1%, Z: 60.3%, Hardness (HRC): 34.5
Applications
  • Shipbuilding industry: marine shaft, propeller shaft, rudder shaft
  • Boat and vessel shafts
  • Pump shafts and valve parts
  • Machine manufacturing industry
  • Paper mill equipment components
Quality & Certification

All products include ISO, BV, TUV, SGS certifications and mill test certificates. Passed BV audit with comprehensive quality inspection system following ISO 9001:2008 standards.

Packaging & Delivery

Packaging: High-quality fumigated wooden boxes for optimal protection during transit

Delivery Time: Typically within 25 days (quantity dependent)

Additional Product Range

Stainless Steel Products: Sheet/plate, coil, pipe/tube, bar/rod, square/angle bar

Galvanized Steel Products: Sheet/plate, coil, pipe/tube

Material Grades Available: 304, 321, 316, 316L, 310S, 309S, 202, 201, 430, 409L, 444, 410s, 904L, 2205, 2507, Incoloy 800/800H/800HT/825, Inconel 600/625/718, Monel 400, Hastelloy C-276, and more

Company Capabilities
23 Years Experience: Specialized in stainless steel manufacturing since 1999
Large Storage & Factory: Comprehensive inventory and production facilities
Processing Services: Cutting, welding, surface treatment, precision processing
Product Diversity: Over 200 product types available
Special Alloys: Monel, Incoloy, Inconel, Hastelloy, and other specialty materials
Quality Recognition: AAA enterprise certified by Jiangsu government
Global Reach: Exports to 60+ countries including Europe, Middle East, South Asia, South America, Africa
Production Capacity: 50,000 tons annual output of stainless steel products
Customer Service
Free Samples Available for most products
Response Time 24-hour online support with 12-hour response guarantee
Delivery Speed Most orders shipped within 7 days
Order Flexibility Small trial orders accepted
Customization Custom sizes and surface treatments available
Quality Assurance MTC, PMI, SGS, and third-party inspections provided
Technical Support Professional assistance for product selection and specifications
Product Images

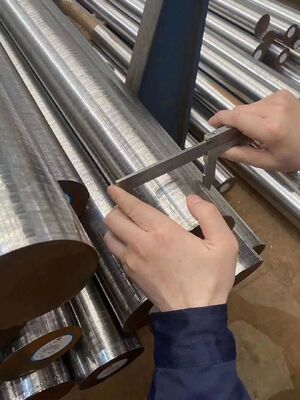

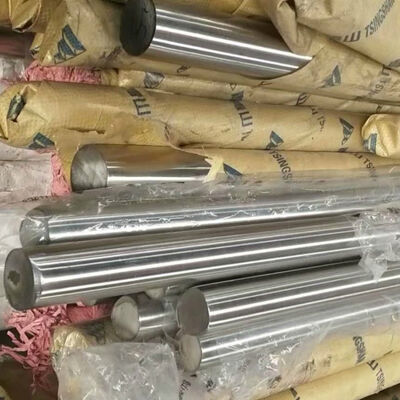

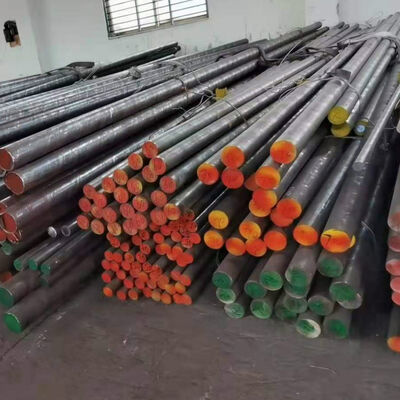

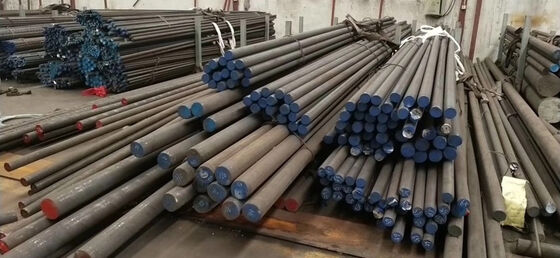

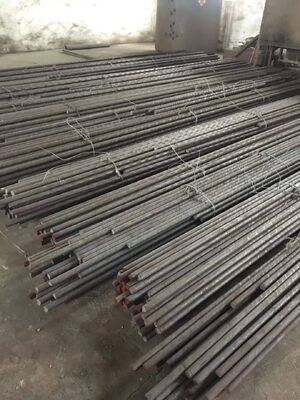

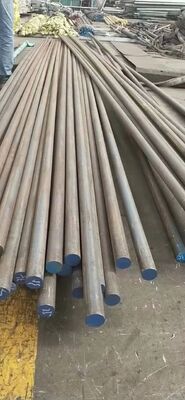

ASTM A564 SUS 631 17-7pH Stainless Steel Round Bar with Bright Surface and OD 6-300mm for Machines 0 ASTM A564 SUS 631 17-7pH Stainless Steel Round Bar with Bright Surface and OD 6-300mm for Machines 1 ASTM A564 SUS 631 17-7pH Stainless Steel Round Bar with Bright Surface and OD 6-300mm for Machines 2 ASTM A564 SUS 631 17-7pH Stainless Steel Round Bar with Bright Surface and OD 6-300mm for Machines 3
