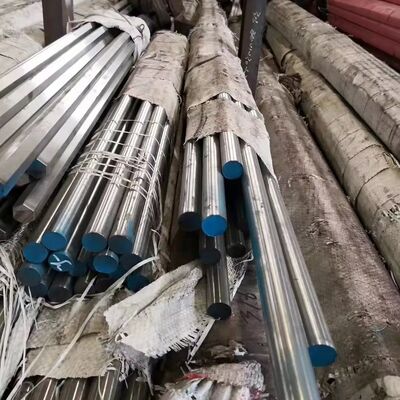

High Hardness 17-4PH Stainless Steel Round Bar Hot Rolled with Custom Cutting Any Length

Certification	ISO, AISI, ASTM, EN, DIN, JIS
Minimum Order Quantity	50 kg
Price	US $3.39-3.88 / kg

Product Details

Model Number	17-4PH/630	Shape	Round
Technique	Hot Rolled	Surface Treatment	Bright
Diameter Range	8 - 450mm	Length	6m /pcs Or Custom
Tensile Strength	1105-1310 MPa	Yield Strength	1000-1170 MPa
Elongation	10-16%	Hardness	28-44 HRC
Density	7750 Kg/m³	Thermal Conductivity	18.4 W/m.K
Electrical Resistivity	800 NΩ.m	Maximum Temperature	572°F (300°C)
Composition	Cr 15-17.5%, Ni 3-5%, Cu 3-5%, Nb+Ta 0.15-0.45%
Highlight	High Hardness Stainless Steel Round Bar , Custom Cutting 17-4PH Round Bar , Hot Rolled 630 Stainless Steel Bar

Leave a Message

Product Description

High Hardness 630 Stainless Steel Round Bar

Custom cutting available in any length to meet your specific requirements.

Product Specifications

Products	17-4PH Stainless Steel Round Bar
Standard	ASTM GB DIN EN
Diameter	8 - 450mm
Length	6m /pcs or cutting as request
Finishing	black bar / Bright Bar
Main Grade	201 301 303Cu 304 304L 309S 310S 316L 316Ti 317L 318 321 347 410 420 430 431 440a/b/c 904L 2205 2507 Hastelloy C276 C4 C22 Inconel 600 625 Incoloy 800 825 825H.etc
Service	Cutting, surface polishing, heat treatment
Brand	Walsin BAOSTEEL TISCO QINGSHAN

Material Description

17-4PH Stainless Steel

17-4 Precipitation Hardening (also known as Type 630) is a chromium-copper precipitation hardening stainless steel used for applications requiring high strength and moderate corrosion resistance. High strength is maintained to approximately 600°F (316°C).

General Properties

Alloy 17-4 PH is a precipitation hardening martensitic stainless steel with Cu and Nb/Cb additions. The grade combines high strength, hardness (up to 572°F / 300°C), and corrosion resistance. Mechanical properties can be optimized with heat treatment, achieving very high yield strength up to 1100-1300 MPa (160-190 ksi).

This grade should not be used at temperatures above 572°F (300°C) or at very low temperatures. It has adequate resistance to atmospheric corrosion or in diluted acids or salts where its corrosion resistance is equivalent to Alloy 304 or 430.

Applications & Standards

Applications	Standards
Offshore (foils, helicopter deck platforms, etc.) Food industry Pulp and paper industry Aerospace (turbine blades, etc.) Mechanical components Nuclear waste casks	ASTM A693 grade 630 (AMS 5604B) UNS S17400 EURONORM 1.4542 X5CrNiCuNb 16-4 AFNOR Z5 CNU 17-4PH DIN 1.4542
