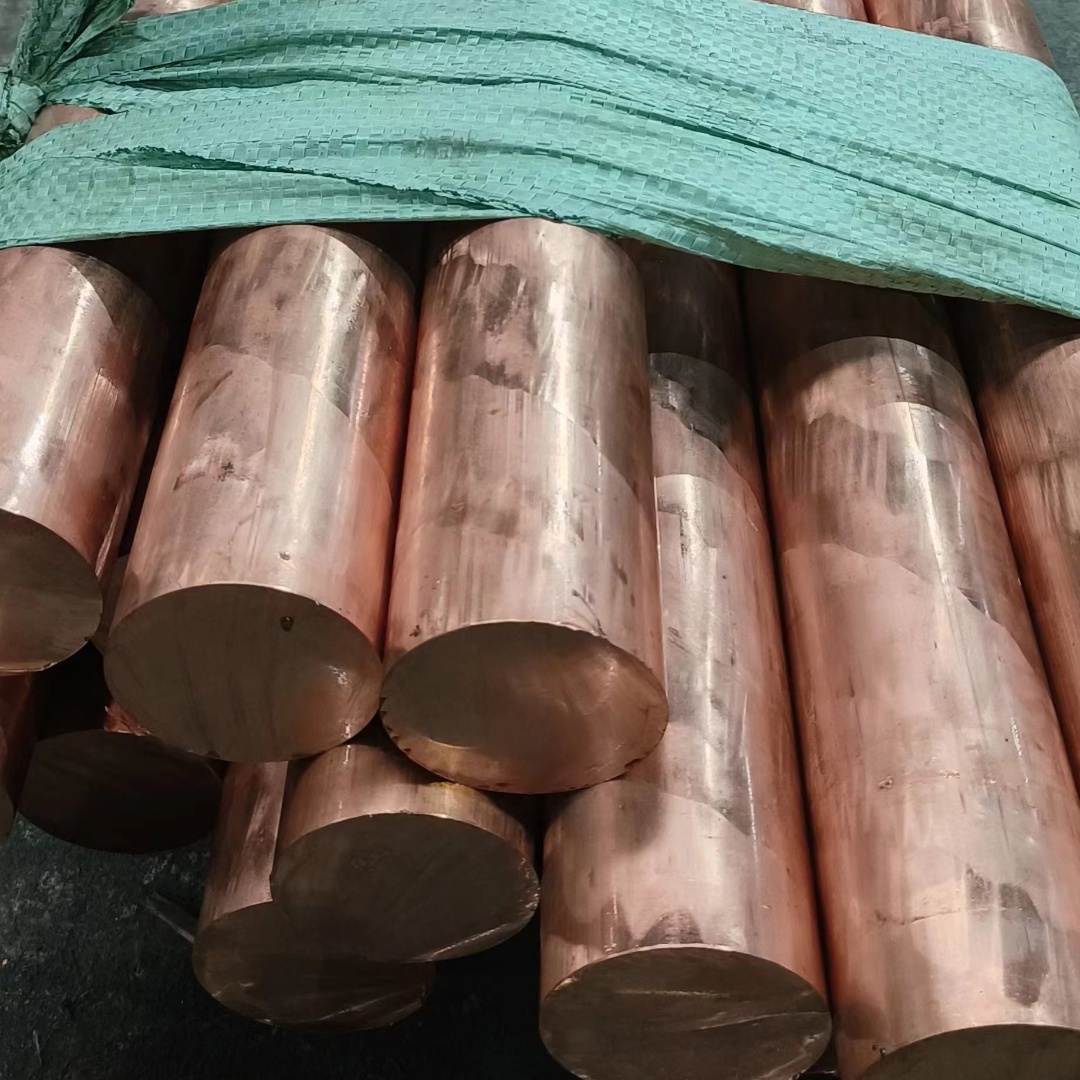

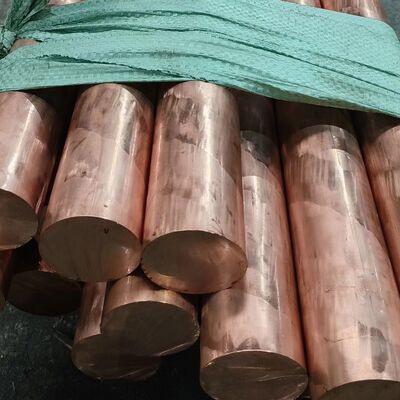

Oxygen Free Copper Round Bar / OF Copper Rod C10100 3-100mm Diameter

C10100 Round Copper Bar

Alias: Oxygen Free Copper Round Bar / OF Copper Rod Standard: ASTM B152, ASTM B187, ASTM B49

Product Description

C10100 is oxygen-free high conductivity copper (OFHC), one of the purest copper grades with extremely low oxygen content. C10100 round copper bar has superior electrical and thermal conductivity, excellent ductility, good corrosion resistance and easy brazing / welding performance. It can be easily machined, forged and formed. This copper bar is widely used in electrical, electronic and thermal conductive industries where high conductivity is required.

Chemical Composition (wt%, balance Cu)

Cu + Ag ≥ 99.99% O ≤ 0.0005% Other trace impurities: ≤0.01%

Mechanical Properties (Cold Drawn, reference)

• Tensile Strength: 220–380 MPa
• Yield Strength (Rp0.2): 60–320 MPa
• Elongation: 5–40% (depends on temper: soft / half hard / hard)
• Hardness: HV 45–120
• Electrical Conductivity: ≥101% IACS
• Density: 8.94 g/cm³

Specifications

Diameter: 3mm ~ 200mm Surface: Bright polished, mill finish, pickled Temper: O (soft), 1/4H, 1/2H, H (hard) Length: 1000mm, 2500mm, 3000mm or cut to customized length

Features

1. Ultra-high electrical and thermal conductivity
2. Extremely low oxygen content, no hydrogen embrittlement risk during high temperature welding
3. Good ductility, easy bending, stamping and machining
4. Excellent corrosion resistance in atmospheric and fresh water environments
5. Non-magnetic

Applications

Busbars, electrical connectors, vacuum components, semiconductor parts, heat sinks, electronic lead frames, transformer components, cryogenic equipment, welding electrodes, laboratory instruments, high precision conductive parts.

Short Version (Catalog / Quotation)

C10100 Oxygen Free Copper Round Bar (OFHC) features 99.99% minimum copper purity, ultra-high electrical & thermal conductivity. Available in multiple tempers and diameters from 3mm to 200mm. Widely used for bus bar, electronic conductive components, vacuum and heat transfer parts.
