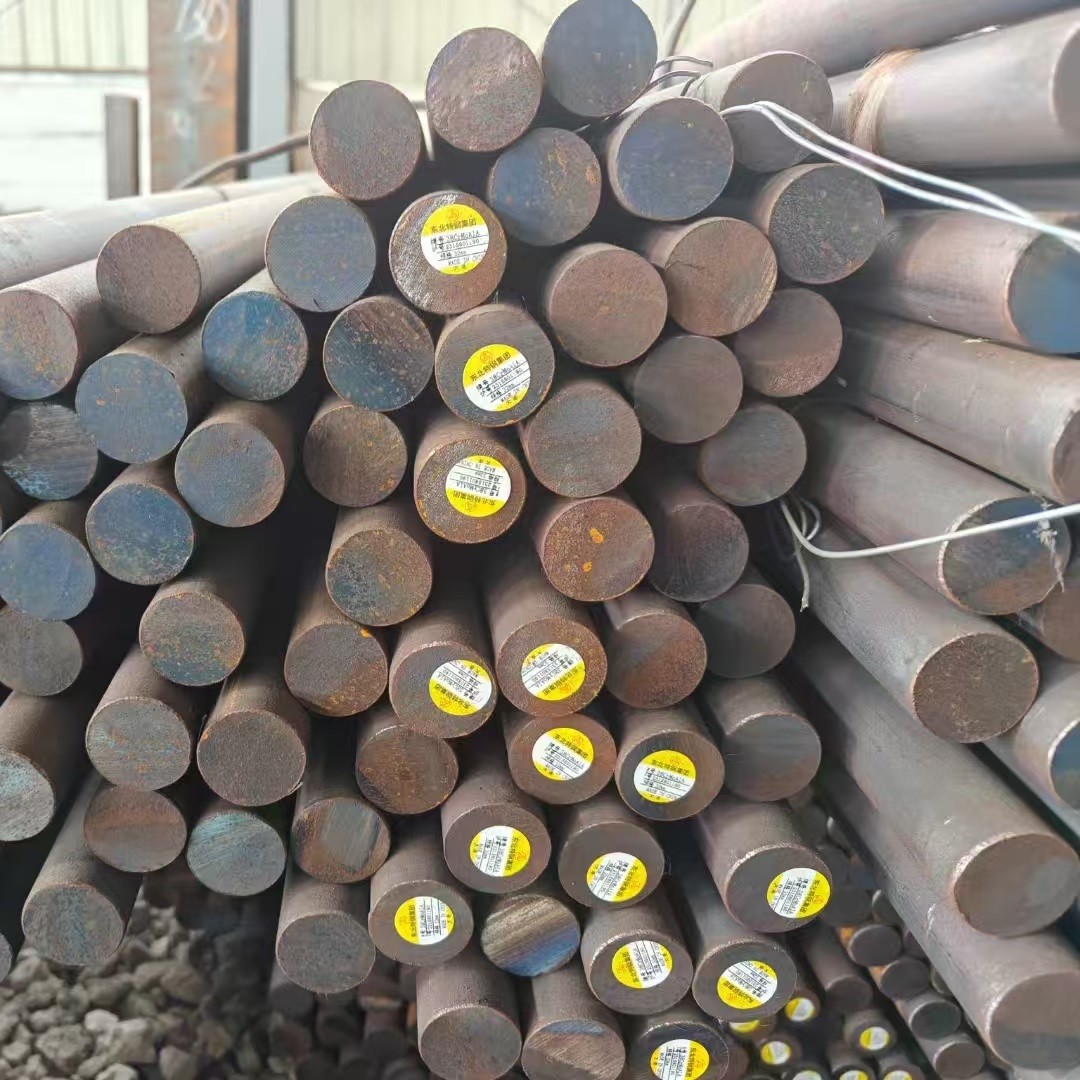

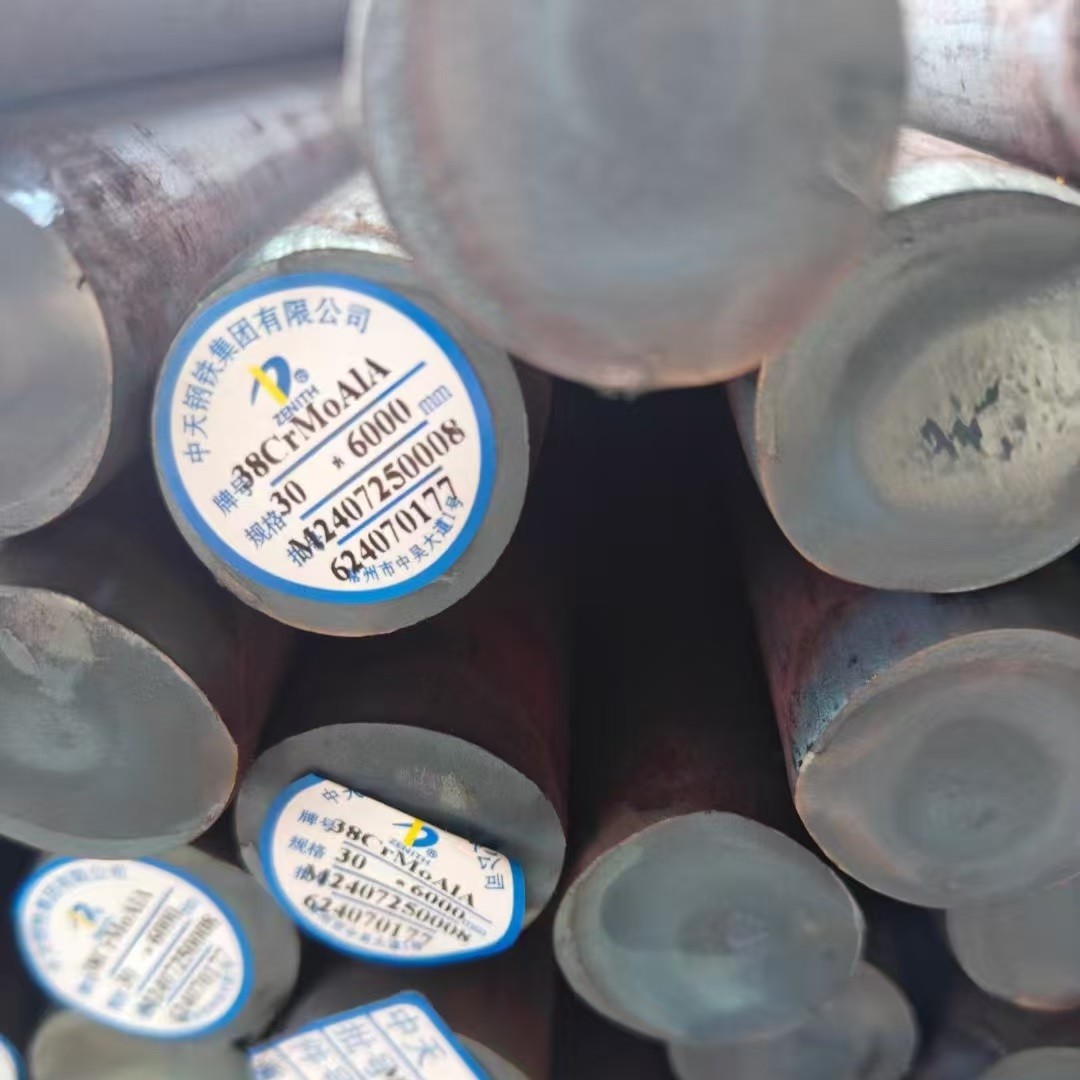

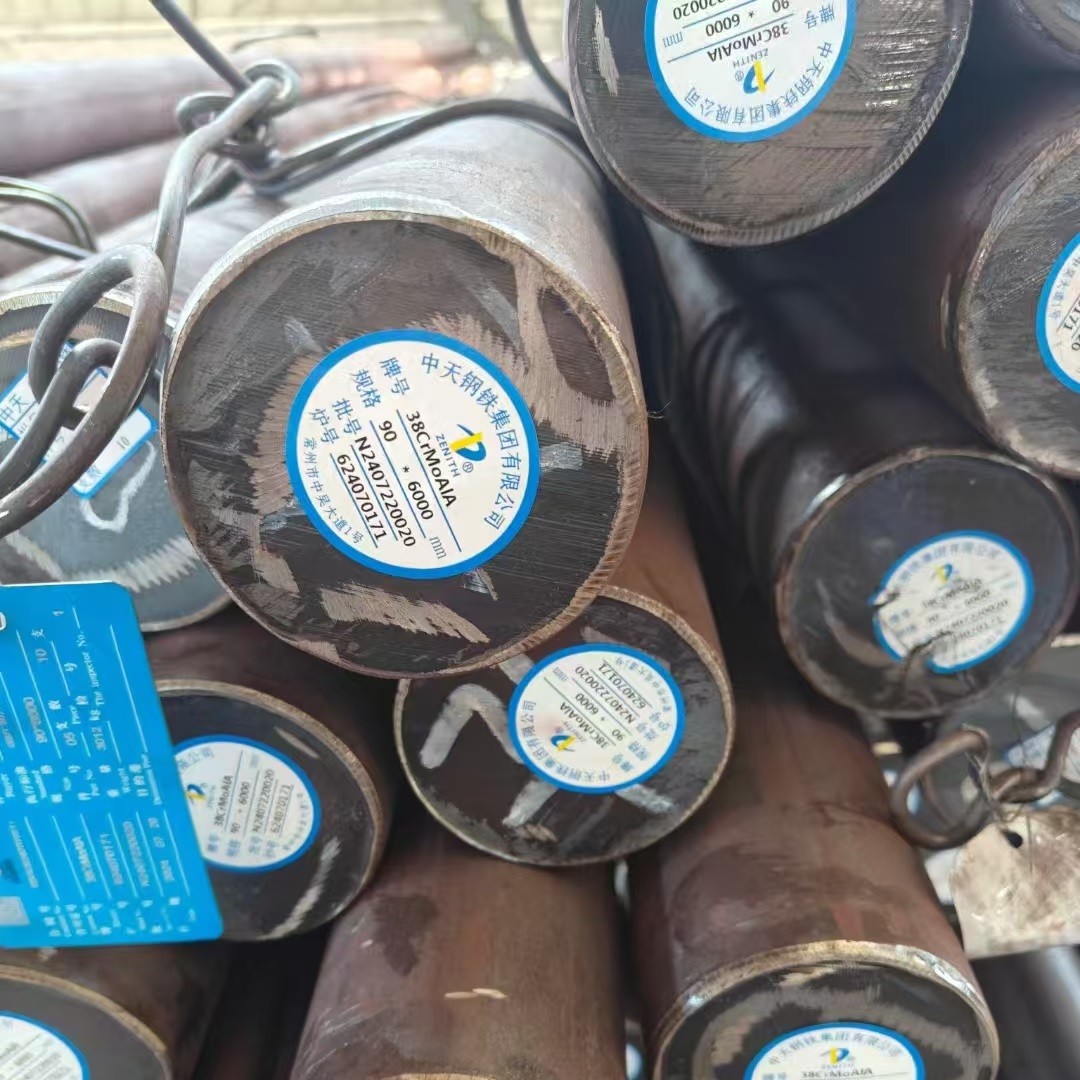

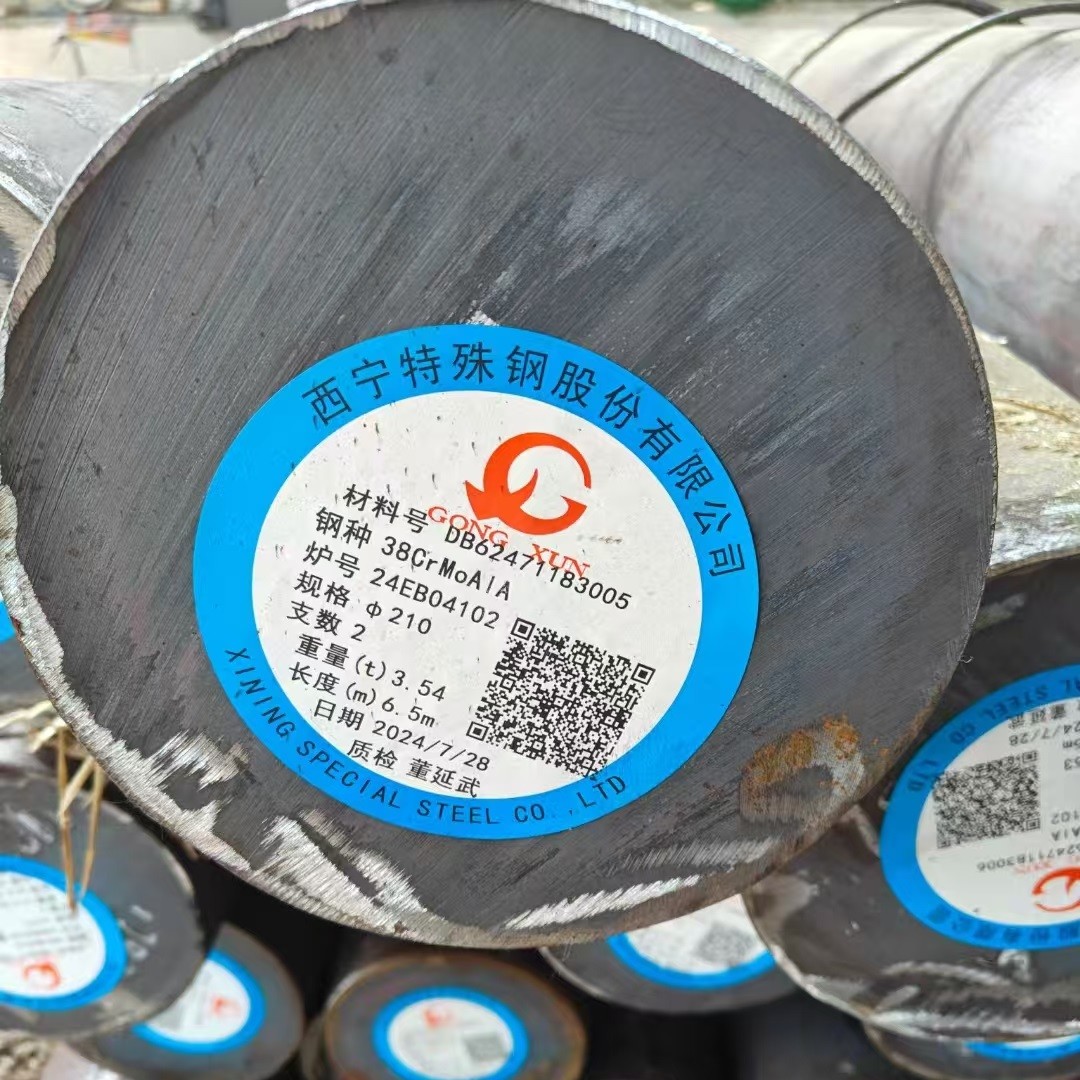

GB Standard 38CrMoAlA Steel Round Bar / Steel Shaft 80mm 100mm 120mm Diameter
| Place of Origin | China |
|---|---|
| Brand Name | DELTA |
| Certification | ISO |
| Model Number | 31CrMoV9（1.8509）/ 38CrMoAlA |
| Minimum Order Quantity | 1 Ton |
| Price | 600-850 USD/Ton |
| Packaging Details | standard packing for export |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 20Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products Name | Alloy Steel Round Bar | Diameter | 10 - 300mm |
|---|---|---|---|
| Length | 6m | Tech | Hot Rolled |
| Service | Cutting | MOQ | 1 Ton |
| Loading Port | Shanghai Port | Standard | ASTM EN GB |
| Highlight | 100mm Steel Round Bar,80mm Steel Round Bar,120mm Steel Round Bar |
||
Product Description
GB Standard 38CrMoAlA Steel Round Bar / Steel Shaft 80mm 100mm 120mm Diameter
Products Specification
|
Products Name |
38CrMoAlA/1.8509 Nitriding Steel Round Bar |
|
Diameter |
10 - 300 mm |
|
Length |
6m or custom cutting any length as request |
|
Type |
Hot Rolled |
|
Brand |
BAOSTEEL DELTA DONGBEI HUAXI SHAGANG.etc |
|
MOQ |
1 Ton |
|
Loading Port |
Shanghai Port |
|
Packing |
packing by steel wire rope |
|
Deliver time |
5 - 7 days for stock materials |
|
Other Grade |
Q195,Q235,10#,20#,35#,45#,Q215,Q345,12Cr1Mov,15CrMo,304,3 16,20Cr,40Cr,20CrMo,35CrMo,42CrMo,40CrNiMo,GCr15,65Mn,50Mn, 50Cr,3Cr2W8V,20CrMnTi,5CrMnMo ,38CrMoAl, 31CrMoV9 |
|
Standard |
ASTM GB EN DIN |
|
Application |
Structure and Industrial |
Standard Size of our Steel Round Bar In Stock
| 10mm | 12mm | 15mm | 16mm | 18mm | 20mm |
| 25mm | 30mm | 35mm | 38mm | 40mm | 42mm |
| 45mm | 48mm | 50mm | 55mm | 60mm | 65mm |
| 70mm | 75mm | 80mm | 85mm | 90mm | 95mm |
| 105mm | 110mm | 115mm | 120mm | 130mm | 140mm |
| 150mm | 160mm | 170mm | 180mm | 190mm | 200mm |
| 210mm | 220mm | 230mm | 240mm | 250mm | 260mm |
| 270mm | 280mm | 290mm | 300mm | 310mm | 320mm |
1. Overview
38CrMoAlA is a high-performance nitriding steel widely used in precision engineering due to its exceptional surface hardness, wear resistance, and fatigue strength. This round bar is optimized for applications requiring a combination of a ultra-hard nitride layer and a tough core, making it ideal for high-stress environments.
2. Key Features
-
Ultra-Hard Surface: Achieves 1000–1250 HV after gas nitriding, suitable for abrasive conditions.
-
Deep Nitride Layer: Adjustable depth (0.2–0.7 mm) based on nitriding duration and temperature.
-
High-Temperature Stability: Retains mechanical properties up to 500°C.
-
Machinability: Pre-nitriding machinability rating of 70% (compared to free-cutting steels).
3. Technical Specifications
Chemical Composition
| Element | C | Cr | Mo | Al | Mn | Si | S/P (max) |
|---|---|---|---|---|---|---|---|
| Content | 0.35–0.42 | 1.35–1.65 | 0.15–0.25 | 0.70–1.10 | 0.30–0.60 | 0.20–0.45 | ≤0.035 |
Dimensions & Tolerances
-
Diameter Range: 15–250 mm (hot-rolled), 10–120 mm (cold-drawn).
-
Length: Standard 3–6 m, custom lengths up to 12 m.
-
Straightness Tolerance: ≤1.5 mm/m (cold-drawn), ≤3 mm/m (hot-rolled).
4. Performance Data
Core Mechanical Properties (Post-Quenching & Tempering)
-
Tensile Strength: 950–1100 MPa
-
Yield Strength: ≥800 MPa
-
Elongation (δ5): ≥12%
-
Impact Energy (Charpy, 20°C): ≥55 J
Nitrided Layer Properties
-
Surface Hardness: 1000–1250 HV
-
Case Depth: 0.3–0.6 mm (standard 50-hour nitriding).
-
White Layer Control: ≤25 μm (adjustable via process parameters).
5. Processing Guidelines
Recommended Workflow
-
Soft Annealing: 850–880°C, furnace cooling to ≤220 HBW for machining.
-
Rough Machining: Pre-shape components with allowances for nitriding distortion.
-
Stress Relieving: 550–600°C post-machining to minimize dimensional changes.
-
Final Nitriding: Gas nitriding at 500–530°C for 20–100 hours.
Post-Nitriding Finishing
-
Grinding or polishing to achieve surface roughness Ra ≤0.4 μm.
-
Optional TiN or DLC coatings for enhanced tribological performance.
6. Industry Applications
-
Power Transmission: High-load gears, spline shafts, and turbine components.
-
Hydraulics: Precision piston rods, valve spools, and pump housings.
-
Tooling: Extrusion dies, injection mold cores, and wear plates.
-
Aerospace: Landing gear components, actuator systems.
7. Customization Options
-
Surface Finish: Black oxide, shot-peened, or precision-ground.
-
Certifications: EN 10204 3.1/3.2, RoHS compliance.
-
Testing Services: Inclusion rating (ASTM E45), hydrogen embrittlement testing.
8. Packaging & Delivery
-
Standard Packaging: Waterproof wrapping, steel strapping, and end protectors.
-
Export Compliance: Packed in ISO-compliant bundles for sea/air freight.
-
Lead Time: 15–30 days (stock items), 60–90 days (custom sizes).
9. Why Choose Our 38CrMoAlA Round Bars?
-
Consistent Quality: Melted in electric arc furnaces with vacuum degassing for low inclusion levels.
-
Technical Support: Free nitriding process optimization consulting.
-
Global Supply: Warehouses in EU, Asia, and North America for fast delivery.
Contact us for tailored solutions to meet your high-performance alloy steel needs!
