10-350mm Hot Rolled Round Bar 17cr2ni2moa 6m 17CrNiMo6
| Place of Origin | China |
|---|---|
| Brand Name | DELTA |
| Certification | ISO |
| Model Number | 17CrNiMo6 |
| Minimum Order Quantity | 1 Ton |
| Price | 600-850 USD/Ton |
| Packaging Details | standard packing for export |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 20Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products Name | Alloy Steel Round Bar | Diameter | 10 - 350mm |
|---|---|---|---|
| Length | 6m | Tech | Hot Rolled |
| Service | Cutting | MOQ | 1 Ton |
| Loading Port | Shanghai Port | Standard | ASTM EN GB |
| Highlight | 17CrNiMo6 hot rolled round bar,hot rolled round bar 17cr2ni2moa,350mm steel round hot rolled |
||
Product Description
17CrNiMo6 Hot Rolled Alloy Bar 17cr2ni2moa 17CrNiMo6 Steel Round Bar Equivalent
17CrNiMo6 Steel Round Bar Hot Rolled Alloy Bar 17Cr2Ni2MoA 17Crnimo6 Steel Equivalent
| Grade : | 18CrNiMo7-6 | |
| Number: | 1.6587 | |
| Classification: | Alloy special steel | |
| Standard: |
|
|
| Equivalent grades: | Go here |
Chemical composition % of steel 18CrNiMo7-6 (1.6587): EN 10084-2008
| Elements not quoted in this table shall not be intentionally added to the steel without the agreement of the purchaser, other than for the purpose of finishing the heat. Steels with improved machinability as a result of the addition of lead or higher sulfur contents, depending on the manufacturing process up to around 0.1 % S, may be supplied on request. In this case, the upper limit of the manganese content may be increased by 0.15 % |
| C | Si | Mn | Ni | P | S | Cr | Mo |
| 0.15 - 0.21 | max 0.4 | 0.5 - 0.9 | 1.4 - 1.7 | max 0.025 | max 0.035 | 1.5 - 1.8 | 0.25 - 0.35 |
Mechanical properties of steel 18CrNiMo7-6 (1.6587)
| Nominal thickness (mm): | to 16 |
| Rm - Tensile strength (MPa) hardening and tempering at 200 | 1200 |
| Brinell hardness (HBW): (+S) | 255 |
| Brinell hardness (HBW): (+A) | 229 |
| Brinell hardness (HBW): (+TH) | 179 - 229 |
| Brinell hardness (HBW): (+FP) | 159 - 207 |
Equivalent grades of steel 18CrNiMo7-6 (1.6587)
Warning! Only for reference
| EU EN |
Germany DIN,WNr |
France AFNOR |
England BS |
Italy UNI |
China GB |
Finland SFS |
Inter ISO |
||||||||
| 18CrNiMo7-6 |
|
|
|
|
|
|
|
Post free buying requirement of steel 18CrNiMo7-6 (1.6587)
Mechanical properties
| ReH | Minimum yield strength / Mindestwert der oberen Streckgrenze / Limite d elasticite minimale |
| Rm | Tensile strength / Zugfestigkeit / Resistance a la traction |
| A | Minimum elongation / Mindestwert der Bruchdehnung / Allongement minimal |
| J | Notch impact test / Kerbschlagbiegeversuch / Essai de flexion par choc |
Heat treatment conditions
|
|
| Alloy special steel Chemical composition of steel 18CrNiMo7-6 (1.6587), Standards of steel 18CrNiMo7-6 (1.6587) Mechanical Properties of steel 18CrNiMo7-6 (1.6587) Equivalent grades of steel 18CrNiMo7-6 (1.6587) Tensile Strength, Elongation, Proof strength, Hardness |

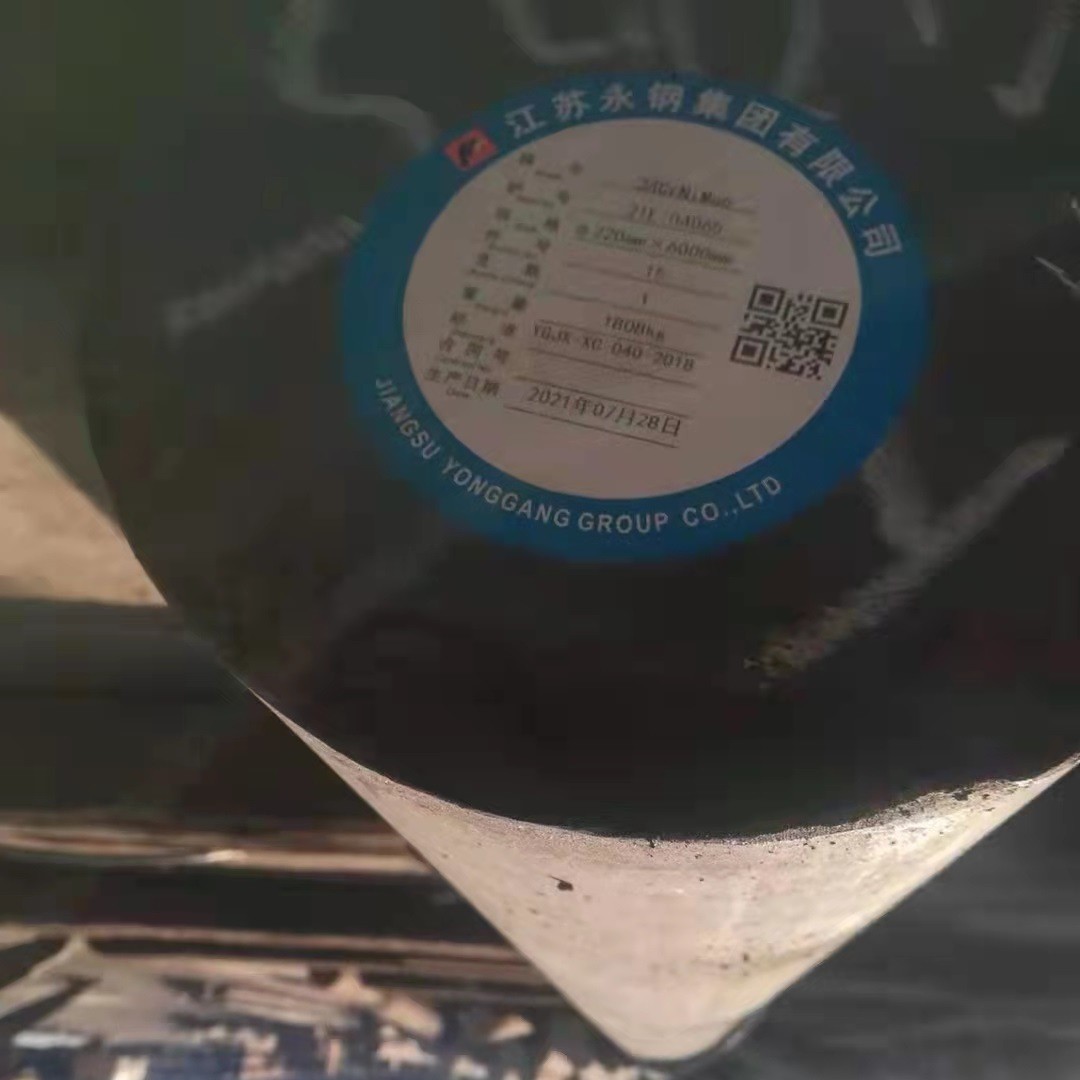

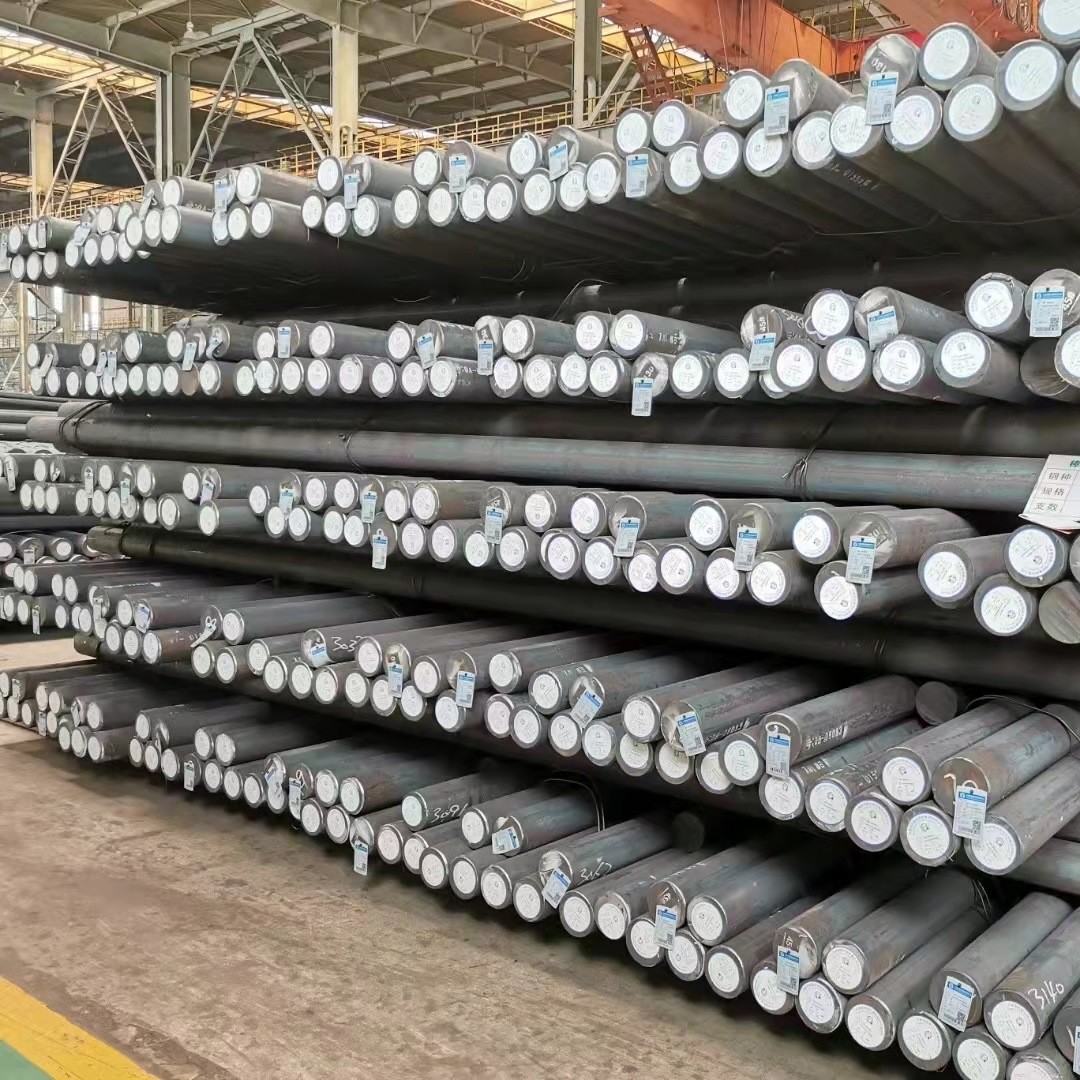

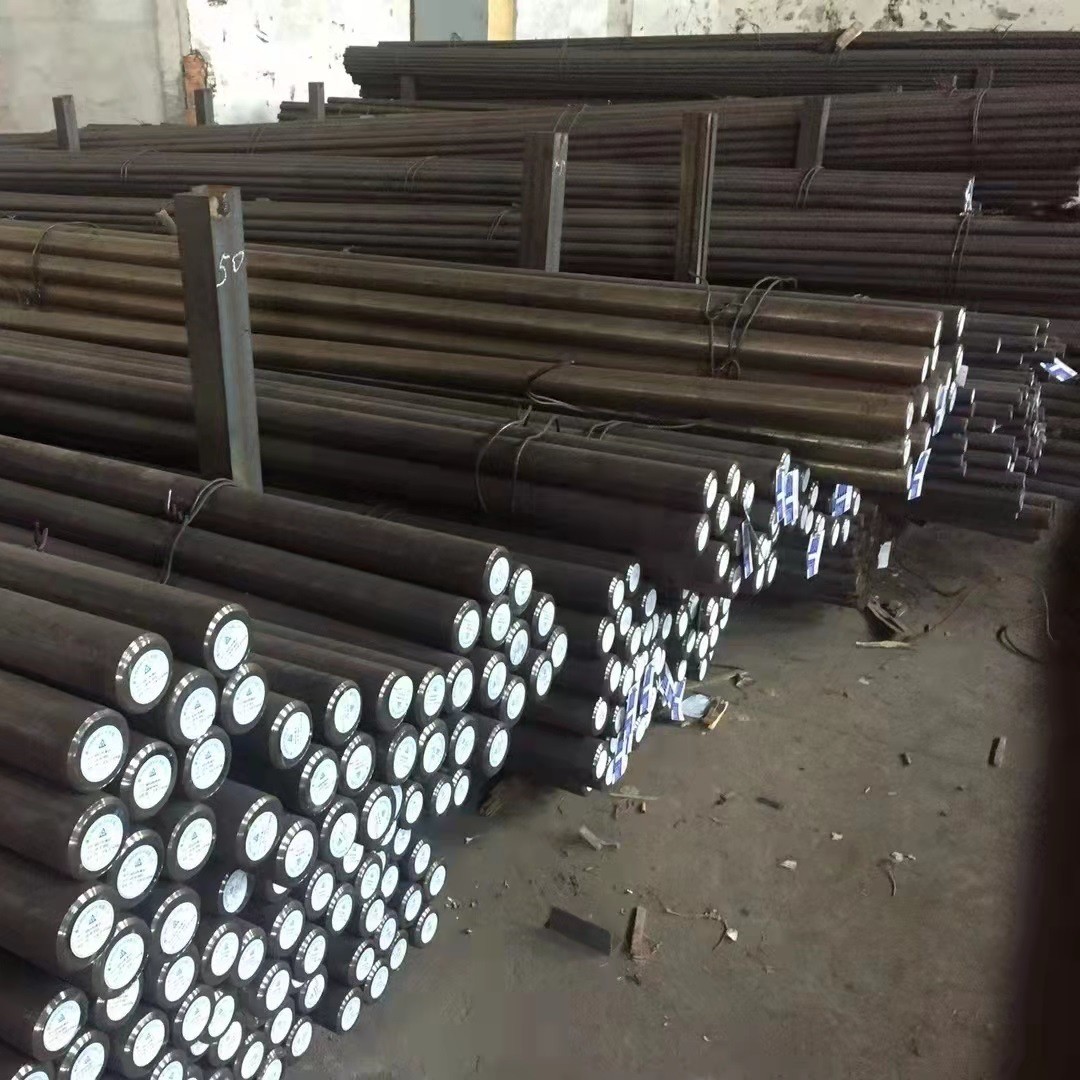

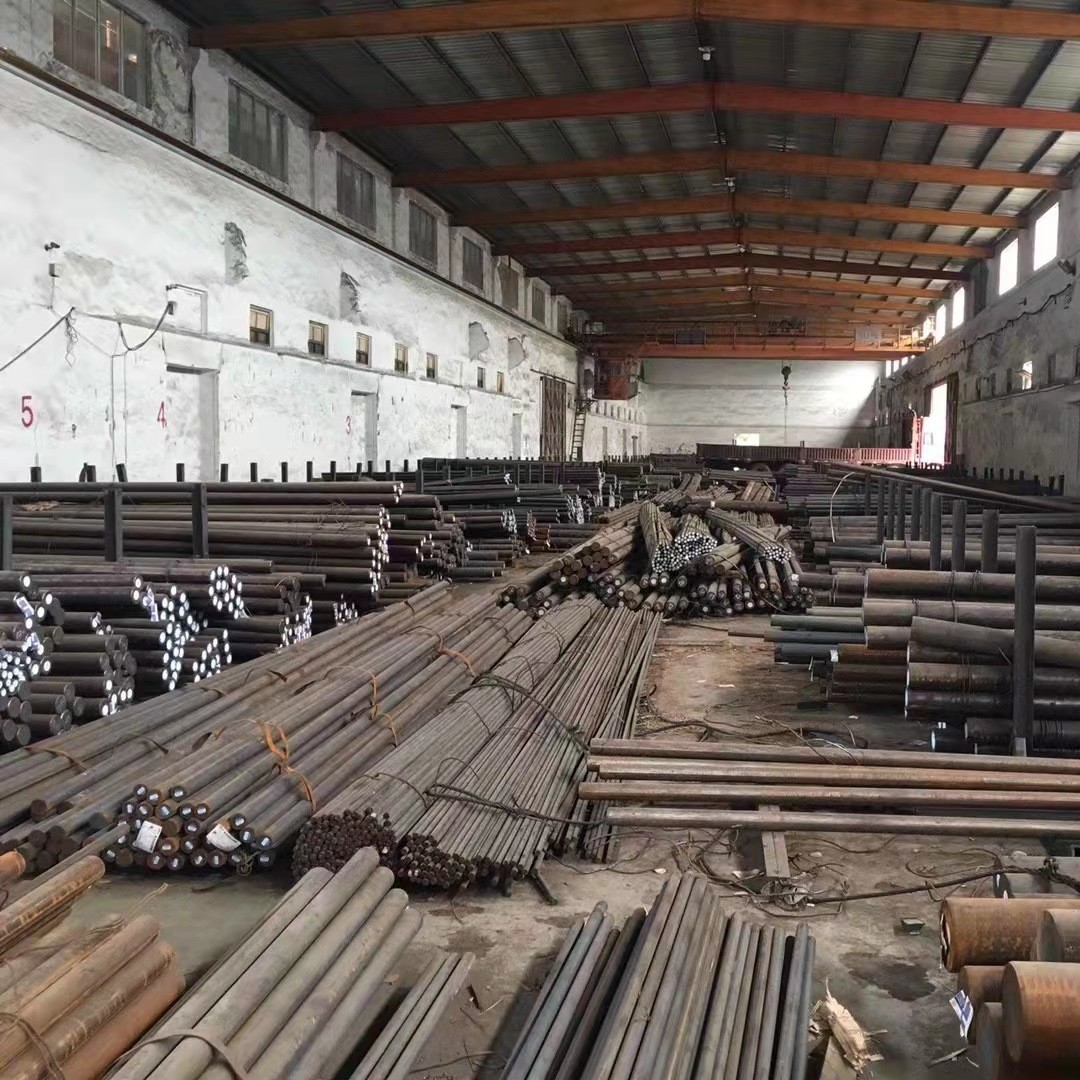

Picture Show
