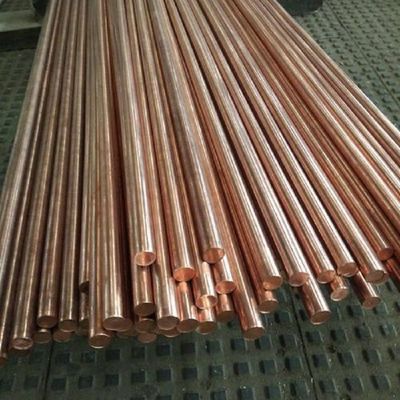

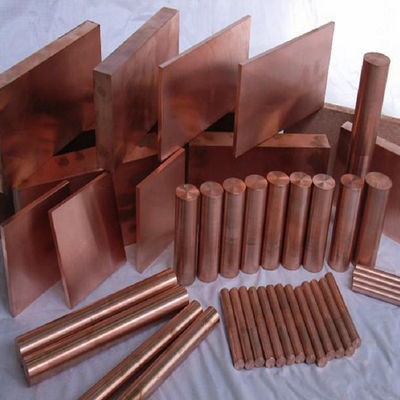

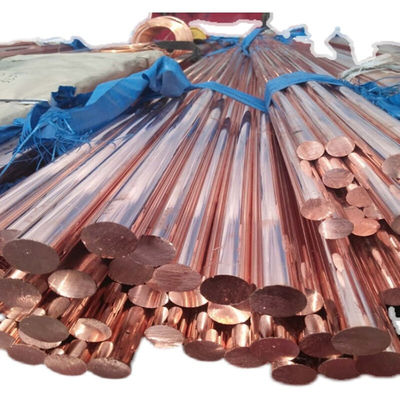

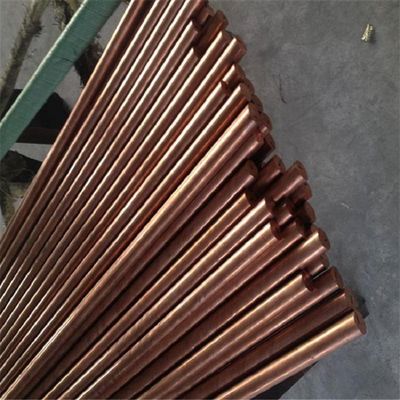

OF-CU Copper Round Bar C10200 Oxygen-free Copper Diameter 4 - 250mm Smooth Surface
| Place of Origin | CHINA |
|---|---|
| Brand Name | DELTA |
| Certification | ISO |
| Model Number | C10200 / OF-CU |
| Minimum Order Quantity | 400 kgs |
| Price | 7000-8000 USD/Ton |
| Packaging Details | wooden box |
| Delivery Time | 7-15 days |
| Payment Terms | T/T |
| Supply Ability | 50 Tons per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products Name | Copper Bar | Diameter | 4 - 250mm |
|---|---|---|---|
| Length | Custom Any Length As Request | Standard | GB ASTM EN DIN |
| Loading Port | Shanghai Port | Shape | Round |
| Service | Cutting | Company Type | Factory |
| Other Material | Brass | Packing | Wooden Box |
| Highlight | Smooth Surface Copper Round Bar,250mm Copper Round Bar,Oxygen-free Copper Round Bar |
||
Product Description
OF-CU Copper Round Bar C10200 Oxygen-free Copper Diameter 4 - 250mm Smooth Surface
Products Specification of Copper Bars
|
Product Name
|
Copper Rod
|
|
Shape
|
Round/Square/Rectangular/Flat, etc
|
|
Size
|
Regular size 600x1500mm or Customized
|
|
Grade
|
Pure Copper:C10100/C10200/C11000/C12000/C12200
Copper Alloy:C14500/C17200/C17300/C17510/C18150/C19200/C19210/C19400 Brass:C22000/C23000/C24000/26000/26800/27000 Lead Brass:C33000/CuZn36Pb3/C35000/C35300/C36010/C37000/37700/C38000 /C38500/CuZn39Pb3/CuZn40Pb2
Tin Brass:C44300/C44500/C46400/HSn90-1 Aluminum Brass:C68700/HAl77-2/HAl66-6-3-2/HAl64-3-1 Tin Bronze:C51000/C51100/C51900/C52100/C54400/CuSn4/CuSn5/CuSn5Pb1/CuSn6/CuSn8 Aluminum Bronze:C60800/C61300/C61900/C62300/C63000 Copper Nickel Alloy:C70400/C71500/C70600/C70620/C73500/75200/76200/C77000 |
|
Temper
|
H,1/2H,3/4H,1/4H,EH,SH,O60, etc.
|
|
Surface
|
Mill,Polished,bright or customized.
|
|
MOQ
|
1 ton
|
|
Delivery Time
|
5-10 days after the payment received
|
|
Payment Item
|
30% TT deposit+70% TT balance before delivery
|
Standard Size of C10200 Copper Bar in Stock
| Diameter | 4mm 5mm 6mm 7mm 8mm 9mm 10mm 12mm 14mm 15mm 16mm 18mm 19mm 20mm 22mm 24mm 25mm 27mm 28mm 30mm 32mm 35mm 38mm 40mm 42mm 45mm 48mm 50mm 55mm 60mm 65mm 70mm 75mm 80mm 85mm 90mm 95mm 100mm 105mm 110mm 115mm 120mm 125mm 130mm 140mm 150mm 160mm 180mm 190mm 200mm 210mm 220mm 230mm 240mm 250mm |
| Length | 1m 2m 3m 4m 6m or cutting any length as request |
Standard No.
-
- Oxygen free copper JIS C1020 CDA C10200
-
- Tough pitch copper JIS C1100 CDA C11000
-
- Phosphorus deoxidized copper JIS C1220 CDA C12200
Copper with content over 99.90% is Pure copper, such as Oxygen free copper, Tough pitch copper,
Phosphorus deoxidized copper. The electrical conductivity, thermal conductivity of Pure copper are high.
The copper is provided in the respective shapes such as a plate, a strip(Up to 5mm thickness), and a bar by processing the high quality pure copper ingot.
The bendability, the formability and the corrosion resistance are superior also.
Main features
Oxygen free copper
The risk of hydrogen embrittlement (blowhole, cracking) during welding and brazing is low, because any oxygen is not contained. Oxygen free copper is recommended for the parts with welding and brazing.
Tough pitch copper
The content of copper is around 99.90%, it contains 200-500 ppm oxygen. The electrical conductivity, the thermal conductivity are same as Oxygen free copper.
Phosphorus deoxidized copper
A small amount of phosphorus is added. The electrical conductivity is 85%IACS, lower than Oxgen free copper (101%IACS). Phosphorus deoxidized copper is recommended for the parts with welding and brazing, because any oxygen is not contained.
Main applications
Oxygen free copper and tough pitch copper are used for;—
Bus bar, power module base plate, heat spreader, tab lead electrode for lithium ion battery, transformer coil material, gasket, Sputtering target
Phosphorus deoxidized copper is used for;—
Water heaters, air conditioning piping materials, construction, electric refrigerators for water supply, fuse caps
Chemical composition
The chemical components of Oxygen free copper (C1020) are as follows.
(Weight %)
| Cu |
|---|
| 99.96Min |
The chemical components of tough pitch copper (C1100) are as follows.
(Weight %)
| Cu |
|---|
| 99.90Min |
The chemical components of Phosphorus deoxidized (C1220) copper are as follows.
(Weight %)
| Cu | P |
|---|---|
| 99.90Min | 0.03 |
Physical properties
It shows the physical properties of C1020 and C1100. Note: The average physical properties are shown.
| Property | Representative Value |
|---|---|
| Specific Gravity (293K) | 8.94 |
| Coefficient of Thermal Expansion (×10-6/K:293～573K) |
17.7 |
| Thermal Conductivity (W/(m・K):293K) |
391 |
| Volume Resistivity (μΩm:293K) |
0.0171 |
| Electrical Conductivity (%IACS:293K) |
101 |
| Modulus of Elasticity (kN/mm２:293K) |
118 |
It shows the physical properties of C1220. Note: The average physical properties are shown.
| Property | Representative Value |
|---|---|
| Specific Gravity (293K) | 8.94 |
| Coefficient of Thermal Expansion (×10-6/K:293～573K) |
17.7 |
| Thermal Conductivity (W/(m・K):293K) |
339 |
| Volume Resistivity (μΩm:293K) |
0.0203 |
| Electrical Conductivity (%IACS:293K) |
85 |
| Modulus of Elasticity (kN/mm２:293K) |
118 |
Mechanical properties
The mechanical properties of Oxygen free copper (C1020),tough pitch copper(C1100), Phosphorus deoxidized(C1220) are as follows.
| Temper | |||||
|---|---|---|---|---|---|
| 0 | 1/4H | 1/2H | H | EH | |
| Tensile Strength (N/mm2) |
195～255 | 215～275 | 245～315 | 275～345 | 315Min. |
| Elongation (%) |
35 | 25 | 15 | ||
| Vickers Hardness (HV) |
(60Max.) | (55～75) | (75～90) | (90～105) | (100Min.) |
