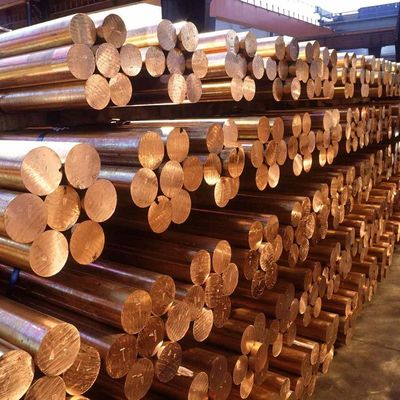

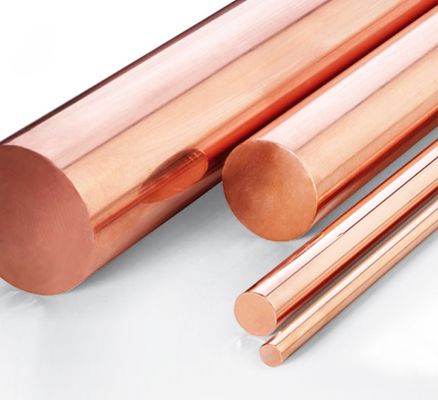

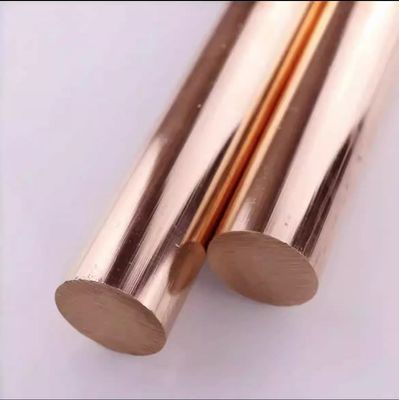

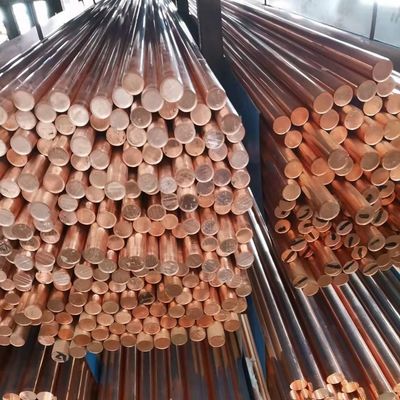

DIN 2.0065 / CU-ETP Copper Round Bar CW004A C11000 Copper Rod Round Shape Bars
| Place of Origin | CHINA |
|---|---|
| Brand Name | DELTA |
| Certification | ISO |
| Model Number | C11000 / 2.0065 / CW004A |
| Minimum Order Quantity | 400 kgs |
| Price | 7000-8000 USD/Ton |
| Packaging Details | wooden box |
| Delivery Time | 7-15 days |
| Payment Terms | T/T |
| Supply Ability | 50 Tons per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products Name | Copper Bar | Diameter | 4 - 200mm |
|---|---|---|---|
| Length | Custom Any Length As Request | Standard | GB ASTM EN DIN |
| Loading Port | Shanghai Port | Shape | Round |
| Service | Cutting | Company Type | Factory |
| Other Material | Brass | Packing | Wooden Box |
| Highlight | C11000 Copper Round Bar,CW004A Copper Round Bar,DIN 2.0065 Copper Round Bar |
||
Product Description
DIN 2.0065 / CU-ETP Copper Round Bar CW004A C11000 Copper Rod Round Shape Bars
Products Specification of Copper Bars
|
Product Name
|
Copper Rod
|
|
Shape
|
Round/Square/Rectangular/Flat, etc
|
|
Size
|
Regular size 600x1500mm or Customized
|
|
Grade
|
Pure Copper:C10100/C10200/C11000/C12000/C12200
Copper Alloy:C14500/C17200/C17300/C17510/C18150/C19200/C19210/C19400 Brass:C22000/C23000/C24000/26000/26800/27000 Lead Brass:C33000/CuZn36Pb3/C35000/C35300/C36010/C37000/37700/C38000 /C38500/CuZn39Pb3/CuZn40Pb2
Tin Brass:C44300/C44500/C46400/HSn90-1 Aluminum Brass:C68700/HAl77-2/HAl66-6-3-2/HAl64-3-1 Tin Bronze:C51000/C51100/C51900/C52100/C54400/CuSn4/CuSn5/CuSn5Pb1/CuSn6/CuSn8 Aluminum Bronze:C60800/C61300/C61900/C62300/C63000 Copper Nickel Alloy:C70400/C71500/C70600/C70620/C73500/75200/76200/C77000 |
|
Temper
|
H,1/2H,3/4H,1/4H,EH,SH,O60, etc.
|
|
Surface
|
Mill,Polished,bright or customized.
|
|
MOQ
|
1 ton
|
|
Delivery Time
|
5-10 days after the payment received
|
|
Payment Item
|
30% TT deposit+70% TT balance before delivery
|
Standard Size of C11000 Copper Bar in Stock
| Standard Size | 4mm 5mm 6mm 7mm 8mm 9mm 10mm 12mm 14mm 15mm 16mm 18mm 19mm 20mm 22mm 24mm 25mm 27mm 28mm 30mm 32mm 35mm 38mm 40mm 42mm 45mm 48mm 50mm 55mm 60mm 65mm 70mm 75mm 80mm 85mm 90mm 95mm 100mm 105mm 110mm 115mm 120mm 125mm 130mm 140mm 150mm 160mm 180mm 190mm 200mm 210mm 220mm 230mm 240mm 250mm |
| Length | 1m 2m 3m 4m 6m or cutting any length as request |
C101 (CW004A)
C101 (CW004A): Often referred to as HDHC (Hard Drawn, High Conductivity) copper, is recognized for its exceptional electrical conductivity and mechanical strength.
This alloy's outstanding combination of conductivity and durability makes it a prime choice for various electrical and electronic applications, including wiring, busbars, and connectors.
Electrolytic Tough Pitch Copper (ETP) C101 / CW004A is a commercially pure high conductivity grade of copper refined by electrolytic deposition which is then melted and oxidised to the “tough pitch” condition with a controlled low oxygen content. This is the most widely used of all the coppers because of its combination of electrical and thermal conductivity, corrosion resistance, workability and aesthetic beauty.
C101 / CW004A is the normal grade for general electrical use as busbar, motor and transformer components, windings and many other current carrying applications. It is also very popular with architects for applications where the corrosion resistance is required for building applications. Over time the C101 will also develop the weathered copper, green patina, appearance that offers additional corrosion resistance and a desirable look.
The use of this alloy in elevated temperature environments can be limited due to oxygen being present in the form of Cu2O. This can cause the alloy to be susceptible to hydrogen embrittlement in reducing gasses or when welding or brazing using an oxy-fuel gas flame.
Chemical Composition
| Copper | 99.90 min |
| Oxygen | 0.005 – 0.040 |
| Total Imps | 0.03% max (excl. O2 & Ag) |
Related Specifications
| C101 | CW004A |
| BS1433 | C11000 ETP |
| Cu-ETP | DIN 2.0060 |
Key Features
- Very High Electrical Conductivity
- Excellent formability
- Very Good Thermal Conductivity
- Excellent Joining Characteristics
Typical Physical Properties
| Melting Point | 1083°C |
| Density | 8.92 g/cm³ |
| Specific heat | 385 J/Kg °K |
| Thermal conductivity | 393 W/m°K |
| Thermal expansion coefficient (20-200°C) | 17.3 x 10-6 Per °C |
| Electrical conductivity | 100 % IACS |
| Electrical Resistivity | 0.0172 x10-6 microhm /m |
| Modulus of elasticity | 118000 N/mm² |
Fabrication Properties
| Hot Working Temperature Range | 750-950°C |
| Hot Formability | Good |
| Cold Formability | Excellent |
| Cold reduction between anneals | 90% max |
|
Machinability rating (free cutting brass = 100) |
20% |
| Annealing Temp. Range | 200-650°C |
| Stress Relieving Temp. Range | 150-200°C |
Joining Methods
| Soldering | Excellent |
| Brazing | Good |
| Oxy-acetylene welding | Less Suitable |
| Gas-shielded arc welding | Fair |
| Resistance welding: spot and seam butt |
Not Recomended
Good |
Typical Uses:
The C101 / CW004A is mostly utilised for general electrical busbar, motor and transformer components, windings, electrical conductors, contacts, terminals and many other current carrying applications. Other uses include architectural metalwork, gutters, flashing, roofing, automotive and industrial radiators, together with chemical process equipment, vats, kettles and pans.
