Seamless & Welded Stainless Steel Pipe Tube 316L / 1.4404 SCH40S SCH80S SCH160S

  • Seamless & Welded Stainless Steel Pipe Tube 316L / 1.4404 SCH40S SCH80S SCH160S
  • Seamless & Welded Stainless Steel Pipe Tube 316L / 1.4404 SCH40S SCH80S SCH160S
  • Seamless & Welded Stainless Steel Pipe Tube 316L / 1.4404 SCH40S SCH80S SCH160S
  • Seamless & Welded Stainless Steel Pipe Tube 316L / 1.4404 SCH40S SCH80S SCH160S
Place of Origin China
Brand Name DELTA
Certification ISO
Model Number TP316L
Minimum Order Quantity 500 kgs
Price 4650-5760 USD/Ton
Packaging Details standard packing for export
Delivery Time 5 - 12 days based on the quantity
Payment Terms T/T, Western Union, L/C
Supply Ability 10 Ton per week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Products Stainless Steel Pipe Grade TP316L
Standard ASTM GB EN Length 6m Or Custom Cutting Any Length As Request
Diameter DN10 - DN400 Wall Thickness SCH10 - XXS Or Unstandard Size
Type Seamless Pipe Service Cutting, Polishing
Application Industrial Packing Wooden Box Or PP Bag
Highlight

Welded Stainless Steel Pipe

,

SCH160S Stainless Steel Pipe

,

Seamless Stainless Steel Pipe
Leave a Message
Product Description

Seamless & Welded Stainless Steel Pipe Tube 316L / 1.4404 SCH40S SCH80S SCH160S



TP316L Bright Annealed Tubing, 1/2inch Stainless Steel Tube
Outside Diameter 3.2-25.4mm
Wall Thickness 0.2-2.5mm
Length As customer's requirement; In coil or in straight.
Standard ASTM A213/ ASME SA213, ASTM A269/ASME SA269, EN10216-5, etc.
Grade TP304, TP304L, TP316, TP316L, TP321, TP247H, etc.
Delivery Condition Pickled, Polished, Bright Annealed
Technique Seamless/Welded
Application Automotive industry, Aircraft/Aerospace, Instrumentation & Electrical, Chemical Industry, etc.
Marking LOGO, Standard, Grade, Size, Heat Number.

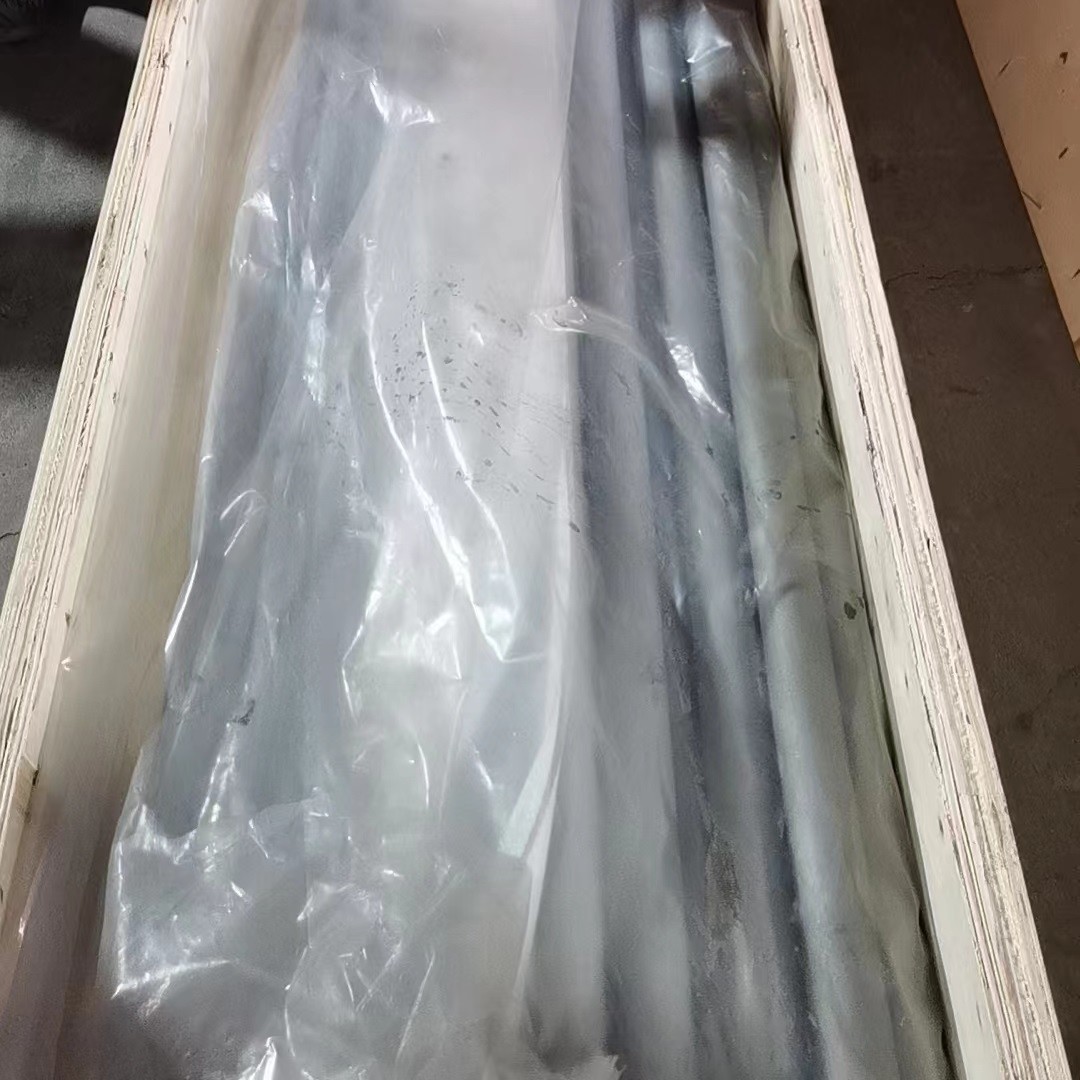

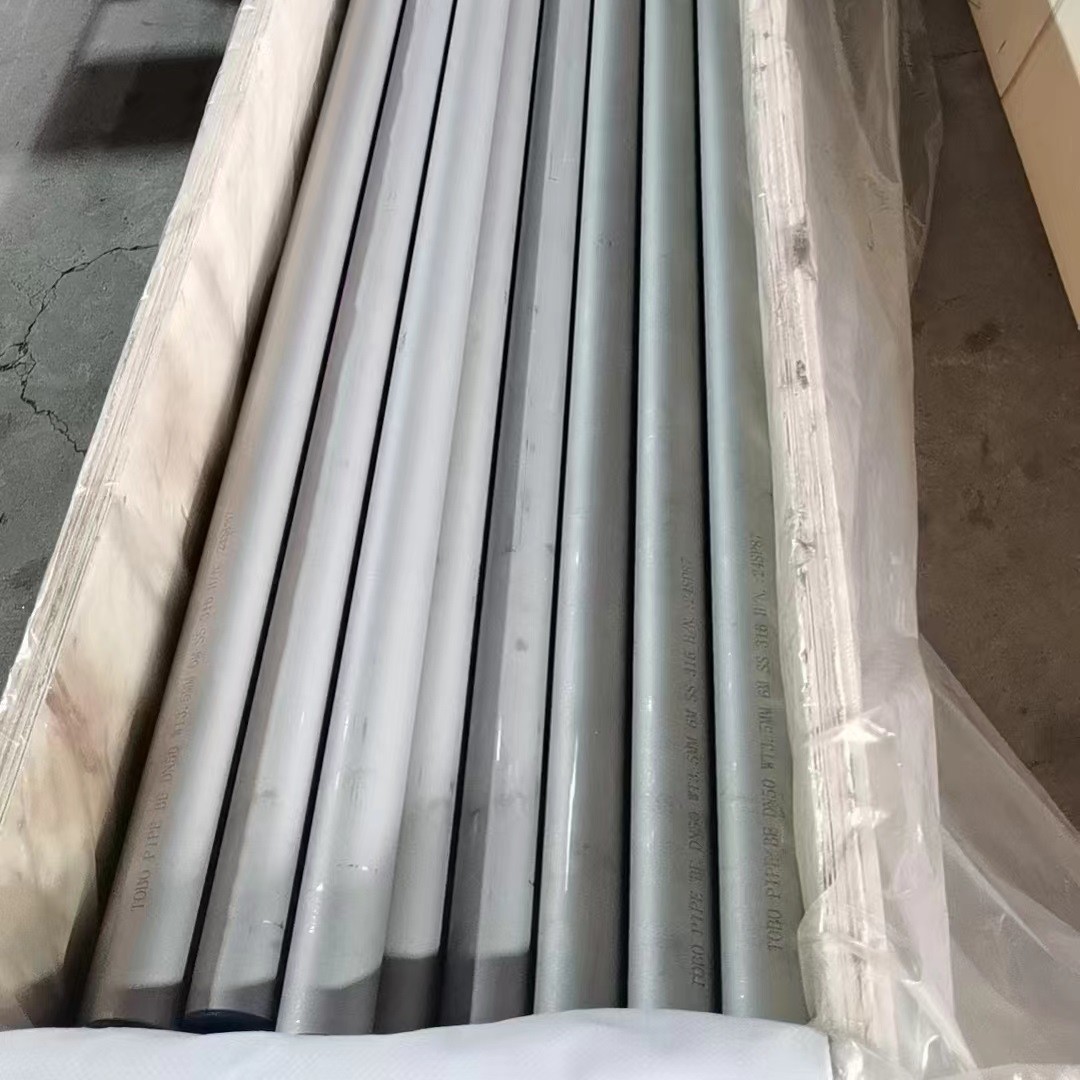

Package Woven bag, wooden cases, or as per customer's requirement.
Quality Requirement Mill Test Certificate (EN 10204/3.1); Third Part Inspection is acceptable.



We have been manufacturing these 316L Stainless Steel Tubing and supplying them to customers in different countries. The raw material used in the production process of 316L Schedule 40 stainless steel pipe is procured from reliable vendors and are passed through various tests before fabricating them. Our well trained team of experts guides our customers in every step of decision making and enlightens them with the facts about the SS 316L Welded Pipe.

The Stainless Steel 316L Seamless Pipe produced by us has gained reputation in industrial as well as in commercial applications in the western world. Our timely and damage free delivery of Stainless Steel 316L Tube has made us well known in this industry.

Specifications of Stainless Steel 316L Seamless Pipe

Specifications ASTM A312 / ASME SA312
O.D. Sizes up to 12 inch NB, 6.00 mm Other Dia. upto 250 mm Other Dia.
SS 316L Pipe Thickness 0.25, 0.28, 0.32, 0.37, 0.41, 0.51, 0.61, 0.71, 0.91, 1.11, 1.15, 1.41 mm
Grade 316L
Type Supplier in Welded | CDW | ERW | DOM | Seamless | Fabricated | CEW
Sizes 5.0 milimeter - 1219.2 milimeter
Length Single Random, Double Random, Cut to length
End Screwed, Beveled, Threaded, Plain
Schedule Thickness Ranges SCH XS, SCH 40, SCH 80S, SCH 5, SCH 80, SCH XXS, SCH 160, SCH10, All Schedules
Form “U” Shape, Square, Pan Cake Coils, Coiled, Rectangular, Round, Hydraulic Tubes.
Surface Finish 2B, No.1, No.4, No.8 Mirror Finish supplier in Mumbai
Delivery Condition Annealed & Pickled, Polished, Bright & Annealed, etc

Custom sizes of DIN 1.4404 AISI 316L Round Pipe in Single and Double Random Length, Visit us for SS 316L schedule 10 pipe thickness.

ASME SA 312 Grade 316L Square Pipe Wall Thickness

028 = .028" Thick
035 = .035" Thick
039 = .039" Thick
049 = .049" Thick
065 = .065" Thick
083 = .083" Thick
109 = .109" Thick

Chemical Structure of 316L SS ERW Pipe

Grade C Mn P S Si Cr Ni Mo
316L .035 2.00 .045 .030 1.00 16.0-18.0 10.0-14.0 2.0-3.0
One of the Largest SS 316L pipe manufacturers in india, Know ASME SA 312 Gr.TP316L Square Pipe Weight Chart.

Weight Chart of 316L Stainless Steel Tubing

NPS O.D. Wall Thk.   Wght Wght
in mm in mm Sched kg/Mtr Lb/ft
1/2″ 0.840 21 0.109 2.769 40 STD 1.268 0.851
      0.147 3.734 80 STD 1.621 1.088
3/4″ 1.050 27 0.113 2.870 40 STD 1.684 1.131
      0.154 3.912 80 STD 2.195 1.474
1″ 1.315 33 0.133 3.378 40 STD 2.501 1.679
      0.179 4.547 80 STD 3.325 2.172
1 1/4″ 1.660 42 0.140 3.556 40 STD 3.385 2.273
      0.191 4.851 80 STD 4.464 2.997
1 1/2″ 1.900 48 0.145 3.683 40 STD 4.048 2.718
      0.200 5.080 80 STD 5.409 3.361
2″ 2.375 60 0.154 3.912 40 STD 5.441 3.653
      0.218 5.537 80 STD 7.480 5.022
2 1/2″ 2.875 73 0.203 5.516 40 STD 8.629 5.793
      0.276 7.010 80 STD 11.411 7.661
3″ 3.500 89 0.216 5.486 40 STD 11.284 7.576
      0.300 7.620 80 STD 15.272 10.253
4″ 4.500 114 0.237 6.020   16.073 10.790
      0.337 8.560   22.318 14.983
6″ 6.625 168 0.188 4.775   19.252 12.924
      0.203 5.516   20.739 13.923
      0.219 5.563   22.318 14.983
      0.250 6.350   25.354 17.021
      0.280 7.112 40 STD 58.263 18.974
      0.312 7.925   31.334 21.036
      0.375 9.525   37.285 25.031
      0.432 10.973 80 XHY 42.561 28.573
      0.500 12.700   48.719 32.708
8″ 8.625 219 0.188 4.775   25.233 16.940
      0.203 5.156   27.198 18.259
      0.219 5.563   29.286 19.661
      0.250 6.350 20 33.308 22.361
      0.277 7.036 30 36.786 24.696
      0.322 8.179 40 42.352 28.554
      0.375 9.525   49.216 33.041
      0.406 10.312 60 53.085 35.638
      0.500 12.700 80 XHY 64.627 43.388
10″ 10.750 273 0.188 4.775   31.588 21.207
      0.219 5.563   36.689 24.631
      0.250 6.350 20 41.759 28.035
      0.307 7.798 30 51.002 34.240
      0.344 8.738   56.946 38.231
      0.365 9.271 40 STD 63.301 40.483
      0.438 11.125   71.852 48.238
      0.500 12.700 60 XHY 81.530 54.735
      0.594 15.088 80 95.969 64.429
12″ 12.750 324 0.188 4.775   37.570 25.222
      0.219 5.563   43.657 29.309
      0.250 6.350   49.713 33.375
      0.281 7.137   55.739 37.420
      0.312 7.925   61.735 41.445
      0.375 9.525   73.824 49.562
      0.406 10.312   79.727 53.525
      0.500 12.700   97.438 65.415
      0.562 14.275   108.966 73.154
14″ 14.000 356 0.188 4.775   41.308 27.732
      0.219 5.563   48.012 32.233
      0.250 6.350 20 54.685 36.713
      0.281 7.137   61.327 41.172
      0.312 7.925   67.939 45.611
      0.375 9.525 STD 81.281 54.568
      0.438 11.125 40 94.498 63.441
      0.500 12.700 XHY 107.381 72.090
      0.625 15.875   132.983 89.278
16” 16.000 406 0.188 4.775   47.290 21.748
      0.219 5.563   54.980 36.910
      0.250 6.350 10 62.639 42.053
      0.281 7.137   70.268 47.174
      0.312 7.925 20 77.866 52.275
      0.344 8.738   85.677 57.519
      0.375 9.525

30

STD

 93.213 62.578
      0.438 11.125   108.433 72.797
      0.500 12.700

40

XHY

 123.289 82.770
18″ 18.000 457 0.219 5.563   61.948 41.588
      0.250 6.350   70.593 47.393
      0.281 7.137   79.208 53.176
      0.312 7.925 20 87.792 58.939
      0.375 9.525 STD 105.144 70.588
      0.438 11.125 30 122.369 82.152
      0.500 12.700 XHY 139.198 93.450
      0.562 14.275 40 155.904 104.666
      0.625 15.875   172.754 115.978
20″ 20.000 508 0.250 6.350   78.547 52.733
      0.282 7.163   88.458 59.386
      0.312 7.925   97.719 65.604
      0.375 9.525 20 STD 117.075 78.598
      0.438 11.125   136.305 91.508
      0.500 12.700 30 XHY 155.106 104.130
      0.594 15.088 40 183.378 123.110
      0.625 15.875   192.640 129.328
      0.688 17.475   211.368 141.901
24″ 24.000 610 0.250 6.350   94.456 63.413
      0.281 7.137   106.029 71.183
      0.312 7.925   117.573 18.932
      0.375 9.525 20 STD 140.938 64.618
      0.438 11.125   164.176 110.219
      0.500 12.700 XHY 186.923 125.490
      0.625 15.875   232.410 156.028
      0.688 17.475 40 255.148 171.293
      0.750 19.050   277.401 186.233
30″ 30.000 762 0.250 6.350   118.318 79.433
      0.281 7.137   132.851 89.189
      0.312 7.925 10 147.353 98.925
      0.375 9.525 STD 176.731 118.648
      0.438 11.125   205.983 138.286
      0.500 12.700 20 XHY 234.647 157.530
      0.625 15.875 30 292.066 196.078
      0.688 17.475   320.817 215.380
      0.750 19.050   348.988 234.293
36″ 36.000 914 0.250 6.350   142.180 95.453
      0.281 7.137   159.672 107.196
      0.312 7.925 10 177.133 118.918
      0.375 9.525 STD 215.525 142.678
      0.438 11.125   247.790 166.353
      0.500 12.700 20 XHY 282.372 198.570
      0.625 15.875   351.723 236.128
      0.688 17.475   386.487 259.467
      0.750 19.050   420.576 282.353
42″ 42.000 1067 0.312 7.925   206.914 138.911
      0.375 9.525 STD 248.319 166.708
      0.500 12.700 XHY 33.097 221.610
      0.750 19.050   492.163 330.413
48″ 48.000 1219 0.375 9.525 STD 284.112 190.738
      0.438 11.125   331.404 222.487
      0.500 12.700 XHY 377.822 253.650
      0.750 19.050   563.750 378.473
      0.875 22.225   655.969 440.383

UNS S31603 Rectangular Pipe Mechanical Properties Tensile Strength

Grade Tensile
  Ultimate/Min Yield/Min Elongation/Min
  KSI MPA KSI MPA %
316L 70 485 25 170 35

Equivalent material of Stainless Steel 316L Pipe

STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN
SS 316L 1.4404 / 1.4435 S31603 SUS 316L 316S11 / 316S13 03Ch17N14M3 / 03Ch17N14M2 Z3CND17‐11‐02 / Z3CND18‐14‐03 X2CrNiMo17-12-2 / X2CrNiMo18-14-3



Various Types of Test on SS 316L Tubing

  • Radiography/ Hydrostatic test
  • Micro/ Macro test
  • Hardness test
  • Chemical/ Mechanical test
  • IGC/ PMI test
  • Pitting resistance test

ASTM A312 Gr TP316L Welded Pipe Roughness

MATERIAL SURFACE ABSOLUTE ROUGHNESS COEFFICIENT
Ε MM
Aluminum Alloy, Lead 0.001 - 0.002
Drawn Copper/ Brass 0.0015
SS 316L 0.015

Physical Analysis of 316L Stainless Steel Square Tube

Grade Density (kg/m3) Elastic Modulus (GPa) Mean Coefficient of Thermal Expansion (m/m/0C) Thermal Conductivity (W/m.K) Specific Heat 0-1000C (J/kg.K) Electrical Resistivity (n.m)
0-1000C 0-3150C 0-5380C at 1000C at 5000C
316L 8000 193 15.9 16.2 17.5 16.3 21.5 500 740

Stainless Steel Marine 316L SEamless Tubing Surface Finish

Surface Finish Internal Surface(ID) External Surface(OD)
Roughness Average(RA) Roughness Average(RA)
μ inch μm μ inch μm
AP Annealed & Pickled Not defined Not defined 40 or Not defined 1.0 or Not defined
BA Beight Annealed 40,32,25,20 1.0,0.8,0.6,0.5 32 0.8
MP Mechanical Polish 40,32,25,20 1.0,0.8,0.6,0.5 32 0.8
EP Electro Polish 15,10,7,5 0.38,0.25,0.20;0.13 32 0.8



Seamless & Welded Stainless Steel Pipe Tube 316L / 1.4404 SCH40S SCH80S SCH160S 0Seamless & Welded Stainless Steel Pipe Tube 316L / 1.4404 SCH40S SCH80S SCH160S 1Seamless & Welded Stainless Steel Pipe Tube 316L / 1.4404 SCH40S SCH80S SCH160S 2Seamless & Welded Stainless Steel Pipe Tube 316L / 1.4404 SCH40S SCH80S SCH160S 3
