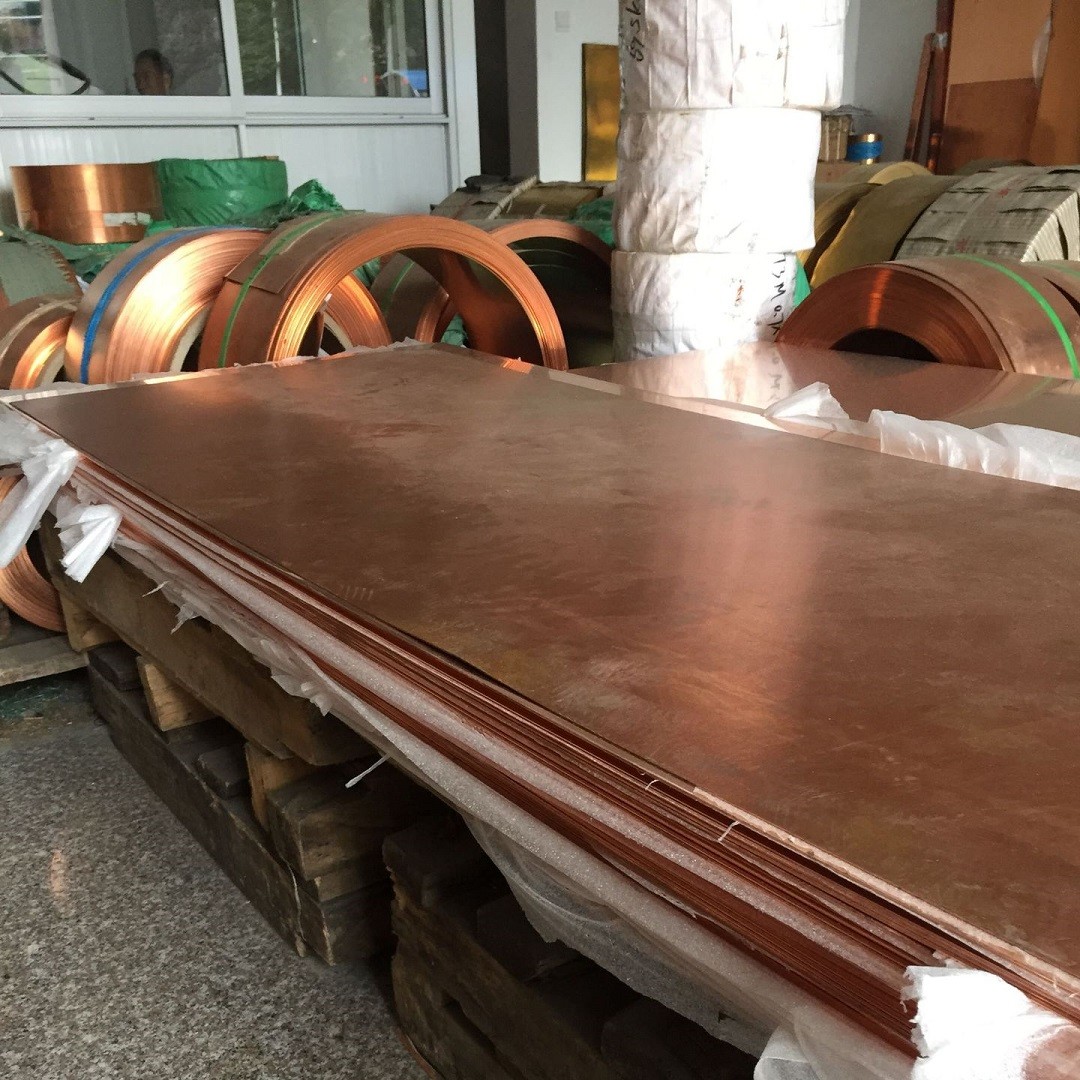

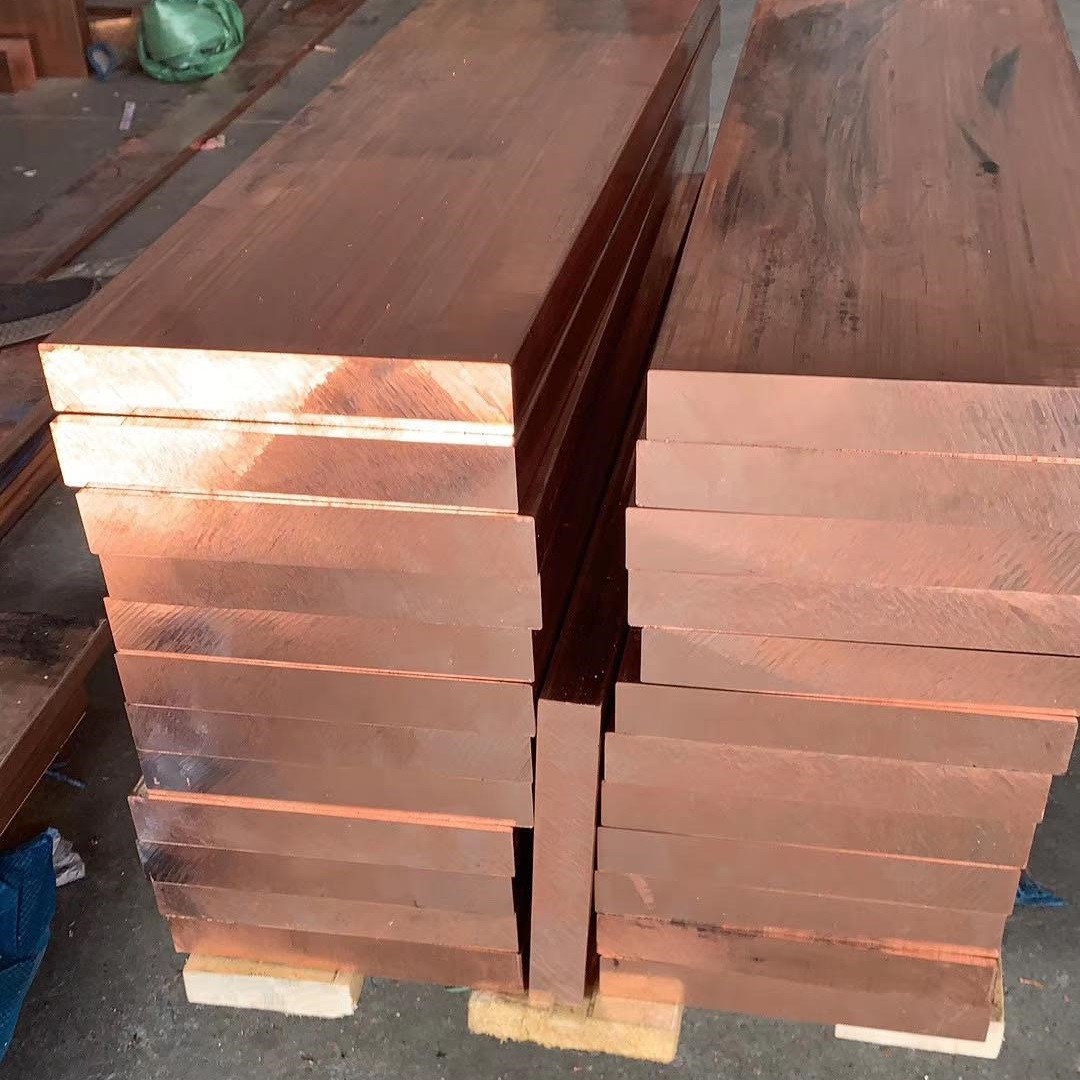

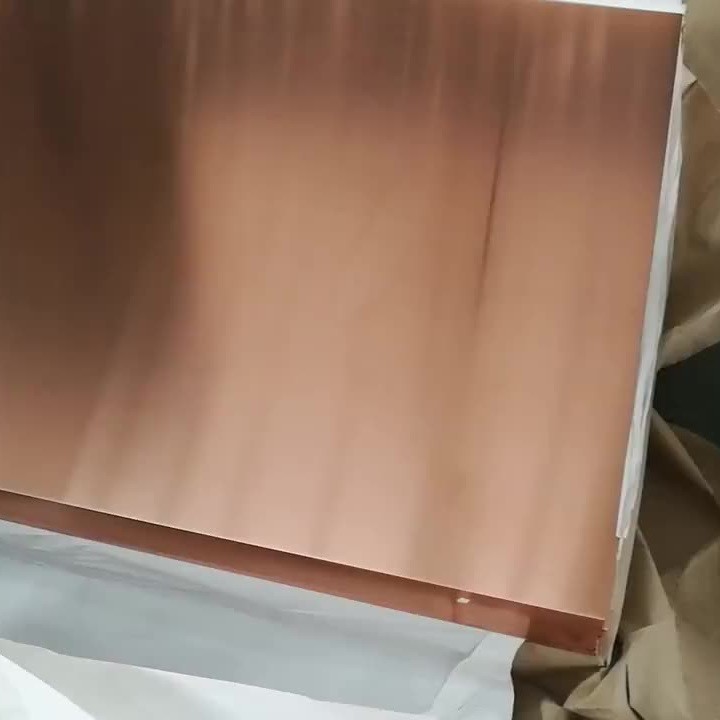

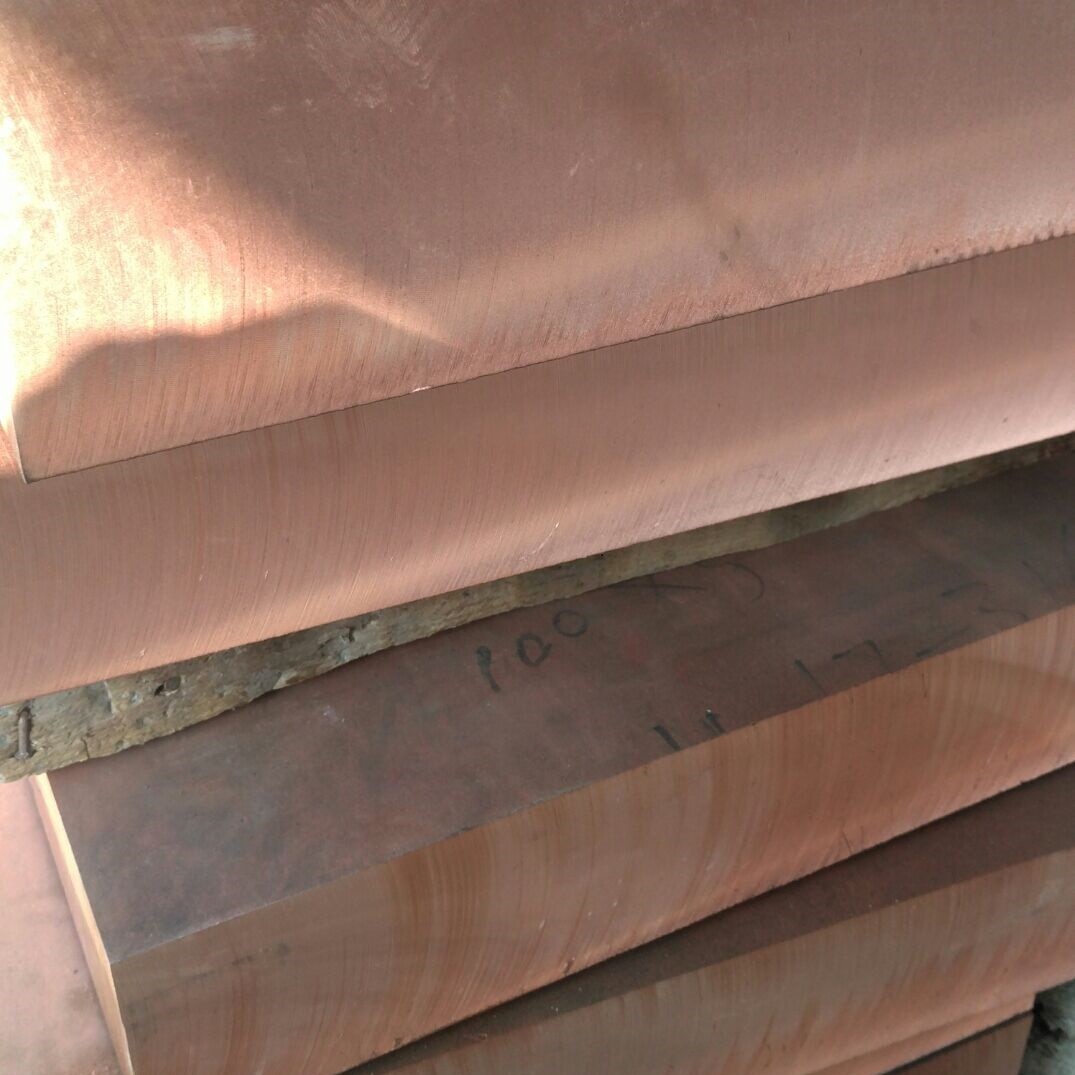

ASTM Grade C10200 / 102 / C1020 Copper Plate Thickness 0.4 - 200mm Copper Sheet
| Place of Origin | China |
|---|---|
| Brand Name | DELTA |
| Certification | ISO |
| Model Number | C10200 |
| Minimum Order Quantity | 200 kgs |
| Price | 8 - 9 USD/Kg |
| Packaging Details | wooden pallets |
| Delivery Time | 5 - 10 days |
| Payment Terms | T/T, Western Union, MoneyGram |
| Supply Ability | 15 Tons per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products | Copper Flta Bar | Grade | C10200 |
|---|---|---|---|
| Standard | ASTM GB EN DIN JIS | Thickness | 0.5 - 60.0mm |
| Width | Within 1000mm | Length | 6m Or Custom As Request |
| Certificate | EN 10204-3.1 | Other Products | Pipe , Round Bar, Strips |
| Highlight | 200mm Copper Plate,C10200 Copper Plate,ASTM Sheet Copper Plate |
||
Product Description
ASTM Grade C10200 / 102 / C1020 Copper Plate Thickness 0.4 - 200mm Copper Sheet
|
Product name
|
Copper Plate & Sheet |
| Copper and copper alloy grade |
C11000,C10100,C10200
H59, H60, H62, H65, H68, H70, H80, H85, H90, H96, C2100, C2200,C2300, C2400, C2600, C2680, C2720, C2800, C3560, C3601, C3713, C3771, C3561 , CuZn30, CuZn32, CuZn35, CuZn37, CuZn40 ,TU1, T2, TP2, H96, H90, H85, H80, H70, H65, H63, H62, H59, HPb63-3, HPb66-0.5, HPb62-2, HPb62-3, HPb59-3, HSn70-1, HSn62-1,QSn8-0.3, QSn4-4-4, QAl9-4, QSB-1 etc.
|
| Width | Within 1500mm Custom Cutting any width as request |
| Thickness | 0.5 - 200.0mm |
|
Length |
1m 2m 3m 6m or custom cutting any length as request |
| Standard | ASTM EN DIN JIS GB |
| Other products | Plate, Sheet, Coil , Pipe, Round Bar, Square Bar, Flat Bar, Hexagonal Bar.etc |
Application of C10200 Copper
Electrical/electronic and solar applications where strength is not required. Additional applications are downspouts, gutters, roofing, gaskets, heat sinks, busbars, nails, printing rolls, rivets, etc. parts.
Description of C10200 Copper
In general, copper alloys exhibit good to excellent corrosion resistance and high thermal conductivity and very high electrical conductivity. Pure copper's electrical conductivity is so high that many metals are measured against it in the form of the IACS (International Annealed Copper Standard).
CHEMISTRY TYPICAL
- UNS# COPPER* OXYGEN SILVER PHOSPHORUS ARSENIC
- C10100 99.99 min 0.0005 max 0.0005 max
- C10200 99.95 min 0.001 max 0.0003 max
- C10400 99.95 min 0.001 max 0.027 min
- C10500 99.95 min 0.001 max 0.034 min
- C10700 99.95 min 0.001 max 0.085 min
- C11000 99.90 min
- C12000 99.90 min 0.004-0.012
- C12100 99.90 min 0.014 0.004-0.012
- C15000 Balance* 0.10-0.20 Zr
- C15500 99.75 min 0.027-0.10 0 .040-0 .080 0.08-0.13 Mg
- * Contact Ulbrich Wire for request regarding the availability of other copper alloys.
- * Contact Ulbrich Technical Department for limits for additional trace elements and impurity levels.
- * Copper Values include Silver.
- * Copper plus named elements.
PHYSICAL PROPERTIES
Typical Density: 0.332 lbs/in3, 8.92 g/cm3
Electrical Conductivity:(% IACS at 68° F 20°C, annealed): 85-101%
Specific Heat: BTU/lb-° F (J/g-°C): 0.0920 (0.385)
Mean Coefficient of Thermal Expansion: µin/in-° F (µm/m-°C)
68 - 572 °F (20 - 300 °C): 9.8 (17.6)
Thermal Conductivity: BTU-in/hr-ft2-° F (W/m•K): 2712 (390.8)
Modulus of Elasticity: KSI (MPa)
17 x 103 in tension
Melting Range: 1981 °F (1083 °C)
FORMS
- Plate
- Sheet
- Bars
- Pipes
MECHANICAL PROPERTIES AT ROOM TEMPERATURE
PROPERTIES: ANNEALED TYPICAL
Ultimate Tensile Strength: 26 - 38 KSI (179 - 262 MPa)
Yield Strength: 10 KSI (69 MPa) Nominal
Elongation: 35%
