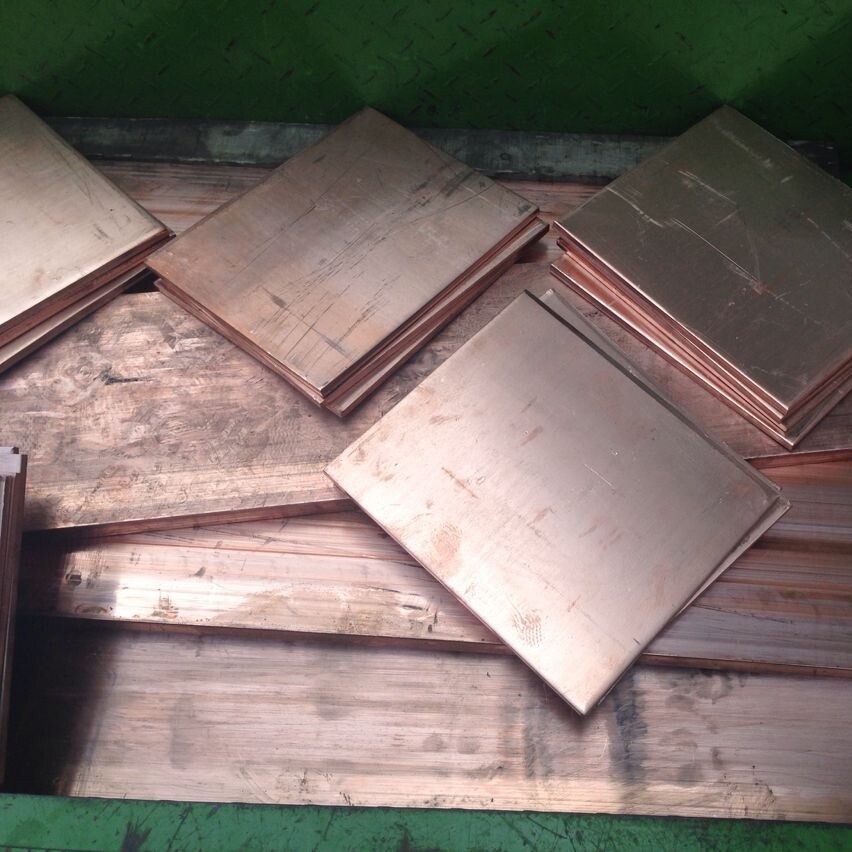

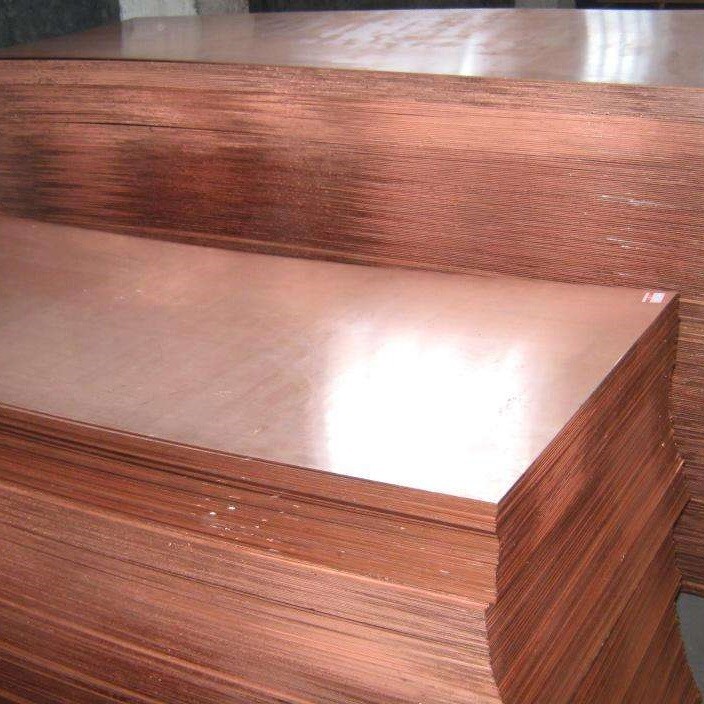

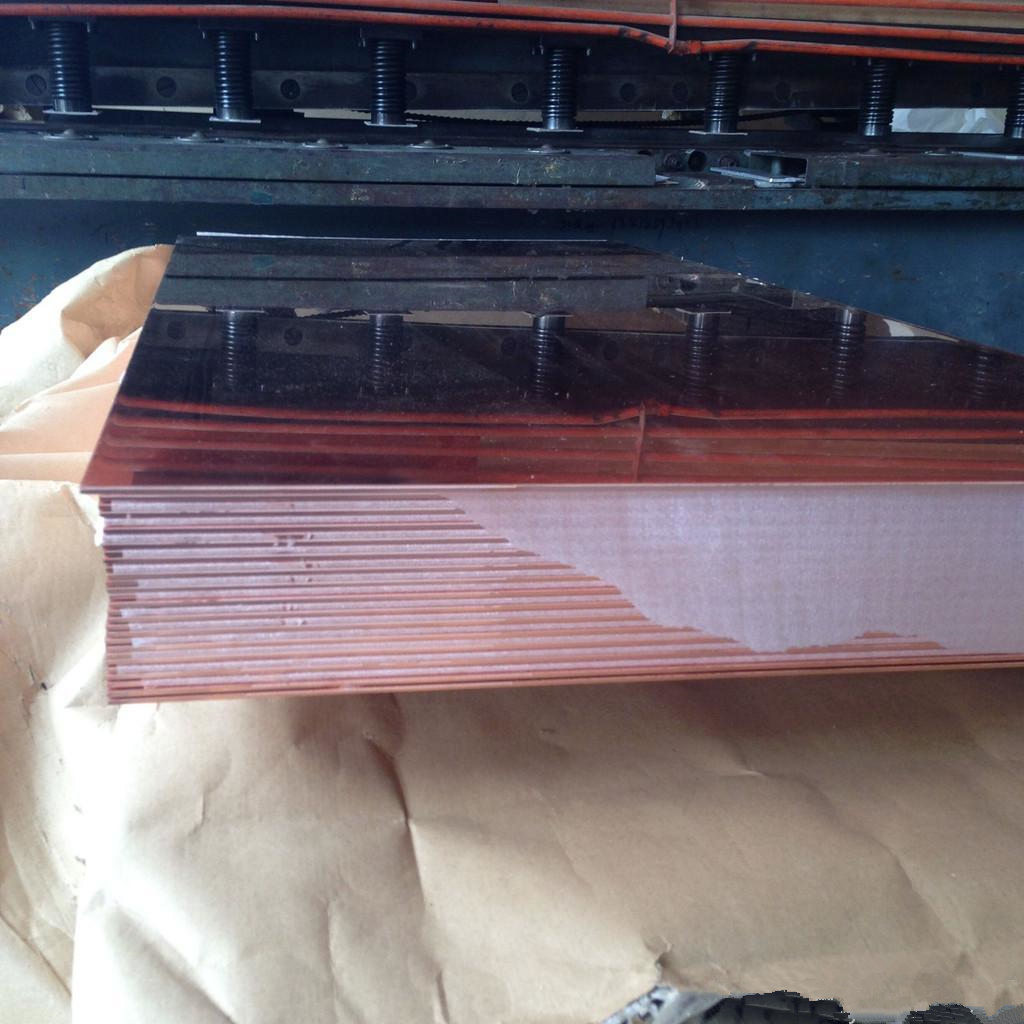

Red Copper C11000 / T2 / C1100 Pure Copper 99.90% Plate Thickness Within 200mm
| Place of Origin | China |
|---|---|
| Brand Name | DELTA |
| Certification | ISO |
| Model Number | C11000 / C1100 |
| Minimum Order Quantity | 200 kgs |
| Price | 8 - 9 USD/Kg |
| Packaging Details | wooden pallets |
| Delivery Time | 5 - 10 days |
| Payment Terms | T/T, Western Union, MoneyGram |
| Supply Ability | 15 Tons per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products | Copper Flta Bar | Grade | C11000 / T2 / C1100 |
|---|---|---|---|
| Standard | ASTM GB EN DIN JIS | Thickness | 0.5 - 60.0mm |
| Width | Within 1000mm | Length | 6m Or Custom As Request |
| Certificate | EN 10204-3.1 | Other Products | Pipe , Round Bar, Strips |
| Highlight | T2 Red Copper Plate,C11000 Red Copper Plate,Pure 99.90% Red Copper Plate |
||
Product Description
Red Copper C11000 / T2 / C1100 Pure Copper 99.90% Plate Thickness Within 200mm
|
Product name
|
Copper Plate & Sheet |
| Copper and copper alloy grade |
C11000,C10100,C12200
H59, H60, H62, H65, H68, H70, H80, H85, H90, H96, C2100, C2200,C2300, C2400, C2600, C2680, C2720, C2800, C3560, C3601, C3713, C3771, C3561 , CuZn30, CuZn32, CuZn35, CuZn37, CuZn40 ,TU1, T2, TP2, H96, H90, H85, H80, H70, H65, H63, H62, H59, HPb63-3, HPb66-0.5, HPb62-2, HPb62-3, HPb59-3, HSn70-1, HSn62-1,QSn8-0.3, QSn4-4-4, QAl9-4, QSB-1 etc.
|
| Width | Within 1500mm Custom Cutting any width as request |
| Thickness | 0.5 - 200.0mm |
|
Length |
1m 2m 3m 6m or custom cutting any length as request |
| Standard | ASTM EN DIN JIS GB |
| Other products | Plate, Sheet, Coil , Pipe, Round Bar, Square Bar, Flat Bar, Hexagonal Bar.etc |
Our C11000 Copper Plate & Sheet Thickness
| 0.3mm | 0.4mm | 0.5mm | 0.6mm | 0.7mm | 0.8mm |
| 0.9mm | 1.0mm | 1.2mm | 1.5mm | 2.0mm | 2.5mm |
| 3.0mm | 4.0mm | 5.0mm | 6.0mm | 8.0mm | 10.0mm |
| 12.0mm | 14.0mm | 16.0mm | 20.0mm | 22.0mm | 24.0mm |
| 25.0mm | 28.0mm | 30.0mm | 35.0mm | 40.0mm | 45.0mm |
| 50.0mm | 55.0mm | 60.0mm | 65.0mm | 70.0mm | 75.0mm |
| 80mm | 85.0mm | 90.0mm | 95.0mm | 100.0mm | within200mm |
C110 Copper, also known as Electrolytic Tough Pitch, is 99.90% pure copper. ETP 110 is one of the most commonly used commercially pure coppers. C11000 copper has one of the highest electrical conductivity ratings, in excess of 100%IACS. ETP C110 copper also has exceptional thermal conductivity and demonstrates good corrosion resistance. C110 ETP copper has a wide range of uses, including applications in architectural, industrial, electrical, automotive and construction industries.
C11000 Pure Copper Plate/ Coil/ Strip is one kind of copper material used in high stability with maintenance’s roofing and curtain wall in buildings. C11000 is with good property performances in environmental protection, e when application, easy for machining and especially anti- corrosion.
When production for C11000 Pure Copper Plate/ Coil/ Strip, the available sizes are: Thickness- 0.05mm to 60mm; Width- Up to 3000mm; Length- Up to 6000mm.
Chemical Composition for C11000 Pure Copper Plate/ Coil/ Strip:
| Grade | Cu+Ag | Sb | P | Bi | Ni | Fe | Pb | Sn | S | Zn | O |
| C11000 | 99.9 | 0.002 | -- | 0.001 | -- | 0.005 | 0.005 | -- | 0.005 | -- | -- |
Equivalent Grades in Different Standards for Pure Copper Plate/ Coil/ Strip:
| GB | ISO | ASTM | JIS | BS | DIN |
| T2 | Cu-RTP | C11000 | C1100 | C101 | R-Cu57 |
| TU1 | Cu-OF | C10200 | C1020 | C110 | OF-Cu |
| TU2 | Cu-OF | C10300 | C1020 | C103 | OF-Cu |
| TP1 | Cu-DLP | C12000 | C1201 | SW-Cu | |
| TP2 | Cu-DHP | C12200 | C1220 | C106 | SF-Cu |
| TAg0.1 | CuAg0.1 | C10400 | C1040 | CuAg0.1 |
