Precision Stainless Steel Strip Grade AISI430 / SUS430 / EN 1.4016 SS Strip Coil
| Place of Origin | China |
|---|---|
| Brand Name | TISCO |
| Certification | ISO |
| Model Number | 430 / 1.4016 /SUS430 |
| Minimum Order Quantity | 500 kgs |
| Price | 1410 - 1620 USD/Ton |
| Packaging Details | standard packing for export |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 20Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products | Stainless Steel Strip | Thickness | 0.1-2.0mm |
|---|---|---|---|
| Width | Within 1219mm | MOQ | 400 KGS |
| Grade | 200 Series 300 Series 300 Series | Surface | BA 2B NO.4 HL 8K NO.1 2D |
| Standard | ASTM EN GB JIS | Packing | Wooden Frame And Water Proof Paper |
| Highlight | aisi stainless steel strip,aisi ss strip coil,precision strip steel |
||
Product Description
Precision Stainless Steel Strip Grade AISI430 / SUS430 / EN 1.4016 SS Strip Coil
Specification Of Stainless Steel Strip
| Product Name | 430 Stainless Steel Strips |
| Material | Stainless Steel |
| Standard | ASTM JIS GB EN |
| Other Grade | 201 202 301 304 304L 309S 310S 316L 317L 410 420 430 436L 441 2205 2507 904L C276 |
| Thickness | 0.05mm-3.0mm |
| Width | 30mm-600mm |
| Finish | No.1, No.2, Bright Annealed, TR, Polished, etc. |
| Edge | Mill edge, Slit edge, Square edge, Round edge, etc. |
| Coating | PE coating, Paper coating |
| Coil ID | 508mm/610mm |
| Payment Terms | T/T, L/C |
| Delivery Time | As per quantity required |
Introduce of 430 / SUS430 / EN 1.4016 Stainless Steel
SS 430 is a corrosion and heat resistant ferritic Chromium Steel. It can be polished to appear similar to Chromium plate. The material is magnetic in both annealed and cold rolled tempers.
The alloy can be readily blanked and formed. The material can be resistance welded, brazed, and soldered. SS 430 is resistant to atmospheric corrosion and fresh water, but it not resistant to most salts and sea water. It is resistant to scaling by oxidation up to about 1400°F.
Available Sizes:
SS 430 is available from our company as strip product in thicknesses from 0.05mm - 3.0mm in widths up to 1219mm. The material conforms to ASTM JIS GB EN Standard.
Nominal Composition of Our 430 Stainless Steel Strip
| Grade | C | Mn | Si | Ni | Cr | Fe |
| 430 | 0.05 | 0.51 | 0.38 | 0.14 | 16.25 | Bal |
Mechanical Properties of our 430 Stainless Steel Strip
| SS 430 MECHANICAL PROPERTIES | ||
|---|---|---|
| ANNEALED | COLD ROLLED | |
| Ultimate Tensile Strength | 75,000 PSI | 145,000 PSI |
| Yield Strength (0.2% Offset) | 45,000 PSI | 135,000 PSI |
| Elongation in 2” * | 30% | 1% |
| Modulus of Elasticity (Tension) | 29 x 106 PSI | |
| Poisson’s Ratio | 0.27 | |
*The measured elongation will be less as thickness decreases to 0.002” and less.
These values may be adjusted by control of process variables – consult HPM for desired values
Physical Properties of 430 Stainless Steel Strips
| Density | 0.28 lbs/cu.in. |
| Melting Point (Approx.) | 1425°C |
| Electrical Resistivity @ R.T. | 60 Microhm·cm |
| Temperature Coefficient of Resistivity (TCR) (0° to 100°C) | 10.5 x 10-6 /°C |
| Thermal Conductivity @ 100°C | 26.1 W/m·K |
| Magnetic Permeability | 800 |
| Magnetic Attraction | Yes |

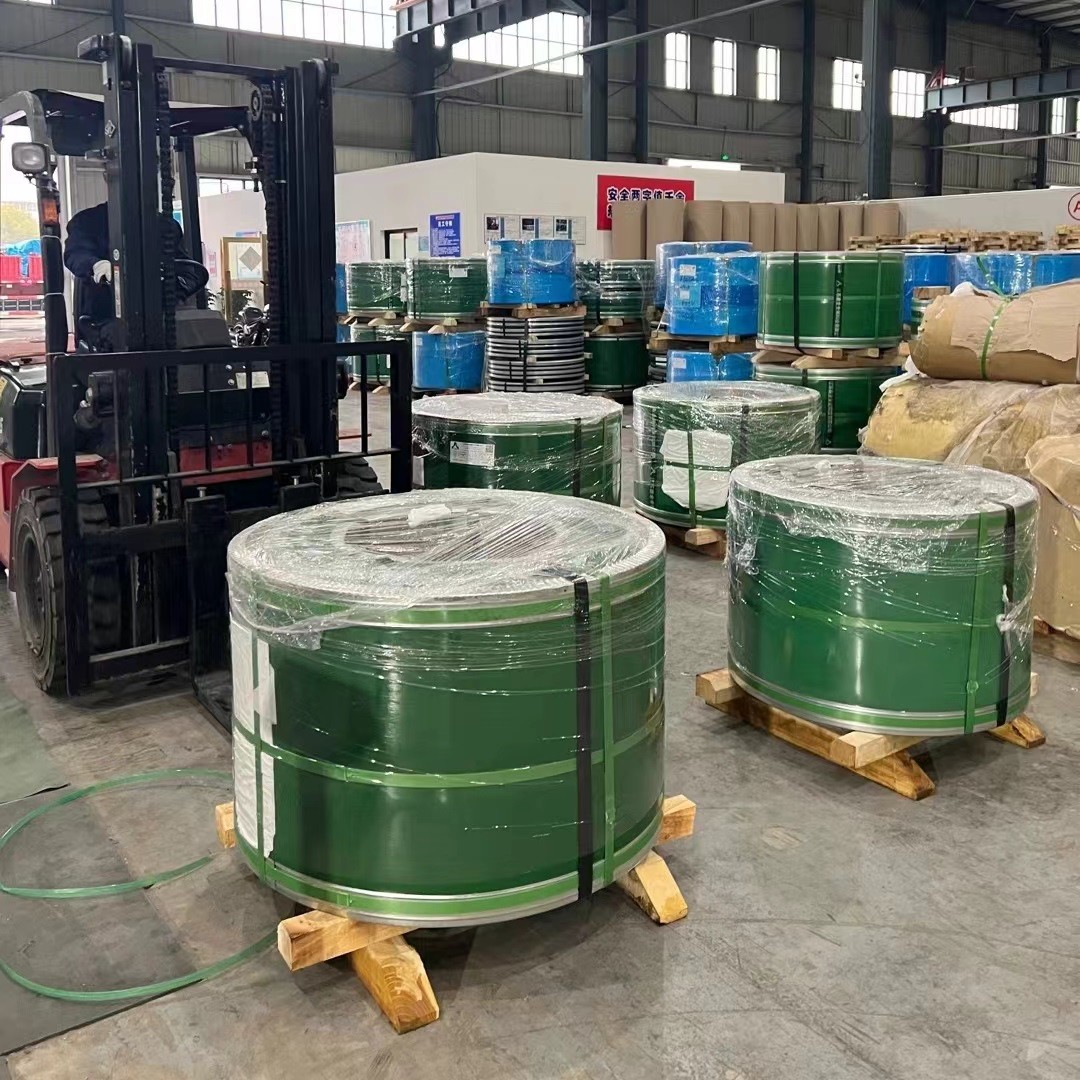

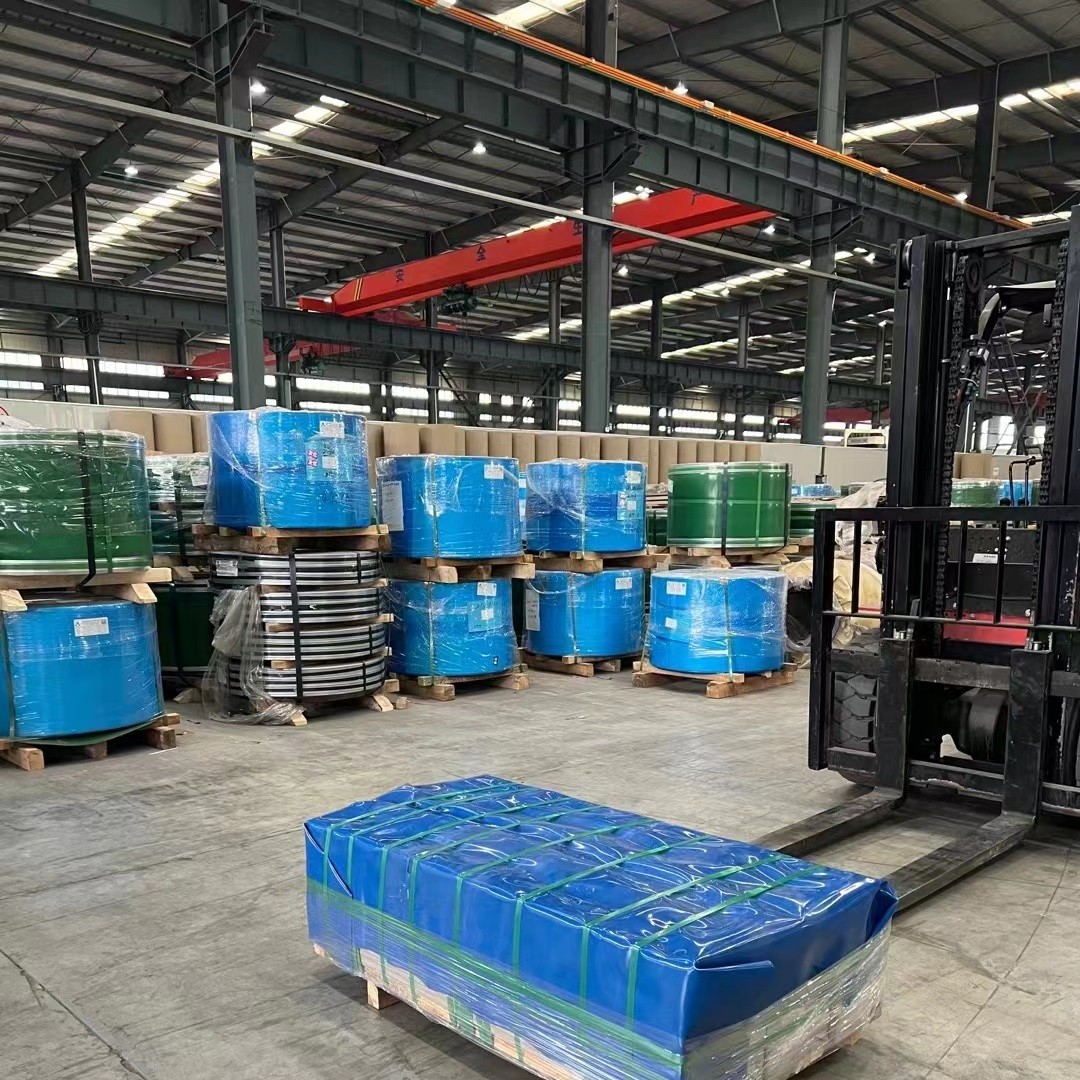

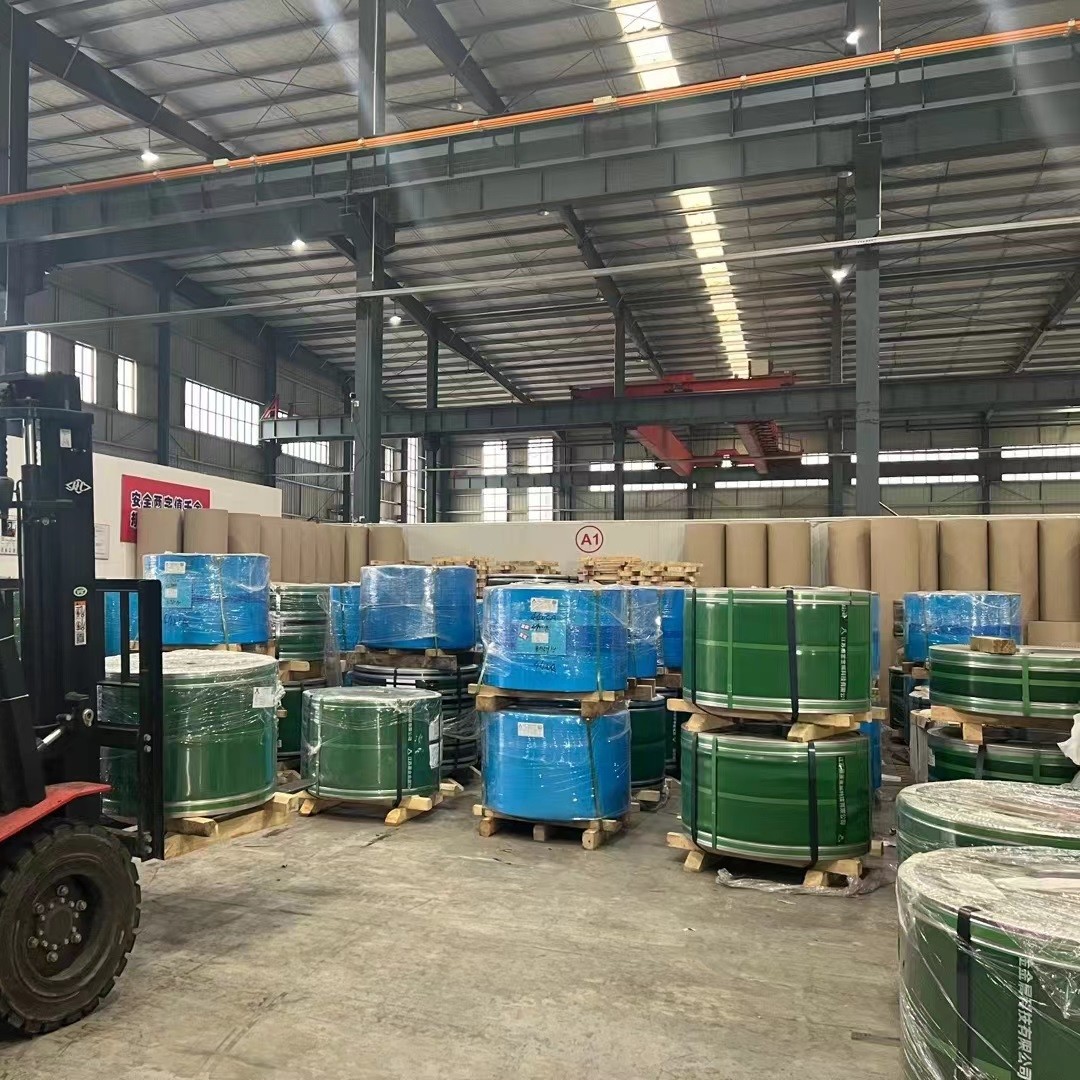

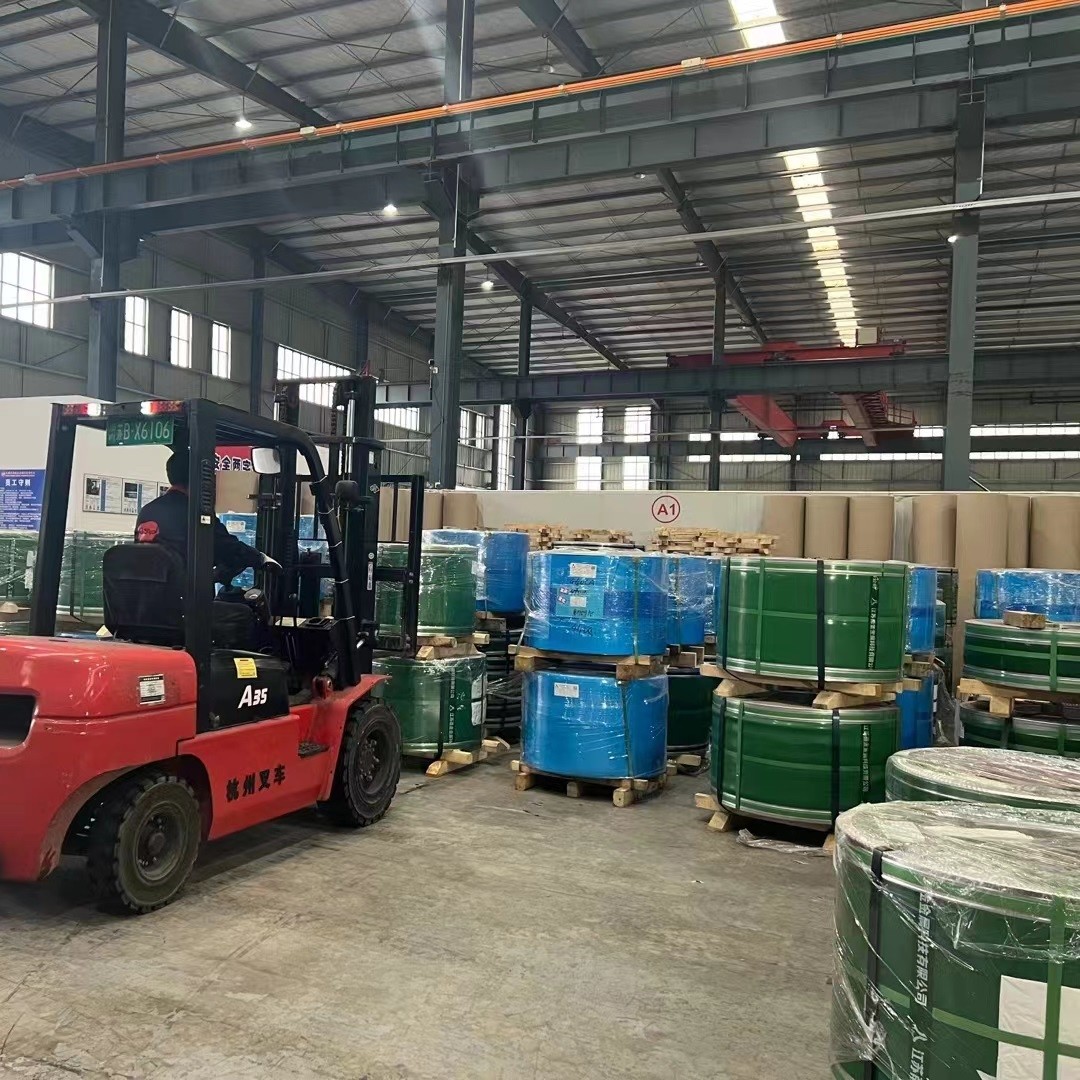

Packing and Delivery Informations
- Standard export packaging:
Waterproof Paper Winding + PVC Film + Strap Banding + Wooden Pallet or Wooden Case; - Customized packaging as your request (Logo or other contents accepted to be printed on the packaging);
- Other special packaging will be designed as customer’s request;
- Eye to wall and eye to sky are both available;
- By International Express: DHL / UPS / FEDEX / EMS and our own express line;
- By air or By sea;
- Shipping port: Shanghai, Ningbo or as your request.
