CU-ETP Copper Flat Bar ASTM Standard C11000 Flat Copper Plate with EN 10204-3.1 Certificated
| Place of Origin | China |
|---|---|
| Brand Name | DELTA |
| Certification | ISO |
| Model Number | C11000 / Cu-ETP |
| Minimum Order Quantity | 200 kgs |
| Price | 8 - 9 USD/Kg |

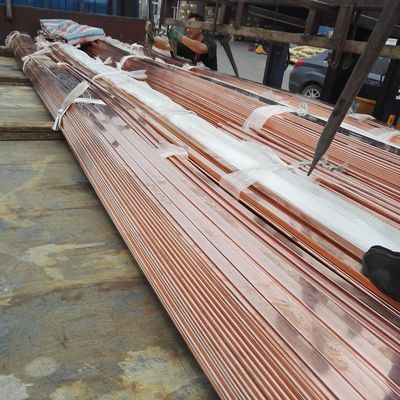

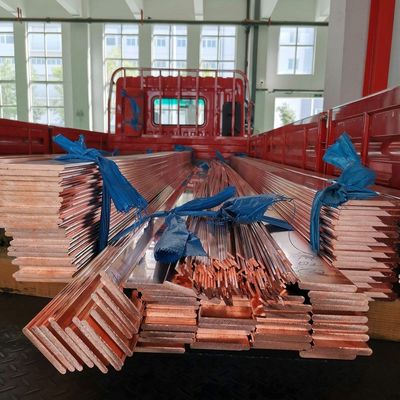

| Packaging Details | wooden pallets |
| Delivery Time | 5 - 10 days |
| Payment Terms | T/T, Western Union, MoneyGram |
| Supply Ability | 15 Tons per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products | Copper Flta Bar | Grade | C11000 / CU-ETP |
|---|---|---|---|
| Standard | ASTM GB EN DIN JIS | Thickness | 3.0 - 40.0mm |
| Width | Within 1000mm | Length | 6m Or Custom As Request |
| Certificate | EN 10204-3.1 | Other Products | Pipe , Round Bar, Strips |
| Highlight | Copper Flat Bar,Copper Flat Stock,Copper Flat Bar Stock |
||
Product Description

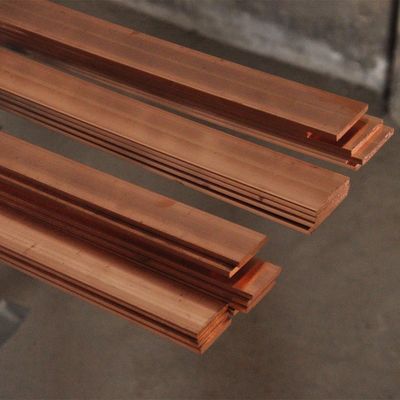

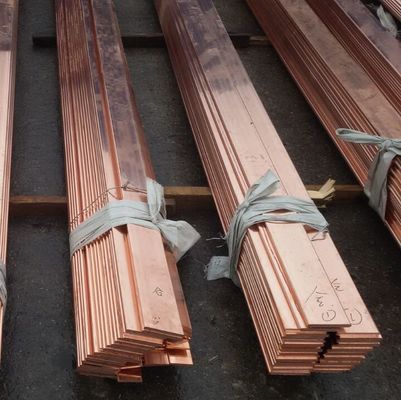

CU-ETP Copper Flat Bar ASTM Standard C11000 Flat Copper Plate with EN 10204-3.1 Certificated
|
Product name
|
Copper flat bar |
| Copper and copper alloy grade |
C11000,C10100,C12200
H59, H60, H62, H65, H68, H70, H80, H85, H90, H96, C2100, C2200,C2300, C2400, C2600, C2680, C2720, C2800, C3560, C3601, C3713, C3771, C3561 , CuZn30, CuZn32, CuZn35, CuZn37, CuZn40 ,TU1, T2, TP2, H96, H90, H85, H80, H70, H65, H63, H62, H59, HPb63-3, HPb66-0.5, HPb62-2, HPb62-3, HPb59-3, HSn70-1, HSn62-1,QSn8-0.3, QSn4-4-4, QAl9-4, QSB-1 etc.
|
|
Size
|
Round Bar: 6mm - 200mm
|
|
Square Bar: 4x4mm - 200x200mm
|
|
|
Hex Bar: 8x8mm - 100x100mm
|
|
|
Flat Bar: 20x2mm - 200x20mm
|
|
|
Length
|
2m,3m,5.8m,6m, or as required.
|
|
Processing
|
Extrusion/cold drawn
|
|
Temper
|
1/4 Hard, 1/2 Hard, 3/4 Hard, Hard, Soft
|
|
Surface finish
|
Mill,polished,bright,oiled,hair line,brush,mirror,sand blast,or as required.
|
Product Description
C11000 Electrolytic Tough Pitch (ETP) Copper Rod or Solid Bar. We carry a very large range of sizes and will cut the material to length.
C11000 Electrolytic Tough Pitch (ETP) Copper is produced by the direct conversion of selected refined cathodes and castings under carefully controlled conditions to prevent contamination of the pure oxygen-free metal during processing. The method of producing OFHC copper ensures extra high grade of metal with a copper content of 99.99%. With so small a content of extraneous elements, the inherent properties of elemental copper are brought forth to a high degree.
This is the most common copper. It is universal for electrical applications. ETP has a minimum conductivity rating of 100% IACS and is required to be 99.9% pure. It has 0.02% to 0.04% oxygen content (typical). Most ETP sold today will meet or exceed the 101% IACS specification. As with OF copper, silver (Ag) content is counted as copper (Cu) for purity purposes.
CHEMICAL COMPOSITION
(%max., unless shown as range or min.)
| Cu(1) | O | |
| Min./Max. | 99.90 min | - |
| Nominal | - | .04 |
MECHANICAL PROPERTIES
(Measured at room temperature, 68 F (20 C)
| Temper |
Section Size |
Cold Work |
Typ/ Min |
Temp |
Tensile Strength |
Yield Strength (0.5% ext. under load) |
Yield Strength (0.2% offset) |
Yield Strength (0.05% offset) |
El |
Rockwell Hardness |
Vickens Hard. |
Brinell Hard. |
Shear Strength |
Fatigue Strength* |
Izod Impact Strength |
||||
| in. | % | F | ksi | ksi | ksi | ksi | % | B | C | F | 30T | 500 | 500 | 3000 | ksi | ksi | ft-lb | ||
| mm. | C | MPa | MPa | MPa | MPa | MPa | MPa | J | |||||||||||
| Flat Products | |||||||||||||||||||
| H02 | 0.04 | 0 | TYP | 68 | 42 | 36 | - | - | 14 | 40 | - | 84 | 50 | - | - | - | 26 | 13 | 0.0 |
| 1 | 20 | 290 | 248 | - | - | 14 | 40 | - | 84 | 50 | - | - | - | 179 | 90 | 0.0 | |||
| M20 | 0.025 | 0 | TYP | 68 | 32 | 10 | - | - | 50 | - | - | 40 | - | - | - | - | 22 | - | 0.0 |
| 0.64 | 20 | 221 | 69 | - | - | 50 | - | - | 40 | - | - | - | - | 152 | - | 0.0 | |||
| Rod | |||||||||||||||||||
| M20 | 1 | 0 | TYP | 68 | 32 | 10 | - | - | 55 | - | - | 40 | - | - | - | - | 22 | - | 0.0 |
| 25.4 | 20 | 221 | 69 | - | - | 55 | - | - | 40 | - | - | - | - | 152 | - | 0.0 | |||
| Shapes | |||||||||||||||||||
| M30 | 0.5 | 0 | TYP | 68 | 32 | 10 | - | - | 50 | - | - | 40 | - | - | - | - | 22 | - | 0.0 |
| 12.7 | 20 | 221 | 69 | - | - | 50 | - | - | 40 | - | - | - | - | 152 | - | 0.0 | |||
| M20 | 0.5 | 0 | TYP | 68 | 32 | 10 | - | - | 50 | - | - | 40 | - | - | - | - | 22 | - | 0.0 |
| 12.7 | 20 | 221 | 69 | - | - | 50 | - | - | 40 | - | - | - | - | 152 | - | 0.0 | |||
| Flat Products | |||||||||||||||||||
| H04 | 0.04 | 0 | TYP | 68 | 50 | 45 | - | - | 6 | 50 | - | 90 | 57 | - | - | - | 28 | - | 0.0 |
| 1 | 20 | 345 | 310 | - | - | 6 | 50 | - | 90 | 57 | - | - | - | 193 | - | 0.0 | |||
| Rod | |||||||||||||||||||
| H04 | 0.25 | 40 | TYP | 68 | 55 | 50 | - | - | 10 | 60 | - | 94 | - | - | - | - | 29 | - | 0.0 |
| 6.35 | 20 | 379 | 345 | - | - | 10 | 60 | - | 94 | - | - | - | - | 200 | - | 0.0 | |||
| Flat Products | |||||||||||||||||||
| H08 | 0.04 | 0 | TYP | 68 | 55 | 50 | - | - | 4 | 60 | - | 94 | |||||||
Applications
Building Fronts, Downspouts, Flashing, Gutters, Roofing, Skylight Frames, Spouting, Gaskets, Radiators,Hardware, Ball Floats, Butts, Cotter Pins, Nails, Rivets, Soldering Copper, Tacks,Screening, Wire Screening,Christmas Ornaments,Bus bars, Conductors, Electrical, Contacts, Magnet Wire, Radio Prats, Stranded Conductors, Switches, Terminal Connectors, Terminals, Trolley Wire, Electrical wire, Fasteners, Anodes, Chemical Process Equipment, Chimney Cap Screens, Chlorine Cells, Heat Exchanges, Kettles, Pans, Presser Vessels, Printing Rolls, Road Bed Expansion Plates, Rotating Bands, Vats
Available Forms
- Bar
- Coil
- Extrusion-shapes
- Foil
- Forge
- Plate
- Rectangle Bar
- Rod
- Sheet
- Square Bar
- Strip
- Tubes
- Wire
