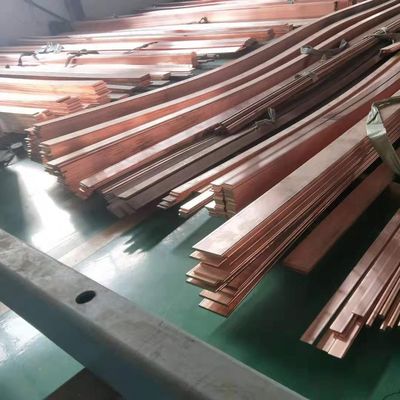

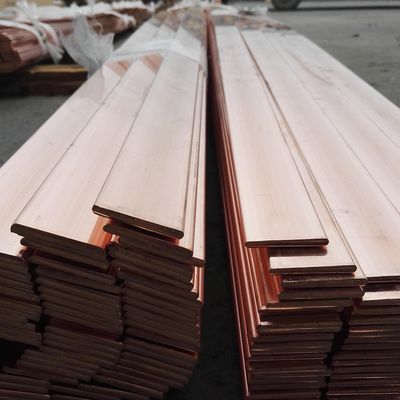

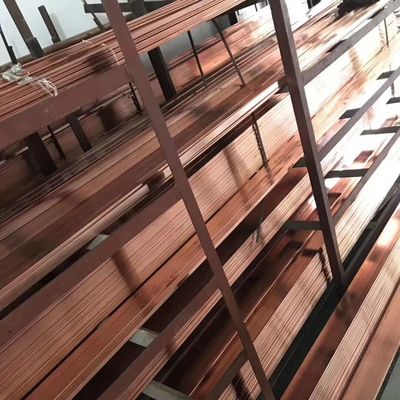

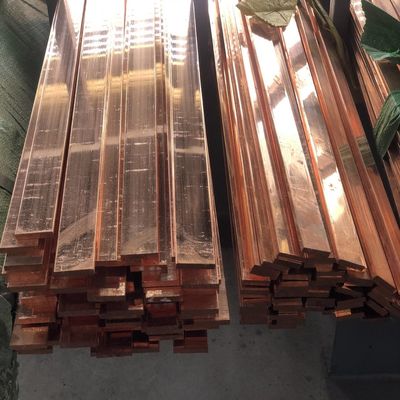

Pure Copper Flat Bar C11000 / T2 Copper Flat Plate in 6m Length for Electronic Area
| Place of Origin | China |
|---|---|
| Brand Name | DELTA |
| Certification | ISO |
| Model Number | C11000 / T2 |
| Minimum Order Quantity | 200 kgs |
| Price | 8 - 9 USD/Kg |
| Packaging Details | wooden pallets |
| Delivery Time | 5 - 10 days |
| Payment Terms | T/T, Western Union, MoneyGram |
| Supply Ability | 15 Tons per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products | Copper Flta Bar | Grade | C11000 / T2 |
|---|---|---|---|
| Standard | ASTM GB EN DIN JIS | Thickness | 3.0 - 40.0mm |
| Width | Within 1000mm | Length | 6m Or Custom As Request |
| Certificate | EN 10204-3.1 | Other Products | Pipe , Round Bar, Strips |
| Highlight | Copper Flat Bar,Copper Flat Stock,Copper Flat Bar Stock |
||
Product Description
Pure Copper Flat Bar C11000 / T2 Copper Flat Plate in 6m Length for Electronic Area
|
Product name
|
Copper flat bar |
| Copper and copper alloy grade |
C11000,C10100,C12200
H59, H60, H62, H65, H68, H70, H80, H85, H90, H96, C2100, C2200,C2300, C2400, C2600, C2680, C2720, C2800, C3560, C3601, C3713, C3771, C3561 , CuZn30, CuZn32, CuZn35, CuZn37, CuZn40 ,TU1, T2, TP2, H96, H90, H85, H80, H70, H65, H63, H62, H59, HPb63-3, HPb66-0.5, HPb62-2, HPb62-3, HPb59-3, HSn70-1, HSn62-1,QSn8-0.3, QSn4-4-4, QAl9-4, QSB-1 etc.
|
|
Size
|
Round Bar: 6mm - 200mm
|
|
Square Bar: 4x4mm - 200x200mm
|
|
|
Hex Bar: 8x8mm - 100x100mm
|
|
|
Flat Bar: 20x2mm - 200x20mm
|
|
|
Length
|
2m,3m,5.8m,6m, or as required.
|
|
Processing
|
Extrusion/cold drawn
|
|
Temper
|
1/4 Hard, 1/2 Hard, 3/4 Hard, Hard, Soft
|
|
Surface finish
|
Mill,polished,bright,oiled,hair line,brush,mirror,sand blast,or as required.
|
C11000 has excellent corrosion resistance and can used in underground applications because it resists soil corrosion. Generally, resists mineral, fatty and organic acids depending on concentration and specific conditions. Electrolytic tough Pitch (ETP) copper, alloy 110, has excellent ductility and high electrical, thermal conductivity.
Copper flat bars are widely used in the conduction and electricity industry. Copper has the highest electrical conductivity of all common metals on Earth. This property, combined with its strength, ductility and corrosion resistance, makes it unique in utility as a conductor of electricity. It is only silver that has better conductive properties over copper. Our materials are used in electrical engineering, in the construction of switch boards, for grounding and lightning protection and even for decorative purposes. Copper will patina and develop a greenish or bluish colour when exposed to natural factors over time. Copper alloy 11000, also known as Electrolytic Tough Pitch Copper (ETP), is highly corrosion resistant and conducts electricity.
C11000 Electrolytic Tough Pitch (ETP) Copper is well-known for its strong electrical and thermal conductivity, as well as its resistance to corrosion and solderability. Welding fixtures, anodes, bus bar in electrical power systems, ground straps, commutators, and current-carrying gear are all made of C11000 copper. Because of its intrinsic fabrication properties, it may be bent, soldered, drilled, peened, riveted, and shaped to practically any design standard. This copper is extremely hot workable.
40x10 Flat C11000 1/2 Hard Copper is a Copper flat bar with edge treatments ranging from square edge To round corner to entirely round. Please notify the sales staff if you require a specific profile before placing your order. The most prevalent type of copper is grade C11000 or Electrolytic Tough Pitch (ETP) Copper. Ideally suited for electrical applications. ETP must have a minimum conductivity value of 100% IACS and be 99.9% pure. It contains 0.02% to 0.04% oxygen (typical). Sheet Plate - Rod & Square Bar - Flat Bar are all available. We provide a wide selection of sizes and will cut the cloth to length so that you only pay for what you require (charges apply).
Copper Bars / Flats Specification
- Standard : ASTM B187
- Item : Copper Flats ETP
- Size : Width up to 152.4mm (6”) width
- Standard : GB/T5231-2001.GB/T1527-2006.JISH3100-2006,JISH3250-2006,JISH3300-2006,ASTMB152M-06,ASTMB187, ASTMB75M-02, ASTMB42-02, ASTMB152, B187, B133, B301,B196, B441, B465, JISH3250-2006, GB/T4423-2007,etc.
- Thickness : 1mm to 60mm
- Width : 5mm to 350mm
- Length : Up to 6400 mm (21′)
- Types : Copper Bars, Flats, Rectangular, Rectangle
Copper Bars / Flats Application Areas:
• Bus Bars
• Transformer Connectors
• Earthling Protection in L.T. and H.T. Electrical Panels
• Power Transmission equipment
• Control Panels
• Bus Bars
• Transformer Connectors
• Earthling Protection in L.T. and H.T. Electrical Panels
• Power Transmission equipment
• Control Panels
