CuZn5 / H96 / C21000 Cu-Zn Alloy Brass Round Bar H96 Brass Rod EN Standard CW500L
| Place of Origin | CHINA |
|---|---|
| Brand Name | DELTA |
| Certification | ISO |
| Model Number | C21000 / CuZn5 |
| Minimum Order Quantity | 400 kgs |
| Price | 7000-7500USD/Ton |
| Packaging Details | wooden box |
| Delivery Time | 7-15 days |
| Payment Terms | T/T |
| Supply Ability | 50 Tons per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products Name | Brass Round Bar | Diameter | 3 - 200mm |
|---|---|---|---|
| Length | Custom Any Length As Request | Standard | GB ASTM EN DIN |
| Loading Port | Shanghai Port | Shape | Round |
| Service | Cutting | Company Type | Factory |
| Other Materialal | Pure Copper | Packing | Wooden Box |
| Highlight | Brass Round Bar,Brass Rod,Brass Cylindrical Bar |
||
Product Description
CuZn5 / H96 / C21000 Cu-Zn Alloy Brass Round Bar H96 Brass Rod EN Standard CW500L
| Product | Brass Bar,Brass Rod,Brass Shaft,Brass Stick. |
| Standard | ASTM,AISI,EN,BS,JIS,GB/T,BSI,AS/NZS,ISO,etc. |
| Material | H96,H90,H85,H80,H70,H68,H65,H63,H62,H60,C21000,C22000, C23000,C24000,C26000,C26800,C27000,C27200,C28000,C35000,etc.Or as required. |
| Surface-mount | mill,polished,bright,oiled,or as required. |
| Density | 8.5g/cm3 |
| Diameters | 1-200mm |
| Hardness | 1/16 hard,1/8 hard,3/8 hard,1/4 hard,1/2hard,full hard,soft,etc. |
| Shape | Square,Rectangular,Round . |
| Length | 500-6000mm,or as required. |
| Package | Standard Sea-worthy package , fixed by belt then loaded into fumigated wooden box . |
| Container Size | 20Gp - 2.352(width) *2.385 ( Height ) * 5.90 ( Inside length ) Meter |
| 40Gp - 2.352(width) *2.385 ( Height ) * 11.8 ( Inside length ) Meter | |
| 40HQ - 2.352(width) *2.69 ( Width ) * 5.90 ( Inside length ) Meter | |
| Port of shipment | Tianjin Xingang port , Qingdao port , Shanghai port , ningbo port , Guangzhou port ,etc. |
C21000(H96) Brass Bar Description
C21000(H96) Brass bar is the most common corrosion resistant copper alloy. C21000 has excellent corrosion resistance, good deep tensile properties, ductility, moderate electrical conductivity, and good strength. Typical uses of the C21000 include ammunition assemblies, coins, commemorative medallions, and a wide variety of other applications. C21000 is a copper-zinc alloy that is stronger and more durable than copper alloy. C21000 is an excellent corrosion-resistant, ductile, highly conductive metal used in industrial and electrical industries.
Cu: 94.0 ~ 96.0 ; Zn: Residual Lead Pb: ≤0.05 ; P: ≤0.01 ; Fe: ≤0.05 ; Sb: ≤0.005 ; Bi: ≤0.002 ,Note: ≤0.2(impurities)
Mechanical properties of
Tensile strength σ B (MPa): 10(%); Elongation of 205 or more; δ: 35 elongation or δ (%): 42
Cu: 94.0 ~ 96.0 ; Zn: Residual Lead Pb: ≤0.05 ; P: ≤0.01 ; Fe: ≤0.05 ; Sb: ≤0.005 ; Bi: ≤0.002 ,Note: ≤0.2(impurities)
Mechanical properties of
Tensile strength σ B (MPa): 10(%); Elongation of 205 or more; δ: 35 elongation or δ (%): 42
Similar Grade
| China | US | England | West Germany | Japan | ||
| GB | ASTM | CDA | BS | DIN | Digital | JIS |
| H96 | C21000 | 210 | CZ125 | CuZn5 | 2.022 | C2100 |
| H90 | C22000 | 220 | CZ101 | CuZn10 | 2.023 | C2200 |
| H85 | C23000 | 230 | CZ102 | CuZn15 | 2.024 | C2300 |
Brass Products we can provide
| Form | System | Standard | Description |
|---|---|---|---|
| Bar | ASTM | B36/B36M | BRASS PLATE, SHEET, STRIP AND ROLLED BAR |
| SAE | J463 | WROUGHT COPPER AND COPPER ALLOYS | |
| SAE | J461 | WROUGHT AND CAST COPPER ALLOYS | |
| Plate | ASTM | B36/B36M | BRASS PLATE, SHEET, STRIP AND ROLLED BAR |
| Rod, Bar & Shapes | ASTM | B927/B927M | BRASS ROD, BAR, AND SHAPES |
| Sheet | ASTM | B36/B36M | BRASS PLATE, SHEET, STRIP AND ROLLED BAR |
| SAE | J461 | WROUGHT AND CAST COPPER ALLOYS | |
| SAE | J463 | WROUGHT COPPER AND COPPER ALLOYS | |
| Strip | SAE | J463 | WROUGHT COPPER AND COPPER ALLOYS |
| ASTM | B36/B36M | BRASS PLATE, SHEET, STRIP AND ROLLED BAR | |
| SAE | J461 | WROUGHT AND CAST COPPER ALLOYS | |
| Tube | ASTM | B587 | WELDED BRASS TUBE |
| Wire | ASTM | B134/B134M | BRASS WIRE |

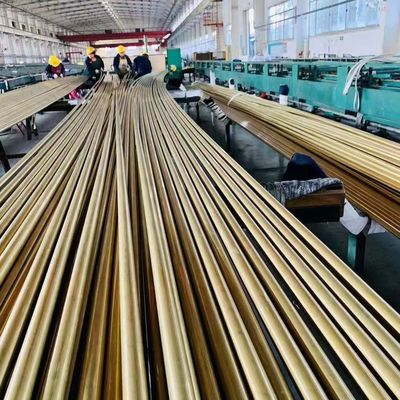

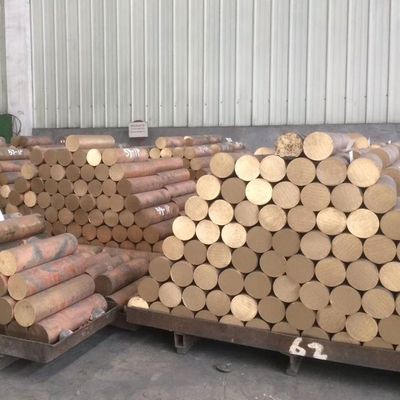

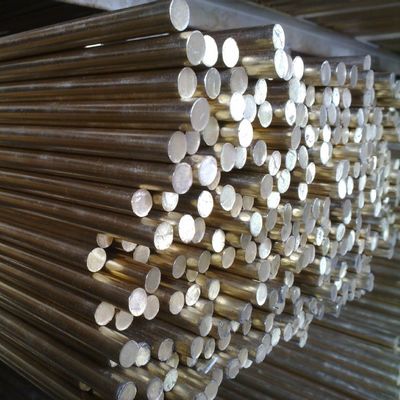

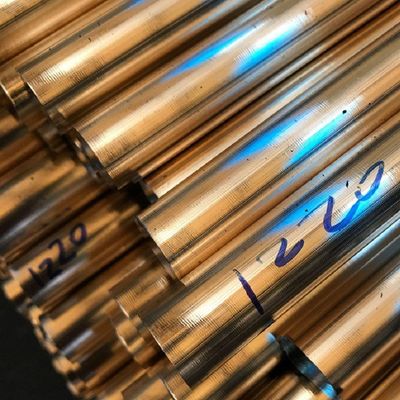

Products Show
