AISI301 Precision Stainless Steel Strip 1/4H 1/2H 3/4H FH Thickness 0.03 - 3.0mm
| Place of Origin | China |
|---|---|
| Brand Name | TISCO |
| Certification | ISO |
| Model Number | 200Series 300 Series 400 Series C276 904L,Monel 400 K500 |
| Minimum Order Quantity | 2 Ton |
| Price | 2400 - 3500 USD/Ton |
| Packaging Details | standard packing for export |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 20Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products | Stainless Steel Strip | Thickness | 0.03 - 3.0mm |
|---|---|---|---|
| Width | Within 1500mm | MOQ | 1000 Kgs |
| Grade | 200 Series 300 Series 400 Series , Nickel Alloy | Surface | BA 2B NO.4 HL 8K NO.1 |
| Standard | ASTM EN GB JIS | Packing | Wooden Frame And Water Proof Paper |
| Highlight | thin stainless steel strips,stainless strip,stainless steel metal strips |
||
Product Description
AISI301 Precision Stainless Steel Strip 1/4H 1/2H 3/4H FH Thickness 0.03 - 3.0mm
Specification of 301 Stainless Steel Strip
| ProductName: | 301 Stainless Steel Strip |
| Standard: | ASTM,AISI,DIN,EN,GB,JIS |
| Grade: | 201,301,304,310S,316,316L,430,409,410,434.etc |
| Thickness: | 0.1mm-3.0mm |
| Width: | 15mm-1500mm,or customized |
| Edge: | Slit edge/Mill edge |
| Surface: | 2B,BA,HL,Mirror,2D,NO.1 |
| Packaging: | Standard exporter package or as your requirements |
| Origin: | China |
| Supply Ability: | 50 Tons per Month |
| Price terms: | EX-Work,FOB,CIF,CFR,CNF |
| Payment terms: | T/T,30%advanced payment before production and balance before shipment; |
| MOQ: | 2 Ton each size |
| Delivery time: | 10-15 days after receiving deposit by T/T or L/C. |
| Sample: | Samples free and express charges bear by you. |
AISI 301 stainless steel (UNS S30100) is the most susceptible to cold deformation strengthening among conventional austenitic stainless steels. Its work hardening rate is extremely high, with each increase in the amount of cold work, the tensile strength and yield strength will increase significantly. The response to work hardening is particularly important for structural parts, including angle steel and channel sections, which are expected to have additional strength and stiffness after manufacture. On the other hand, for deep drawing applications, lower work hardening rates are generally preferred and can be obtained in austenitic alloys with higher nickel content (especially types 304, 304L, and 305).
Chemical Composition of 301 Stainless Steel
| AISI (UNS) | C, ≤ | Si, ≤ | Mn, ≤ | P, ≤ | S, ≤ | Cr | Ni | Mo, ≤ | Cu, ≤ | N, ≤ |
| 301 (UNS S30100) | 0.15 | 1.00 | 2.00 | 0.045 | 0.03 | 16.0-18.0 | 6.0-8.0 | – | – | 0.1 |
| 18Cr-8Ni (SAE 30301) | 0.15 | 1.00 | 2.00 | 0.040 | 0.03 | 16.0-18.0 | 6.0-8.0 | 0.75 | 0.75 | – |
Type 301 stainless steel properties
| Type 301 Mechanical Properties | |||||||
| ASTM | AISI Type (UNS) | Conditions | Tensile Strength, MPa (ksi), ≥ | 0.2% Yield Strength, MPa (ksi), ≥ | Elongation in 50 mm (2 in.), %, ≥ | Brinell Hardness (HB), ≤ | Rockwell Hardness (HRB), ≤ |
| ASTM A666 | 301 (UNS S30100) | Annealed | 517 (75) | 205 (30) | 40 | 217 | 95 |
| Full Hard | 1275 (185) | 965 (140) | 8 (<0.015 in.); 9 (≥ 0.015 in) |
||||
| Super Full Hard | 1860 (270) | 1790 (260) | – | ||||
| Half Hard | 1035 (150) | 760 (110) | 15 (<0.015 in); 18 (≥ 0.015 in) |
||||
| 3/4 Hard | 1205 (175) | 930 (135) | 10 (<0.015 in); 12 (≥ 0.015 in) |
||||
| 1/4 (quarter-hard) Hard | 862 (125) | 517 (75) | 25 | ||||
| 1/8 Hard | 690 (100) | 380 (55) | 40 | ||||
| 1/16 Hard | 620 (90) | 310 (45) | 40 | ||||
| SAE AMS 5517 | 18Cr-8Ni (SAE 30301 ) | – | 862 (125) | 517 (75) | 25 | 252, ≥ | 25 HRC, ≥ |
Applications
Type 301 have been extensively used in coining of spoons and forks, other applications include springs, fasteners, clamps, automotive wheel covers, aircraft structural parts, etc.

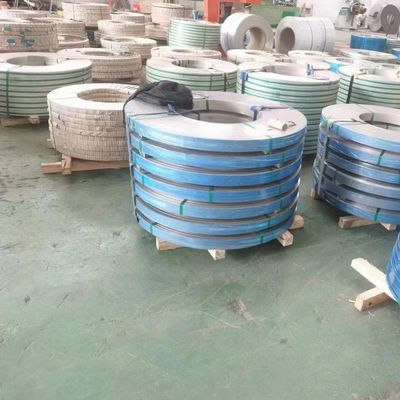

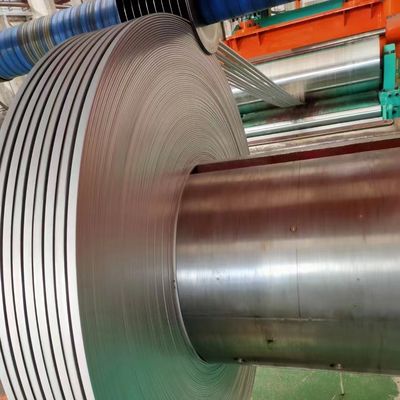

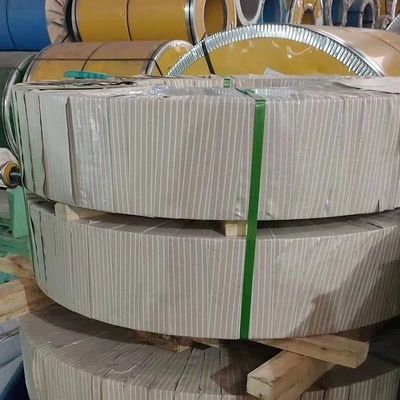

Products Picture
