Soft 1/4H 1/2H 3/4 FH Stainless Strip Grade 304 / 304L Thickness 0.1 - 3.0mm Cold Rolled
| Place of Origin | China |
|---|---|
| Brand Name | TISCO |
| Certification | ISO |
| Model Number | 200Series 300 Series 400 Series C276 904L,Monel 400 K500 |
| Minimum Order Quantity | 2 Ton |
| Price | 2400 - 3500 USD/Ton |
| Packaging Details | standard packing for export |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 20Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products | Stainless Steel Strip | Thickness | 0.1 - 3.0mm |
|---|---|---|---|
| Width | Within 1500mm | MOQ | 1000 Kgs |
| Grade | 200 Series 300 Series 400 Series , Nickel Alloy | Surface | BA 2B NO.4 HL 8K NO.1 |
| Standard | ASTM EN GB JIS | Packing | Wooden Frame And Water Proof Paper |
| Highlight | thin stainless steel strips,stainless strip,stainless steel metal strips |
||
Product Description
Soft 1/4H 1/2H 3/4 FH Stainless Steel Strip Grade 304 / 304L Thickness 0.1 - 3.0mm Cold Rolled from TISCO BAOSTEEL
| Material |
201 301 304/304L 309S 310S 316L 317L 410 420 430 441 440C 2205 2507 904L C276 C22 M400 K500 600 625 825 926 |
| Standard | AISI,ASTM,DIN,JIS,GB,JIS,SUS,EN,etc |
| Technique | Hot rolled / Cold rolled |
| Thickness | 0.1mm-3.0mm or as required |
| Width | 5 - 1000mm as required |
| Type | Precisiion Strip |
| Surface Treatment | Bright annealiing , Cold Rolled 2B |
| Application | High temperature components such as turbine blades, guide vanes, turbine disks, high pressure compressor disks,machine manufacturing |
| MOQ | 1000KG |
| Delivery time | 10-15 days |
| Export Packing | Waterproof paper, and steel strip packed.Standard Export Seaworthy Package.Suit for all kinds of transport,or as required |
304 Stainless Steel Strip and Slit Coil
304 stainless steel strip and slit to width coil, ASTMA-666, is similar to Type 302, but has a maximum carbon content of 0.08%. This material has an excellent combination of corrosion resistance and formability. 304 is also known as 18/8 chrome-nickel, austenitic, stainless strip. It is a versatile alloy that welds well without filler. It’s commonly used in stampings and drawn parts. It’s non-magnetic in the annealed state and become magnetic with work hardening. Gibbs Interwire stocks Type 304 annealed stainless strip in gauges from 0.0053″ and 304 tempered strip in gauges from .0019”.
Typical Applications for 304 stainless steel strip:
- hypodermic needles
- flexible hoses
- clamps
- evaporators
- bellows
- airbag sensors
- tubing
- cooling coils
- hinges
- oil and gas filter screens
304 Stainless Steel Strip Features
- Weldability: 304 stainless steel strip has good weldability. These strips products can be used for vessel parts, stainless steel welding pipes, stainless steel flexible hose and corrugated pipe, etc.
- Heat Resistance: Heat resistance means that 304 stainless steel strip can still maintain its excellent physical and mechanical properties at high temperatures conditions.
- Corrosion Resistance: When the amount of chromium atoms in the steel is not less than 12.5%, the electrode potential of the steel can be abruptly changed from a negative potential to a positive electrode potential. Prevent electrochemical corrosion.
304 Stainless Steel Strip Chemical Composition
The chemical components of grade 304 stainless steel strip is summarized in the following table:
| Grade | Standard | C | Si | Mn | P | S | Cr | Ni | Mo |
| 304 | ASTM A240 | ≤0.07 | ≤0.75 | ≤2.00 | ≤0.045 | ≤0.030 | 18.00-20.00 | 8.00-11.00 | – |
304 Stainless Steel Strip Mechanical Property
Below The Table Is For Your Reference:
| Grade | EN Grade | Yield Strength Rp0.2 (N/mm²) |
Tensile Strength Rm (N/mm²) |
Hardness | Vickers Hardness (HV) |
Elongation A80 % Min. |
| 304 | 1.4301 | ≥205 | ≥520 | ANN | Max200 | ≥40 |
| ≥450 | ≥700 | 1/4 Hard | 220-250 | ≥20 | ||
| ≥700 | ≥850 | 1/2 Hard | 250-310 | ≥8 | ||
| ≥880 | ≥1000 | 3/4 Hard | 310-370 | ≥4 | ||
| ≥1020 | ≥1150 | Full Hard | ≥370 | ≥1 |
Surface Finishes for 304 Stainless Steel Strip
Stainless steel strip is used in many industries. Many manufacturers are in fact, utilizing surface finishes for 304 stainless steel strip to achieve different results. If you are unfamiliar with surface finishes for 304 stainless steel strip, then this guide is for you.
- BA (Bright Annealed):Sometimes specified as “Bright Annealed Stainless Steel”, is a bright, cold-rolled, reflective finish retained by final annealing in a controlled atmosphere furnace. It is highly reflective and has the same appearance as a mirror. A final light rolling pass through polished rolls produces a smooth, reflective surface, excellent for decorative applications.
- 2B Finish:Cold rolled, heat treated, pickled, pinch passed. The most common cold rolled mill finish. Dull grey slightly reflective finish. Can be used in this condition or frequently is the starting point for some polished finishes.
- 2D Finish:A dull finish that is produced by cold rolling followed by annealing and descaling. Used in deep drawn objects which are often polished after fabrication.
- Polishing Bright Finish:Mechanical Polishing: This process removes surface imperfections caused by grinding and other processing operations. In addition, it provides a moderate degree of luster to the surface which can be further enhanced by subsequent buffing operations using grease or oil emulsions with rouge or aluminum oxide compounds.
304 Stainless Steel Strip Hardness
The typical Vickers hardness for the strip material must determinate after annealing process (Hardness Vickers Typical Range: 160HV-600HV).
But the soft materials of 304 stainless steel strip Vickers hardness is from 160HV to 190HV.
What are The Advantages of Using 304 Stainless Steel Strips
304 is one of the most popular stainless steel materials, and it has good corrosion resistance because it has 18% chromium and 8% nickel content.
When selecting stainless steel materials for various industries, 304 stainless steel strips are often chosen because of their many advantages.
The following are the advantages of 304 stainless steel strips:
- The main component of the stainless steel band is 304, which can be used as a decorative tube, industrial tube, and some shallow stretched products. Because it has better processing properties than 201 and 304L, it can be more widely used in production;
- The 304 stainless steel strip has high plasticity, toughness and cold deformation ability, and is not easy to form a hardening tendency during work;
- The intergranular corrosion resistance of the 304 stainless steel strip is good after welding or after the stress relief treatment;
- The heat treatment of 304 stainless steel strip can get good mechanical properties such as high strength and toughness;
- Different finish treatments can be given to the surface of 304 stainless steel strip to obtain excellent surface conditions such as bright surface or mirror surface;
- Excellent corrosion resistance in different environments such as atmospheric corrosion resistance, seawater corrosion resistance and high temperature oxidation resistance.
How 304 Stainless Steel Strips are Made
For 304 stainless steel strip production process, here you will be able to get a clear understanding of how to manufacture it with precision excellence technology:
- Technical Analysis
- Raw Material Preparation
- Rolling And Bright Annealing Process
- Degrease Cleaning Process
- Tension Straightening Process

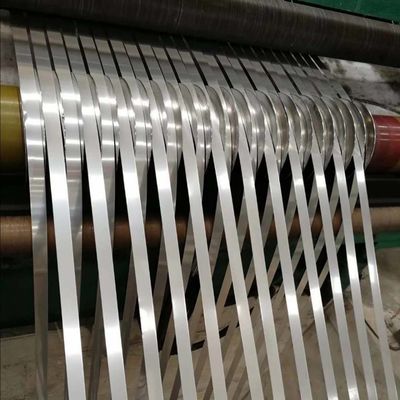

- Slitting Process
- Inspection Process
- Packaging Process
304 Stainless Steel Strip Packaging
Our company have professional team who can adopt developed packaging technology to assure no any damages of products during transportation.
- Standard export packaging:
Waterproof Paper Winding+PVC Film+Strap Banding+Wooden Pallet or Wooden Case; - Customized packaging as your request (Logo or other contents accepted to be printed on the packaging);
- Other special packaging will be designed as customer’s request;
- Eye to wall and eye to sky are both available;
- By International Express: DHL/UPS/FEDEX/EMS and our own express line;
- By air or By sea;
- Shipping port: Shanghai, Ningbo or as your request.
