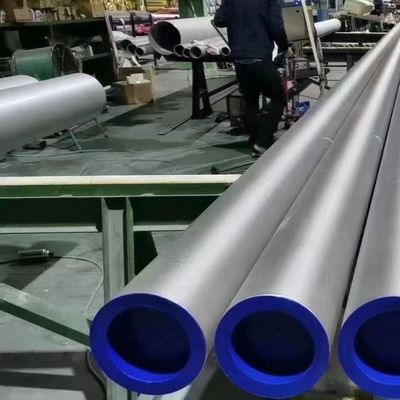

Hot Rolled Stainless Steel Hollow Pipe 904L / UNS NO8904 Diameter 10 - 406mm
| Place of Origin | China |
|---|---|
| Brand Name | DELTA |
| Certification | ISO |
| Model Number | 304 316L 321 310S 314 347 2205 2507 904L.etc |
| Minimum Order Quantity | 500 kgs |
| Price | 2400 - 3500 USD/Ton |
| Packaging Details | standard packing for export |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | T/T, Western Union, L/C |
| Supply Ability | 10 Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products | Stainless Steel Welded Pipe | Grade | 304 316L 321 2205 310S 904L.etc |
|---|---|---|---|
| Standard | ASTM GB EN | Length | Random Length Of 6m |
| Diameter | DN10 - DN400 | Wall Thickness | SCH10 - XXS Or Unstandard Size |
| Type | Seamless Pipe | Service | Cutting |
| Other Shape | Square, Rectangle | ||
| Highlight | Hot Rolled Stainless Steel Hollow Pipe,UNS NO8904 Stainless Steel Hollow Pipe,406mm Stainless Steel welded Pipe |
||
Product Description
Hot Rolled Stainless Steel Hollow Pipe 904L / UNS NO8904 SS Pipe Diameter 10 - 406mm
904L Stainless Steel Pipe Specification
| Standard Specification | ASTM A 312/ ASME SA 312/ A790/ SA790/ EN10216-5 |
| Size | ½” to 6” NB Sch 10s, 40s, & 80s, 160s |
| Wall Thickness | 0.1 - 60 mm |
| SS Seamless Pipe Length |
|
| Seamless SS Pipe Surface Finish | Cold Finish, Bright, Polished, Annealing, Pickling, or as per client requirements |
| Standard | JIS, AISI, ASME, ASTM, AMS, GB, DIN, EN, GOST |
| Manufacturing types | Seamless, Welded, ERW, EFW |
| Manufacturing Shapes | Round, Square, Rectangle, Box Section |
| Manufacturing Technology | Hot / Cold Formed |
| Other Grades | SS 446 |
| Inspection, Test Reports | EN 10204 3.1, Mill Test Certificates, PMI Test Reports, Chemical Reports, Mechanical Reports, NABL Approved Lab Reports, Visual Inspection Reports, Destructive and Non Destructive Test Reports, Third Party Inspection |
| Technique | Cold Rolled Hot Rolled |
904L Pipe Sizes Chart
- Size: 10 - 409mm
- Thickness : 0.5 - 20mm
- Length: Single, Double Random & Cut Length
Type 904L Stainless Steel Pipe Inspection & Test Reports
- Mill Test Certificates with all 904L Pipe
- EN 10204/3.1B, EN 10204 3.1 and EN 10204 3.2 Material Test Certificates (MTC)
- Chemical Reports
- Mechanical Reports
- PMI Test Reports
- Visual Inspection Reports
- Moisture testing
- Heat Treatment Charts
- HS Code Commercial Invoice
- Third Party Inspection for Grade 904L Stainless Steel Pipe
- Laboratory Test Certificate from Govt. Approved Lab
- Destructive Test Report
- Non Destructive Test Reports
- 100% Radiography Test Report
- Fumigation Certificates
- Raw Materials Certificate
- NABL Approved Lab Reports
- Surface roughness measurement
- Form A for Generalized System of Preferences (GSP)
Thickness And Dimensions Of 904L EN 1.4539 Pipe
| Nominal size [inches] | Outside diameter (OD) [inches] | Outside diameter (OD) [mm] | Wall thickness [inches] | Wall thickness [mm] | Weight [lb/ft] | Weight [kg/m] |
|---|---|---|---|---|---|---|
| 1/8" NPS 6 | 0.41 | 10.3 | 0.068 | 1.73 | 0.24 | 0.37 |
| 1/4" NPS 8 | 0.54 | 13.7 | 0.088 | 2.24 | 0.42 | 0.63 |
| 3/8" NPS 10 | 0.68 | 17.1 | 0.091 | 2.31 | 0.57 | 0.84 |
| 1/2" NPS 15 | 0.84 | 21.3 | 0.109 | 2.77 | 0.85 | 1.27 |
| 3/4" NPS 20 | 1.05 | 26.7 | 0.113 | 2.87 | 1.13 | 1.69 |
| 1" NPS 25 | 1.32 | 33.4 | 0.133 | 3.38 | 1.68 | 2.5 |
| 1 1/4" NPS 32 | 1.66 | 42.2 | 0.14 | 3.56 | 2.27 | 3.39 |
| 1 1/2" NPS 40 | 1.9 | 48.3 | 0.145 | 3.68 | 2.72 | 4.05 |
| 2" NPS 50 | 2.375 | 60.3 | 0.154 | 3.91 | 3.65 | 5.44 |
| 2 1/2" NPS 65 | 2.875 | 73.0 | 0.203 | 5.16 | 5.79 | 8.63 |
| 3" NPS 80 | 3.5 | 88.9 | 0.216 | 5.49 | 7.58 | 11.29 |
| 3 1/2" NPS 90 | 4.0 | 101.6 | 0.226 | 5.74 | 9.11 | 13.57 |
| 4" NPS 100 | 4.5 | 114.3 | 0.237 | 6.02 | 10.79 | 16.07 |
| 5" NPS 125 | 5.563 | 141.3 | 0.258 | 6.55 | 14.62 | 21.77 |
| 6" NPS 150 | 6.625 | 168.3 | 0.28 | 7.11 | 18.97 | 28.26 |
| 8" NPS 200 | 8.625 | 219.1 | 0.322 | 8.18 | 28.55 | 42.55 |
| 10" NPS 250 | 10.75 | 273.0 | 0.365 | 9.27 | 40.48 | 60.31 |
| 12" NPS 300 | 12.75 | 323.8 | 0.406 | 10.31 | 53.52 | 79.73 |
| 14" NPS 350 | 14.0 | 355.6 | 0.437 | 11.13 | 54.57 | 94.55 |
| 16" NPS 400 | 16.0 | 406.4 | 0.5 | 12.7 | 82.77 | 123.3 |
| 18" NPS 450 | 18.0 | 457.0 | 0.562 | 14.27 | 104.67 | 155.8 |
| 20" NPS 500 | 20.0 | 508.0 | 0.594 | 15.09 | 123.11 | 183.42 |
| 24" NPS 600 | 24.0 | 610.0 | 0.688 | 17.48 | 171.29 | 255.41 |
| 32" NPS 800 | 32.0 | 813.0 | 0.688 | 17.48 | 230.08 | 342.91 |
904L SS Pipe Schedule And Wall Thickness
| Nominal | O.D. Inches | 10s | 10 | 40s & Std | 40 | 80s & E.H. | 80 | 160 |
|---|---|---|---|---|---|---|---|---|
| 1/8 | .405 | .049 | .049 | .068 | .068 | .095 | .095 | |
| 1/4 | .540 | .065 | .065 | .088 | .088 | .119 | .119 | |
| 3/8 | .675 | .065 | .065 | .091 | .091 | .126 | .126 | |
| 1/2 | .840 | .083 | .083 | .109 | .109 | .147 | .147 | .187 |
| 3/4 | 1.050 | .083 | .083 | .113 | .113 | .154 | .154 | .218 |
| 1 | 1.315 | .109 | .109 | .133 | .133 | .179 | .179 | .250 |
| 1 1/4 | 1.660 | .109 | .109 | .140 | .140 | .191 | .191 | .250 |
| 1 1/2 | 1.900 | .109 | .109 | .145 | .145 | .200 | .200 | .281 |
| 2 | 2.375 | .109 | .109 | .154 | .154 | .218 | .218 | .343 |
| 2 1/2 | 2.875 | .120 | .120 | .203 | .203 | .276 | .276 | .375 |
| 3 | 3.500 | .120 | .120 | .216 | .216 | .300 | .300 | .437 |
| 3 1/2 | 4.000 | .120 | .120 | .226 | .226 | .318 | .318 | |
| 4 | 4.500 | .120 | .120 | .237 | .237 | .337 | .337 | .531 |
| 4 1/2 | 5.000 | .247 | .355 | |||||
| 5 | 5.563 | .134 | .134 | .258 | .258 | .375 | .375 | .625 |
| 6 | 6.625 | .134 | .134 | .280 | .280 | .432 | .432 | .718 |
| 7 | 7.625 | .301 | .500 | |||||
| 8 | 8.625 | .148 | .148 | .322 | .322 | .500 | .500 | .906 |
| 9 | 9.625 | .342 | .500 | |||||
| 10 | 10.750 | .165 | .165 | .365 | .365 | .500 | .593 | 1.125 |
| 11 | 11.750 | .375 | .500 | |||||
| 12 | 12.750 | .180 | .180 | .375 | .406 | .500 | .687 | 1.312 |
| 14 | 14.000 | .188 | .250 | .375 | .437 | .500 | .750 | 1.406 |
| 16 | 16.000 | .188 | .250 | .375 | .500 | .500 | .843 | 1.593 |
| 18 | 18.000 | .188 | .250 | .375 | .562 | .500 | .937 | 1.781 |
