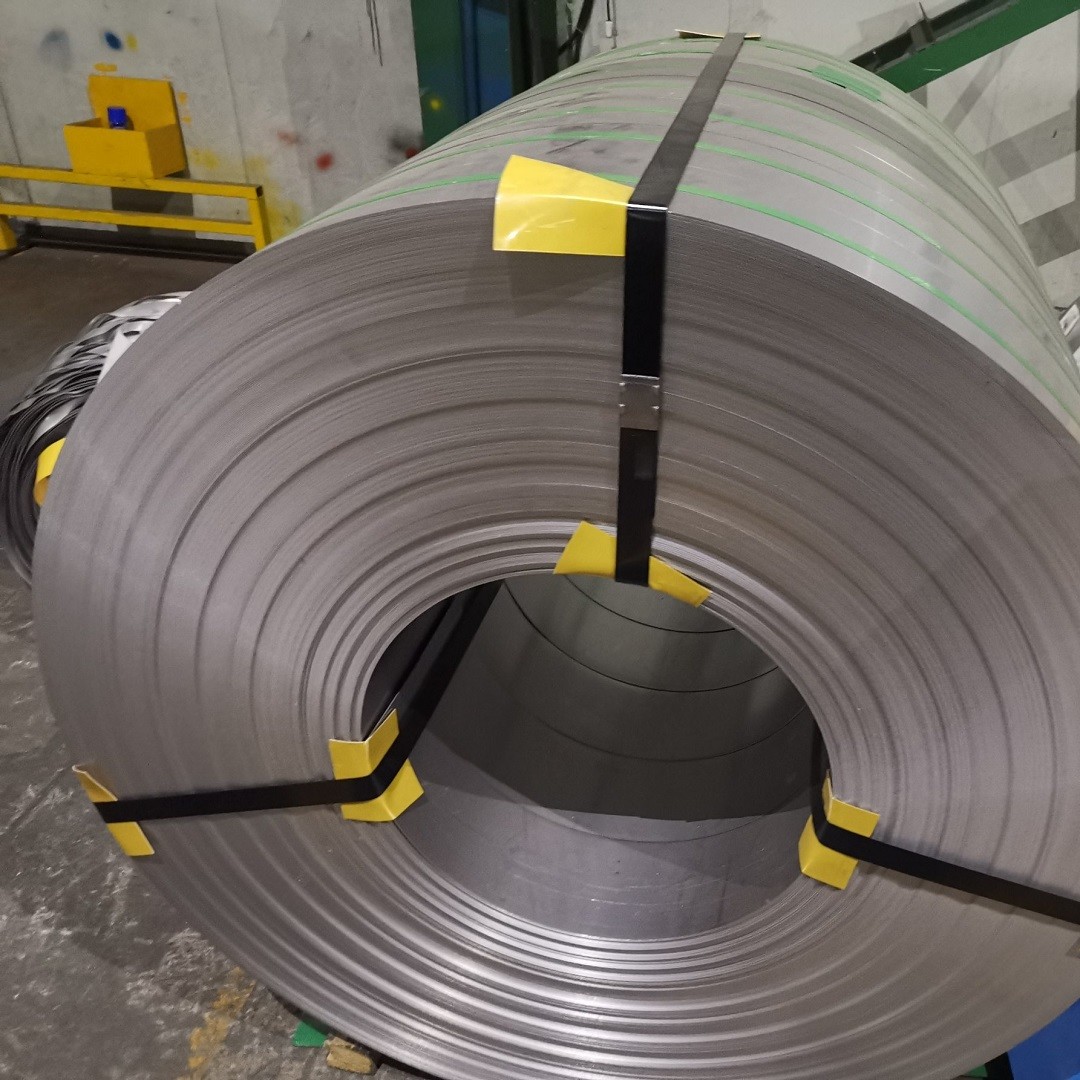

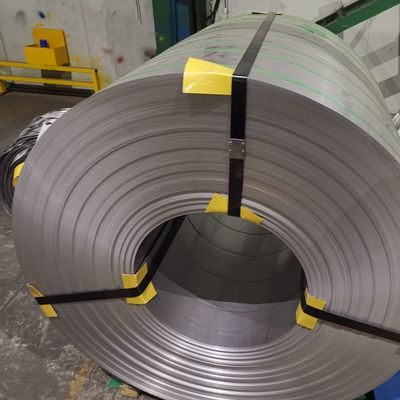

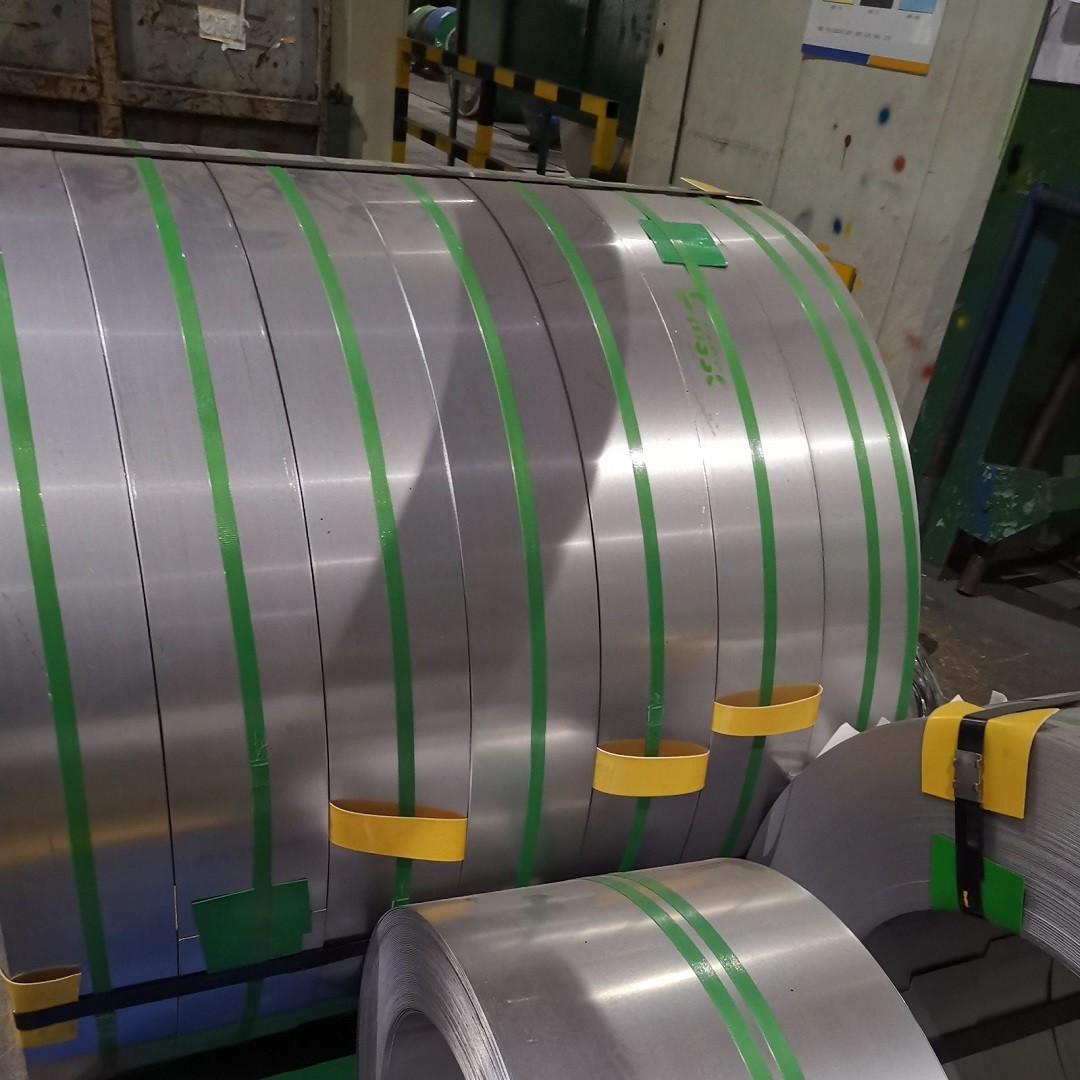

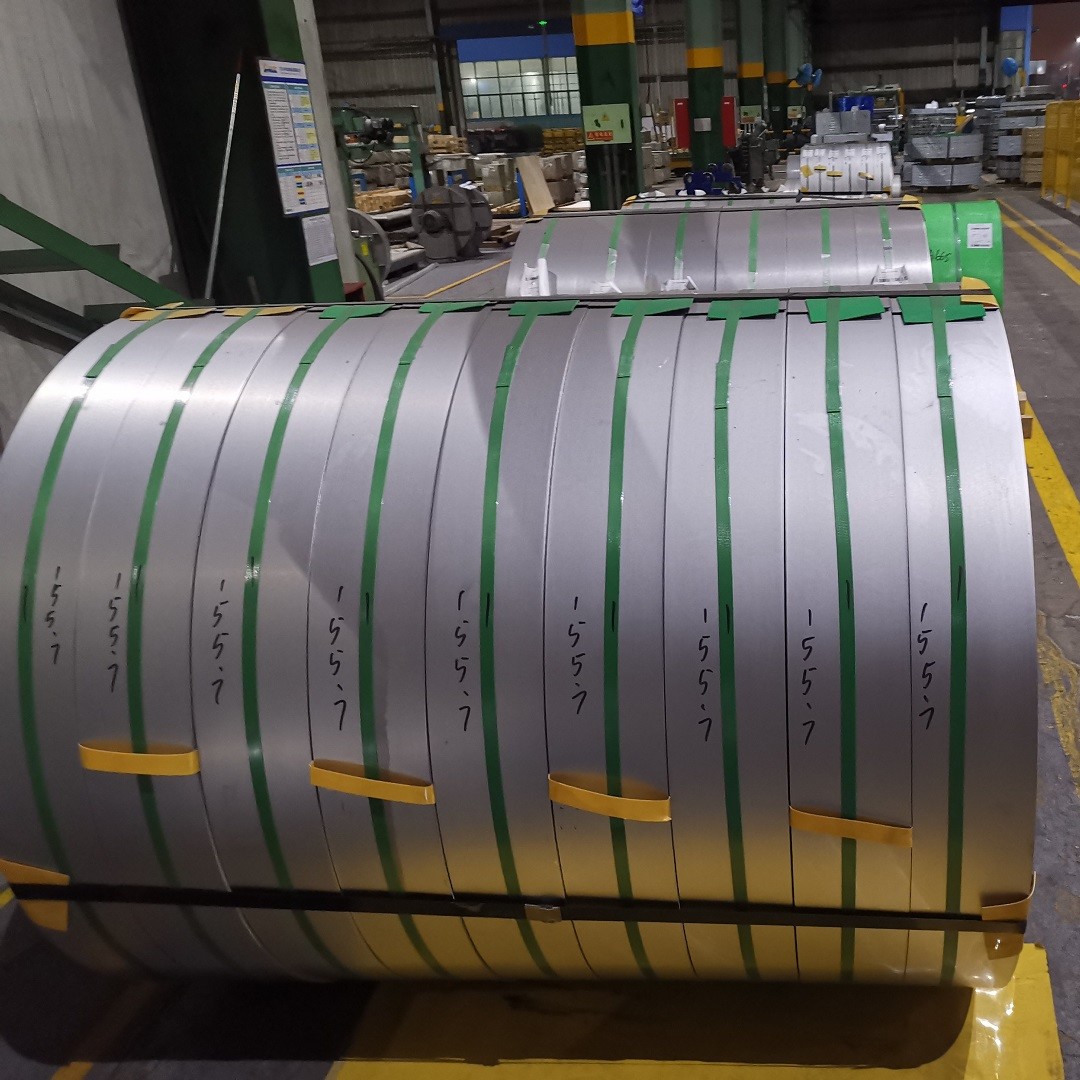

High Hardness Cold Rolled Stainless Steel Strip 416 2B
| Place of Origin | China |
|---|---|
| Brand Name | TISCO |
| Certification | ISO |
| Model Number | 201 202 301 304 316L 321 310S 410 430 440C |
| Minimum Order Quantity | 2 Ton |
| Price | 2400 - 3500 USD/Ton |
| Packaging Details | standard packing for export |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 20Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products | Stainless Steel Strip | Thickness | 0.1 - 10.0mm |
|---|---|---|---|
| Width | Within 1500mm | MOQ | 2 Ton |
| Grade | 200 Series 300 Series 300 Series | Surface | BA 2B NO.4 HL 8K NO.1 |
| Standard | ASTM EN GB JIS | Packing | Wooden Frame And Water Proof Paper |
| Highlight | High Hardness cold rolled stainless steel strip,cold rolled stainless steel strip 416,2B steel strip coil |
||
Product Description
High Hardness 416 Stainless Steel Strip Metal Roll Cold Rolled 2B SS Strip Stainless Steel
Grade 416 is a martensitic machining with machinability enhanced through the addition of phosphorus and sulphur.It has the highest machinability of any stainless steel, at about 85% of that of a free-machining carbon steel. As for most other free-machining stainless steels the improvement in machinability is achieved by addition of sulphur which forms manganese sulphide inclusions; this sulphur addition also lowers the corrosion resistance, weldability and formability to below that of its non-free machining equivalent grade 410.
Grade 416 is sometimes used in the unhardened or hardened and highly tempered condition because of its low cost and ready machinability.
Martensitic stainless steels are optimised for high hardness, and other properties are to some degree compromised. Fabrication must be by methods that allow for poor weldability and usually also allow for a final harden and temper heat treatment. Corrosion resistance is lower than the common austenitic grades, and their useful operating temperature range is limited by their loss of ductility at sub-zero temperatures and loss of strength by over-tempering at elevated temperatures.
| Grades | J1, J2, J4, 201, 202, 301, 304, 304H, 304L , 309, 309S, 310, 310S, 316, 316L, 316TI, 321, 321H, 347, 409, 410, 410S, 420, 430, 441, 904L,2205,2507 |
| Thickness | 0.02mm – 5.0mm |
| Width | 3.2mm – 1500mm |
| Length | AS PER CUSTOMER’S REQUIREMENT |
| Type of Material | STAINLESS STEEL SOFT, DEEP DRAW, EXTRA DEEP DRAW, QUARTER HARD, HALF HARD,FULL HARD. |
| Test Certificate | Yes. |
| Finish | NO.1, 2B, 2D, 2H, 2R, No.4, HAIRLINE, SCOTCH BRITE, SATIN FINISH, NO.8, BA. |
| Make | JINDAL, BAHRU, POSCO KOREA, POSCO THAINOX, COLUMBUS, ACERINOX, APERAM, TISCO, NISSHIN, NIPPON AND MANY MORE MILLS. |
Chemical Composition of 416 Stainless Steel
1.4005 Steel EN 10088-2
| Chemical Element | % Present |
|---|---|
| Carbon (C) | 0.06 - 0.15 |
| Chromium (Cr) | 12.00 - 14.00 |
| Manganese (Mn) | 0.00 - 1.50 |
| Silicon (Si) | 0.00 - 1.00 |
| Phosphorous (P) | 0.00 - 0.04 |
| Sulphur (S) | 0.15 - 0.35 |
| Molybdenum (Mo) | 0.00 - 0.60 |
| Iron (Fe) | Balance |
Applications of 416 Stainless Steel Strip
- Valve parts
- Pump shafts
- Automatic screw machine parts
- Motor shafts
- Washing machine components
- Bolts and nuts
- Studs
- Gears
Characteristics of 416 Stainless Steel Strip
- Excellent machinability
- Low cost
- Improved non-galling characteristics
- Poor weldability
- Poor formability
- Limited corrosion resistance
Grade 416 has poor weldability. If welding is necessary use Grade 410 low hydrogen electrodes. Pre-heat to 200-300°C. Follow immediately with annealing or re-hardening, or a stress relief at 650-675°C.
Fabrication must be by methods that allow for poor weldability and usually also allow for a final harden and temper heat treatment.
Heat Treatment
Full Annealing - Heat to 815-900°C for ½ hour per 25mm of thickness. Cool at 30°C per hour maximum to 600°C and air cool.
Sub-Critical Annealing - Heat to 650-760°C and air cool.
Hardening - Hardened by heating to 925-1010°C, quenching in oil, and tempering to suit the mechanical requirements. See accompanying table.
Condition: Tensile Strength Range (N/mm² or MPa) QT 650: 650 - 850
QT 700: 700 - 850
QT 800: 800 - 950
QT 850: 850 - 1000
QT 900: 900 - 1050
Corrosion resistance is lower than the common austenitic grades.
Useful resistance to dry atmospheres, fresh water and mild alkalies and acids, but less resistant than the equivalent non-free-machining grades. Less corrosion resistant than the austenitic grades and also less than 17% chromium ferritic alloys such as Grade 430. High sulphur content free machining grades such as 416 are totally unsuitable for marine or other chloride exposure.
Maximum corrosion resistance is achieved in the hardened condition, with a smooth surface finish.
