0.4-14.0mm Stainless Steel Strip EN ASTM 321 Cold Rolled Hot Rolled
| Place of Origin | China |
|---|---|
| Brand Name | TISCO |
| Certification | ISO |
| Model Number | 201 202 301 304 316L 321 310S 410 430 440C |
| Minimum Order Quantity | 2 Ton |
| Price | 2400 - 3500 USD/Ton |
| Packaging Details | standard packing for export |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 20Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products | Stainless Steel Strip | Thickness | 0.1 - 10.0mm |
|---|---|---|---|
| Width | Within 1500mm | MOQ | 2 Ton |
| Grade | 200 Series 300 Series 300 Series | Surface | BA 2B NO.4 HL 8K NO.1 |
| Standard | ASTM EN GB JIS | Packing | Wooden Frame And Water Proof Paper |
| Highlight | 14.0mm Stainless Steel Strip,0.4mm Stainless Steel Strip,321 ss strip coil |
||
Product Description

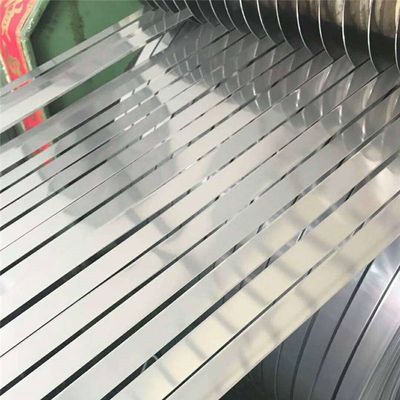

EN ASTM 321 Stainless Steel Strip Cold Rolled Hot Rolled 0.4 - 14.0mm SS Strip Coil
21 Stainless Steel Strip Specifications
- Grade: 321
- Standard: ASTM/EN/JIS
- Thickness: 0.03mm-3.0 mm
- Width: 1.5mm-600 mm
- Length: coil type or it can be produced as customer requirements
- Surface Finish: NO.1, 2B, 2H(Rerolled Bright), BA, No.4, 8K (Mirror), HL (Hairline), Polishing Bright, etc
- Edge: Mill Edge, Slit Edge, Deburred Edge, Round Edge, V Type Edge
321 Stainless Steel Strip Introductions
321 stainless steel strip is a Ni-Cr-Mo austenitic stainless steel material, its performance is very similar to 304 stainless steel strip.
But due to the addition of alloy titanium content, it has better resistance to grain boundary corrosion and high temperature strength. It effectively controls the formation of chromium carbide.
321 austenitic stainless steel strip has good corrosion resistance in the atmosphere and is widely used in petrochemical, electric power, bridge and automobile industries.
However, the “stainlessness” of 321 stainless steel is not absolute. Due to the special service environment, 321 stainless steel will also corrode.
Factors such as medium concentration, PH value, and temperature will have a greater impact on the corrosion resistance of 321 stainless steel.
321 Stainless Steel Strip Applications
321 stainless steel strip is applied to the field machines in the chemical, coal, and petroleum industries that require high resistance to grain boundary corrosion, heat-resistant parts for building materials and parts with difficult heat treatment.
1. Petroleum waste gas combustion pipeline
2. Engine exhaust pipe
3. Boiler shell, heat exchanger, heating furnace parts
4. Silencer parts for diesel engines
5. Boiler pressure vessel
6. Chemical transport truck
7. Expansion joint
8. Spiral welded pipes for furnace and dryers
321 Stainless Steel Strip Chemical Composition
The chemical components of grade 321 stainless steel strip is summarized in the following table:
| Grade | Standard | C | Si | Mn | P | S | Cr | Ni | Mo |
| 321 | ASTM A240 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.030 | 17.00-19.00 | 9.00-12.00 | – |
321 Stainless Steel Mother Coil Mechanical Property
Below The Table Is For Your Reference:
| Grade | Standard | Yield Strength Rp0.2 (N/mm²) |
Tensile Strength Rm (N/mm²) |
Elongation % |
Hardness (HV) |
Hardness (HRB) |
|---|---|---|---|---|---|---|
| 201 | ASTM A240 | ≥ 275 | ≥ 520 | ≥ 35 | ≤ 260 | ≤ 101 |
| 202 | ASTM A240 | ≥ 275 | ≥ 520 | ≥ 40 | ≤ 218 | ≤ 95 |
| 301 | ASTM A240 | ≥ 205 | ≥ 520 | ≥ 40 | ≤ 200 | ≤ 90 |
| 304 | ASTM A240 | ≥ 205 | ≥ 515 | ≥ 40 | ≤ 210 | ≤ 92 |
| 304L | ASTM A240 | ≥ 205 | ≥ 520 | ≥ 40 | ≤ 200 | ≤ 90 |
| 316L | ASTM A240 | ≥ 177 | ≥ 480 | ≥ 40 | ≤ 200 | ≤ 90 |
| 316Ti | ASTM A240 | ≥ 205 | ≥ 520 | ≥ 40 | ≤ 200 | ≤ 90 |
| 317L | ASTM A240 | ≥ 205 | ≥ 515 | ≥ 40 | ≤ 218 | ≤ 95 |
| 309S | ASTM A240 | ≥ 205 | ≥ 515 | ≥ 40 | ≤ 218 | ≤ 95 |
| 310S | ASTM A240 | ≥ 205 | ≥ 520 | ≥ 40 | ≤ 200 | ≤ 90 |
321 Stainless Steel Strip Production Tolerance
Below The Table Is For Your Reference:
Thickness Tolerance:
| Thickness(mm) | Width＜125mm | 125mm≤Width＜250mm | 250mm≤Width＜600mm |
|---|---|---|---|
| ≥0.03-0.10 | ±0.06T | ±0.10T | ±0.10T |
| ≥0.10-0.15 | ±0.01 | ±0.015 | ±0.020 |
| ≥0.15-0.20 | ±0.015 | ±0.020 | ±0.025 |
| ≥0.20-0.25 | ±0.015 | ±0.020 | ±0.025 |
| ≥0.25-0.30 | ±0.018 |
±0.025 | ±0.030 |
| ≥0.30-0.40 | ±0.020 | ±0.025 | ±0.030 |
| ≥0.40-0.50 | ±0.025 | ±0.030 | ±0.040 |
| ≥0.50-0.60 | ±0.030 | ±0.030 | ±0.040 |
| ≥0.60-0.80 | ±0.030 | ±0.040 | ±0.040 |
| ≥0.80-1.00 | ±0.030 | ±0.040 |
±0.050 |

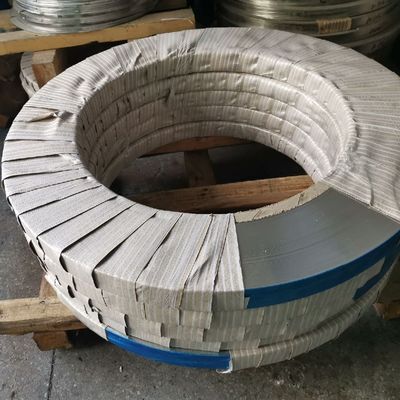

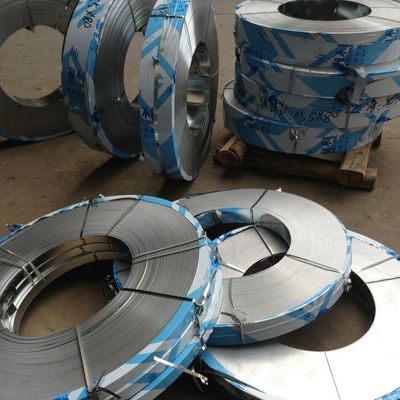

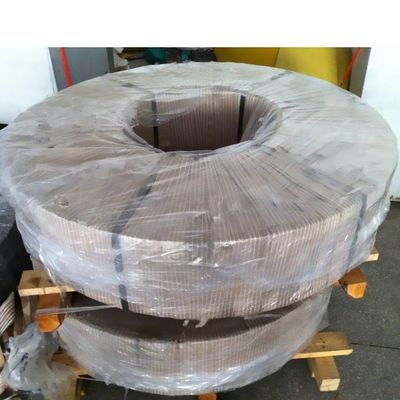

321 Stainless Steel Strip Packaging
Our company have professional team who can adopt developed packaging technology to assure no any damages of products during transportation.
- Standard export packaging:
Waterproof Paper Winding+PVC Film+Strap Banding+Wooden Pallet or Wooden Case; - Customized packaging as your request (Logo or other contents accepted to be printed on the packaging);
- Other special packaging will be designed as customer’s request;
- Eye to wall and eye to sky are both available;
- By International Express: DHL/UPS/FEDEX/EMS and our own express line;
- By air or By sea;
- Shipping port: Shanghai, Ningbo or as your request.
