AISI 304L EN 1.4306 Stainless Strips ASTM A240 0.03mm-3.0mm

  • AISI 304L EN 1.4306 Stainless Strips ASTM A240 0.03mm-3.0mm
  • AISI 304L EN 1.4306 Stainless Strips ASTM A240 0.03mm-3.0mm
  • AISI 304L EN 1.4306 Stainless Strips ASTM A240 0.03mm-3.0mm
  • AISI 304L EN 1.4306 Stainless Strips ASTM A240 0.03mm-3.0mm
Place of Origin China
Brand Name TISCO
Certification ISO
Model Number 201 202 301 304 316L 321 310S 410 430 440C
Minimum Order Quantity 2 Ton
Price 2400 - 3500 USD/Ton
Packaging Details standard packing for export
Delivery Time 5 - 12 days based on the quantity
Payment Terms L/C, T/T, Western Union
Supply Ability 20Ton per week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Products Stainless Steel Strip Thickness 0.1 - 10.0mm
Width Within 1500mm MOQ 2 Ton
Grade 200 Series 300 Series 300 Series Surface BA 2B NO.4 HL 8K NO.1
Standard ASTM EN GB JIS Packing Wooden Frame And Water Proof Paper
Highlight

EN 1.4306 stainless strips

,

AISI 304L stainless strips

,

0.03mm stainless strip coil
Leave a Message
Product Description

ASTM A240 304L Stainless Steel Strips / Stainless Steel Roll AISI304L EN 1.4306 Stainless

304L Stainless Steel Strip Specifications

  1. Grade: 304L
  2. Standard: ASTM/EN/JIS
  3. Thickness: 0.03mm-3.0 mm
  4. Width: 1.5mm-600 mm
  5. Length: coil type or it can be produced as customer requirements
  6. Surface Finish: NO.1, 2B, 2H(Rerolled Bright), BA, No.4, 8K (Mirror), HL (Hairline), Polishing Bright, etc
  7. Edge: Mill Edge, Slit Edge, Deburred Edge, Round Edge, V Type Edge

304L Stainless Steel Strip Introductions

304L stainless steel strip is 300 series stainless steel that is one of the most widely used metal strips due to its corrosion resistance and nice fabrication.

Both 304 and 304L stainless steel strips can be used for many similar applications and the differences are minor, but they really do exist.

304L stainless steel strip has lower carbon contents than 304 stainless steel strip.

304L Stainless Steel Strip Applications

304L stainless steel strip is widely used in automotive structures, chemical industry, food processing industry, marine environment industry, springs, welded parts and heat exchangers industry.

304L stainless steel strip can be also used in heavy industrial applications, especially in high-corrosion environments.



304L Stainless Steel Strip Chemical Composition

The chemical components of grade 304L stainless steel strip is summarized in the following table:

Grade Standard C Si Mn P S Cr Ni Mo
304L ASTM A240 ≤0.03 ≤1.00 ≤2.00 ≤0.045 ≤0.030 18.00-20.00 9.00-12.00 –

304L Stainless Steel Mother Coil Mechanical Property

Grade Standard Yield Strength
Rp0.2 (N/mm²)		 Tensile Strength
Rm (N/mm²)		 Elongation %
 		 Hardness
(HV)		 Hardness
(HRB)
201 ASTM A240 ≥ 275 ≥ 520 ≥ 35 ≤ 260 ≤ 101
202 ASTM A240 ≥ 275 ≥ 520 ≥ 40 ≤ 218 ≤ 95
301 ASTM A240 ≥ 205 ≥ 520 ≥ 40 ≤ 200 ≤ 90
304 ASTM A240 ≥ 205 ≥ 515 ≥ 40 ≤ 210 ≤ 92
304L ASTM A240 ≥ 205 ≥ 520 ≥ 40 ≤ 200 ≤ 90
316L ASTM A240 ≥ 177 ≥ 480 ≥ 40 ≤ 200 ≤ 90
316Ti ASTM A240 ≥ 205 ≥ 520 ≥ 40 ≤ 200 ≤ 90
317L ASTM A240 ≥ 205 ≥ 515 ≥ 40 ≤ 218 ≤ 95
309S ASTM A240 ≥ 205 ≥ 515 ≥ 40 ≤ 218 ≤ 95
310S ASTM A240 ≥ 205 ≥ 520 ≥ 40 ≤ 200 ≤ 90


304L Stainless Steel Strip Production Tolerance



Thickness(mm) Width＜125mm 125mm≤Width＜250mm 250mm≤Width＜600mm
≥0.03-0.10 ±0.06T ±0.10T ±0.10T
≥0.10-0.15 ±0.01 ±0.015 ±0.020
≥0.15-0.20 ±0.015 ±0.020 ±0.025
≥0.20-0.25 ±0.015 ±0.020 ±0.025
≥0.25-0.30 ±0.018
 		 ±0.025 ±0.030
≥0.30-0.40 ±0.020 ±0.025 ±0.030
≥0.40-0.50 ±0.025 ±0.030 ±0.040
≥0.50-0.60 ±0.030 ±0.030 ±0.040
≥0.60-0.80 ±0.030 ±0.040 ±0.040
≥0.80-1.00 ±0.030 ±0.040
 		 ±0.050

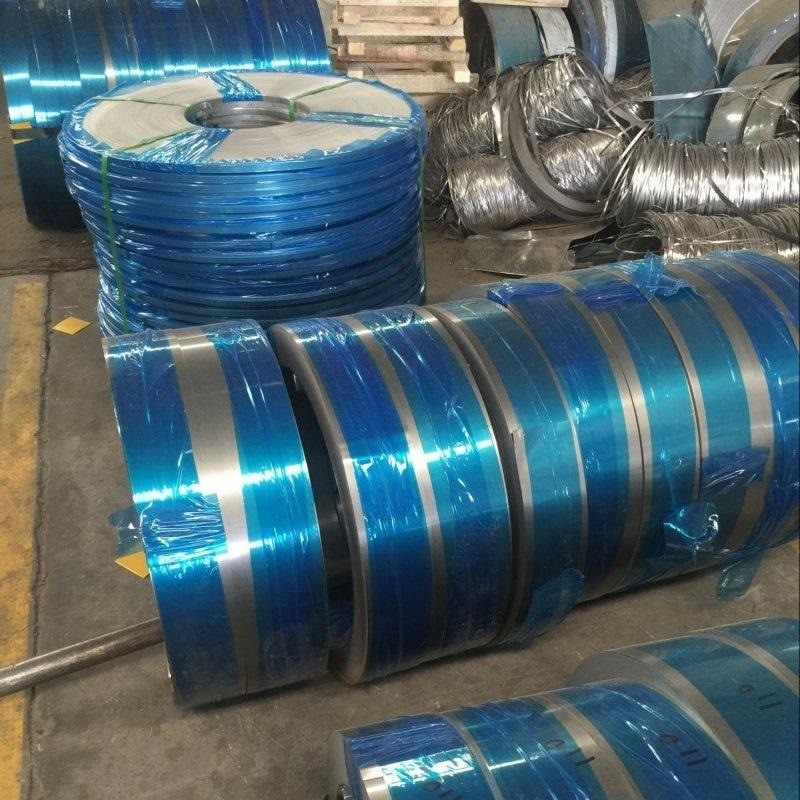

304L Stainless Steel Strip Packaging

Our company have professional team who can adopt developed packaging technology to assure no any damages of products during transportation.

  • Standard export packaging:
    Waterproof Paper Winding+PVC Film+Strap Banding+Wooden Pallet or Wooden Case;
  • Customized packaging as your request (Logo or other contents accepted to be printed on the packaging);
  • Other special packaging will be designed as customer’s request;
  • Eye to wall and eye to sky are both available;
  • By International Express: DHL/UPS/FEDEX/EMS and our own express line;
  • By air or By sea;
  • Shipping port: Shanghai, Ningbo or as your request.
