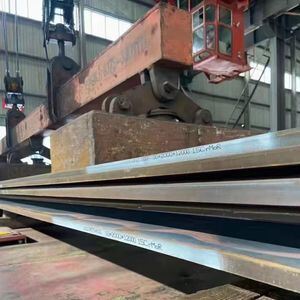

High Strength Hot Rolled Abrasion Resistant Steel Plate with 5mm-80mm Thickness for Wear Resistance
Product Details
| Technique | Hot Rolled | Width | 10-2600mm |
|---|---|---|---|
| Thickness | 5mm-80mm | Length | 6m, 8m, 10m |
| Hardness Range | 450-540 (AR500), 420-500 (AR450), 360-480 (AR400) | Yield Strength | 1250 MPa (AR500), 1200 MPa (AR450), 1000 MPa (AR400), 900 MPa (AR300) |
| Tensile Strength | 1450 MPa (AR500, AR450), 1250 MPa (AR400), 1000 MPa (AR300) | Elongation | 8% (AR500, AR450), 10% (AR400), 11% (AR300) |
| Impact Strength | -30C (AR500), -40C (AR450, AR400, AR300) | Carbon Content | 0.30% (AR500), 0.26% (AR450), 0.25% (AR400), 0.18% (AR300) |
| Silicon Content | 0.7% | Manganese Content | 1.70% |
| Chromium Content | 1.00% (AR500, AR450), 1.50% (AR400, AR300) | Nickel Content | 0.70% (AR500, AR450, AR400), 0.40% (AR300) |
| Molybdenum Content | 0.50% | ||
| Highlight | High Strength Abrasion Resistant Steel Plate,Hot Rolled Wear Resistant Steel Plate,5mm-80mm Thickness Alloy Steel Plate |
||
Product Description
High Strength Abrasion Resistant Alloy Steel Plate NM400 NM500 NM550
Our premium abrasion resistant steel plates are engineered for exceptional durability and long service life in demanding industrial applications. Available in grades NM360, NM400, NM450, NM500, NM550, and NM600, these plates deliver superior performance in harsh operating conditions.
Product Specifications
| Property | Specification |
|---|---|
| Material Grades | NM360, NM400, NM450, NM500, NM550, NM600, AR360, AR400, AR450, AR500, AR600 |
| Thickness Range | 5.0mm - 80.0mm |
| Width Options | 1500mm, 2000mm, 2200mm |
| Length Options | 6m, 8m, 10m or custom cutting as requested |
| Hardness (HRC) | 5.0 - 80.0mm |
Chemical Composition
| Grade | C | Si | Mn | P | S | Cr | Ni | Mo | B |
|---|---|---|---|---|---|---|---|---|---|
| AR500 | 0.30 | 0.7 | 1.70 | 0.025 | 0.015 | 1.00 | 0.70 | 0.50 | 0.005 |
| AR450 | 0.26 | 0.7 | 1.70 | 0.025 | 0.015 | 1.00 | 0.70 | 0.50 | 0.005 |
| AR400 | 0.25 | 0.7 | 1.70 | 0.025 | 0.015 | 1.50 | 0.70 | 0.50 | 0.005 |
| AR300 | 0.18 | 0.7 | 1.70 | 0.025 | 0.015 | 1.50 | 0.40 | 0.50 | 0.005 |
Mechanical Properties
| Grade | Yield Strength (MPa) | Tensile Strength (MPa) | Elongation A | Impact Strength | Hardness Range |
|---|---|---|---|---|---|
| AR500 | 1250 | 1450 | 8 | -30°C | 450-540 |
| AR450 | 1200 | 1450 | 8 | -40°C | 420-500 |
| AR400 | 1000 | 1250 | 10 | -40°C | 360-480 |
| AR300 | 900 | 1000 | 11 | -40°C | - |
Applications & Benefits
Abrasion resistant steel plates are specifically developed for extended service life in harsh conditions including mining, quarrying, material handling, construction, and earthmoving applications.
- AR400: Premium heat-treated plates with through-hardening, improved forming and welding capabilities
- AR450: Ideal for applications requiring slightly greater strength than AR400
- AR500: Suitable for mining, forestry and construction applications with high impact resistance
- AR600: Utilized in high-wear areas such as aggregate removal, mining, and manufacturing of buckets and wear bodies
Shipping & Delivery
| Category | Details |
|---|---|
| Delivery Time | 7-30 days after order confirmation |
| Shipping Methods | By sea (bulk or container) |
| Shipping Port | Shanghai |
| Packaging | Standard seaworthy export packing with steel straps, customizable as required |
| Payment Terms | T/T, L/C, Western Union |
| Price Terms | EX-Work, FOB, CFR, CIF |
