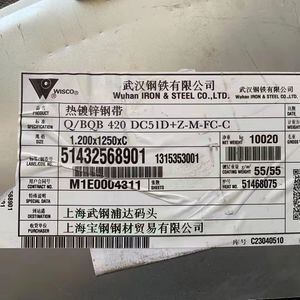

Wusteel DX51D+Z Galvanized Steel Coil 0.6 - 3.0mm Thickness for Container Plate Application

Minimum Order Quantity	1 Ton
Price	US $773-989 / Ton

Product Details

Thickness	0.6 - 3.0mm	Width	914mm,1000mm,1200mm,1219mm,1220mm,1250mm
Length	Custom Length	Coil Weight	2Ton - 8 Tons
Coil Inner Diameter	508mm Or 610mm	Zinc Coating	Z30 - Z275
Aluminum Coating	AZ40 - AZ180	Painting Type	PE,HDP,SMP,PVDF
Coating Thickness	20-25um/5-10um	Coating Layers	Above 2 Layer, Bottom 1 Layer
Material	Galvanized Steel Sheet / Galvalume Steel Sheet / Prepainted Galvanized Steel Sheet	Surface Finish	Regular Spangle / Non-spangle
Edge Type	Slit Edge	Sheet Size	12202440, 15003000, 15006000, 20006000mm
Pattern Thickness	0.17 - 1.5mm
Highlight	DX51D+Z Galvanized Steel Coil , 0.6 - 3.0mm Thickness Zinc Coated Steel Coil , Container Plate Application Hot Dipped Galvanized Steel Coil

Leave a Message

Product Description

Wusteel Galvanized Steel Coil DX51D+Z

Thickness: 0.6 - 3.0mm with Stock Selling

Product Specifications

Product Name	Galvanized Steel Sheet / Galvalume Steel Sheet / Prepainted Galvanized Steel Sheet
Thickness	Galvanized steel sheet: 0.12 - 3.0mm Galvalume Steel Sheet: 0.25 - 3.0mm Prepainted Galvanized Steel Sheet: 0.12 - 1.2mm
Width	914mm, 1000mm, 1200mm, 1219mm, 1220mm, 1250mm or custom requirements
Length	Custom length as per customer requirements
Coil Weight	2 - 8 Tons
Coil Inner Diameter	508mm or 610mm
Surface	Galvanized: Regular spangle / non-spangle Zinc: Z30 - Z275 Galvalume: AZ40 - AZ180 Prepainted: PE, HDP, SMP, PVDF coatings
Standard	AISI, ASTM, BS, DIN, GB, JIS, AS, etc.

Products Center

Prepainted Galvanized Steel Coil (PPGI)

Also known as color plate, PPGI is manufactured using cold rolled steel plate and galvanized steel plate as base materials. After surface pretreatment including degreasing, cleaning, and chemical conversion treatment, the coating is applied continuously using the roller coating method, followed by baking and cooling.

Benefits include light weight, attractive appearance, excellent anti-corrosion performance, and direct processability. Applications include construction, shipbuilding, vehicle manufacturing, home appliances, and electrical industries, effectively replacing wood while enabling efficient construction, energy savings, and pollution prevention.

Galvanized Steel Coil

Galvanized sheet features a zinc-coated surface, providing economical and effective rust prevention. Approximately half of the world's zinc production is used in this process.

Surface options include regular spangle, small spangle, and big spangles. All galvanized sheets maintain excellent appearance standards, free from defects such as no plating, holes, cracks, scum, excessive thick plating, abrasion, chromic acid dirt, or white rust.

Galvalume Steel Coil

Galvalume steel sheet consists of an alloy composition of 55% aluminum, 43% zinc, and 2% silicon solidified at 600°C. The structure forms a dense tetrad junction crystal of aluminized iron, silicon, and zinc.

This material offers corrosion resistance three times greater than pure galvanized sheet, features decorative zinc flower patterns suitable for building exterior panels, and provides excellent heat resistance up to 300°C. Common applications include chimney tubes, ovens, illuminators, and solar lampshades.

Featured Product: Pattern Print Prepainted Steel Sheet

Product	Pattern Print Prepainted Steel Sheet
Introduction	Color plate printed on galvanized or aluminized zinc substrates using transfer printing or film covering technology
Features	Bright colors, wide variety including marble grain, camouflage, and wood grain patterns
Size	Thickness: 0.17 - 1.5mm, Width: less than 1.5mm
Color & Pattern	Customizable as per client requirements
Base Material	Galvanized steel sheet / Galvalume steel sheet
Coating Thickness	20-25um/5-10um
Coating Type	Above 2 layers, bottom 1 layer
Coil ID	Φ510mm/610mm
Application	Household appliances, furniture, doors, windows, indoor and outdoor decoration

Trade Information

MOQ	5 Tons
Payment Term	TT or 100% LC at sight
Packing	Standard Sea Worthy Package
Loading Port	Shanghai Port, Qingdao Port, Tianjin Port
Container Loading	20ft container FCL, LCL
Delivery Time	Within 15 days

Company Information

Our company is a modern enterprise specializing in high-end coating plate processing, sales, and circulation, registered in Wuxi City. Our product portfolio includes color coating, galvanized, aluminum zinc plating, zinc aluminum magnesium, and aluminum magnesium manganese high-end metal plates.

We maintain strong cooperative relationships with major domestic steel mills including Ye Hui (China), Baoshan Iron & Steel, Shougang, Magang, Hangang, Rizhao Steel, and Jiangyin ZongCheng Steel. Our products are widely used in steel structure buildings, metal building materials, steel silos, ventilation pipes, mechanical and electrical housing, home appliance plates, elevators, purification plates, and automotive stamping parts.

Our team averages over 8 years of industry experience, enabling us to provide customized supply solutions and improve supply chain efficiency. We are committed to being your best partner in the industry.

Guided by our value concept of sustainable development, we are dedicated to providing perfect demand solutions and positioning ourselves as China's premier high-end coating and plating steel products service provider.
