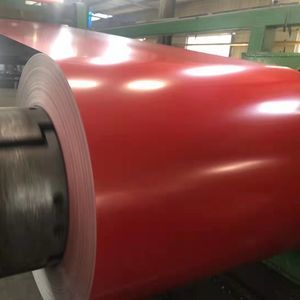

ASTM Standard PPGI Steel Coil 1220*2440mm for Container Plate Application
Product Details
| Thickness | 0.12 - 3.0mm (Galvanized), 0.25 - 3.0mm (Galvalume), 0.12 - 1.2mm (Prepainted) | Width | 914mm, 1000mm, 1200mm, 1219mm, 1220mm, 1250mm Or Custom |
|---|---|---|---|
| Length | Custom Length | Coil Weight | 2 - 8 Tons |
| Coil Inner Diameter | 508mm Or 610mm | Zinc Coating | Z30 - Z275 (Galvanized) |
| Aluminum-Zinc Coating | AZ40 - AZ180 (Galvalume) | Painting Type | PE, HDP, SMP, PVDF (Prepainted) |
| Coating Thickness | 20-25um/5-10um (Pattern Print) | Coating Layers | Above 2 Layer, Bottom 1 Layer (Pattern Print) |
| Surface Finish | Regular Spangle, Non-spangle, Small Spangle, Big Spangles | Material Composition | 55% Al, 43% Zn, 2% Si (Galvalume) |
| Heat Resistance | >300°C (Galvalume) | Pattern Thickness | 0.17 - 1.5mm (Pattern Print) |
| Pattern Width | <1.5mm (Pattern Print) | ||
| Highlight | ASTM Standard PPGI Steel Coil,1220*2440mm PPGI Steel Coil,Container Plate Application PPGI Steel Coil |
||
Product Description
PPGI Roofing Prepainted Galvanized Steel Coil ASTM
High-quality prepainted galvanized steel coils manufactured to ASTM standards for roofing applications and industrial use.
Product Specifications
| Products Name | Galvanized Steel Sheet / Galvalume Steel Sheet / Prepainted Galvanized Steel Sheet |
|---|---|
| Thickness |
Galvanized steel sheet: 0.12 - 3.0mm Galvalume Steel Sheet: 0.25 - 3.0mm Prepainted Galvanized Steel Sheet: 0.12 - 1.2mm |
| Width | 914mm, 1000mm, 1200mm, 1219mm, 1220mm, 1250mm or custom requirements |
| Length | Custom length as per customer requirements |
| Coil Weight | 2 - 8 Tons |
| Coil Inner Diameter | 508mm or 610mm |
| Surface |
Galvanized steel sheet: Regular spangle / non-spangle Zinc: Z30 - Z275 Galvalume Steel Sheet: AZ40 - AZ180 Prepainted Galvanized Steel Sheet: Painting Type: PE, HDP, SMP, PVDF |
| Standard | AISI, ASTM, BS, DIN, GB, JIS, AS, etc. |
Prepainteed Galvanized Steel Coil (PPGI)
Prepainteed galvanized steel coil, also known as PPGI or color plate, is manufactured using cold rolled steel plate and galvanized steel plate as base materials. After surface pretreatment including degreasing, cleaning, and chemical conversion treatment, the coating is applied using continuous roller coating method, followed by baking and cooling processes.
The coated steel plate offers lightweight construction, attractive appearance, and excellent anti-corrosion performance. It can be directly processed and serves as an innovative raw material for construction, shipbuilding, vehicle manufacturing, home appliances, and electrical industries, effectively replacing wood while enabling efficient construction, energy conservation, and pollution prevention.
Galvanized Steel Coil
Galvanized sheet refers to steel plate with zinc coating on the surface. Galvanizing is an economical and effective rust prevention method, with approximately half of the world's zinc production used for this process.
Surface Requirements:
- Surface state varies based on coating process: regular spangle, small spangle, big spangles, etc.
- Galvanized sheet must have good appearance without defects affecting product use
- Defects include no plating, holes, cracks, scum, excessive thick plating, abrasion, chromic acid dirt, white rust
Galvalume Steel Coil
Galvalume steel sheet is an alloy composed of 55% aluminum, 43% zinc, and 2% silicon solidified at 600°C. The structure consists of aluminized iron, silicon, and zinc, forming dense tetrad junction crystals.
- Excellent corrosion resistance - 3 times better than pure galvanized sheet
- Beautiful zinc flower surface decoration suitable for building exterior panels
- Aluminum provides primary protective function for corrosion resistance
- Good heat resistance - withstands temperatures above 300°C
- Applications include chimney tubes, ovens, illuminators, and solar lampshades
Pattern Print Prepainted Steel Sheet
| Products | Pattern print prepainted steel sheet |
|---|---|
| Introduction | Color plate printed on galvanized plate, aluminized zinc plate and other substrates using transfer printing or film covering technology |
| Features | Bright colors, variety of patterns including marble grain, camouflage, wood grain printing |
| Size | Thickness: 0.17 - 1.5mm, Width less than 1.5mm |
| Color and Pattern | Customized as per client requirements |
| Base Material | Galvanized steel sheet / Galvalume steel sheet |
| Coating Thickness | 20-25um/5-10um |
| Coating Type | Above 2 layers, bottom 1 layer |
| Coil ID | Φ510mm/610mm |
| Application | Household appliances, furniture, doors and windows, indoor and outdoor decoration |
Trade Information
| MOQ | 5 Tons |
|---|---|
| Payment Term | TT or 100% LC at sight |
| Packing | Standard Sea Worthy Package |
| Loading Port | Shanghai Port, Qingdao Port, Tianjin Port |
| Container Loading | 20ft container FCL, LCL |
| Delivery Time | Within 15 days |
Company Information
Our company is a modern enterprise specializing in high-end coating plate processing, sales, and circulation, registered in Wuxi City. We offer comprehensive solutions including color coating, galvanized, aluminum zinc plating, zinc aluminum magnesium, and aluminum magnesium manganese high-end metal plates.
We maintain strong cooperative relationships with major domestic steel mills including Ye Hui (China), Baoshan Iron & Steel, Shougang, Magang, Hangang, Rizhao Steel, and Jiangyin ZongCheng Steel. Our products are widely used in steel structure buildings, metal building materials, steel silos, ventilation pipes, mechanical and electrical housing, home appliance plates, elevators, purification plates, automotive stamping parts, and other fields.
Our employees average over 8 years of industry experience, enabling us to provide customized supply solutions and improve supply chain efficiency. We are committed to being your best partner in the industry.
Guided by our value concept of "not for a long time, not to be able to recover," we are dedicated to providing customers with perfect demand solutions and working together with domestic and foreign clients to create excellence as China's premier high-end coating and plating steel products service provider.
