700mm -1250mm Width ASTM A653 Prepainted Color Steel Coils for Container Plate
Product Details
| Width Range | 700mm -1250mm | Thickness Range | 0.12 - 3.0mm (Galvanized), 0.25 - 3.0mm (Galvalume), 0.12 - 1.2mm (Prepainted) |
|---|---|---|---|
| Coil Weight | 2Ton - 8 Tons | Coil Inner Diameter | 508mm Or 610mm |
| Zinc Coating | Z30 - Z275 | Aluminum-Zinc Coating | AZ40 - AZ180 |
| Painting Type | PE, HDP, SMP, PVDF | Sheet Width Options | 914mm,1000mm,1200mm,1219mm,1220mm,1250mm |
| Coating Thickness | 20-25um/5-10um | Coating Layers | Above 2 Layer, Bottom 1 Layer |
| Heat Resistance | >300°C | Pattern Thickness | 0.17 - 1.5mm |
| Standard Sizes | 1220*2440, 1500*3000, 1500*6000, 2000*6000mm | Edge Type | Slit Edge |
| Surface Treatment | Regular Spangle / Non-spangle | ||
| Highlight | 700mm -1250mm Width PPGI,ASTM A653 Color Coated Steel Coils,Container Plate Application Prepainted Color Steel Coils |
||
Product Description
PPGI / ASTM A653 Prepainted Color Steel Coils
700mm - 1250mm Width Prepainted Color Steel Coils
Product Specifications
| Products Name | Galvanized Steel Sheet / Galvalume Steel Sheet / Prepainted Galvanized Steel Sheet |
|---|---|
| Thickness |
Galvanized steel sheet: 0.12 - 3.0mm Galvalume Steel Sheet: 0.25 - 3.0mm Prepainted Galvanized Steel Sheet: 0.12 - 1.2mm |
| Width | 914mm, 1000mm, 1200mm, 1219mm, 1220mm, 1250mm or custom requirements |
| Length | Custom length as per customer requirements |
| Coil Weight | 2 - 8 Tons |
| Coil Inner Diameter | 508mm or 610mm |
| Surface |
Galvanized steel sheet: Regular spangle / non-spangle Zinc: Z30 - Z275 Galvalume Steel Sheet: AZ40 - AZ180 Prepainted Galvanized Steel Sheet: Painting Type: PE, HDP, SMP, PVDF |
| Standard | AISI, ASTM, BS, DIN, GB, JIS, AS, etc. |
Prepainted Galvanized Steel Coil (PPGI)
Prepainted galvanized steel coil, also known as PPGI or color plate, uses cold rolled steel plate and galvanized steel plate as base materials. After surface pretreatment including degreasing, cleaning, and chemical conversion treatment, the coating is applied using continuous roller coating method, followed by baking and cooling. The coated steel plate offers light weight, attractive appearance, and excellent anti-corrosion performance, and can be directly processed. It serves as an innovative raw material for construction, shipbuilding, vehicle manufacturing, home appliances, electrical industries, effectively replacing wood while enabling efficient construction, energy conservation, and pollution prevention.
Galvanized Steel Coil
Galvanized sheet refers to zinc-coated steel plate surface. Galvanizing represents an economical and effective rust prevention method, utilizing approximately half of the world's zinc production. Surface requirements include various states such as regular spangle, small spangle, and big spangles depending on coating process treatment methods. Galvanized sheets must maintain good appearance without defects harmful to product use, including no plating, holes, cracks, scum, excessive thick plating, abrasion, chromic acid dirt, or white rust.
Galvalume Steel Coil
Galvalume steel sheet consists of an aluminum-zinc alloy structure comprising 55% aluminum, 43% zinc, and 2% silicon solidified at 600°C. The complete structure forms a dense tetrad junction crystal of aluminized iron, silicon, and zinc. This material provides superior corrosion resistance—three times that of pure galvanized sheet—with decorative zinc flower surfaces suitable for building exterior panels. The corrosion resistance primarily derives from aluminum's protective function. Galvalume steel sheet demonstrates excellent heat resistance, withstanding temperatures exceeding 300°C, similar to aluminum-plated steel plate's high-temperature oxidation resistance, making it ideal for chimney tubes, ovens, illuminators, and solar lampshades.

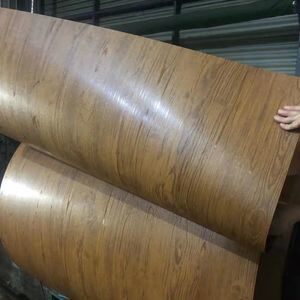

Pattern Print Prepainted Steel Sheet
| Products | Pattern Print Prepainted Steel Sheet |
|---|---|
| Introduction | Color plate printed on galvanized plate, aluminized zinc plate and other substrates using transfer printing or film covering technology |
| Features | Bright colors and variety, mainly applied in marble grain, camouflage, and wood grain printing color boards |
| Size | Thickness: 0.17 - 1.5mm, Width less than 1.5mm |
| Color and Pattern | Customized according to client requirements |
| Base Material | Galvanized steel sheet / Galvalume steel sheet |
| Coating Thickness | 20-25um/5-10um |
| Coating Type | Above 2 layers, bottom 1 layer |
| Coil ID | Φ510mm/610mm |
| Application | Widely used in household appliances, furniture, doors and windows, indoor and outdoor decoration |
Trade Information
| MOQ | 5 Tons |
|---|---|
| Payment Term | TT or 100% LC at sight |
| Packing | Standard Sea Worthy Package |
| Loading Port | Shanghai Port, Qingdao Port, Tianjin Port |
| Container Loading | 20ft container FCL, LCL |
| Delivery Time | Within 15 days |
