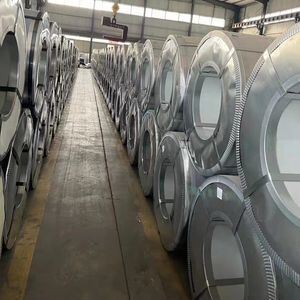

Prepainted Galvanized Steel Sheet with Z60 to Z27 Zinc Coating in 1220*2440mm for Container Plate Applications
Product Details
| Thickness | 0.12 - 3.0mm (Galvanized), 0.25 - 3.0mm (Galvalume), 0.12 - 1.2mm (Prepainted) | Width | 914mm, 1000mm, 1200mm, 1219mm, 1220mm, 1250mm Or Custom |
|---|---|---|---|
| Length | Custom Length | Coil Weight | 2Ton - 8 Tons |
| Coil Inner Diameter | 508mm Or 610mm | Zinc Coating | Z30 - Z275 |
| Aluminum-Zinc Coating | AZ40 - AZ180 | Painting Type | PE, HDP, SMP, PVDF |
| Coating Thickness | 20-25um/5-10um | Coating Layers | Above 2 Layer, Bottom 1 Layer |
| Surface Type | Regular Spangle, Non-spangle, Small Spangle, Big Spangles | Heat Resistance | >300°C |
| Pattern Thickness | 0.17 - 1.5mm | Pattern Width | <1.5mm |
| Standard Sizes | 1220*2440, 1500*3000, 1500*6000, 2000*6000mm | ||
| Highlight | Z60 to Z27 Zinc Coating Prepainted Galvanized Steel Sheet,1220*2440mm Specification Color Coated Steel,Container Plate Application PPGI |
||
Product Description
JIS G3312 / GB / T 12754 / DX51D + Z Z60 to Z27 Zinc Prepainted Color Steel
High-quality prepainted galvanized steel sheets manufactured to international standards including JIS G3312, GB/T 12754, and DX51D specifications with zinc coating weights ranging from Z27 to Z60.
Product Specifications
Available Products
| Product Name | Galvanized Steel Sheet / Galvalume Steel Sheet / Prepainted Galvanized Steel Sheet |
|---|---|
| Thickness | Galvanized: 0.12 - 3.0mm Galvalume: 0.25 - 3.0mm Prepainted Galvanized: 0.12 - 1.2mm |
| Width | 914mm, 1000mm, 1200mm, 1219mm, 1220mm, 1250mm or custom requirements |
| Length | Custom length as per customer requirements |
| Coil Weight | 2 - 8 Tons |
| Coil Inner Diameter | 508mm or 610mm |
| Surface | Galvanized: Regular spangle/non-spangle (Z30-Z275) Galvalume: AZ40-AZ180 Prepainted: PE, HDP, SMP, PVDF coatings |
| Standard | AISI, ASTM, BS, DIN, GB, JIS, AS, etc. |
Products Center
Prepainted Galvanized Steel Coil (PPGI)
Color coated steel plates using cold rolled steel and galvanized steel as base plates. After surface pretreatment including degreasing, cleaning, and chemical conversion treatment, continuous coating is applied via roller coating method followed by baking and cooling processes.
These coated steel plates offer lightweight construction, attractive appearance, and excellent anti-corrosion performance. They can be directly processed and serve as innovative raw materials for construction, shipbuilding, vehicle manufacturing, home appliances, and electrical industries, effectively replacing wood while enabling efficient construction, energy savings, and pollution prevention.
Galvanized Steel Coil
Steel sheets with zinc-coated surfaces providing economical and effective rust prevention. Approximately half of global zinc production is utilized for this galvanization process.
Surface Requirements
- Surface states vary based on coating process methods: regular spangle, small spangle, big spangles, etc.
- Must have good appearance without defects affecting product use
- Free from plating defects, holes, cracks, scum, excessive thick plating, abrasion, chromic acid dirt, and white rust
Galvalume Steel Coil
Alloy composed of 55% aluminum, 43% zinc, and 2% silicon solidified at 600°C, forming a dense tetrad junction crystal structure of aluminized iron, silicon, and zinc.
- Excellent corrosion resistance - 3 times better than pure galvanized sheet
- Beautiful zinc flower surface decoration suitable for building exterior panels
- Aluminum provides primary protective function and corrosion resistance
- Superior heat resistance - withstands temperatures over 300°C
- Similar high-temperature oxidation resistance to aluminum-plated steel
- Common applications: chimney tubes, ovens, illuminators, solar lampshades
Featured Products
| Product | Pattern Print Prepainted Steel Sheet |
|---|---|
| Introduction | Color plates printed on galvanized or aluminized zinc substrates using transfer printing or film covering technology |
| Features | Bright colors, wide variety including marble grain, camouflage, and wood grain patterns |
| Size | Thickness: 0.17 - 1.5mm (Width less than 1.5mm) |
| Color & Pattern | Customized according to client requirements |
| Base Material | Galvanized steel sheet / Galvalume steel sheet |
| Coating Thickness | 20-25μm / 5-10μm |
| Coating Type | Minimum 2 layers above, 1 layer bottom |
| Coil ID | Φ510mm / 610mm |
| Application | Household appliances, furniture, doors, windows, indoor and outdoor decoration |
Trade Information
| Minimum Order Quantity | 5 Tons |
|---|---|
| Payment Terms | TT or 100% LC at sight |
| Packing | Standard Sea Worthy Package |
| Loading Port | Shanghai Port, Qingdao Port, Tianjin Port |
| Container Loading | 20ft container FCL, LCL |
| Delivery Time | Within 15 days |
