Heat Resistant 310S Stainless Steel H Beam with Hot Rolled Technique and Pickling Surface Treatment for Boiler Structure
Product Details
| Shape | H Beam | Technique | Hot Rolled |
|---|---|---|---|
| Surface Treatment | Pickling | Material | Stainless Steel 201 304 310S 316L 321 2205 2507 |
| Thickness | 4.0 - 30.0mm | Width | 25mm*25mm-200mm*125mm / 50mm*37mm-400mm*104mm |
| Length | 6m Or Custom | Production Capacity | 50000kgs |
| Surface Processing | Galvanized, Coated, Or Custom | Standard | GB ASTM, JIS, SUS, DIN, EN |
| Type | H Beam / I Beam | Usage | Mechanical & Manufacture, Steel Structure, Shipbuilding, Bridging, Automobile Chassis |
| Stock | Ready In Stocks | Transport Package | Wooden Box |
| HS Code | 7219340000 | ||
| Highlight | Heat Resistant 310S Stainless Steel H Beam,Hot Rolled H Shape Beam,Pickling Surface Treatment Structural Steel Beam |
||
Product Description
Heat Resistant 310S Stainless Steel H Beam / I Beam for Boiler Structure
High-performance stainless steel beams engineered for demanding boiler structures and high-temperature applications requiring exceptional heat resistance and structural integrity.
| Product Specification | Details |
|---|---|
| Product | Stainless Steel H Beam |
| Standard | GB ASTM, JIS, SUS, DIN, EN etc |
| Material | Stainless Steel 201, 304, 310S, 316L, 321, 2205, 2507, etc. |
| Thickness | 4.0 - 30.0mm |
| Width | 25mm×25mm-200mm×125mm / 50mm×37mm-400mm×104mm |
| Length | 6m standard, or custom lengths according to requirements |
| Product Category | Metallurgy, Mineral & Energy |
| Technique | Welded / Hot Rolled |
| Usage | Mechanical & Manufacturing, Steel Structure, Shipbuilding, Bridging, Automobile Chassis |
| Main Markets | Middle East, Africa, Asia, Europe, America, Australia |
| Surface Processing | Galvanized, coated, or customized finishing available |
| Stock Availability | Ready in stock |
| Place of Origin | Jiangsu, China |
Types of Stainless Steel Beams
I-Beam Construction
The universal and most commonly identified beam profile, characterized by its distinctive "I" shape. I-beams feature a solid, single-piece construction rolled from one continuous piece of metal, making them lighter in weight while maintaining structural efficiency.
- Center web thickness limited by milling equipment capacity
- Lightweight design ideal for various structural applications
- Solid, single-piece construction throughout
H-Beam Construction
Engineered for superior strength and load-bearing capacity, H-beams utilize a three-piece welded construction method that allows for enhanced reinforcement and material optimization.
- Stronger structural performance compared to I-beams
- Three-piece welded construction for maximum reinforcement
- Heavier profile capable of withstanding greater force and pressure
- Enhanced manufacturing process for superior material properties
Manufacturing Capabilities
Located in Wuxi, Jiangsu province with strategic proximity to Shanghai port, our facility combines advanced manufacturing technology with comprehensive engineering expertise. We operate as a fully integrated enterprise encompassing development, design, manufacturing, and sales.
Our production facility features state-of-the-art equipment including plasma cutting machines, bending machines, laser plasma welding systems, plate shearing machine groups, and automatic submerged arc welding machines. We specialize in manufacturing stainless steel I-beams, T-beams, angle steel, channel steel, square rectangular tubes, and custom-shaped non-standard components according to customer specifications.

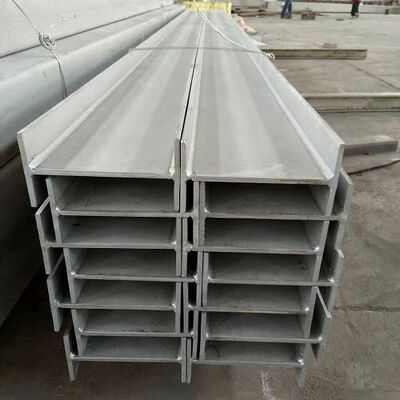

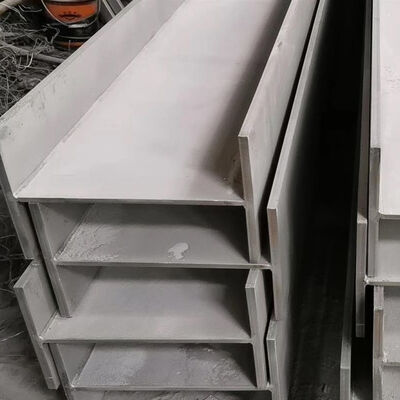

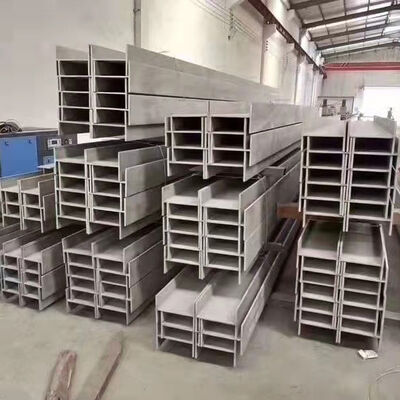

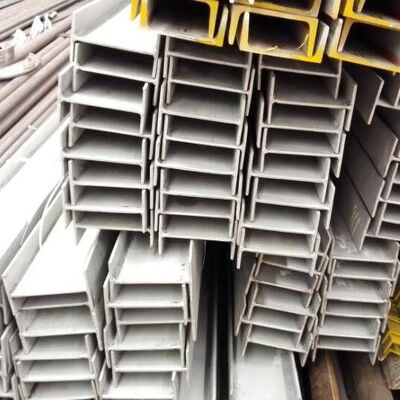

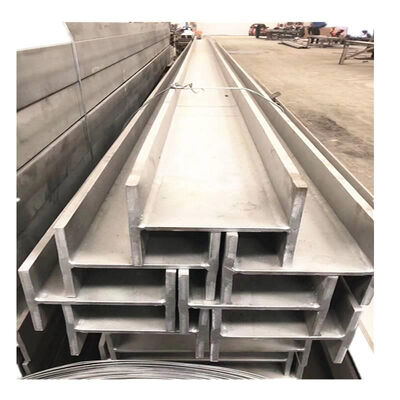

Product Gallery
