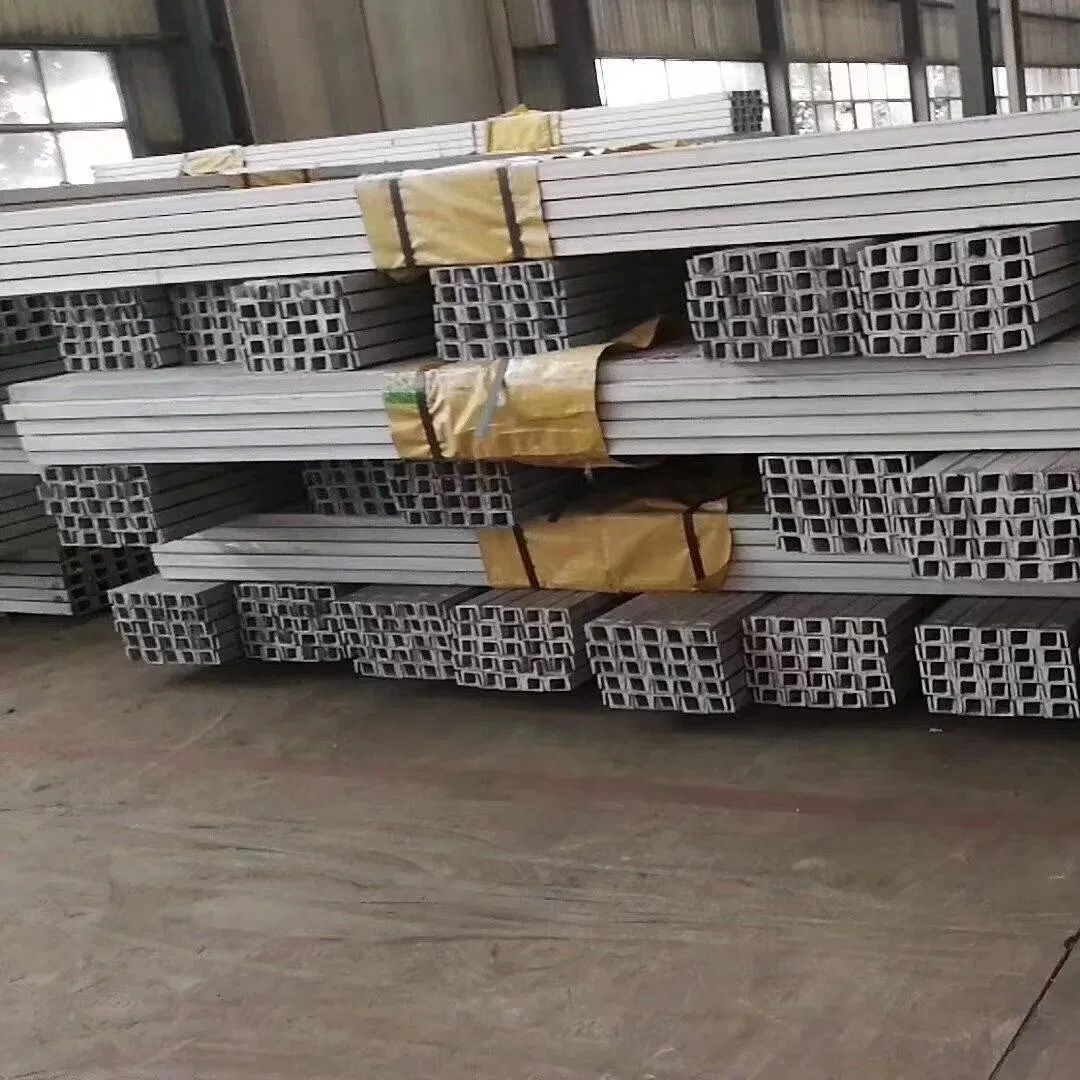

310S Stainless Steel U Channel Bar Hot Rolled with Bright Surface Finish
| Shape | U Channel | Technique | Hot Rolled |
|---|---|---|---|
| Surface Treatment | Bright | Specification | 30*30-100*100 |
| Grade | 201 304 310S 316L 321 2205 | Angle Bar Size | 30*30*3 - 200*200*10mm * 6m |
| Channel Bar Size | 50*30*3 - 200*100*10mm * 6m | Thickness Range | 3-12mm |
| Weight Per Meter | 0.894-35.8kg | Material | Stainless Steel |
| Standard | ASTM GB DIN | Length | 6m |
| Width Range | 20-200mm | Height Range | 20-200mm |
| Processing Service | Cutting | ||
| Highlight | 310S Stainless Steel U Channel,Hot Rolled Stainless Steel Channel Bar,Bright Surface U Channel Bar |
||
| Product Name | Stainless Steel Angle Bar / Stainless Steel Channel Bar |
|---|---|
| Grade | 201, 304, 310S, 316L, 321, 2205, etc. |
| Standard | ASTM, GB, DIN |
| Angle Bar Size | 30×30×3 - 200×200×10mm × 6m length |
| Channel Bar Size | 50×30×3 - 200×100×10mm × 6m length |
| Service | Cutting |

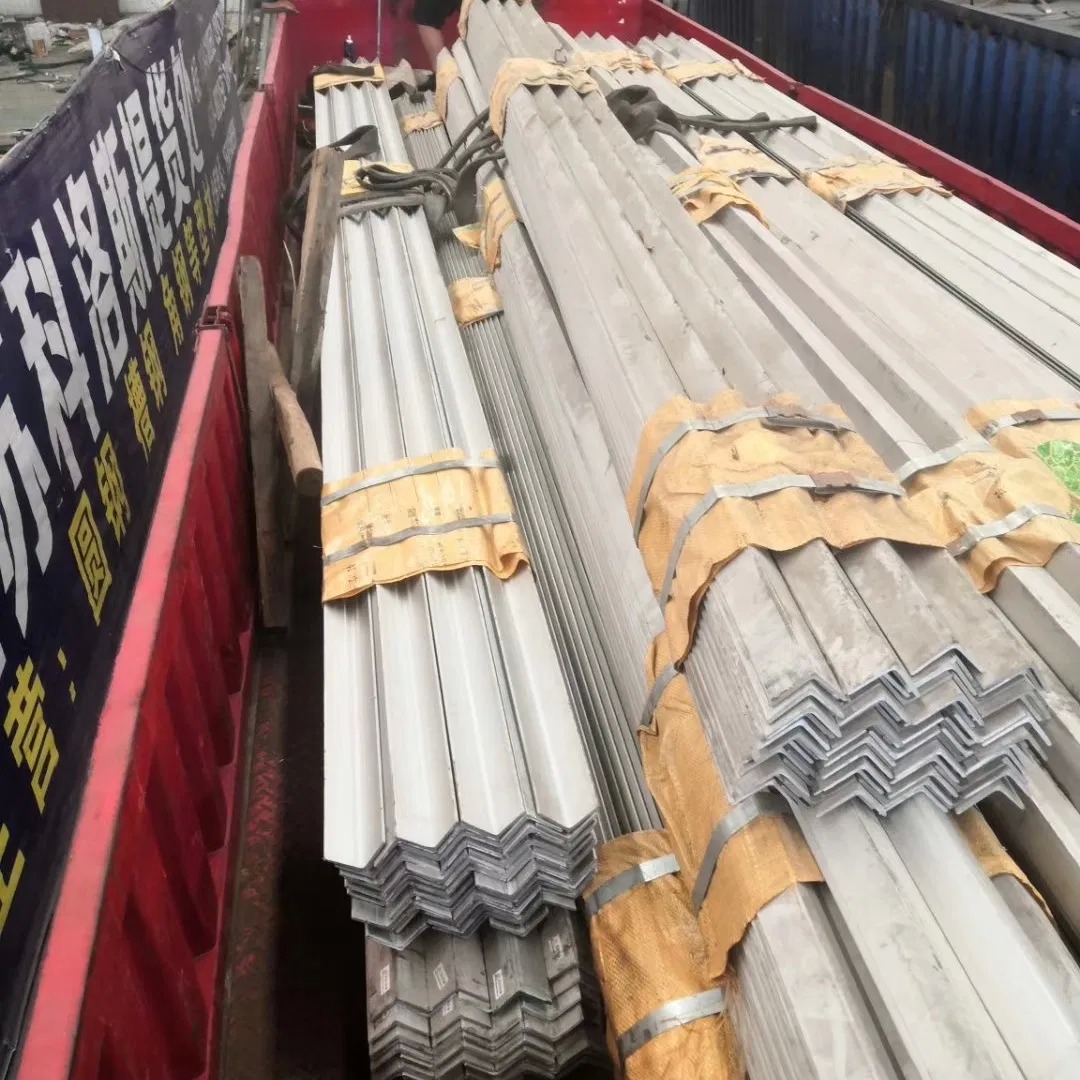

| Packing | Waterproof paper surround or wooden pallets |
| Brand | TSINGSHAN |
| Size A×B (mm) | 3mm | 4mm | 5mm | 6mm | 7mm | 8mm | 9mm | 10mm |
|---|---|---|---|---|---|---|---|---|
| 20×20 | 0.894 | 1.13 | 1.38 | |||||
| 25×25 | 1.13 | 1.45 | 1.77 | 2.06 | ||||
| 30×30 | 1.37 | 1.77 | 2.17 | 2.53 | ||||
| 35×35 | 1.61 | 2.09 | 2.57 | 3.01 | ||||
| 40×40 | 1.85 | 2.41 | 2.97 | 3.49 | ||||
| 45×45 | 2.12 | 2.76 | 3.40 | 4.00 | ||||
| 50×50 | 2.36 | 3.07 | 3.79 | 4.46 | 5.13 | 5.76 | 6.42 | 7.06 |
| 60×60 | 4.58 | 5.42 | 6.24 | 7.03 | ||||
| 63×63 | 5.03 | 5.95 | 6.84 | 7.71 | 8.60 | 9.48 | ||
| 70×70 | 5.42 | 6.42 | 7.39 | 8.34 | 9.31 | 10.3 | ||
| 75×75 | 5.82 | 6.89 | 7.95 | 8.97 | 10.0 | 11.1 | ||
| 80×80 | 7.37 | 8.50 | 9.61 | 10.7 | 11.8 | |||
| 90×90 | 8.33 | 9.65 | 11.90 | 12.2 | 13.4 | |||
| 100×100 | 9.28 | 10.8 | 12.20 | 13.6 | 15.0 |
| Size H×B (mm) | 3mm | 4mm | 5mm | 6mm | 7mm | 8mm | 9mm | 10mm | 12mm |
|---|---|---|---|---|---|---|---|---|---|
| 40×20 | 1.79 | ||||||||
| 50×25 | 2.27 | ||||||||
| 60×30 | 2.74 | 3.56 | 4.37 | 5.12 | |||||
| 70×35 | 3.23 | 4.21 | 5.17 | 6.08 | |||||
| 80×40 | 3.71 | 4.84 | 5.96 | 7.03 | |||||
| 90×45 | 4.25 | 5.55 | 6.83 | 8.05 | |||||
| 100×50 | 4.73 | 6.18 | 7.62 | 8.98 | 10.3 | 11.7 | 13.0 | 41.2 | |
| 120×60 | 9.20 | 10.9 | 12.6 | 14.2 | |||||
| 130×65 | 10.1 | 11.9 | 13.8 | 15.5 | 17.3 | 19.1 | |||
| 140×70 | 12.9 | 14.9 | 16.8 | 18.8 | 20.7 | ||||
| 150×75 | 13.9 | 16.0 | 18.1 | 20.2 | 22.2 | 26.3 | |||
| 160×80 | 14.8 | 17.1 | 19.3 | 21.6 | 23.8 | 28.1 | |||
| 180×90 | 16.7 | 19.4 | 22.0 | 24.5 | 27.0 | 32.0 | |||
| 200×100 | 18.6 | 21.6 | 24.5 | 27.4 | 30.2 | 35.8 |
Our company is a comprehensive stainless steel enterprise specializing in wholesale, material processing, storage, and distribution. Located in Wuxi, the stainless steel trading center, we have a total investment of 10 million yuan with annual sales exceeding 300 million yuan.
We maintain long-term, stable cooperative relationships with renowned steel mills including Taiyuan, East, Zhang Pu, Hongxing, Zhejiang Qingshan, and others. We also distribute imported stainless steel plates from Sweden, North America, South Africa, Japan, Korea, and other regions.
- 310S, 309S, 316L, 321, 304L, TP304, 347H
- 17-4PH, 317L, 2507, 2205, 904L
- High temperature resistant stainless steel series
- Duplex stainless steel series
- Super stainless steel series
- Plasma cutting machines
- Coil material opening equipment
- Laser cutting machines
- 8K mirror, grinding, wire drawing, film and titanium plating equipment
- Material opening, strip cutting, plate cutting
- Oil mill wire drawing, complete coil oil film wire drawing
- Thick plate zero cutting (up to 150mm thickness)
- Cutting round, square, and shaped pieces
- Casting parts and forging parts
- Customized specifications available
Our materials are widely used in machinery, chemical, petroleum, boiler, heat exchanger, food machinery, beverage machinery, medical equipment, and other industries.
Stainless steel angle bars and channel bars are primarily used for constructing frame structures including:
- High-voltage power transmission towers
- Frame structures on both sides of main beams in steel bridge construction
- Columns and booms of tower cranes on construction sites
- Columns and beams in workshop structures
- Air-conditioning and solar-powered shelf supports under windows
These structural components are widely used in building construction and engineering projects such as house beams, ship beams, industrial furnaces, and various industrial applications across multiple sectors.
For inquiries about our stainless steel angle bars and channel bars, please contact our sales team for pricing, specifications, and custom requirements.
