Hot Rolled Stainless Steel U Channel with Pickling Finishing in 30*30-100*100mm Sizes
Product Details
| Shape | U Channel | Technique | Hot Rolled |
|---|---|---|---|
| Surface Treatment | Bright | Specification | 30*30-100*100 |
| Grade | 201 304 310S 316L 321 2205 | Standard | ASTM GB DIN |
| Angle Bar Size | 30*30*3 - 200*200*10mm * 6m | Channel Bar Size | 50*30*3 - 200*100*10mm * 6m |
| Packing | Waterproof Paper Or Wooden Pallets | Thickness Range | 3mm - 10mm |
| Length | 6m | Weight Per Meter | 0.894kg - 35.8kg |
| Material | Stainless Steel | Processing Service | Cutting |
| Application | Frame Structures, Bridges, Industrial Furnaces | ||
| Highlight | Pickling Finishing Stainless Steel U Channel,Hot Rolled Stainless Steel Channel Bar,30*30-100*100mm SS U Channel |
||
Product Description
Stainless Steel U Channel with Pickling Finishing
High-quality stainless steel angle bars and channel bars available in grades 201, 304, 316L, 321, 310S, 2205, and 904L with professional pickling finishing.
Product Specifications
Product Name: Stainless Steel Angle Bar / Stainless Steel Channel Bar
Grade: 201, 304, 310S, 316L, 321, 2205, etc.
Standard: ASTM, GB, DIN
Angle Bar Size: 30×30×3 - 200×200×10mm × 6m length
Channel Bar Size: 50×30×3 - 200×100×10mm × 6m length
Service: Cutting
Packing: Waterproof paper surround or wooden pallets
Brand: TSINGSHAN
Grade: 201, 304, 310S, 316L, 321, 2205, etc.
Standard: ASTM, GB, DIN
Angle Bar Size: 30×30×3 - 200×200×10mm × 6m length
Channel Bar Size: 50×30×3 - 200×100×10mm × 6m length
Service: Cutting
Packing: Waterproof paper surround or wooden pallets
Brand: TSINGSHAN
Stainless Steel Angle Bar Specifications
| Size A×B (mm) | 3mm | 4mm | 5mm | 6mm | 7mm | 8mm | 9mm | 10mm |
|---|---|---|---|---|---|---|---|---|
| 20×20 | 0.894 | 1.13 | 1.38 | |||||
| 25×25 | 1.13 | 1.45 | 1.77 | 2.06 | ||||
| 30×30 | 1.37 | 1.77 | 2.17 | 2.53 | ||||
| 35×35 | 1.61 | 2.09 | 2.57 | 3.01 | ||||
| 40×40 | 1.85 | 2.41 | 2.97 | 3.49 | ||||
| 45×45 | 2.12 | 2.76 | 3.40 | 4.00 | ||||
| 50×50 | 2.36 | 3.07 | 3.79 | 4.46 | 5.13 | 5.76 | 6.42 | 7.06 |
| 60×60 | 4.58 | 5.42 | 6.24 | 7.03 | ||||
| 63×63 | 5.03 | 5.95 | 6.84 | 7.71 | 8.60 | 9.48 | ||
| 70×70 | 5.42 | 6.42 | 7.39 | 8.34 | 9.31 | 10.3 | ||
| 75×75 | 5.82 | 6.89 | 7.95 | 8.97 | 10.0 | 11.1 | ||
| 80×80 | 7.37 | 8.50 | 9.61 | 10.7 | 11.8 | |||
| 90×90 | 8.33 | 9.65 | 11.90 | 12.2 | 13.4 | |||
| 100×100 | 9.28 | 10.8 | 12.20 | 13.6 | 15.0 |
Stainless Steel Channel Bar Specifications
| Size H×B (mm) | 3mm | 4mm | 5mm | 6mm | 7mm | 8mm | 9mm | 10mm | 12mm |
|---|---|---|---|---|---|---|---|---|---|
| 40×20 | 1.79 | ||||||||
| 50×25 | 2.27 | ||||||||
| 60×30 | 2.74 | 3.56 | 4.37 | 5.12 | |||||
| 70×35 | 3.23 | 4.21 | 5.17 | 6.08 | |||||
| 80×40 | 3.71 | 4.84 | 5.96 | 7.03 | |||||
| 90×45 | 4.25 | 5.55 | 6.83 | 8.05 | |||||
| 100×50 | 4.73 | 6.18 | 7.62 | 8.98 | 10.3 | 11.7 | 13.0 | 41.2 | |
| 120×60 | 9.20 | 10.9 | 12.6 | 14.2 | |||||
| 130×65 | 10.1 | 11.9 | 13.8 | 15.5 | 17.3 | 19.1 | |||
| 140×70 | 12.9 | 14.9 | 16.8 | 18.8 | 20.7 | ||||
| 150×75 | 13.9 | 16.0 | 18.1 | 20.2 | 22.2 | 26.3 | |||
| 160×80 | 14.8 | 17.1 | 19.3 | 21.6 | 23.8 | 28.1 | |||
| 180×90 | 16.7 | 19.4 | 22.0 | 24.5 | 27.0 | 32.0 | |||
| 200×100 | 18.6 | 21.6 | 24.5 | 27.4 | 30.2 | 35.8 |
About Our Company
Our company specializes in stainless steel material wholesale, processing, storage, and distribution as one of the large stainless steel industry and trade enterprises. Located in the stainless steel trading center of Wuxi, with a total investment of 10 million yuan and annual sales exceeding 300 million yuan.
We maintain long-term, stable cooperative relationships with renowned steel mills including Taiyuan, East, Zhang Pu, Hongxing, Zhejiang Qingshan, and distribute stainless steel plates imported from Sweden, North America, South Africa, Japan, South Korea, and other countries.
Material Range: 310S, 309S, 316L, 321, 304L, TP304, 347H, 17-4PH, 317L, 2507, 2205, 904L and other materials including high-temperature resistant stainless steel series, duplex stainless steel series, and super stainless steel series.
Processing Capabilities: Plasma cutting machine, coil material opening equipment, laser cutting machine, 8K mirror, grinding wire drawing, film and titanium plating equipment. We offer material opening, strip cutting, plate cutting, oil mill wire drawing, complete coil oil film wire drawing, 8K mirror, titanium plating, and other processing services.
Special Features: Thick plate whole plate zero cutting, cutting round, cutting square, cutting shaped parts, casting parts, forging parts with product thickness up to 150MM. All special materials and specifications can be customized to steel mill requirements according to customer specifications.
Industry Applications: Our materials are widely used in machinery, chemical, petroleum, boiler, heat exchanger, food machinery, beverage machinery, medical equipment, and other industries.

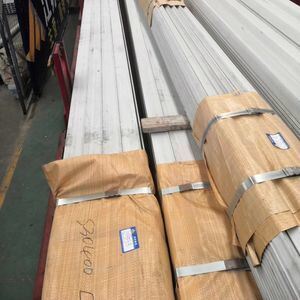

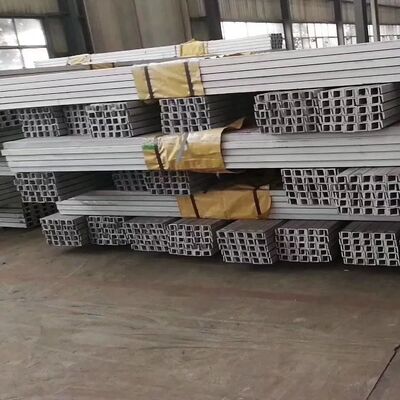

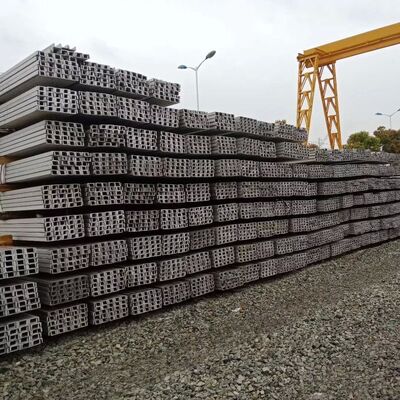

Product Photos
Product Applications
Stainless steel angle bars and channel bars are primarily used to construct frame structures, including:
- High-voltage power transmission towers
- Frame structures on both sides of main beams in steel structure bridges
- Columns and booms of tower cranes on construction sites
- Columns and beams in workshop structures
- Air-conditioning and solar-powered shelf supports under windows
Widely used in building structures and engineering construction applications such as house beams, ship beams, industrial furnaces, and various other structural applications across multiple industries.
