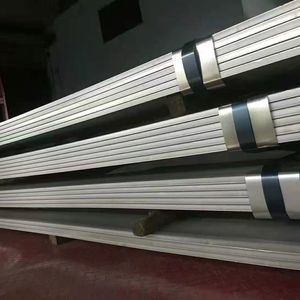

AISI 321 Cold Rolled Stainless Steel Sheet SS321 1.4541 Stainless Steel Plate
Product Details
| Model NO. | 321 | Shape | Flat |
|---|---|---|---|
| Technique | Cold Rolled | Surface Treatment | Bright |
| Specification | 1220*2440, 1500*3000, 1500*6000, 2000*6000mm | Thickness | 0.6 To 80 Mm |
| Width | 1219mm, 1500mm, 1800mm, 2000mm | Length | 2m, 2.44m, 3m, 6m |
| Finish | SATIN, 2B, 2D, BA NO (8), CR, HR, No.1, 1D, No.4, BA, 8K, Hairline, Brush, Mirror | Carbon Content | 0.08 Wt% |
| Chromium Content | 17.0-19.0 Wt% | Nickel Content | 9.0-12.0 Wt% |
| Yield Strength | 30 Ksi Min | Tensile Strength | 75 Ksi Min |
| Elongation | 40% Min | ||
| Highlight | Cold Rolled Stainless Steel Sheet,AISI 321 Stainless Steel Plate,1.4541 SS321 |
||
Product Description
AISI 321 Stainless Steel Sheet & Plate
Product Type: 321 Stainless Steel Sheet, 321 Stainless Steel Plate
Product Specifications
| Specification | ASTM A240 / ASME SA240 |
|---|---|
| Dimensions | Cold rolled: 4ft×8ft [1219×2438mm] Hot rolled: 5ft×20ft, 6ft×20ft [1500×6000mm, 1800×6000mm, 2000×6000mm] |
| Thickness | 0.6 to 80 mm |
| Width | 1219mm, 1500mm, 1800mm, 2000mm |
| Length | 2m, 2.44m, 3m, 6m or as required |
| Finish | SATIN, 2B, 2D, BA NO (8), Cold rolled sheet (CR), Hot rolled plate (HR), No.1 finish hot rolled, 1D, No.4, BA, 8K, hairline, brush, mirror, etc. |
Available Forms & Shapes
Plate, Sheet, Coils, Foils, Strip, Flats, Clad Plate, Plain Sheet, Rolling Sheet, Rolling Plate, Flat Shim, Flat Sheet, Shim Sheet, Rolls, Blank (Circle), sheared, annealed, soft annealed, descaled, tread plate, Checker Plate
Additional Services
Laser Cutting, bending, welding, polishing
Alternative Trade Names
SS 321, SUS 321, Inox 321, DIN 1.4541, UNS S32100, AISI 321, SAE 321 Sheet
Other Available Grades
201, 202, 304, 304L, 304H, 309S, 310S, 310H, 310Si2, 316L, 316Ti, 316LN, 317L, 321, 347, 409L, 410, 410S, 416, 420, 430, 431, 436L, 439, 441, 443, 444, S31803, S32750, 904L, S30815, S31254, C276, C4, 600, 625, etc.
Grade 321 / 321H Stainless Steel Overview
321 stainless steel is a titanium stabilized grade designed for service in the 1000-1600°F temperature range. For optimal resistance to intergranular corrosion and polythionic acid stress corrosion cracking, a stabilizing treatment at 1550-1650°F with air cooling is recommended for service temperatures up to 1600°F.
This grade is readily weldable using all common methods including submerged arc welding. Recommended weld fillers include AWS ER347 bare wire and E347 covered electrodes. With a machinability rating of 45% relative to AISI B1112, 321 stainless offers similar machinability to 304 stainless steel.
Available Product Forms
Sheet, Plate, Coil, Strip, Wire, Pipe, Tube, Bar, Profile, Round, Flat, Square, Hexagonal
Specifications & Certifications
- ASTM A240, ASME SA240
- BS EN 10028-7, BS EN 10088-2 and BS EN 10088-4
- EN 10088/2, EN 10088/4 with CE Marking
- NACE MR 0175/ISO 15156 Certification
Typical Applications
- Aircraft piston engine manifolds
- Expansion joints
- Firearms production
- Thermal oxidizers
- Refinery equipment
- High temperature chemical process equipment
Chemical Composition
| Element | 321 Stainless Steel |
|---|---|
| Carbon | 0.08 |
| Chromium | 17.0-19.0 |
| Nickel | 9.0-12.0 |
| Manganese | 2.00 |
| Silicon | 0.75 |
| Nitrogen | 0.10 |
| Phosphorus | 0.045 |
| Sulfur | 0.030 |
| Titanium | 5(C+N) min / 0.70 max |
Mechanical Properties
| Property | 321 Stainless Steel |
|---|---|
| Yield Strength, min. (ksi) | 30 |
| Tensile Strength, min. (ksi) | 75 |
| Elongation, min. (%) | 40 |
| Hardness, max. (Rb) | 95 |
Grade Specification Comparison
| Grade | UNS No | Old British | Euronorm | Swedish SS | Japanese JIS |
|---|---|---|---|---|---|
| 321 | S32100 | 321S31 | 1.4541 | 2337 | SUS 321 |
| 321H | S32109 | 321S51 | 1.4878 | - | SUS 321H |
| 347 | S34700 | 347S31 | 1.4550 | 2338 | SUS 347 |
Alternative Grade Options
| Grade | Selection Criteria |
|---|---|
| 304L | When resistance to intergranular corrosion is required without high-temperature strength needs |
| 3CR12 | Suitable for mild high-temperature environments up to approximately 600°C |
| 304H | Appropriate for mild high-temperature environments up to approximately 800°C |
| 310 | Recommended for operating environments up to approximately 1100°C |
| S30815 (253MA) | Ideal for operating environments up to approximately 1150°C |
