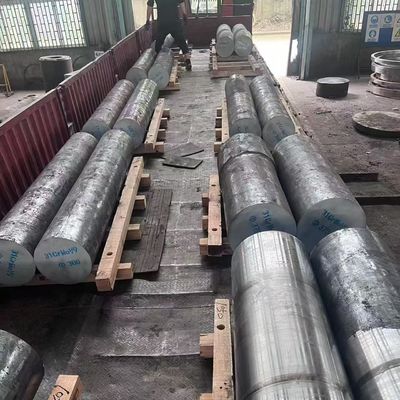

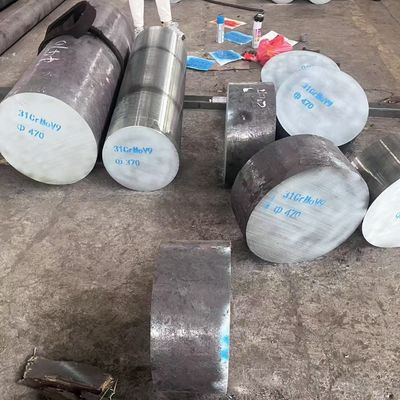

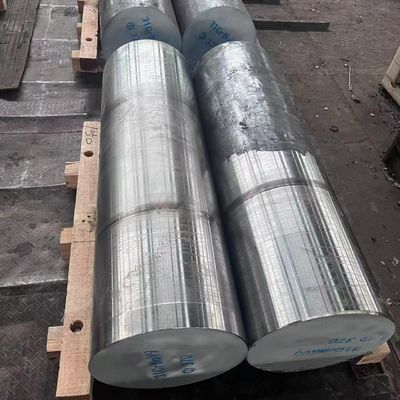

13mm- 20mm 31CrMoV9 Nitriding Steel Bar / 1.8519 Alloy Steel Round Bars 200mm 250mm 350mm 370mm
| Place of Origin | China |
|---|---|
| Brand Name | DELTA |
| Certification | ISO |
| Model Number | 31CrMoV9 |
| Minimum Order Quantity | 1 Ton |
| Price | 600-850 USD/Ton |
| Packaging Details | standard packing for export |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 20Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products Name | Alloy Steel Round Bar | Diameter | 10 - 500mm |
|---|---|---|---|
| Length | 6m | Tech | Hot Rolled |
| Service | Cutting | MOQ | 1 Ton |
| Loading Port | Shanghai Port | Standard | ASTM EN GB |
| Highlight | 13mm 31CrMoV9 Steel Round Bars,20mm 31CrMoV9 Steel Round Bars,1.8519 31CrMoV9 Steel Round Bars |
||
Product Description
13mm- 20mm 31CrMoV9 Nitriding Steel Bar / 1.8519 Alloy Steel Round Bars 200mm 250mm 350mm 370mm
Products Specification
|
Products Name |
31CrMoV9 Alloy Steel Round Bar |
|
Diameter |
10 - 500 mm |
|
Length |
6m or custom cutting any length as request |
|
Type |
Hot Rolled |
|
Brand |
BAOSTEEL DELTA DONGBEI HUAXI SHAGANG.etc |
|
MOQ |
1 Ton |
|
Loading Port |
Shanghai Port |
|
Packing |
packing by steel wire rope |
|
Deliver time |
5 - 7 days for stock materials |
|
Other Grade |
Q195,Q235,10#,20#,35#,45#,Q215,Q345,12Cr1Mov,15CrMo,304,3 16,20Cr,40Cr,20CrMo,35CrMo,42CrMo,40CrNiMo,GCr15,65Mn,50Mn, 50Cr,3Cr2W8V,20CrMnTi,5CrMnMo ,38CrMoAl, 31CrMoV9 |
|
Standard |
ASTM GB EN DIN |
|
Application |
Structure and Industrial |
Here’s a detailed technical overview of Alloy 1.8519 Round Steel
1. Introduction to Alloy 1.8519 Round Steel
Alloy 1.8519 is a high-strength, low-alloy steel grade designed for applications requiring excellent mechanical properties, weldability, and fatigue resistance. It is commonly used in heavy-duty machinery, automotive components, and structural engineering due to its balanced composition and reliability under stress.
2. Chemical Composition (Typical % Weight)
| Element | C | Si | Mn | Cr | Mo | Ni | P (max) | S (max) |
|---|---|---|---|---|---|---|---|---|
| Content | 0.38–0.45 | 0.15–0.35 | 0.60–0.90 | 0.90–1.20 | 0.15–0.30 | ≤0.40 | ≤0.025 | ≤0.020 |
Note: Exact composition may vary by manufacturer and standard.
3. Mechanical Properties
| Property | Value (Typical) |
|---|---|
| Tensile Strength | 900–1100 MPa |
| Yield Strength (Rp0.2) | 700–850 MPa |
| Elongation (A₅) | ≥12% |
| Impact Energy (Charpy, -20°C) | ≥40 J |
| Hardness (HBW) | 270–320 |
Conditions: Quenched & tempered (QT) state.
4. Delivery Conditions
-
Hot-rolled (HR): Rough surface, as-rolled condition.
-
Cold-drawn (CD): Improved dimensional accuracy, smoother surface.
-
Heat-treated (QT): Quenched & tempered for optimal strength-toughness balance.
-
Black (unpeeled) or Peeled/Turned: Surface finish options.
5. Standards & Specifications
-
EN/DIN: 1.8519 (European standards, similar to 42CrMo4 variants).
-
ASTM/SAE: Comparable to AISI 4140 but with adjusted Cr/Mo ratios.
-
ISO: Equivalent grades under ISO 683-1.
6. Available Specifications
-
Diameter: 10mm–500mm (custom sizes available).
-
Length: 3m, 6m (standard), or cut-to-length.
-
Tolerance: EN 10060, DIN 1013, or customer-specific.
7. Production Process
-
Melting: Electric arc furnace (EAF) or ladle refining.
-
Casting: Continuous casting into billets.
-
Hot Rolling: Formed into round bars at 1100–1250°C.
-
Cold Drawing (Optional): For precision dimensions.
-
Heat Treatment: Quenching & tempering (QT) for final properties.
8. Key Characteristics
-
High Strength-to-Weight Ratio: Ideal for dynamic loads.
-
Good Fatigue Resistance: Suitable for cyclic stress applications.
-
Weldability: Requires preheating (~200–300°C) and post-weld annealing.
-
Machinability: Moderate; improved with annealing.
9. Heat Treatment Methods
-
Quenching: Heated to 850–880°C, oil-cooled.
-
Tempering: 550–650°C to adjust hardness/toughness.
-
Annealing: 650–700°C (softening for machining).
-
Normalizing: 850–900°C + air cooling (refines grain structure).
10. Applications
-
Automotive: Crankshafts, gears, axles.
-
Oil & Gas: Drill pipes, tool joints.
-
Machinery: Hydraulic rods, bolts, couplings.
-
Construction: High-stress structural components.
This summary covers all critical aspects of Alloy 1.8519 Round Steel. Let me know if you need additional details!
