Heat Resistant Stainless Steel Pipe Tube / SS Piping 309S 310S 321 253MA 347 In 5.8m Length
| Place of Origin | China |
|---|---|
| Brand Name | DELTA |
| Certification | ISO |
| Model Number | TP304 TP304L TP309S TP310S TP316L TP317L TP347 TP321 |
| Minimum Order Quantity | 500 kgs |
| Price | 4650-5760 USD/Ton |
| Packaging Details | standard packing for export |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | T/T, Western Union, L/C |
| Supply Ability | 10 Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products | Stainless Steel Pipe | Grade | 309S 310S 321 347 253MA |
|---|---|---|---|
| Standard | ASTM GB EN | Length | 6m Or Custom Cutting Any Length As Request |
| Diameter | DN10 - DN400 | Wall Thickness | SCH10 - XXS Or Unstandard Size |
| Type | Seamless Pipe | Service | Cutting, Polishing |
| Application | Industrial | Packing | Wooden Box Or PP Bag |
| Highlight | 309S 310S 253MA Stainless Steel Pipe,5.8m Stainless Steel Pipe,Heat Resistant Stainless Steel Pipe |
||
Product Description

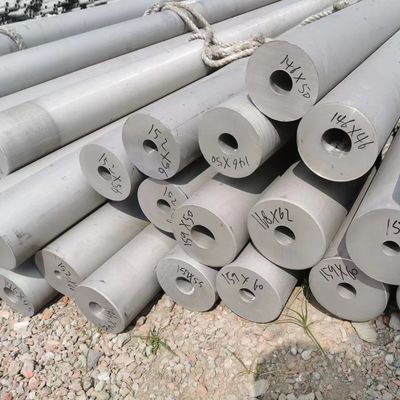

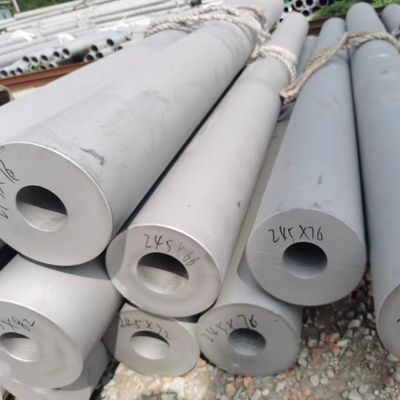

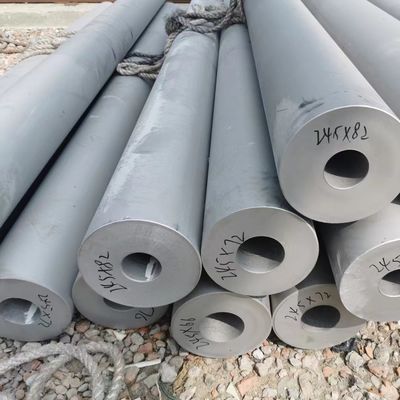

Heat Resistant Stainless Steel Pipe Tube / SS Piping 309S 310S 321 253MA 347 in 5.8m Length
|
Item
|
seamless stainless steel pipe/tube
|
|
|
Steel grade
|
300 series
|
|
|
Standard
|
ASTM A213,A312,ASTM A269,ASTM A778,ASTM A789,DIN 17456, DIN17457,DIN 17459,JIS G3459,JIS G3463,GOST9941,EN10216, BS3605,GB13296
|
|
|
Material
|
304,304L,309S,310S,316,316Ti,317,317L,321,347,347H,304N,316L, 316N,201,202
|
|
|
Surface
|
Polishing,annealing,pickling,bright
|
|
|
Type
|
hot rolled and cold rolled
|
|
|
Stainless steel round pipe/tube
|
||
|
Size
|
Wall thickness
|
1mm-150mm
|
|
Outer diameter
|
6mm-2500mm
|
|
|
Package
|
Standard export seaworthy package,or as required.
|
|
|
Application
|
It is widely used in the fields of petroleum, food, chemical industry, construction, electric power, nuclear energy, energy,machinery, biology, papermaking, shipbuilding and boilers. Pipes can also be made according to customer requirements.
|
|
|
Contact
|
If you have any questions,please feel free to contact me.
|
|
|
Container size
|
20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High) 24-26CBM
40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High) 54CBM 40ft HC:12032mm(Length)x2352mm(Width)x2698mm(High) 68CBM |
|
Chemical composition of heat-resistant steels
Viewing the microstructure respectively the chemical analysis the heat-resistant steels can be divided in the group of ferritic and the austenitic steels and nickel-based alloys.
The melting of these alloys differs only marginally compared to the conventional ferritic and austenitic steels and nickel-based alloys.
However, some elements play a significant role when melting heat-resistant stainless steels. For example, a higher carbon (C) content as for the standard grades is applicable. Depending of the particular grades aluminum (AI), silicon (Si), nitrogen (N) but also metals of the rare earth elements like cerium (Ce) belong to these elements. In nickel-based alloys also copper (Cu), cobalt (Co) and boron (B) can be find within the composition.
Chemical analysis of heat-resistant stainless steels
In the following overview, you find some examples:
Ferritic
| EN-No. | ASTM | C max. | Cr | Ni | Ti | N | Al | Si | Ce | Other | Max o.T. (*) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1.4713 | 0.12 | 6.0-8.0 | – | – | – | 0.5-1.0 | 0.5-1.0 | – | – | 800°C | |
| 1.4724 | 0.12 | 12.0-14.0 | – | – | – | 0.7-1.2 | 0.7-1.4 | – | – | 850°C | |
| 1.4742 | 0.12 | 17.0-19.0 | – | – | – | 0.7-1.2 | 0.7-1.4 | – | – | 1000°C |
Austenitic
| EN-No. | ASTM | C max. | Cr | Ni | Ti | N | Al | Si | Ce | Other | Max o.T.(*) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1.4948 | 304H | 0.2 | 17.0-19.0 | 8.0-11.0 | Max. 0.10 | – | Max. 0.50 | – | – | 750°C | |
| 1.4878 | 321H | 0.1 | 17.0-19.0 | 9.0-12.0 | Min 4x (C+N); Max 0.70 | Max. 0.10 | – | Max. 0.75 | – | – | 850°C |
| 1.4828 | – | 0.2 | 19.0-21.0 | 11.0-13.0 | – | Max. 0.11 | – | 1.5-2.5 | – | – | 1000°C |
| 1.4883 | 309S | 0.08 | 22.0-24.0 | 12.0-15.0 | – | Max. 0.11 | – | Max. 0.75 | – | – | 1000°C |
| 1.4845 | 310S | 0.1 | 24.0-26-0 | 19.0-22.0 | – | Max. 0.11 | – | Max. 1.5 | – | – | 1050°C |
| 1.4818 | – | 0.08 | 18.0-20.0 | 9.0-11.0 | – | 0.12-0.20 | – | 1.0-2.0 | 0.03-0.08 | – | 1050°C |
| 1.4835 | – | 0.12 | 20.0-22.0 | 10.0-12.0 | – | 0.12-0.20 | – | 1.4-2.5 | 0.03-0.08 | – | 1150°C |
| 1.4841 | 314 | 0.2 | 24.0-26.0 | 19.0-22.0 | – | – | – | 1.5-2.5 | – | 1150°C |
Nickel Base Alloys
| EN-No. | ASTM | C max. | Cr | Ni | Ti | N | Al | Si | Ce | Other | Max o.T.(*) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 2.4816 | Alloy 600 | 0.05-0.10 | 14.0-17.0 | Min, 72 | Max. 0.3 | – | Max. 0.3 | Max. 0.5 | – | Co, Cu, B | 600-900°C |
| 2.4851 | Alloy 600 | 0.03-0.01 | 21.0-25.0 | 58.0-63.0 | Max. 0.5 | – | 1.0-1.7 | Max. 0.5 | – | Cu, B | 550-1200°C |
(*) Maximal suggested operation temperature to air
The requirements for these steels are not only heat-resistance but also high strength and corrosion resistance at different operation temperatures.
Very important is the criteria for fatigue strength/creep resistance at high temperatures.
Likewise, for other sectors, also here the so-called life cycle costs (LCC) play an essential role when choosing the material.
Characteristic of heat-resistant stainless steels
Different to the conventional ferritic, austenitic and nickel-based alloys with these particular steels the focus is doubtless on stresses due to high temperatures, as previously mentioned. The most important criteria are:
-
High fatigue strength/creep resistance in the wished temperature range
-
High temperature corrosion resistance
-
Scaling resistance by creation of an oxide layer
-
Special characteristic against stress caused by continuously changing temperatures and the resulting risk for embrittlement (depending of the used material)
-
Stable microstructure
-
High mechanical load
Wide use of heat-resistant stainless steels
Heat-resistant stainless steels have a wide range of applications. Following some industries:
-
Ceramic industry
-
Glass industry
-
Chemical and petrochemical industry
-
Hardening plant
-
Food industry
-
Incineration plant
-
Steam boiler
-
Pulp industry
-
Various applications in the apparatus engineering
-
Cement industry (for example for revolving cylindrical furnace)
-
Industrial furnace construction (hood-type furnace for the heat treatment of coils and wires, glow systems for steel, stainless steel and nonferrous heavy metals), pusher furnace and so on
-
Heat exchanger for different applications in higher temperature ranges
-
Exhaust systems, for example in the automotive industry for exhaust elbows
