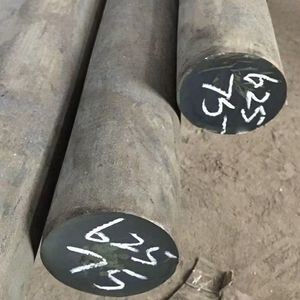

Corrosion Resistant Inconel 625 Round Bar High Strength Nickel Alloy Hot Rolled for Aerospace and Chemical Applications

  • Corrosion Resistant Inconel 625 Round Bar High Strength Nickel Alloy Hot Rolled for Aerospace and Chemical Applications
  • Corrosion Resistant Inconel 625 Round Bar High Strength Nickel Alloy Hot Rolled for Aerospace and Chemical Applications
  • Corrosion Resistant Inconel 625 Round Bar High Strength Nickel Alloy Hot Rolled for Aerospace and Chemical Applications
  • Corrosion Resistant Inconel 625 Round Bar High Strength Nickel Alloy Hot Rolled for Aerospace and Chemical Applications
  • Corrosion Resistant Inconel 625 Round Bar High Strength Nickel Alloy Hot Rolled for Aerospace and Chemical Applications
  • Corrosion Resistant Inconel 625 Round Bar High Strength Nickel Alloy Hot Rolled for Aerospace and Chemical Applications
証明 ISO, ASTM, GB, EN, DIN
最小注文数量 200 kg
価格 US $3.5 / kg
商品の詳細
型番 625 形 ラウンド
技術 熱間圧延 表面処理 ピクルスにすること
長さ 6mの中では 仕様 4～350mm
直径範囲 3-300mm 厚さ 2 -100mm
幅 10～500mm 許容範囲 H8、H9、H10、H11、H12、H13K9、K10、K11、K12
仕上げる 熱間圧延焼なまし、皮むき、ブライト、熱間加工および冷間加工の棒および棒、センターレス研磨、センターレス研磨およびブラック、ポリッシュ、冷間圧延 (CR)、熱間圧延 ( R)、滑らかな旋削、冷間 (ブラ 密度 8.44g/cm3
融点 1290〜1350°C 抗張力 ≧830MPa
降伏強さ ≥415 MPa
ハイライト

Corrosion Resistant Inconel 625 Round Bar

,

High Strength Nickel Alloy Round Bar

,

Hot Rolled Inconel 625 Round Bar
メッセージ
製品の説明
UNS N06625 Nickel Alloy Round Bar Inconel 625 Black Bar / Bright Bar
High-performance nickel-based superalloy round bars offering exceptional corrosion resistance and high-temperature strength for demanding industrial applications.
Product Specifications
Specification Details
ASTM Standard ASTM B446, ASME SB 446, AMS 5666
Additional Standards ISO 9723, ISO 9724, ISO 9725, VdTuV 499, BS3076NA21, EN 10095, DIN 17752, DIN 17753, DIN 17754
Round Bar Diameter 3-300mm
Flat Bar Size Thickness: 2-100mm, Width: 10-500mm
Angle Bar Size 3mm*20mm*20mm ~ 12mm*100mm*100mm
Channel Bars 80x40mm to 150x75mm section, 5.0-6.0mm thickness
Rectangular Bars 3.0-12.0mm thickness
Billet Size 1/2 to 495mm Diameter
Hex Bar Size 2-100mm A/F
Hollow Bars 32mm OD x 16mm ID to 250mm OD x 200mm ID
Length 1m-6m or as required
Tolerance H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or custom
Finish Options Hot rolled annealed, peeled, bright, hot-worked, cold-worked, centreless ground, polished, cold rolled, hot rolled, smooth turned, cold drawn, grinding
Surface Treatment Hot rolled pickled, bright, sand blasting finished, cold drawn, hairline, polished
Condition Hardened & tempered, annealed
Processing Bars cutting to 650mm
Material Description
Inconel 625 Introduction
Inconel 625 is a nickel-based superalloy renowned for its exceptional corrosion resistance, high strength, and superior performance at elevated temperatures. Widely utilized in aerospace, chemical processing, marine engineering, and other demanding industrial sectors.
Chemical Composition
  • Nickel (Ni): 58% minimum
  • Chromium (Cr): 20-23%
  • Molybdenum (Mo): 8-10%
  • Niobium (Nb): 3.15-4.15%
  • Iron (Fe): 5% maximum
  • Other elements: Titanium (Ti), Aluminum (Al), Carbon (C)
Physical Properties
Density: 8.44 g/cm³
Melting Point: 1290-1350°C
Thermal Expansion: 12.8µm/m°C (20-100°C)
Thermal Conductivity: 11.4 W/m*K (100°C)
Resistivity: 1.28 µΩ*m (20°C)
Key Characteristics
  • Corrosion Resistance: Excellent performance in both oxidizing and reducing environments
  • High Strength: Maintains strength at both high and low temperatures
  • Oxidation Resistance: Superior antioxidant properties at elevated temperatures
  • Fatigue Strength: High fatigue strength suitable for cyclic load environments
  • Weldability: Easy to weld with stable performance post-welding
Mechanical Properties
  • Tensile Strength: ≥ 830 MPa
  • Yield Strength: ≥ 415 MPa
  • Elongation: ≥ 30%
  • High Temperature Performance: Excellent mechanical properties up to 980°C
  • Low Temperature Performance: Maintains toughness and strength in cryogenic environments
Standard Specifications
  • ASTM: B446
  • AMS: 5666
  • UNS: N06625
  • DIN: 2.4856
Product Advantages
  • Versatility: Suitable for diverse extreme environments
  • Long Service Life: Maintains long-term stability under harsh conditions
  • Processability: Compatible with various forming and machining methods
Industrial Applications
  • Aerospace: Engine components, turbine blades, combustion chambers
  • Chemical Processing: Reactors, heat exchangers, pipeline systems
  • Marine Engineering: Seawater treatment equipment, submarine components
  • Energy Sector: Nuclear reactor components, gas turbines
  • Other Applications: High temperature furnace components, flue gas desulfurization equipment
Inconel 625 round bars deliver exceptional corrosion resistance, high strength, and superior high-temperature performance, making them the ideal material choice for demanding industrial applications in extreme environments.
Product Images
Visual documentation available upon request showcasing our Inconel 625 round bar inventory and manufacturing capabilities.
