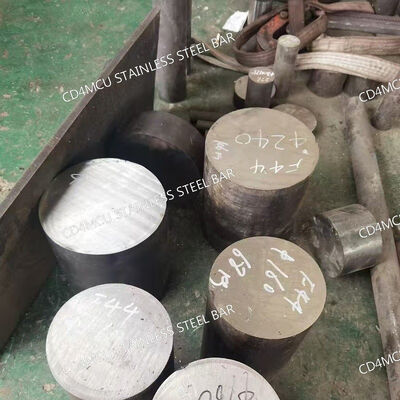

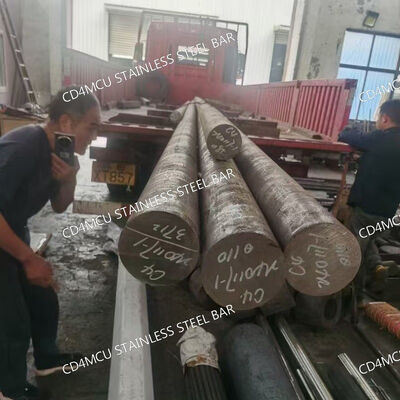

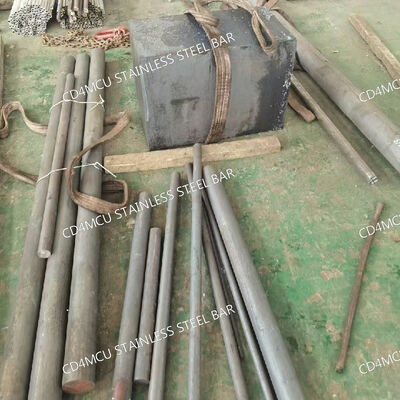

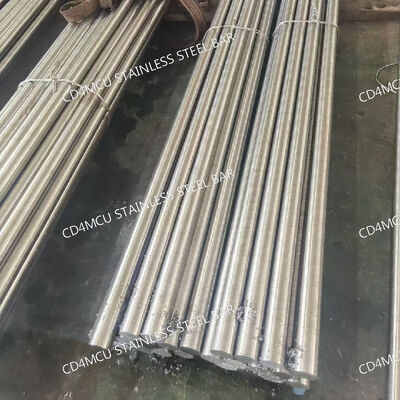

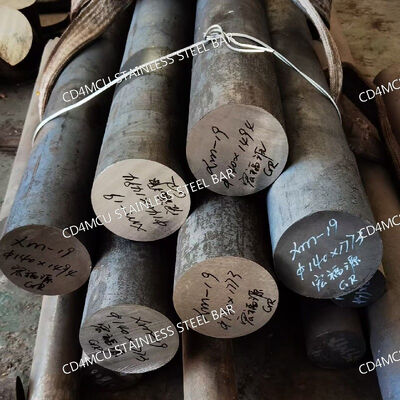

CD4MCU Duplex Stainless Steel Round Bar with Superior Durability Wear Resistance and Corrosion Resistant Properties
商品の詳細
| 型番 | CD4MCU | 形 | ラウンド |
|---|---|---|---|
| 技術 | 熱間圧延 | 表面処理 | ピクルスにすること |
| 直径範囲 | φ10mm～φ350mm | 長さ | 6.1m/個またはカスタム |
| 抗張力 | 690 mpa | 降伏強さ | 485 MPa |
| 伸長 | 16％ | 硬度 | 290 ブリネル |
| クロムの内容 | 24.5～26.5% | ニッケル含有量 | 4.75-6% |
| モリブデン含有量 | 1.75～2.25% | 銅含有量 | 2.75～3.25% |
| 炭素含有量 | 最大0.040% | ||
| ハイライト | Superior Durability CD4MCU Stainless Steel Round Bar,Wear Resistance Duplex Stainless Steel Round Bar,Corrosion Resistant Nickel Alloy Round Bar |
||
製品の説明
CD4MCU Stainless Steel Round Bars
Superior durability and wear resistance for demanding industrial applications
Product Specifications
| Product Name | Stainless Steel Round Bar |
|---|---|
| Grade | CD4MCU |
| Diameter Range | φ10mm - φ350mm |
| Length | 6.1m/pcs or custom cutting available |
| Surface Finish | Pickling finishing, bright finishing |
| Other Available Grades | 304, 304L, 309S, 310S, 310H, 316L, 316Ti, 316H, 317L, 321, 329, 347, 410, 420, 430F, 431, 440A/B/C, 2205, 2507, 904L, 254SMO, 253MA, XM-19, 17-4PH, 15-5PH, 17-7PH, C276, 600, 601, 625, 718, 800, 800H, 825, 926, etc. |
| Standards | ASTM, JIS, GB, DIN EN |
| Services | Cutting |
| Other Shapes | Square, Flat, Hexagonal, Round, etc. |
| Loading Port | Shanghai Port |
| Minimum Order Quantity | 500 kgs |
Material Description
CD4MCu is an Fe-Cr-Ni-Cu-Mo alloy with a duplex structure of ferrite and austenite. This unique composition provides moderately high strength and hardness combined with excellent ductility and impact properties, resulting in superior resistance to abrasion and erosion-corrosion.
CD4MCu offers significantly better stress/corrosive cracking resistance and reduced pitting compared to standard stainless steel. With higher strength and enhanced durability, this alloy combines outstanding corrosion resistance with nearly twice the strength of many stainless types. It can be age-hardened to increase its Brinell Hardness Number (BHN).
This alloy has proven particularly useful in sulphuric acid environments and seawater applications. It resists abrasive wear and galling, can be readily machined, and is weldable without preheating. Also known as MTEK 29M.
General Information
| Cast Alloy Designation | CD4MCu |
|---|---|
| Similar Designation | DUPLEX 1A |
| Alloy Family | High Alloy / Stainless Steel |
| UNS | J93370 |
| ASTM Standard | A890 |
| Wrought | 255 |
| Weldability | Good |
| Castability | Good |
| Machinability Rating | Good |
Chemical Composition
| Element | Content (%) |
|---|---|
| Chromium, Cr | 24.5-26.5 |
| Manganese, Mn | 1-3 |
| Nickel, Ni | 4.75-6 |
| Silicon, Si | 1 max |
| Nitrogen, N | 0.20-0.25 |
| Copper, Cu | 2.75-3.25 |
| Molybdenum, Mo | 1.75-2.25 |
| Phosphorous, P | 0.040 max |
| Carbon, C | 0.040 max |
| Sulfur, S | 0.030 max |
| Iron, Fe | Balance |
Mechanical Properties
| Properties | Metric | Imperial |
|---|---|---|
| Tensile strength (min) | 690 MPa | 100 ksi |
| Yield strength (min) | 485 MPa | 70 ksi |
| Elongation (min) | 16% | 16% |
| Hardness, Brinell (max) | 290 | 290 |
Applications
Superior corrosion and abrasion resistance make CD4MCu ideal for various industrial applications:
- Centrifuge and dewatering equipment
- Couplings
- Heat exchangers
- Offshore piping systems
- Paper rolls
- Pulp digesters
- Pump and valve components
- Pressure vessels
- Sleeves
- Flanges
Benefits
- Excellent corrosion and pitting resistance
- Superior performance in abrasive applications
- Higher strength than standard stainless steel
- Improved ductility and weldability
- Better resistance to embrittlement
Available Sizes and Specifications
| Product Type | Size Range |
|---|---|
| Stainless steel round bar | Diameter: 2mm - 600mm |
| Stainless steel bright bar | Diameter: 2mm - 600mm |
| Stainless steel hex bar | Dimension: 6mm - 80mm |
| Stainless steel square bar | Dimension: 3.0 - 180mm |
| Stainless steel flat bar | Thickness: 0.5mm - 200mm, Width: 1.5mm - 250mm |
| Stainless steel angle bar | As per requirements |
| Length | Normally 6m, or custom as required |
| Surface | Black, Bright, Peeled and Polished, Solution annealed |
| Delivery condition | Cold drawn, hot rolled, forged, grinding, centerless grinding |
| Tolerance | H8, H9, H10, H11, H12, H13, K9, K10, K11, K12 or as per client requirements |
