Heat Resistant SS304 Stainless Steel Wire Mesh with 40*40mm 50*50mm Hole Size for Boiler Applications
Product Details
| Model NO. | 304 | Material Type | Stainless Steel Plate |
|---|---|---|---|
| Weave Technique | Twill Weave | Wire Mesh Width | 1m |
| Technique | Punching | Nickels | 8% |
| Height | 8-40mm | Thickness | 1.2-2.0mm |
| Hole Size | 40*40mm, 50*50mm | Area | 0.6-2m2/PCS |
| Length | 1070-1550mm | Width | 562-1300mm |
| Grade | Carbon Steel, 0Cr13, 304, S32205, 0Cr25Ni20 | Whole Size | 8-1.2-40*40 To 40-1.75-50*50 |
| Other Grades | 304L, 321, 309S, 316L, 420, 430 | ||
| Highlight | Heat Resistant Stainless Steel Wire Mesh,SS304 Punched Wire Mesh,40*40mm 50*50mm Tortoise Shell Net |
||
Product Description

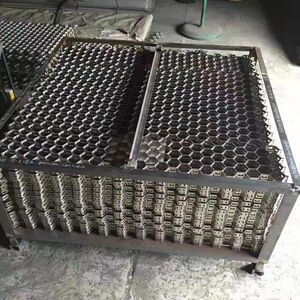

Heat Resistant SS304 Tortoise Shell Net
Available in 40×40mm and 50×50mm mesh sizes for industrial lining applications
Product Specifications
| Grade | Height (mm) | Thickness (mm) | Hole Size (mm) | Whole Size | Area (m²/PCS) | Length×Width (mm) |
|---|---|---|---|---|---|---|
| Carbon Steel | 8 | 1.2 | 40×40 | 8-1.2-40×40 | 0.6 | 1070×562 |
| Carbon Steel | 10 | 1.2 | 40×40 | 10-1.2-40×40 | 0.6 | 1070×562 |
| Carbon Steel | 15 | 1.5 | 50×50 | 15-1.5-50×50 | 1 | 1550×650 |
| Carbon Steel | 15 | 1.75 | 50×50 | 15-1.75-50×50 | 1 | 1550×650 |
| Carbon Steel | 20 | 1.75 | 50×50 | 20-1.75-50×50 | 2 | 1550×1300 |
| 0Cr13 | 10 | 1.2 | 40×40 | 10-1.2-40×40 | 0.6 | 1070×562 |
| 0Cr13 | 20 | 1.75 | 50×50 | 20-1.75-50×50 | 1.9 | 1550×1230 |
| 0Cr13 | 25 | 1.75 | 50×50 | 25-1.75-50×50 | 1.9 | 1550×1230 |
| 0Cr13 | 40 | 1.75 | 50×50 | 40-1.75-50×50 | 1.9 | 1550×1230 |
| 304 | 8 | 1.2 | 40×40 | 8-1.2-40×40 | 0.6 | 1070×562 |
| 304 | 10 | 1.2 | 50×50 | 10-1.2-50×50 | 1 | 1550×650 |
| 304 | 20 | 1.75 | 50×50 | 20-1.75-50×50 | 1.88 | 1540×1225 |
| 304 | 25 | 1.75 | 50×50 | 25-1.75-50×50 | 1.9 | 1550×1230 |
| 304 | 40 | 1.75 | 50×50 | 40-1.75-50×50 | 1.9 | 1550×1230 |
| S32205 | 10 | 1.2 | 40×40 | 10-1.2-40×40 | 0.73 | 1340×590 |
| 0Cr25Ni20 | 10 | 1.2 | 40×40 | 10-1.2-40×40 | 0.6 | 1070×562 |
| 0Cr25Ni20 | 20 | 2.0 | 50×50 | 20-2.0-50×50 | Custom | 1550×width |
Other available grades: 304L, 321, 309S, 316L, 420, 430, etc.
Product Advantages
- Hexagonal design increases fixing power with lining material
- Effectively strengthens self-connecting property of lining material
- Prevents heat insulation layer from peeling off
- Enhances fastness and durability of lining material
Industrial Applications
Used for pouring shapeless lining material and lining material fixing applications. We have supplied essential metal components to major framework factories and various lining metal components for petrochemical manufacturers.
Our products are widely used in petrochemical large-scale devices, particularly as key lining parts that support catalyst systems and ensure operational reliability.
