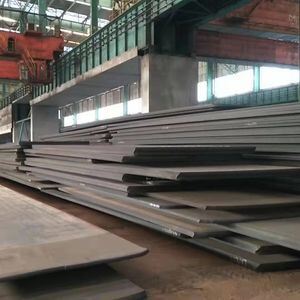

Hot Rolled Wear Resistant Steel Plate with 5mm-80mm Thickness and Width 10-2600mm for Abrasion Resistance
Product Details
| Technique | Hot Rolled | Width | 10-2600mm |
|---|---|---|---|
| Thickness | 5mm-80mm | Length | 6m, 8m, 10m |
| Hardness HRC | 5.0 - 80.0mm | Carbon Content | 0.18-0.30 |
| Silicon Content | 0.7 | Manganese Content | 1.70 |
| Chromium Content | 1.00-1.50 | Yield Strength | 900-1250 MPa |
| Tensile Strength | 1000-1450 MPa | Elongation | 8-11% |
| Impact Strength | -30C To -40C | Hardness Range | 360-540 |
| Production Capacity | 50000kgs | ||
| Highlight | Hot Rolled Wear Resistant Steel Plate,5mm-80mm Thickness Abrasion Resistant Steel Plate,Width 10-2600mm AR Steel Plate |
||
Product Description
Wear Resistant Steel Plate NM400/AR400/NM500/AR500/HB500
Product Overview
Abrasion Resistant (AR) steel plate is specifically engineered for extended service life in demanding conditions. These heat-treated steel plates offer superior resistance to sliding and impact abrasion, making them ideal for mining, quarrying, material handling, construction, and earthmoving applications where durability and weight reduction are critical.
Product Specifications
| Description | Abrasion Resistant Steel Plate |
|---|---|
| HRC | 5.0 - 80.0mm |
| Related Material | NM360, NM400, NM450, NM500, NM550, NM600, AR360, AR400, AR450, AR500, AR600 |
| Thickness | 5mm - 80mm |
| Width | 1500mm, 2000mm, 2200mm |
| Length | 6m, 8m, 10m or custom cutting as requested |
| Price Term | EX-Work, FOB, CFR, CIF |
| Payment Term | T/T, L/C, Western Union |
| Delivery Time | According to customer's quantity requirements |
Chemical Composition
| Grade | C | Si | Mn | P | S | Cr | Ni | Mo | B |
|---|---|---|---|---|---|---|---|---|---|
| AR500 | 0.30 | 0.7 | 1.70 | 0.025 | 0.015 | 1.00 | 0.70 | 0.50 | 0.005 |
| AR450 | 0.26 | 0.7 | 1.70 | 0.025 | 0.015 | 1.00 | 0.70 | 0.50 | 0.005 |
| AR400 | 0.25 | 0.7 | 1.70 | 0.025 | 0.015 | 1.50 | 0.70 | 0.50 | 0.005 |
| AR300 | 0.18 | 0.7 | 1.70 | 0.025 | 0.015 | 1.50 | 0.40 | 0.50 | 0.005 |
Mechanical Properties
| Grade | Yield Strength (MPa) | Tensile Strength (MPa) | Elongation A | Impact Strength Charpy V 20J | Hardness Range |
|---|---|---|---|---|---|
| AR500 | 1250 | 1450 | 8 | -30°C | 450-540 |
| AR450 | 1200 | 1450 | 8 | -40°C | 420-500 |
| AR400 | 1000 | 1250 | 10 | -40°C | 360-480 |
| AR300 | 900 | 1000 | 11 | -40°C | - |
Application Guide
- AR400: Premium abrasion resistant plates with through-hardening, improved forming and welding capabilities
- AR450: Used where slightly greater strength is required beyond AR400 specifications
- AR500: Ideal for mining, forestry and construction applications with high wear demands
- AR600: Utilized in extreme wear areas including aggregate removal, mining, and manufacturing of buckets and wear bodies
Shipping & Packaging
Delivery: Within 7-30 days after order confirmation
Packaging: Standard seaworthy export packing with bundled steel straps, customized packaging available upon request
Shipping Method: By sea from Shanghai port
Container Specifications:
- 20 foot GP: 5.8m(length) × 2.13m(width) × 2.18m(high) - approximately 24-26 CBM
- 40 foot GP: 11.8m(length) × 2.13m(width) × 2.72m(high) - approximately 68 CBM

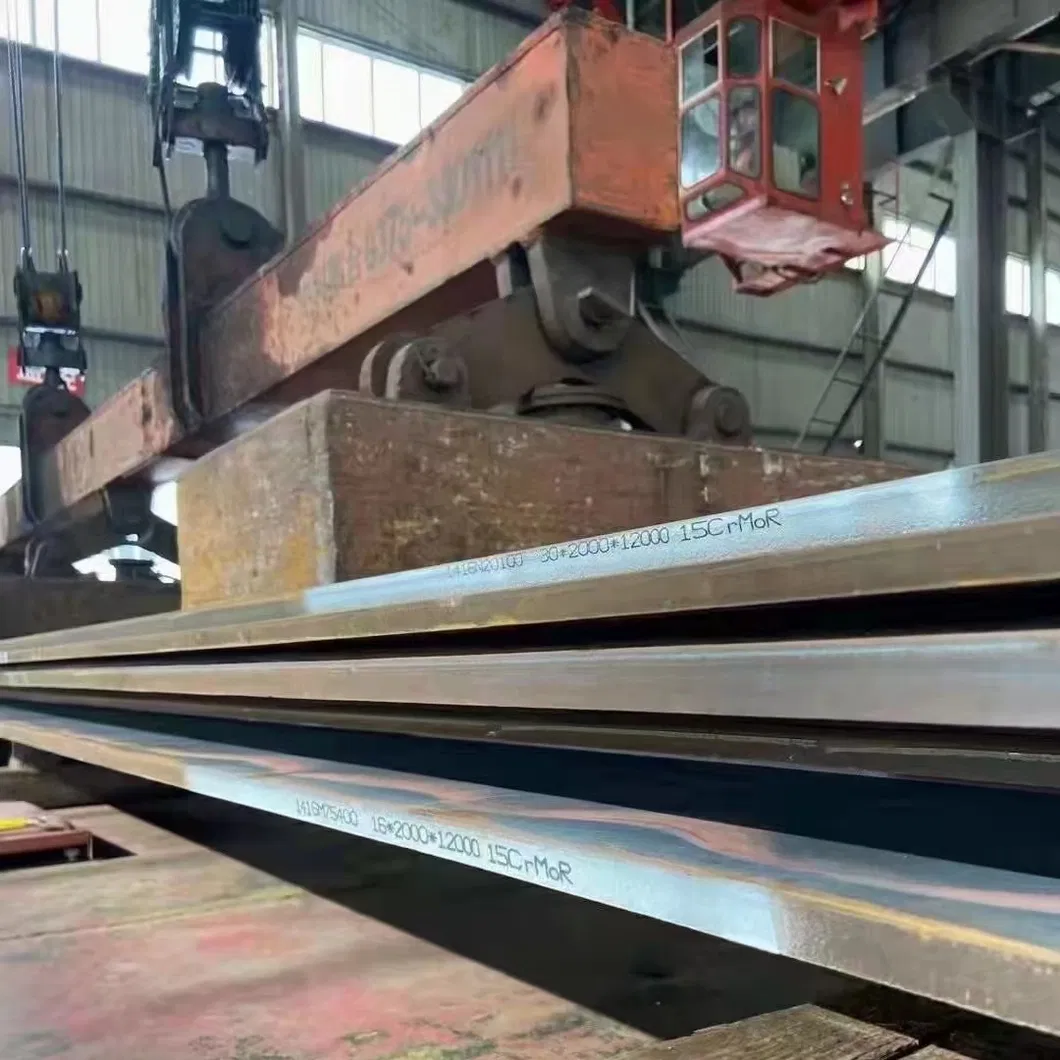

Product Gallery
