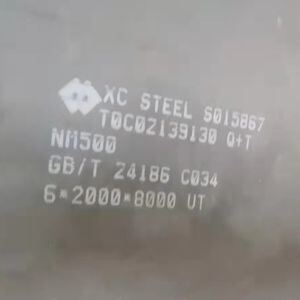

Custom Cutting Hot Rolled Abrasion Resistant Steel Plate AR400 AR500 in 6.0 - 40.0mm Thickness
Product Details
| Thickness Range | 6.0 - 40.0mm | Width Range | 10-2600mm |
|---|---|---|---|
| Length Options | 6m, 8m, 10m Or Custom | Production Capacity | 50000kgs |
| Hardness HRC | 5.0 - 80.0mm | Yield Strength AR500 | 1250 MPa |
| Tensile Strength AR500 | 1450 MPa | Elongation AR500 | 8% |
| Impact Strength AR500 | -30C | Hardness Range AR500 | 450-540 |
| Carbon Content AR500 | 0.30 | Manganese Content AR500 | 1.70 |
| Chromium Content AR500 | 1.00 | Technique | Hot Rolled |
| Special Use | Wear Resistant Steel | ||
| Highlight | AR400 AR500 Abrasion Resistant Steel Plate,Hot Rolled Abrasion Resistant Steel Plate,6.0 - 40.0mm Thickness AR Steel Plate |
||
Product Description
Custom Cutting Abrasion Resistant Steel Plate AR400 AR500
Our custom cutting abrasion resistant steel plates are available in AR400 and AR500 grades with thickness ranging from 6.0mm to 40.0mm, designed for exceptional durability in demanding industrial applications.
Product Specifications
| Description | Abrasion Resistant Steel Plate |
|---|---|
| HRC | 5.0 - 80.0mm |
| Related Material | NM360, NM400, NM450, NM500, NM550, NM600, AR360, AR400, AR450, AR500, AR600 |
| Thickness | 5mm - 80mm |
| Width | 1500mm, 2000mm, 2200mm |
| Length | 6m, 8m, 10m or custom cutting as requested |
| Price Term | EX-Work, FOB, CFR, CIF |
| Payment Term | T/T, L/C, Western Union |
About Abrasion Resistant Steel Plate
Abrasion Resistant (AR) steel plate is manufactured in the as-rolled condition, specifically developed for extended service life in harsh operating environments. These steel plate products are ideal for applications in mining, quarrying, conveyors, material handling, construction, and earthmoving equipment.
Designers and plant operators select AR plate steel to extend the service life of critical components while reducing the weight of each unit in service. The benefits of using wear-resistant plate steel in applications involving impact and sliding contact with abrasive materials are substantial.
Chemical Composition
| Grade | C | Si | Mn | P | S | Cr | Ni | Mo | B |
|---|---|---|---|---|---|---|---|---|---|
| AR500 | 0.30 | 0.7 | 1.70 | 0.025 | 0.015 | 1.00 | 0.70 | 0.50 | 0.005 |
| AR450 | 0.26 | 0.7 | 1.70 | 0.025 | 0.015 | 1.00 | 0.70 | 0.50 | 0.005 |
| AR400 | 0.25 | 0.7 | 1.70 | 0.025 | 0.015 | 1.50 | 0.70 | 0.50 | 0.005 |
| AR300 | 0.18 | 0.7 | 1.70 | 0.025 | 0.015 | 1.50 | 0.40 | 0.50 | 0.005 |
Mechanical Properties
| Grade | Yield Strength (MPa) | Tensile Strength (MPa) | Elongation A | Impact Strength Charpy V 20J | Hardness Range |
|---|---|---|---|---|---|
| AR500 | 1250 | 1450 | 8 | -30°C | 450-540 |
| AR450 | 1200 | 1450 | 8 | -40°C | 420-500 |
| AR400 | 1000 | 1250 | 10 | -40°C | 360-480 |
| AR300 | 900 | 1000 | 11 | -40°C | - |
Application Areas
- AR400: Premium abrasion resistant steel plates that are heat-treated and exhibit through-hardening with improved forming and welding capabilities
- AR450: Abrasion resistant plate used where slightly greater strength is desired beyond AR400
- AR500: Suitable for mining, forestry and construction applications
- AR600: Utilized in high-wear areas such as aggregate removal, mining, and manufacture of buckets and wear bodies
Shipping & Delivery Information
Delivery Time: Within 7-30 days after order confirmation
Transport: Cargo transported to port by truck with proper coverage during transit and at port
Shipping Methods: By bulk or container
| Packaging | Standard seaworthy export packing, customizable as required |
|---|---|
| Shipping Packaging | Bundled with firm steel straps for easy loading and unloading |
| Shipping Time | 5-7 work days after delivery |
| Shipping Method | BY SEA |
| Shipping Port | Shanghai |
