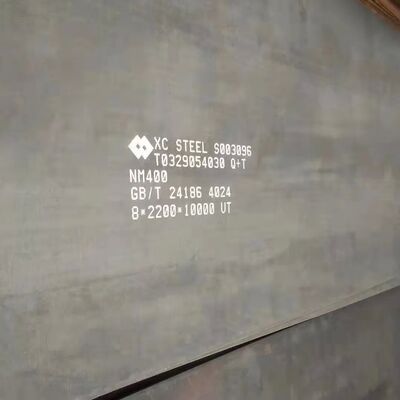

Hot Rolled AR500 AR400 Abrasion Resistant Steel Plate for High Wear Applications
Product Details
| Technique | Hot Rolled | Width | 10-2600mm |
|---|---|---|---|
| Thickness | 5mm-80mm | Length | 6m, 8m, 10m Or Custom |
| Hardness HRC | 5.0 - 80.0mm | Related Material | NM360, NM400, NM450, NM500, NM550, NM600, AR360, AR400, AR450, AR500, AR600 |
| Yield Strength | 900-1250 MPa | Tensile Strength | 1000-1450 MPa |
| Elongation | 8-11% | Impact Strength | -30C To -40C |
| Hardness Range | 360-540 HB | Carbon Content | 0.18-0.30% |
| Manganese Content | 1.70% | Chromium Content | 1.00-1.50% |
| Production Capacity | 50000 Kgs | ||
| Highlight | AR500 Abrasion Resistant Steel Plate,AR400 Wear Resistant Steel Plate,Hot Rolled AR Steel Plate |
||
Product Description
Abrasion Resistant Steel Plate AR500 AR400 Wear Resistant Steel Plate
Product Overview
Abrasion Resistant (AR) steel plate is manufactured in the as-rolled condition specifically for extended service life in demanding environments. These steel plate products are engineered for superior performance in mining, quarrying, material handling, construction, and earthmoving applications.
Product Specifications
| Description | Abrasion Resistant Steel Plate |
|---|---|
| HRC | 5.0 - 80.0mm |
| Related Material | NM360, NM400, NM450, NM500, NM550, NM600, AR360, AR400, AR450, AR500, AR600 |
| Thickness | 5mm - 80mm |
| Width | 1500mm, 2000mm, 2200mm |
| Length | 6m, 8m, 10m or custom lengths as requested |
Chemical Composition
| Grade | C | Si | Mn | P | S | Cr | Ni | Mo | B |
|---|---|---|---|---|---|---|---|---|---|
| AR500 | 0.30 | 0.7 | 1.70 | 0.025 | 0.015 | 1.00 | 0.70 | 0.50 | 0.005 |
| AR450 | 0.26 | 0.7 | 1.70 | 0.025 | 0.015 | 1.00 | 0.70 | 0.50 | 0.005 |
| AR400 | 0.25 | 0.7 | 1.70 | 0.025 | 0.015 | 1.50 | 0.70 | 0.50 | 0.005 |
| AR300 | 0.18 | 0.7 | 1.70 | 0.025 | 0.015 | 1.50 | 0.40 | 0.50 | 0.005 |
Mechanical Properties
| Grade | Yield Strength (MPa) | Tensile Strength (MPa) | Elongation A | Impact Strength Charpy V 20J | Hardness Range |
|---|---|---|---|---|---|
| AR500 | 1250 | 1450 | 8 | -30°C | 450-540 |
| AR450 | 1200 | 1450 | 8 | -40°C | 420-500 |
| AR400 | 1000 | 1250 | 10 | -40°C | 360-480 |
| AR300 | 900 | 1000 | 11 | -40°C | - |
Applications
- AR400: Premium abrasion resistant steel plates that are heat-treated and exhibit through-hardening with improved forming and welding capabilities
- AR450: Abrasion resistant plate used in applications requiring slightly greater strength beyond AR400
- AR500: Suitable for mining, forestry and construction applications
- AR600: Utilized in high-wear areas such as aggregate removal, mining, and the manufacture of buckets and wear bodies
Technical Advantages
Abrasive resistant alloy steel plates offer excellent resistance to sliding and impact abrasion. The high carbon content in the alloy increases hardness and toughness, making it ideal for applications requiring high impact or abrasion resistance. Unlike brittle high carbon steels, our heat-treated alloy plates provide superior wear resistance with reduced particle tear-out.
Shipping & Delivery Information
| Delivery | Within 7-30 days after order confirmation |
|---|---|
| Packaging | Standard seaworthy export packing, bundled with firm steel straps; custom packaging available |
| Shipping Time | 5-7 work days after delivery |
| Shipping Method | By Sea |
| Shipping Port | Shanghai |
| Price Terms | EX-Work, FOB, CFR, CIF |
| Payment Terms | T/T, L/C, Western Union |
Container Specifications
20 foot GP: 5.8m(length) × 2.13m(width) × 2.18m(high) - approximately 24-26 CBM
40 foot GP: 11.8m(length) × 2.13m(width) × 2.72m(high) - approximately 68 CBM
