Anti-Fingerprint Surface Galvanized Steel Coil with 0.3 - 2.5mm Thickness for Container Plate Application

Minimum Order Quantity	1 Ton
Price	US $763-979 / Ton

Product Details

Thickness Range	0.3 - 2.5mm	Width Options	914mm, 1000mm, 1200mm, 1219mm, 1220mm, 1250mm
Coil Weight	2Ton - 8 Tons	Coil Inner Diameter	508mm Or 610mm
Zinc Coating	Z30 - Z275	Aluminum-zinc Coating	AZ40 - AZ180
Painting Type	PE, HDP, SMP, PVDF	Sheet Dimensions	12202440, 15003000, 15006000, 20006000mm
Surface Treatment	Regular Spangle / Non-spangle	Base Material	Galvanized Steel / Galvalume Steel
Coating Thickness	20-25um/5-10um	Coating Layers	Above 2 Layer, Bottom 1 Layer
Pattern Thickness	0.17 - 1.5mm	Heat Resistance	>300°C
Alloy Composition	55% Aluminum, 43% Zinc, 2% Silicon
Highlight	Anti-Fingerprint Surface Galvanized Steel Coil , 0.3 - 2.5mm Thickness Galvanized Steel Coil , Container Plate Application Color Coated Steel Coil

Leave a Message

Product Description

Anti-Flanger Print Finishing Galvanized Steel Coil SECC +Z / DC01e+Z

Thickness Range: 0.3 - 2.5mm

Product Specification

Products Name	Galvanized Steel Sheet / Galvalume Steel Sheet / Prepainted Galvanized Steel Sheet
Thickness	Galvanized steel sheet: 0.12 - 3.0mm Galvalume Steel Sheet: 0.25 - 3.0mm Prepainted Galvanized Steel Sheet: 0.12 - 1.2mm
Width	914mm, 1000mm, 1200mm, 1219mm, 1220mm, 1250mm or custom requirements
Length	Custom length as per customer requirements
Coil Weight	2 - 8 Tons
Coil Inner Diameter	508mm or 610mm
Surface	Galvanized: Regular spangle / non-spangle Zinc: Z30 - Z275 Galvalume: AZ40 - AZ180 Prepainted: PE, HDP, SMP, PVDF coating types
Standard	AISI, ASTM, BS, DIN, GB, JIS, AS, etc.

Products Center

Prepainted Galvanized Steel Coil (PPGI)

Also known as color plate, PPGI is manufactured using cold rolled steel plate and galvanized steel plate as base materials. After surface pretreatment including degreasing, cleaning, and chemical conversion treatment, the coating is applied continuously using the roller coating method, followed by baking and cooling.

Light weight with attractive appearance
Excellent anti-corrosion performance
Ready for direct processing
Applications: construction, shipbuilding, vehicle manufacturing, home appliances, electrical industry
Effective steel-for-wood substitution with efficient construction and energy saving

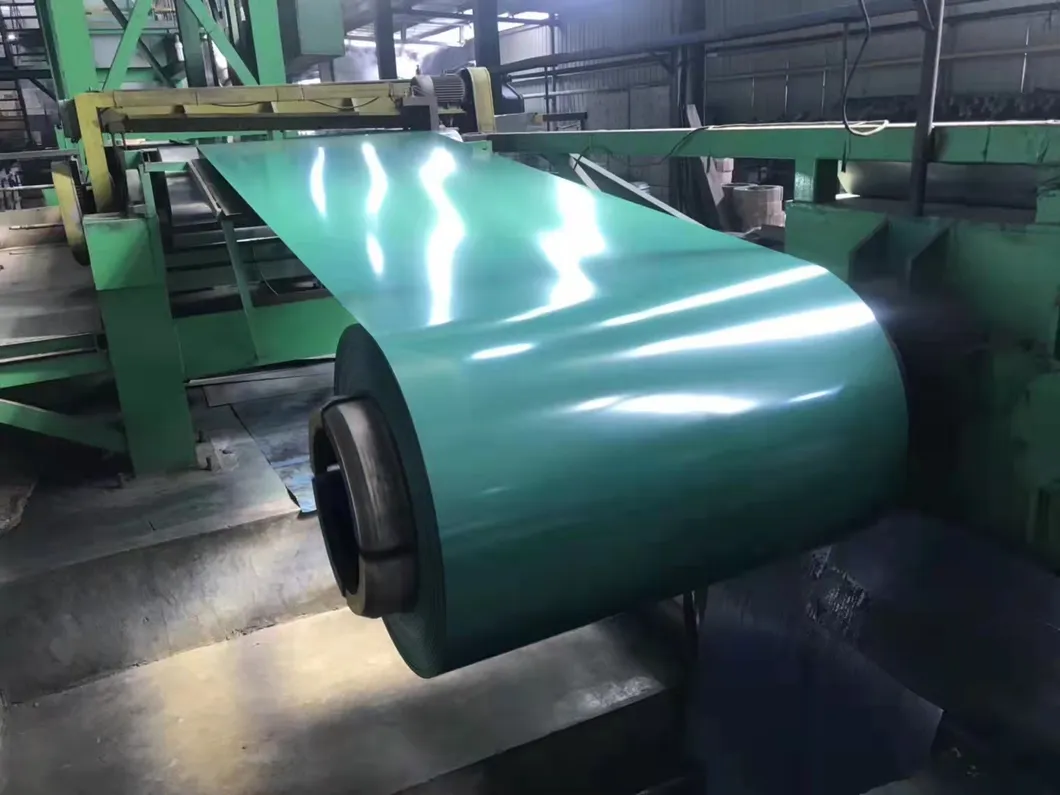

Prepainted galvanized steel coil product展示

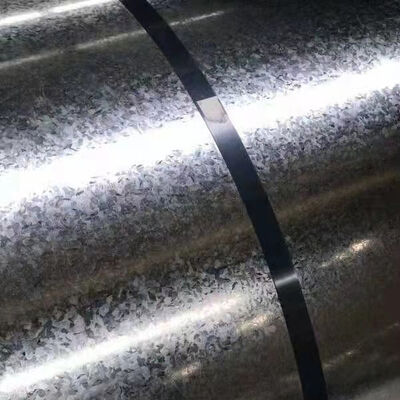

Galvanized Steel Coil

Galvanized sheet features a zinc-coated surface, providing economical and effective rust prevention. Approximately half of the world's zinc production is used in this process.

Surface Requirements:

Surface states: regular spangle, small spangle, big spangles, etc.
Good appearance without defects harmful to product use
Free from no plating, holes, cracks, scum, excessive thick plating, abrasion, chromic acid dirt, white rust

Galvalume Steel Coil

Galvalume steel sheet is an alloy composed of 55% aluminum, 43% zinc, and 2% silicon solidified at 600°C, forming a dense tetrad junction crystal structure.

Superior corrosion resistance - 3 times better than pure galvanized sheet
Beautiful zinc flower surface decoration suitable for building exterior panels
Excellent heat resistance - withstands temperatures over 300°C
Applications: chimney tubes, ovens, illuminators, solar lampshades

Feature Products

Products	Pattern Print Prepainted Steel Sheet
Introduction	Color plate printed on galvanized plate, aluminized zinc plate and other substrates using transfer printing or film covering technology
Features	Bright colors, variety of patterns including marble grain, camouflage, wood grain printing
Size	Thickness: 0.17 - 1.5mm, Width: less than 1.5mm
Color and Pattern	Customized as per client requirements
Base Material	Galvanized steel sheet / Galvalume steel sheet
Coating Thickness	20-25um/5-10um
Coating Type	Above 2 layers, bottom 1 layer
Coil ID	Φ510mm/610mm
Application	Household appliances, furniture, doors and windows, indoor and outdoor decoration

Trade Information

MOQ	5 Tons
Payment Term	TT or 100% LC at sight

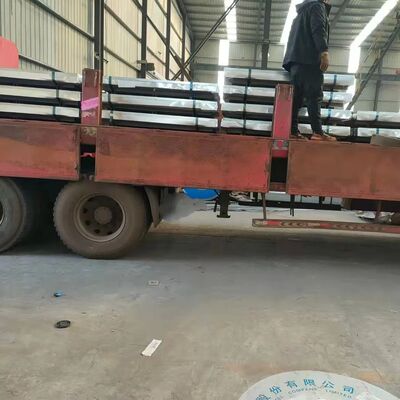

Packing	Standard Sea Worthy Package
Loading Port	Shanghai Port, Qingdao Port, Tianjin Port
Container Loading	20ft container FCL, LCL
Delivery Time	Within 15 days

Company Information

Our company is a modern enterprise specializing in high-end coating plate processing, sales, and circulation, registered in Wuxi City. We offer comprehensive solutions including color coating, galvanized, aluminum zinc plating, zinc aluminum magnesium, and aluminum magnesium manganese high-end metal plates.

Partnerships

We maintain strong cooperative relationships with major domestic steel mills including Ye Hui (China), Baoshan Iron & Steel, Shougang, Magang, Hangang, Rizhao Steel, and Jiangyin ZongCheng Steel.

Applications

Our products are widely used in steel structure building, metal building materials, steel silo, ventilation pipes, mechanical and electrical housing, home appliance plate, elevator, purification plate, automotive stamping parts, and other fields.

Expertise

Our employees average over 8 years of industry experience, enabling us to provide customized supply solutions and improve supply chain efficiency for our customers.

Guided by our value concept of "not for a long time, not to be able to recover," we are committed to providing customers with perfect demand solutions and serving as China's premier high-end coating and plating steel products service provider.
