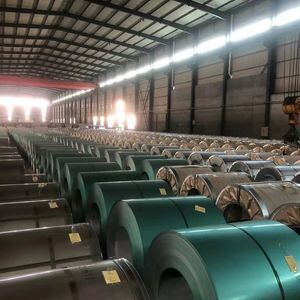

Flower Pattern Color Coated PPGI Coil 1220*2440mm for Container Plate Applications
Product Details
| Thickness | 0.12 - 3.0mm | Width | 914mm,1000mm,1200mm,1219mm,1220mm,1250mm |
|---|---|---|---|
| Length | Custom Length | Coil Weight | 2Ton - 8 Tons |
| Coil Inner Diameter | 508mm Or 610mm | Zinc Coating | Z30 - Z275 |
| Aluminum-Zinc Coating | AZ40 - AZ180 | Coating Type | PE,HDP,SMP,PVDF |
| Pattern Thickness | 0.17 - 1.5mm | Coating Thickness | 20-25um/5-10um |
| Coating Layers | Above 2 Layer, Bottom 1 Layer | Surface Finish | Regular Spangle / Non-spangle |
| Heat Resistance | 300 Degrees Celsius | Material Composition | 55% Aluminum, 43% Zinc, 2% Silicon |
| Standard Compliance | AISI, ASTM, BS, DIN, GB, JIS, AS | ||
| Highlight | Flower Pattern PPGI Coil,1220*2440mm Prepainted Galvanized Steel Coil,Container Plate Color Coated Steel Coil |
||
Product Description
Flower Pattern Color Coated PPGI Coils Aluzinc Density of Galvanized Steel Coil
Flower Pattern Color Coated PPGI Coils with aluzinc density of galvanized steel coil offer superior corrosion resistance and aesthetic appeal for various industrial applications.
Product Specifications
| Products Name | Galvanized Steel Sheet / Galvalume Steel Sheet / Prepainted Galvanized Steel Sheet |
|---|---|
| Thickness | Galvanized steel sheet: 0.12 - 3.0mm Galvalume Steel Sheet: 0.25 - 3.0mm Prepainted Galvanized Steel Sheet: 0.12 - 1.2mm |
| Width | 914mm, 1000mm, 1200mm, 1219mm, 1220mm, 1250mm or according to customer's requirement |
| Length | Custom length as customer requirement |
| Coil Weight | 2Ton - 8 Tons |
| Coil Inner Diameter | 508mm or 610mm |
| Surface | Galvanized steel sheet: Regular spangle / non-spangle Zinc: Z30 - Z275 Galvalume Steel Sheet: AZ40 - AZ180 Prepainted Galvanized Steel Sheet: Painting Type: PE, HDP, SMP, PVDF |
| Standard | AISI, ASTM, BS, DIN, GB, JIS, AS ETC |
Products Center
Prepainted Galvanized Steel Coil (PPGI)
Prepanited galvanized steel coil, also known as PPGI or color plate, is manufactured using cold rolled steel plate and galvanized steel plate as the base plate. After surface pretreatment including degreasing, cleaning, and chemical conversion treatment, the coating is applied using a continuous roller coating method, followed by baking and cooling.
The coated steel plate features light weight, beautiful appearance, and excellent anti-corrosion performance. It can be directly processed and serves as a new raw material for the construction industry, shipbuilding industry, vehicle manufacturing industry, household appliances industry, and electrical industry. It effectively replaces wood with steel, enables efficient construction, and provides energy saving and pollution prevention benefits.
Galvanized Steel Coil
Galvanized sheet refers to zinc-coated steel plate surface. Galvanizing is an economical and effective rust prevention method, with approximately half of the world's zinc production used in this process.
Surface Requirements:
- Surface state varies based on coating process: regular spangle, small spangle, big spangles, etc.
- Galvanized sheet must have good appearance without harmful defects such as no plating, holes, cracks, scum, excessive thick plating, abrasion, chromic acid dirt, or white rust
- Specific appearance defects should be specified in the contract when ordering
Galvalume Steel Coil
Galvalume steel sheet is an alloy composed of 55% aluminum, 43% zinc and 2% silicon solidified at 600ºC. The structure consists of aluminized iron, silicon and zinc, forming dense tetrad junction crystal.
- Excellent corrosion resistance - 3 times better than pure galvanized sheet
- Beautiful zinc flower surface decoration suitable for building exterior panels
- Aluminum provides primary protective function for corrosion resistance
- Good heat resistance - withstands temperatures over 300°C
- Similar high-temperature oxidation resistance to aluminum plated steel plate
- Commonly used in chimney tubes, ovens, illuminators and solar lampshades
Feature Products: Pattern Print Prepainted Steel Sheet
| Product | Pattern Print Prepainted Steel Sheet |
|---|---|
| Introduction | Color plate printed on galvanized plate, aluminized zinc plate and other substrates using transfer printing or film covering technology |
| Features | Bright colors, wide variety including marble grain, camouflage, wood grain printing color board |
| Size | Thickness: 0.17 - 1.5mm, Width less than 1.5mm |
| Color and Pattern | As clients request |
| Base Material | Galvanized steel sheet / Galvalume steel sheet |
| Coating Thickness | 20-25um/5-10um |
| Coating Type | Above 2 layer, bottom 1 layer |
| Coil ID | Φ510MM/610MM |
| Application | Widely used in household appliances, furniture, doors and windows, indoor and outdoor decoration and other fields |
Trade Information
| MOQ | 5 Tons |
|---|---|
| Payment Term | TT or 100% LC at sight |
| Packing | Standard Sea Worthy Package |
| Loading Port | Shanghai Port, Qingdao Port, Tianjin Port |
| Container Loading | 20ft container FCL, LCL |
| Delivery Time | Within 15 days |
Company Information
Our company is a modern enterprise specializing in high-end coating plate processing, sales, and circulation, registered in Wuxi city. Our main products include color coating, galvanized, aluminum zinc plating, zinc aluminum magnesium and aluminum magnesium manganese high-end metal plates.
We maintain strong cooperative relationships with several major domestic steel mills including Ye Hui (China), Baoshan Iron & Steel, Shougang, Magang, Hangang, Rizhao Steel, and Jiangyin ZongCheng Steel. Our products are widely used in steel structure building, metal building materials, steel silo, ventilation pipes, mechanical and electrical housing, home appliance plate, elevator, purification plate, automotive stamping parts and other fields.
Since establishment, we have cooperated with factories to participate in material supply and technical service for numerous medium and large engineering projects domestically and internationally.
Our employees average over 8 years of industry experience, enabling us to provide customized supply solutions and improve supply chain efficiency as your best partner.
We adhere to the value concept of "not for a long time, not to be able to recover" and are committed to providing perfect demand solutions while working with domestic and foreign customers to excel as China's high-end coating and plating steel products service provider.
