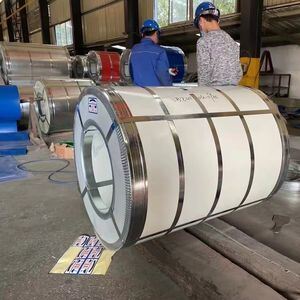

1220*2440mm Specification Prepainted Galvanized Steel Coil with Z30-Z275 Zinc Coating for Container Plate Application
Product Details
| Thickness | 0.12 - 3.0mm (Galvanized), 0.25 - 3.0mm (Galvalume), 0.12 - 1.2mm (Prepainted) | Width | 914mm, 1000mm, 1200mm, 1219mm, 1220mm, 1250mm Or Custom |
|---|---|---|---|
| Length | Custom Length | Coil Weight | 2Ton - 8 Tons |
| Coil Inner Diameter | 508mm Or 610mm | Zinc Coating | Z30 - Z275 |
| Aluminum-Zinc Coating | AZ40 - AZ180 | Painting Type | PE, HDP, SMP, PVDF |
| Sheet Dimensions | 1220*2440, 1500*3000, 1500*6000, 2000*6000mm | Pattern Print Thickness | 0.17 - 1.5mm |
| Coating Thickness | 20-25um/5-10um | Coating Layers | Above 2 Layer, Bottom 1 Layer |
| Edge Type | Slit Edge | Surface Finish | Regular Spangle, Non-spangle, Zinc Flowers |
| Heat Resistance | >300°C (Galvalume) | ||
| Highlight | 1220*2440mm Specification PPGI,Container Plate Application Color Coated Steel Coil,Z30-Z275 Zinc Coating Prepainted Galvanized Steel Coil |
||
Product Description
Prepainted Galvanized Steel Coil Specifications
| Product Type | Galvanized Steel Sheet / Galvalume Steel Sheet / Prepainted Galvanized Steel Sheet |
|---|---|
| Thickness Range | Galvanized steel sheet: 0.12 - 3.0mm Galvalume Steel Sheet: 0.25 - 3.0mm Prepainted Galvanized Steel Sheet: 0.12 - 1.2mm |
| Width Options | 914mm, 1000mm, 1200mm, 1219mm, 1220mm, 1250mm or custom requirements |
| Length | Custom length as per customer requirements |
| Coil Weight | 2 - 8 Tons |
| Coil Inner Diameter | 508mm or 610mm |
| Surface Treatment | Galvanized steel sheet: Regular spangle / non-spangle Zinc: Z30 - Z275 Galvalume Steel Sheet: AZ40 - AZ180 Prepainted Galvanized Steel Sheet: Painting Type: PE, HDP, SMP, PVDF |
| Standards | AISI, ASTM, BS, DIN, GB, JIS, AS, etc. |
Product Range Overview
Prepainted Galvanized Steel Coil (PPGI)
Prepainted galvanized steel coil, also known as PPGI or color plate, is manufactured using cold rolled steel plate and galvanized steel plate as base materials. After surface pretreatment including degreasing, cleaning, and chemical conversion treatment, the coating is applied continuously using the roller coating method, followed by baking and cooling processes.
This coated steel plate offers lightweight construction, attractive appearance, and excellent anti-corrosion performance. It can be directly processed and serves as an innovative raw material for construction, shipbuilding, vehicle manufacturing, home appliances, electrical industries, and more. It effectively replaces wood, enables efficient construction, and provides energy-saving and pollution-prevention benefits.
Galvanized Steel Coil
Galvanized sheet refers to steel plate with a zinc-coated surface. Galvanizing represents an economical and effective rust prevention method, with approximately half of global zinc production used for this purpose.
Surface Requirements:
Surface states vary based on coating process treatments, including regular spangle, small spangle, and large spangle options. Galvanized sheets must maintain excellent appearance without defects affecting product usability, such as unplated areas, holes, cracks, scum, excessive plating thickness, abrasion, chromic acid stains, or white rust.
Surface states vary based on coating process treatments, including regular spangle, small spangle, and large spangle options. Galvanized sheets must maintain excellent appearance without defects affecting product usability, such as unplated areas, holes, cracks, scum, excessive plating thickness, abrasion, chromic acid stains, or white rust.
Galvalume Steel Coil
Galvalume steel sheet consists of an aluminized zinc alloy structure composed of 55% aluminum, 43% zinc, and 2% silicon solidified at 600°C. The complete structure forms a dense tetrad junction crystal of aluminized iron, silicon, and zinc.
This material offers superior corrosion resistance—three times that of pure galvanized sheet—with decorative zinc flower patterns suitable for building exterior panels. The corrosion protection primarily comes from aluminum's protective functionality.
Galvalume steel sheet demonstrates excellent heat resistance, withstanding temperatures exceeding 300°C, similar to aluminum-plated steel plate's high-temperature oxidation resistance. Common applications include chimney tubes, ovens, illuminators, and solar lamp shades.
Featured Product: Pattern Print Prepainted Steel Sheet
| Product | Pattern Print Prepainted Steel Sheet |
|---|---|
| Description | Color plate printed on galvanized plate, aluminized zinc plate and other substrates using transfer printing or film covering technology |
| Features | Wide application range including marble grain, camouflage, wood grain printing with bright colors and variety |
| Dimensions | Thickness: 0.17 - 1.5mm (Width less than 1.5mm) |
| Colors & Patterns | Customized according to client requirements |
| Base Material | Galvanized steel sheet / Galvalume steel sheet |
| Coating Thickness | 20-25um / 5-10um |
| Coating Type | Above 2 layers, bottom 1 layer |
| Coil Inner Diameter | Φ510mm / 610mm |
| Applications | Household appliances, furniture, doors and windows, indoor and outdoor decoration |
Trade Information
| Minimum Order Quantity | 5 Tons |
|---|---|
| Payment Terms | TT or 100% LC at sight |
| Packaging | Standard Sea Worthy Package |
| Loading Ports | Shanghai Port, Qingdao Port, Tianjin Port |
| Container Loading | 20ft container FCL, LCL |
| Delivery Time | Within 15 days |
Company Profile
Our company is a modern enterprise specializing in high-end coating plate processing, sales, and circulation, registered in Wuxi City. We offer comprehensive product lines including color coating, galvanized, aluminum zinc plating, zinc aluminum magnesium, and aluminum magnesium manganese high-end metal plates.
We maintain strong cooperative relationships with major domestic steel mills including Ye Hui (China), Baoshan Iron & Steel, Shougang, Magang, Hangang, Rizhao Steel, and Jiangyin Zongcheng Steel. Our products are extensively used in steel structure buildings, metal building materials, steel silos, ventilation pipes, mechanical and electrical housing, home appliance plates, elevators, purification plates, automotive stamping parts, and related fields.
Our team averages over 8 years of industry experience, enabling us to provide customized supply solutions that enhance supply chain efficiency. Since establishment, we have collaborated with factories to supply materials and technical services for numerous medium and large domestic and international engineering projects.
Guided by our core value of sustainable development, we remain committed to delivering perfect demand solutions while striving to become China's premier high-end coating and plating steel products service provider.
