0.3mm Thickness RAL Code Color Prepainted Galvanized Steel Coil 3-6MT Coil Weight PPGI
Product Details
| Thickness | 0.12 - 3.0mm (Galvanized), 0.25 - 3.0mm (Galvalume), 0.12 - 1.2mm (Prepainted) | Width | 914mm, 1000mm, 1200mm, 1219mm, 1220mm, 1250mm Or Custom |
|---|---|---|---|
| Length | Custom Length | Coil Weight | 2Ton - 8 Tons |
| Coil Inner Diameter | 508mm Or 610mm | Zinc Coating | Z30 - Z275 |
| Aluminum-Zinc Coating | AZ40 - AZ180 | Painting Type | PE, HDP, SMP, PVDF |
| Coating Thickness | 20-25um/5-10um | Coating Layers | Above 2 Layer, Bottom 1 Layer |
| Surface Finish | Regular Spangle, Non-spangle, Zinc Flowers | Heat Resistance | >300°C |
| Pattern Thickness | 0.17 - 1.5mm | Pattern Width | <1.5mm |
| Edge Type | Slit Edge | ||
| Highlight | 0.3mm Thickness Prepainted Galvanized Steel Coil,RAL Code Color PPGI Steel Coil,3-6MT Coil Weight Color Coated Steel Coil |
||
Product Description

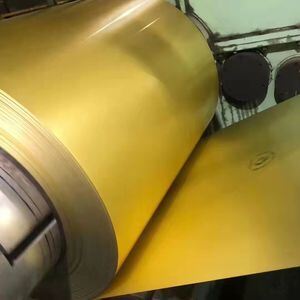

0.3mm RAL Code Color Prepainted Galvanized Steel Coil
Coil Weight: 3-6 Metric Tons
Product Specifications
| Products Name | Galvanized Steel Sheet / Galvalume Steel Sheet / Prepainted Galvanized Steel Sheet |
|---|---|
| Thickness |
Galvanized steel sheet: 0.12 - 3.0mm Galvalume Steel Sheet: 0.25 - 3.0mm Prepainted Galvanized Steel Sheet: 0.12 - 1.2mm |
| Width | 914mm, 1000mm, 1200mm, 1219mm, 1220mm, 1250mm or custom requirements |
| Length | Custom length as per customer requirements |
| Coil Weight | 2 - 8 Tons |
| Coil Inner Diameter | 508mm or 610mm |
| Surface |
Galvanized steel sheet: Regular spangle / non-spangle Zinc: Z30 - Z275 Galvalume Steel Sheet: AZ40 - AZ180 Prepainted Galvanized Steel Sheet: Painting Type: PE, HDP, SMP, PVDF |
| Standard | AISI, ASTM, BS, DIN, GB, JIS, AS, etc. |
Prepainted Galvanized Steel Coil (PPGI)
Prepainted galvanized steel coil, also known as PPGI or color plate, uses cold rolled steel plate and galvanized steel plate as base materials. After surface pretreatment including degreasing, cleaning, and chemical conversion treatment, the coating is applied using continuous roller coating method, followed by baking and cooling. The coated steel plate offers light weight, attractive appearance, and excellent anti-corrosion performance, and can be directly processed. It serves as a new raw material for construction, shipbuilding, vehicle manufacturing, home appliances, electrical industries, effectively replacing wood while enabling efficient construction, energy saving, and pollution prevention.
Galvanized Steel Coil
Galvanized sheet refers to zinc-coated steel plate surface. Galvanizing is an economical and effective rust prevention method, with approximately half of the world's zinc production used for this process.
Surface Requirements:
(1) Surface state: Varies based on coating process methods - regular spangle, small spangle, big spangles, etc.
(2) Appearance: Must have good appearance without defects affecting product use, such as no plating, holes, cracks, scum, excessive thick plating, abrasion, chromic acid dirt, or white rust.
(1) Surface state: Varies based on coating process methods - regular spangle, small spangle, big spangles, etc.
(2) Appearance: Must have good appearance without defects affecting product use, such as no plating, holes, cracks, scum, excessive thick plating, abrasion, chromic acid dirt, or white rust.
Galvalume Steel Coil
Galvalume steel sheet consists of an aluminized zinc alloy structure composed of 55% aluminum, 43% zinc, and 2% silicon solidified at 600°C. The structure forms a dense tetrad junction crystal of aluminized iron, silicon, and zinc.
- Excellent corrosion resistance - 3 times better than pure galvanized sheet
- Beautiful zinc flower surface decoration suitable for building exterior panels
- Aluminum provides primary protective function for corrosion resistance
- Good heat resistance - withstands temperatures over 300°C
- Applications include chimney tubes, ovens, illuminators, and solar lampshades
Pattern Print Prepainted Steel Sheet
| Products | Pattern print prepainted steel sheet |
|---|---|
| Introduction | Color plate printed on galvanized plate, aluminized zinc plate and other substrates using transfer printing or film covering technology |
| Features | Bright colors, wide variety including marble grain, camouflage, wood grain printing color board |
| Size | Thickness: 0.17 - 1.5mm, Width: less than 1.5mm |
| Color and Pattern | Customized as per client requirements |
| Base Material | Galvanized steel sheet / Galvalume steel sheet |
| Coating Thickness | 20-25um/5-10um |
| Coating Type | Above 2 layers, bottom 1 layer |
| Coil ID | Φ510mm/610mm |
| Application | Household appliances, furniture, doors and windows, indoor and outdoor decoration |
Trade Information
| MOQ | 5 Tons |
|---|---|
| Payment Term | TT or 100% LC at sight |
| Packing | Standard Sea Worthy Package |
| Loading Port | Shanghai Port, Qingdao Port, Tianjin Port |
| Container Loading | 20ft container FCL, LCL |
| Delivery Time | Within 15 days |
Company Information
Our company is a modern enterprise specializing in high-end coating plate processing, sales, and circulation, registered in Wuxi City. We offer comprehensive product lines including color coating, galvanized, aluminum zinc plating, zinc aluminum magnesium, and aluminum magnesium manganese high-end metal plates.
We maintain strong cooperative relationships with major domestic steel mills including Ye Hui (China), Baoshan Iron & Steel, Shougang, Magang, Hangang, Rizhao Steel, and Jiangyin ZongCheng Steel. Our products are widely used in steel structure buildings, metal building materials, steel silos, ventilation pipes, mechanical and electrical housing, home appliance plates, elevators, purification plates, automotive stamping parts, and other fields.
Our employees average over 8 years of industry experience, enabling us to provide customized supply solutions and improve supply chain efficiency. We adhere to the value concept of sustainable development and are committed to providing perfect demand solutions while working with domestic and international customers as China's premier high-end coating and plating steel products service provider.
