Electro Galvanizing Prepainted Galvanized Steel Coil for Steel Framing with Custom Length
Product Details
| Thickness | 0.12 - 3.0mm (Galvanized), 0.25 - 3.0mm (Galvalume), 0.12 - 1.2mm (Prepainted) | Width | 914mm, 1000mm, 1200mm, 1219mm, 1220mm, 1250mm Or Custom |
|---|---|---|---|
| Coil Weight | 2Ton - 8 Tons | Coil Inner Diameter | 508mm Or 610mm |
| Zinc Coating | Z30 - Z275 | Aluminum-Zinc Coating | AZ40 - AZ180 |
| Painting Type | PE, HDP, SMP, PVDF | Coating Thickness | 20-25um/5-10um |
| Coating Layers | Above 2 Layer, Bottom 1 Layer | Pattern Thickness | 0.17 - 1.5mm |
| Heat Resistance | >300°C | Sheet Length | Custom Length |
| Surface Finish | Regular Spangle, Non-spangle, Zinc Flowers | Alloy Composition | 55% Al, 43% Zn, 2% Si |
| Sheet Specification | 1220*2440, 1500*3000, 1500*6000, 2000*6000mm | ||
| Highlight | Electro Galvanizing PPGI Steel Coil,Steel Framing Color Coated Steel Coil,Custom Length Prepainted Galvanized Steel Coil |
||
Product Description
Electro Galvanizing Prepainted Galvanized Steel Coil for Steel Framing
High-quality electro galvanizing prepainted galvanized steel coil specifically designed for steel framing applications, offering superior corrosion resistance and durability.
Product Specifications
| Products Name | Galvanized Steel Sheet / Galvalume Steel Sheet / Prepainted Galvanized Steel Sheet |
|---|---|
| Thickness | Galvanized steel sheet: 0.12 - 3.0mm Galvalume Steel Sheet: 0.25 - 3.0mm Prepainted Galvanized Steel Sheet: 0.12 - 1.2mm |
| Width | 914mm, 1000mm, 1200mm, 1219mm, 1220mm, 1250mm or custom requirements |
| Length | Custom length as per customer requirements |
| Coil Weight | 2 - 8 Tons |
| Coil Inner Diameter | 508mm or 610mm |
| Surface | Galvanized: Regular spangle/non-spangle Zinc: Z30 - Z275 Galvalume: AZ40 - AZ180 Prepainted: Painting Type: PE, HDP, SMP, PVDF |
| Standard | AISI, ASTM, BS, DIN, GB, JIS, AS, etc. |
Products Center

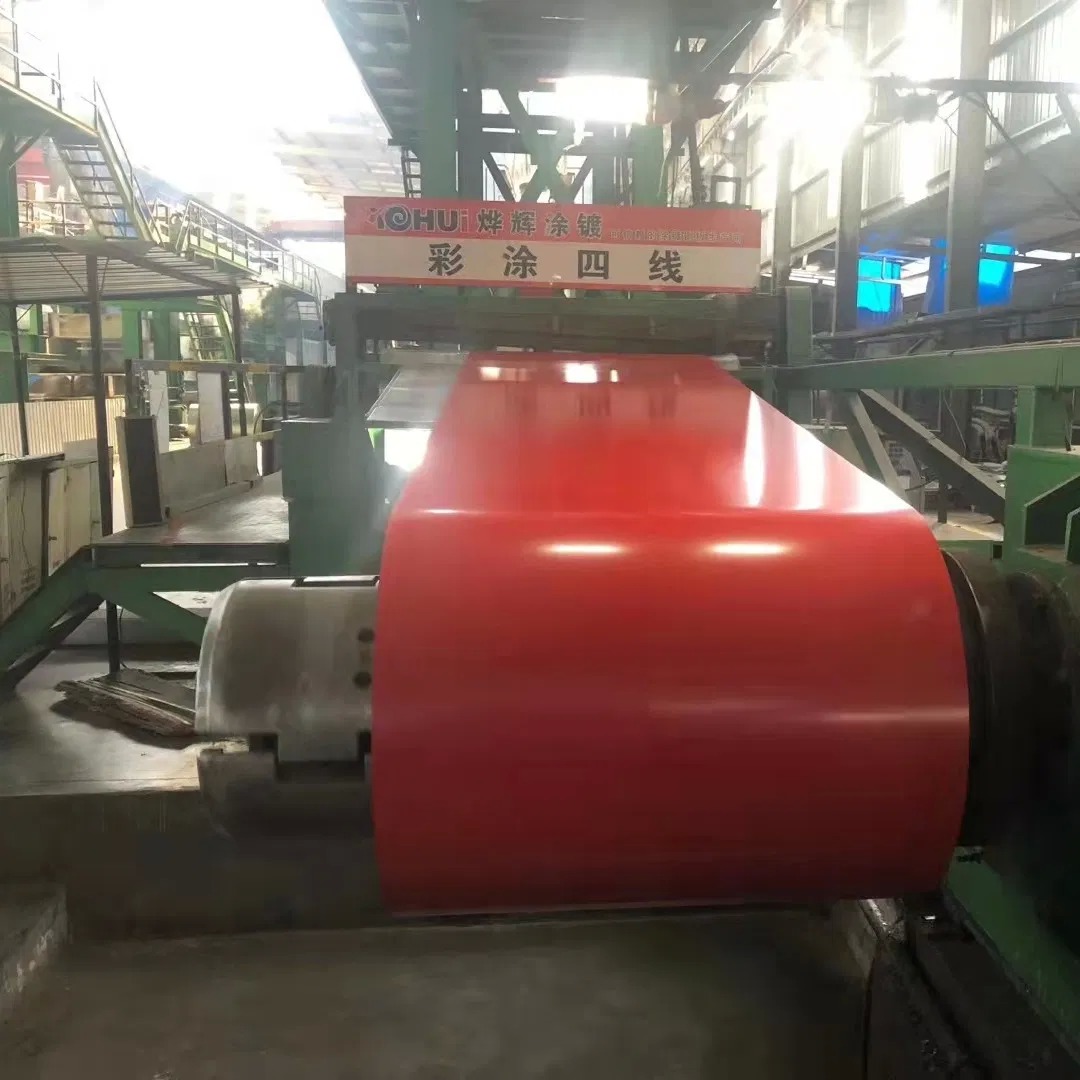

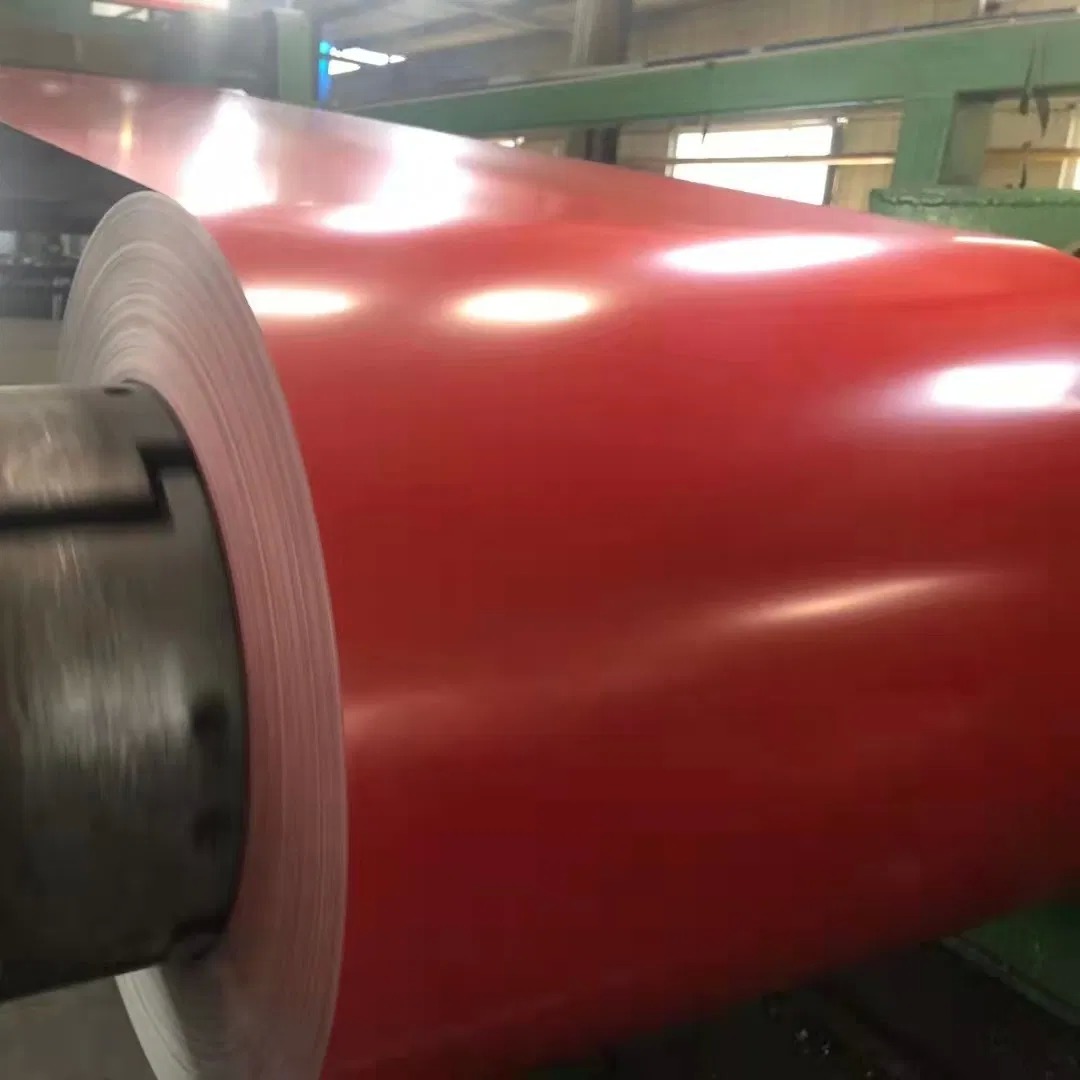

Prepainted Galvanized Steel Coil (PPGI)
Also known as color plate, PPGI is manufactured using cold rolled steel plate and galvanized steel plate as base materials. After surface pretreatment including degreasing, cleaning, and chemical conversion treatment, the coating is applied using continuous roller coating method, followed by baking and cooling processes.
Features lightweight construction, attractive appearance, and excellent anti-corrosion performance. Can be directly processed and serves as an innovative raw material for construction industry, shipbuilding, vehicle manufacturing, home appliances, electrical industry, and more. Effectively replaces wood while enabling efficient construction, energy conservation, and pollution prevention.
Galvanized Steel Coil
Steel sheet with zinc-coated surface for effective rust prevention. Galvanizing represents an economical and efficient corrosion protection method, accounting for approximately half of global zinc production usage.
Surface Requirements: Various surface states including regular spangle, small spangle, and big spangles depending on coating process. Products must exhibit good appearance without defects affecting usability such as no plating, holes, cracks, scum, excessive thick plating, abrasion, chromic acid dirt, or white rust.

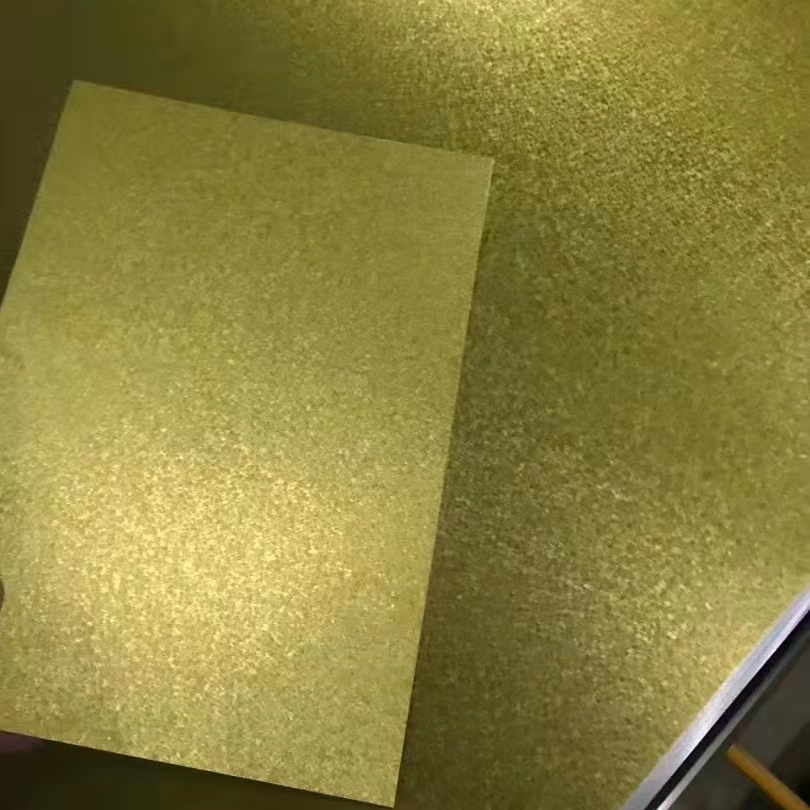

Galvalume Steel Coil
Alloy composition of 55% aluminum, 43% zinc, and 2% silicon solidified at 600°C. Features dense tetrad junction crystal structure composed of aluminized iron, silicon, and zinc.
Offers excellent corrosion resistance (3 times better than pure galvanized sheet) with decorative zinc flower surface pattern suitable for building exterior panels. Aluminum component provides primary protective function. Excellent heat resistance withstands temperatures exceeding 300°C, similar to aluminum plated steel plate, making it ideal for chimney tubes, ovens, illuminators, and solar lampshades.
Feature Products

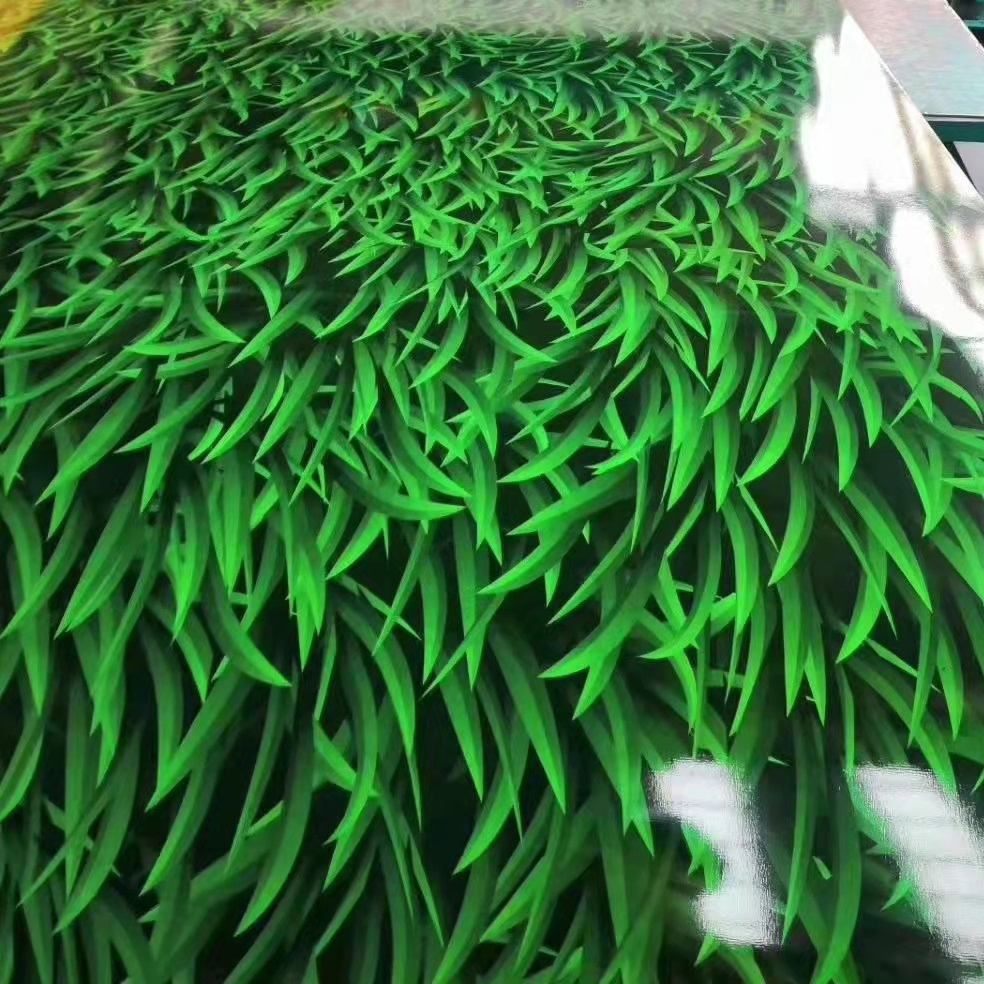

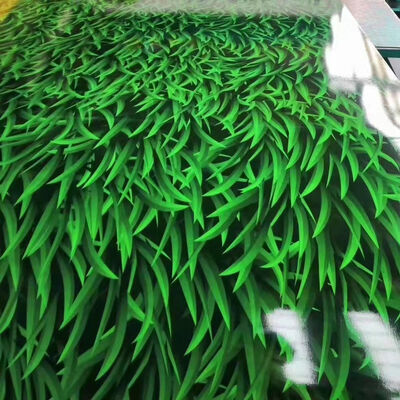

| Products | Pattern Print Prepainted Steel Sheet |
|---|---|
| Introduction | Color plates printed on galvanized plate, aluminized zinc plate and other substrates using transfer printing or film covering technology |
| Features | Wide application range including marble grain, camouflage, wood grain printing color board with bright colors and variety |
| Size | Thickness: 0.17 - 1.5mm Width: less than 1.5mm |
| Color and Pattern | Customized as per client requirements |
| Base Material | Galvanized steel sheet / Galvalume steel sheet |
| Coating Thickness | 20-25um/5-10um |
| Coating Type | Above 2 layers, bottom 1 layer |
| Coil ID | Φ510mm/610mm |
| Application | Widely used in household appliances, furniture, doors and windows, indoor and outdoor decoration and other fields |
Trade Information
| MOQ | 5 Tons |
|---|---|
| Payment Term | TT or 100% LC at sight |
| Packing | Standard Sea Worthy Package |
| Loading Port | Shanghai Port, Qingdao Port, Tianjin Port |
| Container Loading | 20ft container FCL, LCL |
| Delivery Time | Within 15 days |
Company Information
Our company is a modern enterprise specializing in high-end coating plate processing, sales, and circulation, registered in Wuxi City. Main products include color coating, galvanized, aluminum zinc plating, zinc aluminum magnesium, and aluminum magnesium manganese high-end metal plates.
We maintain excellent cooperative relationships with several major domestic steel mills including Ye Hui (China), Baoshan Iron & Steel, Shougang, Magang, Hangang, Rizhao Steel, and Jiangyin Zongcheng Steel. Our products are widely used in steel structure building, metal building materials, steel silo, ventilation pipes, mechanical and electrical housing, home appliance plate, elevator, purification plate, automotive stamping parts and other fields.
Since establishment, we have collaborated with factories to participate in material supply and technical service for numerous medium and large engineering projects domestically and internationally.
Our employees average over 8 years of industry experience, enabling us to provide customized supply solutions that improve supply chain efficiency as your optimal partner.
We adhere to the value concept of sustainable development and are committed to providing perfect demand solutions while working with domestic and foreign customers to establish ourselves as China's premier high-end coating and plating steel products service provider.
