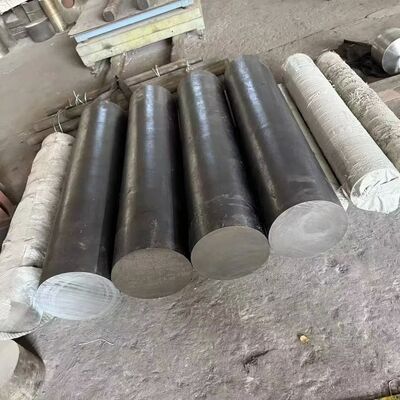

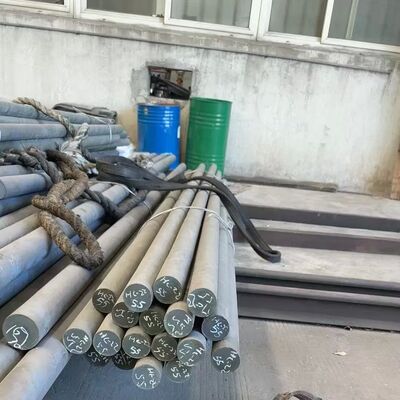

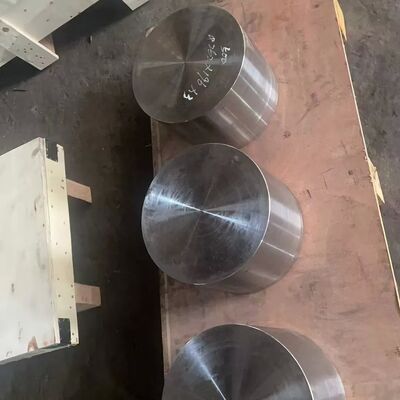

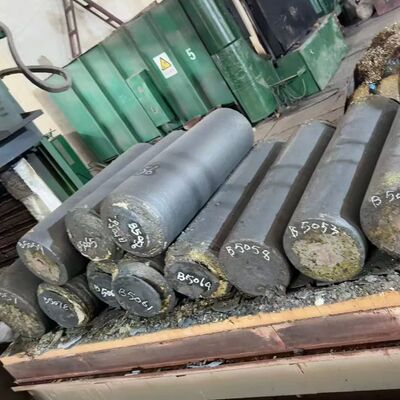

Hot Rolled Inconel 718 Round Bar with Pickling Surface Treatment and 6 - 350mm Specification Nickel Alloy 718 Rod
Product Details
| Model NO. | 718 | Shape | Round |
|---|---|---|---|
| Technique | Hot Rolled | Surface Treatment | Pickling |
| Length | 6m Or Custom | Outer Diameter | 6mm-300mm |
| Process Method | Hot Rolled, Cold Drawn, Cold Rolled, Forged | Surface Finish | Bright, Hot Rolled Pickled, Cold Drawn, Sand Blasting Finished, Polished, Hairline |
| 0.2% Proof Stress | 1034 MPA | Tensile Strength | 1275 MPA |
| Elongation | 12% | Reduction Of Area | 15% |
| Hardness | 331 HB | Max Temperature Resistance | 1800 Degrees F |
| Min Temperature Resistance | -423 Degrees F | ||
| Highlight | Hot Rolled Inconel 718 Round Bar,Pickling Surface Treatment Nickel Alloy 718 Rod,6 - 350mm Specification 718 Alloy Bars |
||
Product Description
Inconel 718 Round Bar Nickel Alloy 718 Rod
High-performance nickel alloy 718 round bars with solid solution finishing, designed for superior performance in extreme temperature environments.
Product Specifications
Form: Nickel Alloy Bars
Grade: Inconel 718
Outer Diameter: 6mm-300mm or custom requirements
Length: Custom cutting available
Standards: ASTM, ASME, EN, JIS, DIN, GB/T
Process Methods: Hot Rolled, Cold Drawn, Cold Rolled, Forged
Surface Finish: Bright, Hot Rolled Pickled, Cold Drawn, Sand Blasting, Polished, Hairline
Material Description
Inconel 718 is a high-temperature alloy classified as a superalloy with gamma prime strengthening. This nickel alloy round bar demonstrates exceptional performance characteristics including superior resistance to creep and stress rupture up to 1300°F, oxidation resistance up to 1800°F, and excellent cryogenic properties maintaining mechanical performance down to -423°F.
Mechanical Properties
| 0.2% Proof Stress (MPa) | Tensile Strength (MPa) | Elongation (%) | Reduction of Area (%) | Hardness (HB) |
|---|---|---|---|---|
| Min 1034 | Min 1275 | Min 12 | Min 15 | Min 331 |
Chemical Composition
| Element | Min (%) | Max (%) |
|---|---|---|
| Ni | 50 | 55 |
| Cr | 17 | 21 |
| Fe | Bal | - |
| Mo | 2.8 | 3.3 |
| Nb+Ta | 4.75 | 5.50 |
| C | - | 0.08 |
| Mn | - | 0.035 |
| Si | - | 0.35 |
| P | - | 0.015 |
| S | - | 0.015 |
| Ti | 0.65 | 1.15 |
| Cu | - | 0.30 |
| B | - | 0.0006 |
| Al | 0.20 | 0.80 |
| Co | - | 1.00 |
Equivalent Standards
| Standard | Werkstoff Nr. | UNS |
|---|---|---|
| 718 | 2.4668 | N07718 |
Available Services

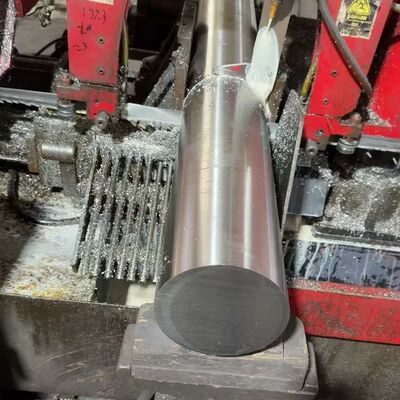

- Custom cutting to required lengths
- Bright polishing and cold drawn finishing
- Heat treatment including solid solution, aging, and Q+T processes
Quality Assurance
Mill test certificates provided with all shipments. Third-party inspection services available upon request. Comprehensive metal testing including high/low temperature impact tests and metallographic analysis.
Additional Grades Available
Hastelloy: B2, B3, C22, C276, G30, X | Incoloy: 800, 800H, 800HT, 825, 925, A286, 330 | Inconel: 600, 601, 617, 625, 718, 725, X-750 | Monel: 400, K-500
