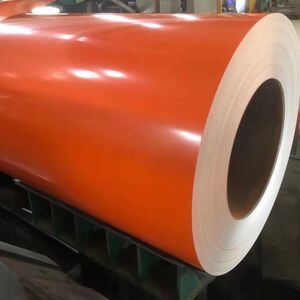

Custom Cut White, Black, Sky Blue JIS, CGCC PPGI Prepainted Galvanized Steel Coil for Container Plate
Product Details
| Thickness | 0.12 - 3.0mm (Galvanized), 0.25 - 3.0mm (Galvalume), 0.12 - 1.2mm (Prepainted) | Width | 914mm, 1000mm, 1200mm, 1219mm, 1220mm, 1250mm Or Custom |
|---|---|---|---|
| Length | Custom Length | Coil Weight | 2 - 8 Tons |
| Coil Inner Diameter | 508mm Or 610mm | Zinc Coating | Z30 - Z275 (Galvanized) |
| Aluminum-Zinc Coating | AZ40 - AZ180 (Galvalume) | Painting Type | PE, HDP, SMP, PVDF (Prepainted) |
| Surface Finish | Regular Spangle, Non-spangle, Or Custom | Coating Thickness | 20-25um/5-10um (Prepainted) |
| Coating Layers | Above 2 Layers, Bottom 1 Layer (Prepainted) | Heat Resistance | >300°C (Galvalume) |
| Pattern Thickness | 0.17 - 1.5mm (Pattern Print) | Pattern Width | <1.5mm (Pattern Print) |
| Sheet Specification | 1220*2440, 1500*3000, 1500*6000, 2000*6000mm | ||
| Highlight | Custom Cut PPGI Steel Coil,White,Black,Sky Blue Color Coated Steel Coil,JIS,CGCC Standard Prepainted Galvanized Steel Coil |
||
Product Description
Custom Cut White, Black, Sky Blue JIS, CGCC PPGI Prepainted Color Steel Coils
High-quality prepainted galvanized steel coils available in custom colors including white, black, and sky blue, manufactured to JIS and CGCC standards.
Product Specifications
| Products Name | Galvanized Steel Sheet / Galvalume Steel Sheet / Prepainted Galvanized Steel Sheet |
|---|---|
| Thickness |
Galvanized steel sheet: 0.12 - 3.0mm Galvalume Steel Sheet: 0.25 - 3.0mm Prepainted Galvanized Steel Sheet: 0.12 - 1.2mm |
| Width | 914mm, 1000mm, 1200mm, 1219mm, 1220mm, 1250mm or according to customer's requirement |
| Length | Custom length as customer requirement |
| Coil Weight | 2Ton - 8 Tons |
| Coil Inner Diameter | 508mm or 610mm |
| Surface |
Galvanized steel sheet: Regular spangle / non-spangle Zinc: Z30 - Z275 Galvalume Steel Sheet: AZ40 - AZ180 Prepainted Galvanized Steel Sheet: Painting Type: PE, HDP, SMP, PVDF |
| Standard | AISI, ASTM, BS, DIN, GB, JIS, AS ETC |
Products Center
Prepainted Galvanized Steel Coil (PPGI)
Prepanited galvanized steel coil, also known as PPGI or color plate, uses cold rolled steel plate and galvanized steel plate as base plates. After surface pretreatment including degreasing, cleaning, and chemical conversion treatment, it undergoes continuous coating via roller coating method, followed by baking and cooling. The coated steel plate offers light weight, attractive appearance, and excellent anti-corrosion performance, and can be directly processed. It serves as a new raw material for construction, shipbuilding, vehicle manufacturing, home appliances, electrical industries, effectively replacing wood with steel while enabling efficient construction, energy saving, and pollution prevention.
Galvanized Steel Coil
Galvanized sheet refers to zinc-coated steel plate surface. Galvanizing is an economical and effective rust prevention method, with approximately half of the world's zinc production used for this process.
Surface Requirements:
- Surface state varies based on coating treatment methods: regular spangle, small spangle, big spangles, etc.
- Galvanized sheet should have good appearance without harmful defects such as no plating, holes, cracks, scum, excessive thick plating, abrasion, chromic acid dirt, or white rust
Galvalume Steel Coil
Galvalume steel sheet is an alloy composed of 55% aluminum, 43% zinc and 2% silicon solidified at 600ºC, forming a dense tetrad junction crystal structure of aluminized iron, silicon and zinc.
- Excellent corrosion resistance - 3 times better than pure galvanized sheet
- Beautiful zinc flower surface decoration suitable for building exterior panels
- Aluminum provides primary protective function and corrosion resistance
- Good heat resistance - withstands temperatures over 300°C, similar to aluminum plated steel plate
- Commonly used in chimney tubes, ovens, illuminators, and solar lampshades
Feature Products
| Products | Pattern Print Prepainted Steel Sheet |
|---|---|
| Introduce | Color plate printed on galvanized plate, aluminized zinc plate and other substrates using transfer printing or film covering technology |
| Features | Main applications include marble grain, camouflage, wood grain printing color board with bright colors and variety |
| Size | Thickness: 0.17 - 1.5mm Width less than 1.5mm |
| Color and Pattern | As clients request |
| Base Material | Galvanized steel sheet / galvalume steel sheet |
| Coating Thickness | 20-25um/5-10um |
| Coating Type | Above 2 layer, bottom 1 layer |
| Coil ID | Φ510MM/610MM |
| Application | Widely used in household appliances, furniture, doors and windows, indoor and outdoor decoration and other fields |
Trade Information
| MOQ | 5 Tons |
|---|---|
| Payment Term | TT or 100% LC at sight |
| Packing | Standard Sea Worthy Package |
| Loading Port | Shanghai Port, Qingdao Port, Tianjin Port |
| Container Loading | 20ft container FCL, LCL |
| Deliver Time | Within 15 days |
Company Information
Our company is a modern enterprise specializing in high-end coating plate processing, sales, and circulation, registered in Wuxi city. We offer comprehensive solutions for color coating, galvanized, aluminum zinc plating, zinc aluminum magnesium and aluminum magnesium manganese high-end metal plates.
We maintain strong cooperative relationships with major domestic steel mills including Ye Hui (China), Baoshan Iron & Steel, Shougang, Magang, Hangang, Rizhao Steel, and Jiangyin ZongCheng Steel. Our products are widely used in steel structure building, metal building materials, steel silo, ventilation pipes, mechanical and electrical housing, home appliance plate, elevator, purification plate, automotive stamping parts and other fields.
Our employees average over 8 years of industry experience, enabling us to provide customized supply solutions and improve supply chain efficiency as your best partner.
We adhere to the value concept of "not for a long time, not to be able to recover" and are committed to providing customers with perfect demand solutions while working with domestic and foreign customers to establish ourselves as China's premier high-end coating and plating steel products service provider.
