DIN 1.6580 34CrNiMo6 Hot Rolled High Tensile Alloy Steel Round Bar Size 10-350mm
Product Details
| Material Grade | 34CrNiMo6 DIN1.6582 | Diameter Range | 10-350mm |
|---|---|---|---|
| Carbon Content | 0.30-0.38% | Silicon Content | Max 0.40% |
| Manganese Content | 0.50-0.80% | Chromium Content | 1.30-1.70% |
| Molybdenum Content | 0.15-0.30% | Nickel Content | 1.30-1.70% |
| Tensile Strength | ≥980 MPa | Yield Strength | ≥785 MPa |
| Elongation | ≥9% | Reduction Area | ≥40% |
| Impact Test | ≥47 J | Quenching Temperature | 850°C |
| Tempering Temperature | 200°C | ||
| Highlight | DIN 1.6580 Steel Round Bar,Hot Rolled Alloy Steel Bar,High Tensile 34CrNiMo6 Steel Bar |
||
Product Description
DIN 1.6580 34CrNiMo6 Hot Rolled Steel Bar
High tensile alloy round bar available in sizes from 10-350mm, manufactured to DIN 1.6582 and EN 10083-3 standards.
Product Overview
34CrNiMo6 alloy steel is a high-strength nickel-molybdenum alloy with excellent comprehensive mechanical properties. This material is supplied as forged round bars, square/flat bars, rollers, shafts, and blocks, or as rolled round rods.
Chemical Composition
| Element | Content (%) |
|---|---|
| Carbon | 0.30-0.38 |
| Silicon | Max 0.40 |
| Manganese | 0.50-0.80 |
| Chromium | 1.30-1.70 |
| Molybdenum | 0.15-0.30 |
| Nickel | 1.30-1.70 |
Available Forms & Sizes
DIN 34CrNiMo6 Forged Steel
- Round Bars: Diameter 80-1,000mm, Length 3,000-10,000mm
- Square Bars: 150×150-500×500mm, Length 3,000-8,000mm
- Custom forged flat bars, blocks, shafts, and forging pieces available
W-Nr 1.6582 Rolled Steel
- Round Bars: Diameter 10-300mm, Length 3,000-10,000mm (customizable)
Dimensional Tolerances
- Black surface: -0/+8mm
- Machined surface: -0/+3mm
- Straightness deviation: Maximum 2mm per meter with 360° rotary device
Quality Certification
- Chemical composition per DIN 7527-6, EN 10250-3
- Mechanical properties testing including tensile strength, yield point, elongation, and impact tests
- Non-metallic inclusions analysis
- Grain size: Minimum 5, preferred 8 (DIN 50601)
- Ultrasonic testing: 360° complete round testing per EN 10228-3
Mechanical Properties
| Property | Value |
|---|---|
| Quenching Temperature | 850°C (oil) |
| Tempering | 200°C (air) |
| Tensile Strength | ≥980 MPa |
| Yield Strength | ≥785 MPa |
| Elongation | ≥9% |
| Reduction of Area | ≥40% |
| Impact Energy (Akv) | ≥47 J |
Applications
34CrNiMo6 steel is widely used for high-load components including transmission systems, tractor motors, and automotive applications. Common uses include:
- High-load shafts and connecting rod structures
- Surface-hardened wear-resistant components and gears
- Engine camshafts and connecting rods
- Carburized gears, pinions, shafts, bearings, and crankshafts
- Oil drilling equipment and mining components
Heat Treatment Processes
Forging
- Careful preheating required
- Forging temperature: 1150-1200°C
- Maintain temperature above 850°C during forging
Hardening & Tempering
- Heat uniformly to 850°C
- Quench in oil
- Temper at 550°C for minimum 2 hours
- Cool in furnace
Annealing
- Heat thoroughly to 800-850°C
- Slow cool to 550°C
- Complete annealing in air
Normalizing
- Heat to 850°C
- Cool to room temperature in air
Available Conditions
Our steel materials are available in various conditions including pre-hardened, hot rolled, annealed, quenched and tempered, with surface conditions ranging from black, pre-machined, grinding, to polished finishes.
Why Choose Our Steel Products
Quality Assurance
Materials sourced exclusively from government-owned steel mills with ISO 9001 certified quality management system.
Timely Delivery
Speedy processing and delivery for both raw materials and finished products with machining or heat treatment.
Comprehensive Service
We provide value-added services including metal cutting, sizing, machining (blanking, milling, grinding), heat treatment, and sawing for any quantity.
Flexible Ordering
Orders of any size and length accepted with fast shipping and unique inventory of specialty steel products.

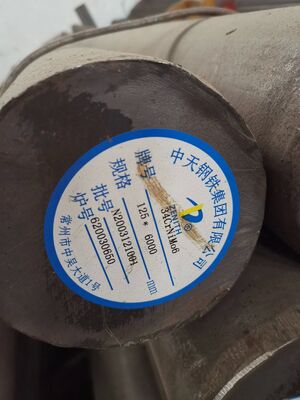

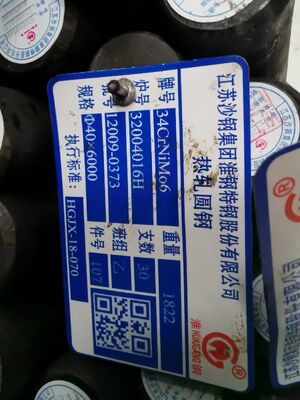

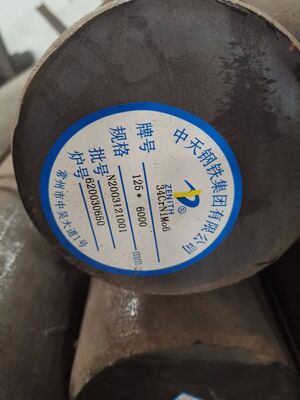

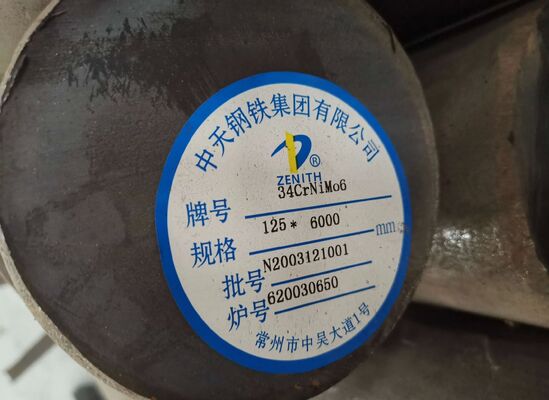

Product Images
