High Hardness AISI 301 Stainless Steel Strip Cold Rolled Width 10-2000mm SUS301 Strip
Product Details
| Thickness | 0.1 - 3.0mm | Surface Treatment | 2B, Bright, Hairline |
|---|---|---|---|
| Width | 10 - 1219mm | Standard | ASTM A240 / JIS G4305 / EN 10088 |
| Hardness | 1/4H 1/2H 3/4H FH | Tensile Strength | 758 - 1276 MPa |
| Yield Strength | 276 - 965 MPa | Elongation | 9 - 60% |
| Density | 7880 Kg/m³ | Elastic Modulus | 193 GPa |
| Thermal Expansion | 16.9 - 18.2 μm/m/°C | Thermal Conductivity | 16.2 - 21.4 W/m.K |
| Specific Heat | 500 J/kg.K | Electrical Resistivity | 695 NΩ.m |
| Composition | C ≤0.15%, Mn ≤2.0%, Si ≤1.0%, P ≤0.045%, S ≤0.030%, Cr 16.0-18.0%, Ni 6.0-8.0%, N ≤0.10% | ||
| Highlight | High Hardness Stainless Steel Strip,Cold Rolled AISI 301 Strip,Width 10-2000mm SUS301 Strip |
||
Product Description
High Hardness AISI 301 Stainless Steel Strips
SUS301 stainless steel strips with thickness range of 0.1-3.0mm, manufactured in China. These strips offer exceptional hardness and mechanical properties for demanding industrial applications.
Product Specifications
Product Name: 301 stainless steel strips
Thickness: 0.1 - 3.0mm
Surface Finish: 2B, bright, hairline
Width: 10 - 1219mm
Standards: ASTM A240 / JIS G4305 / EN 10088
Hardness: 1/4H, 1/2H, 3/4H, FH or as requested
Other Grades: 201, 202, 301, 304, 304L, 309S, 310S, 316L, 410, 420, 430, 440, etc.
Minimum Order Quantity: 300 Kgs
Product Overview
Stainless steel grade 301 is typically supplied as strips and wires, achieving tensile strengths up to 1800 MPa across tempers ranging from 1/16 Hard to Full Hard. Through controlled analysis, grade 301 maintains sufficient ductility even in ½ hard conditions, making it suitable for aircraft components, rail car parts, and architectural structures. Tempers from ¾ to full hard provide excellent wear resistance and spring characteristics for simple form designs.
Grade 301L, the low carbon variant, offers superior ductility for applications requiring enhanced formability. Grade 301LN contains higher nitrogen content, resulting in increased work hardening rates compared to standard 301. While grade 301 is specified in ASTM A666, 301L conforms to JIS G4305 and 301LN to EN10088-2 as grade 1.4318.
Chemical Composition
Table 1: Composition Ranges for 301 Grade Stainless Steel
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
|---|---|---|---|---|---|---|---|---|---|
| 301 ASTM A666 | - 0.15 | - 2.0 | - 1.0 | - 0.045 | - 0.030 | 16.0-18.0 | - | 6.0-8.0 | - 0.10 |
| 301L JIS G4305 | - 0.03 | - 2.0 | - 1.0 | - 0.045 | - 0.030 | 16.0-18.0 | - | 6.0-8.0 | - 0.20 |
| 1.4318/301LN EN 10088-2 | - 0.03 | - 2.0 | - 1.0 | - 0.045 | - 0.015 | 16.5-18.5 | - | 6.0-8.0 | 0.10-0.20 |
Mechanical Properties
Table 2: Mechanical Properties of 301 Grade Stainless Steel
| Grade 301 Temper ASTM A666 | Tensile Strength (MPa) min. | Yield Strength 0.2% Proof (MPa) min. | Elongation (% in 50mm) min. | Bend Angle (°) | Bend Factor |
|---|---|---|---|---|---|
| Annealed | 758 | 276 | 60 | - | - |
| 1/16 Hard | 620 | 310 | 40 | 180 | 1 |
| 1/8 Hard | 690 | 380 | 40 | 180 | 1 |
| 1/4 Hard | 862 | 514 | 25 | 90 | 2 |
| 1/2 Hard | 1034 | 758 | 18 | 90 | 2 |
| 3/4 Hard | 1205 | 930 | 12 | 90 | 3 |
| Full Hard | 1276 | 965 | 9 | 90 | 5 |
Physical Properties
Table 3: Physical Properties of 301 Grade Stainless Steel
| Grade | Density (kg/m³) | Elastic Modulus (GPa) | Thermal Expansion (μm/m/°C) | Thermal Conductivity (W/m.K) | Specific Heat (J/kg.K) | Electrical Resistivity (nΩ.m) |
|---|---|---|---|---|---|---|
| 301 | 7880 | 193 | 16.9 | 16.2 | 500 | 695 |
Performance Characteristics
Corrosion Resistance
Grade 301 offers corrosion resistance comparable to 304 stainless steel, providing excellent performance in mildly corrosive environments at ambient temperatures.
Heat Resistance
Excellent oxidation resistance for intermittent service up to 840°C and continuous service up to 900°C.
Heat Treatment
Solution treatment annealing at 1010°C to 1120°C followed by rapid cooling. Intermediate annealing uses lower temperature ranges. Thermal hardening is not suitable for this grade.
Cold Working
Grade 301 and its low carbon variants serve as high-strength stainless steels with exceptional work hardening rates (approximately 14MPa increase per 1% reduction in area). Cold rolling and roll forming operations can achieve high strengths while maintaining sufficient residual ductility. The alloy transitions from non-magnetic in annealed condition to strongly magnetic when cold worked.
Welding
Compatible with all standard welding methods using 308L filler metal. Annealing after welding restores maximum corrosion resistance. For 301L and 301LN grades, post-weld annealing is unnecessary. Spot welding effectively assembles cold-rolled 301 components without compromising strength.
Applications
- Rail car structural components
- Air frame sections
- Highway trailer components
- Automotive wheel covers
- Wiper blade clips and holders
- Stove element clips
- Screen frames
- Toaster springs
- Curtain walls

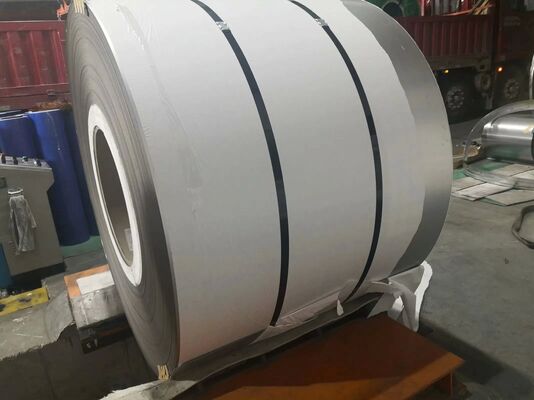

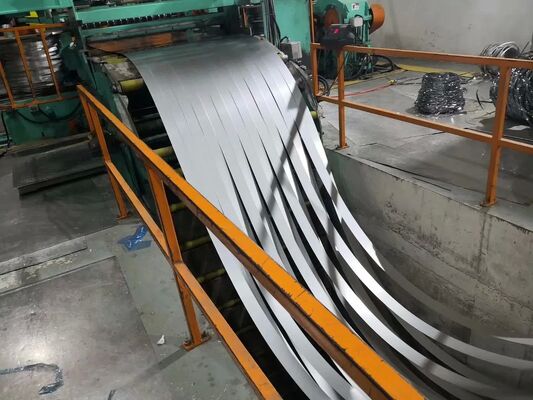

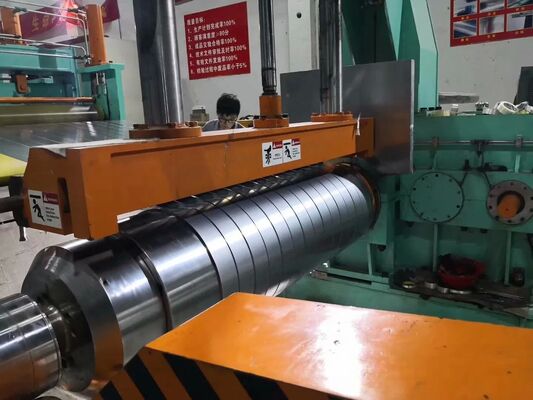

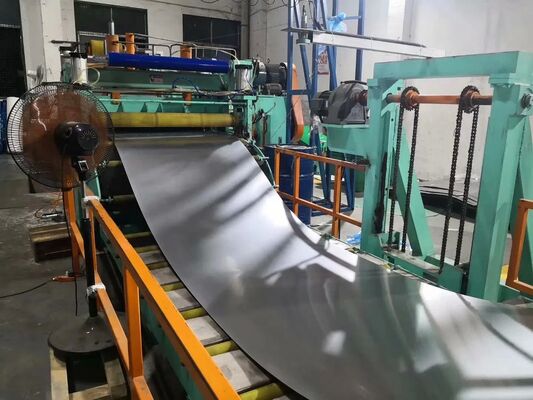

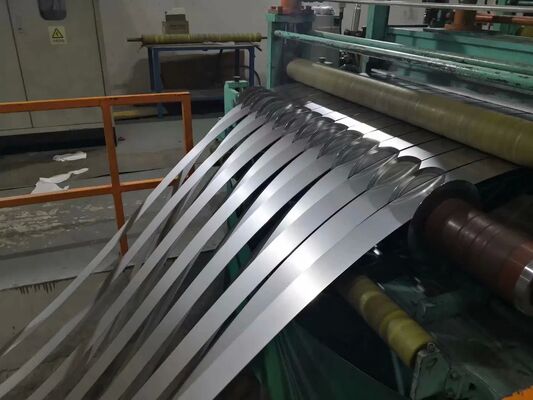

Product Images
