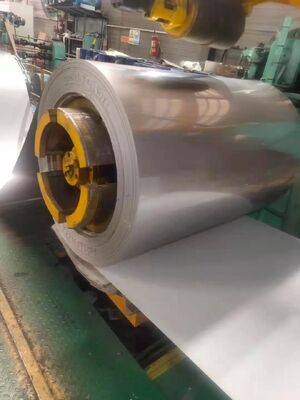

Cold Rolled Inconel 600 Strip with Bright Surface and Corrosion Resistant Nickel Chromium Alloy 600 Coil
Product Details
| Model NO. | Inconel 600 | Shape | Flat |
|---|---|---|---|
| Technique | Cold Rolled | Surface Treatment | Bright |
| Specification | 1220*2440, 1500*3000, 1500*6000, 2000*6000mm | Thickness Range | 0.05MM To 3MM |
| Width Range | Up To 3000 Wide | Surface Finish | 2B / 2D / BA |
| Hardness Options | 1/4 Hard, 1/2 Hard, 3/4 Hard, Full Hard, Spring Hard, Annealed, Pickled Soft | Density | 8.4 G/cm3 |
| Melting Point | 1370-1425 °C | Tensile Strength | 550 N/mm2 (Annealing Treatment) |
| Yield Strength | 240 N/mm2 (Annealing Treatment) | Elongation | 30% (Annealing Treatment) |
| Brinell Hardness | 95 HB (Annealing Treatment) | ||
| Highlight | Cold Rolled Inconel 600 Strip,Bright Surface Nickel Chromium Strip,Corrosion Resistant Alloy 600 Coil |
||
Product Description
Inconel 600 Strip Coils
Professional manufacturer of Inconel 600 Plates, Sheets, Strips, and Coils (UNS N06600, 2.4816, Alloy 600). We offer comprehensive production capabilities and quality assurance for industrial applications.
Product Specifications
Plates & Sheets: Thickness range 4.5MM to 200MM, width up to 3000MM
Strips & Coils: Thickness range 0.05MM to 3MM
Surface Finish: 2B / 2D / BA
Hardness Options: 1/4 Hard, 1/2 Hard, 3/4 Hard, Full Hard, Spring Hard, Annealed, Pickled Soft
Strips & Coils: Thickness range 0.05MM to 3MM
Surface Finish: 2B / 2D / BA
Hardness Options: 1/4 Hard, 1/2 Hard, 3/4 Hard, Full Hard, Spring Hard, Annealed, Pickled Soft
Custom Processing & Finishing
We provide multiple processing options to meet exact specifications, reducing material costs, production time, and scrap. All stainless steel grades can be cut to required dimensions.
Polishing services available: #4 Polish, #6 Polish, #7 Polish, or #8 Mirror Finish on one or both sides.
Quality Control
Each plate, sheet, coil, and strip undergoes rigorous testing in our Metallurgical Laboratory. Test pieces are analyzed for chemical content, microstructure, strength, ductility, and corrosion resistance. All scrap is separated by grade and recycled.
Material Specifications
Standard Designations:
| UNS | Trademark | JIS | W.Nr |
|---|---|---|---|
| N06600 | Inconel600 | NCF600 | 2.4816 |
Chemical Composition:
| Alloy | Ni | Cr | Fe | C | Mn | Si | Cu | P | S |
|---|---|---|---|---|---|---|---|---|---|
| 600 | 72 Min | 14-17 | 6-10 | 0.15 Max | 1 Max | 0.5 Max | 0.5 Max | 0.015 Max | 0.015 Max |
Physical Properties:
| Density | Melting Point |
|---|---|
| 8.4 g/cm³ | 1370-1425 °C |
Mechanical Properties:
| Alloy Status | Tensile Strength (Rm N/mm²) | Yield Strength (RP0.2 N/mm²) | Elongation A5 % | Brinell Hardness HB |
|---|---|---|---|---|
| Annealing Treatment | 550 | 240 | 30 | 95 |
| Solution Treatment | 500 | 180 | 35 | 85 |
Material Characteristics
- Excellent corrosion resistance in reduction, oxidation, nitric, and other media
- Superior stress corrosion cracking resistance at room and high temperatures
- Outstanding corrosion resistance to dry chlorine and chlorine hydride
- Excellent mechanical properties from sub-zero to high temperatures
- Good anti-creep rupture strength, recommended for 700°C+ working environments
Metallurgical Structure
Inconel 600 features a face-centered cubic lattice structure.
Application Fields
Primary Applications:
• Erosion thermocouple sheath of the atmosphere
• Vinyl chloride monomer production: corrosion resistance to chlorine, hydrogen chloride, oxidation and carbonation
• Erosion thermocouple sheath of the atmosphere
• Vinyl chloride monomer production: corrosion resistance to chlorine, hydrogen chloride, oxidation and carbonation
Industry Applications
Automotive: Trim and molding, exhaust-system components, tubular manifolds, mufflers, catalytic converter shells, clamps
Construction: Gutters, downspouts, roofing, siding
Kitchenware: Cooking utensils, dishwashers, ovens, range hoods, refrigerators
Chemical Processing: Oil refinery equipment, oil burner and heater parts
Appliances: Hot water tanks, residential furnaces
Power Generation: Heat exchanger tubing
Farming: Dry fertilizer spreaders, farm animal pens
Construction: Gutters, downspouts, roofing, siding
Kitchenware: Cooking utensils, dishwashers, ovens, range hoods, refrigerators
Chemical Processing: Oil refinery equipment, oil burner and heater parts
Appliances: Hot water tanks, residential furnaces
Power Generation: Heat exchanger tubing
Farming: Dry fertilizer spreaders, farm animal pens
Ordering Information
Please provide the following details for quotation and ordering:
- Grade, Surface, Thickness, Size, Tolerance, Special requirements
- Quantity/Amount
- Price Term
- Contact Information
